GT-25-15 Overview

SWITCHING POWER SUPPLY, SINGLE OUTPUT: 25 WATTS, ENCLOSED, UNIVERSAL INPUT

Preview

Download Datasheet

View All

Data Sheet

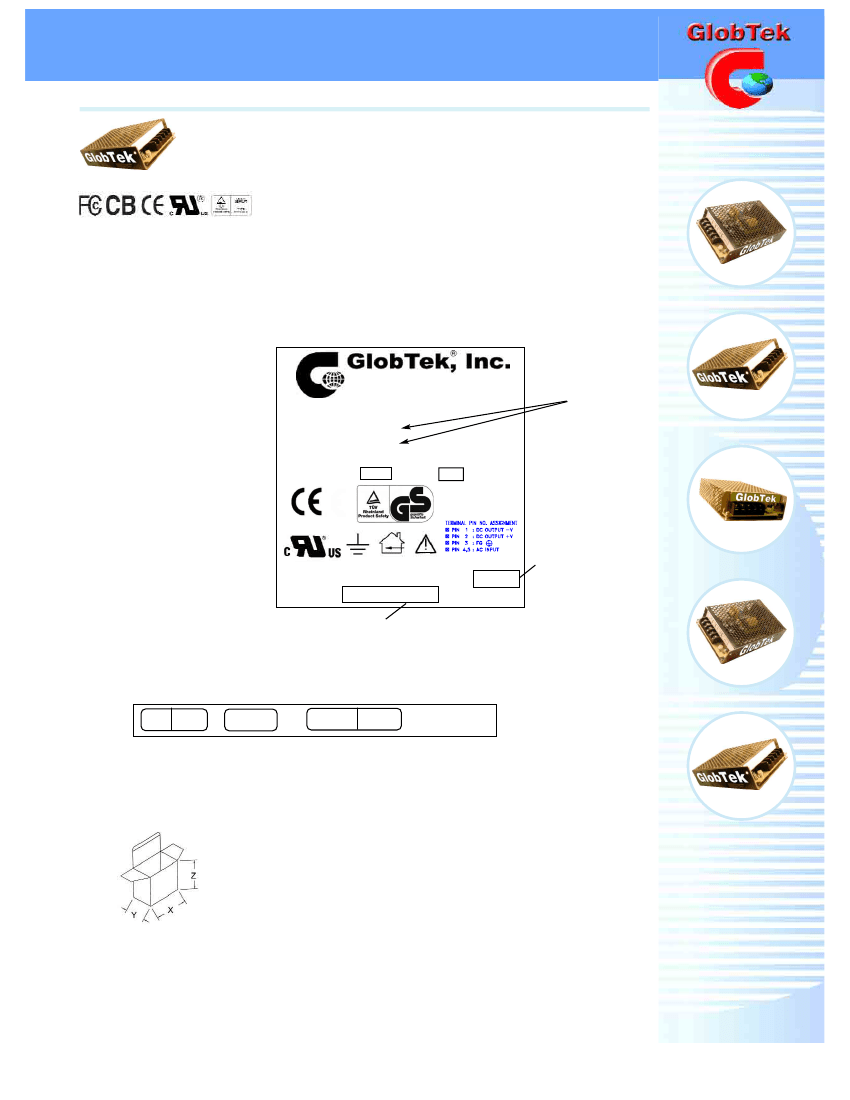

GT-25 SERIES 25W

Switching Power Supplies

SWITCHING POWER SUPPLY, SINGLE OUTPUT:

25 WATTS, ENCLOSED, UNIVERSAL INPUT

ISO 9001

REGISTERED

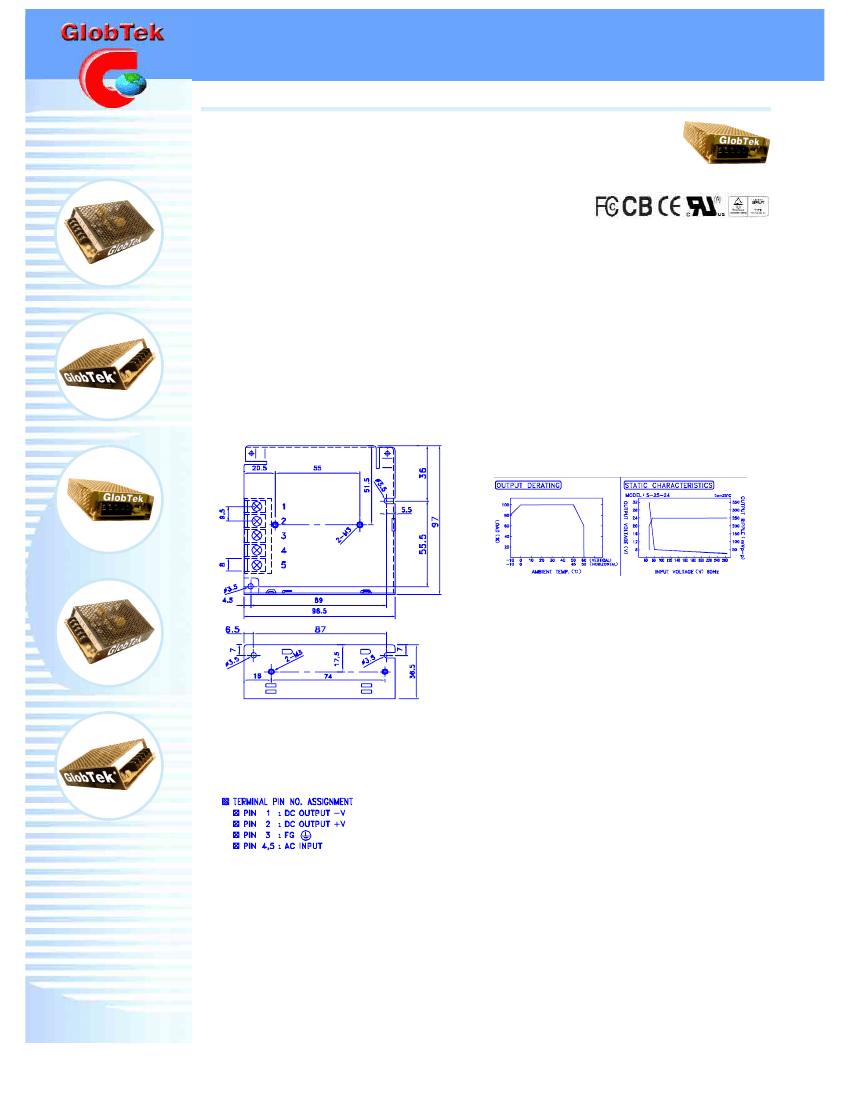

1. NOTES:

DIMENSIONS ARE IN MM UNLESS SPECIFIED OTHERWISE.

2. ELECTRICAL SPECIFICATIONS:

INPUT VOLTAGE:

INPUT CURRENT:

INPUT FREQUENCY:

OUTPUT VOLTAGE / CURRENT:

85 VAC TO 264 VAC

0.35A @ 230V

47 HZ - 63 HZ

P/N :

GT-25-5

GT-25-12

GT-25-15

GT-25-24

MODEL:

S-25-5

S-25-12

S-25-15

S-25-24

OUTPUT:

+5 VDC +/-2%, 5A

+12 VDC +/-1%, 2.1A

+15 VDC +/-1%, 1.7A

+24 VDC +/-1%, 1.1A

OUTPUT CURRENT :

OUTPUT POWER (RATED):

OUTPUT RIPPLE (PEAK TO PEAK):

ADJUSTABILITY:

OUTPUT REGULATION (LINE):

LOAD REGULATION (LINE):

TURN ON/ TURN OFF OVERSHOOT:

TURN-ON DELAY:

HOLD-UP TIME:

INRUSH CURRENT:

EFFICIENCY:

SWITCHING FREQUENCY:

OVER-VOLTAGE PROTECTION:

OVER-CURRENT / SHORT CIRCUIT:

OTHER PROTECTION:

SAFETY APPROVALS :

DIELECTRIC WITHSTAND VOLTAGE:

LEAKAGE CURRENT:

LINE SURGE:

EMI:

NO LOAD TO FULL LOAD, NO MINIMUM LOAD REQUIRED

25 WATTS MAX

50 mV (P-P) FOR 5V,

100 mV (P-P) FOR ALL OTHER OUTPUTS

+10, -5% OUTPUT

+ 5 % FOR OUTPUT

5V MODEL +/-1%, ± 0.5% FOR ALL OTHER OUTPUTS

4% MAX 500uS MAX RECOVERY TIME FOR 25% STEP LOAD

1 SEC MAX

10 mSEC MIN AT NOMINAL INPUT 115 VAC AND FULL LOAD

15 A MAX AT COLD START FOR N.A. (30A FOR EURO)

75 % TYPICAL

100 KHZ TYPICAL

VOLTAGE LIMITED LESS 115% ~ 135% OF NOMINAL VOLTAGE

FOR MAIN OUTPUT

HICCUP WITH AUTO RECOVERY TO 1.1 - 1.3 I

INPUT FUSING

UL1012, UL 60950 / 1950, CUL TO 22.2 # 234, 950, TUV TO EN 60950,

CE CLASS I

3000VAC PRIMARY-SECONDARY; 1500 VAC PRIMARY- GROUND

< 0.75 mA @ 240 VAC

EN 61000-4-5 LEVEL 4

COMPLIES WITH EN55022, 1 CLASS B AND

FCC PART 15 CLASS B WHEN TESTED WITH A RESISTIVE

LOAD, BOTH CONDUCTED AND RADIATED

TESTED TO COMPLY WITH EN61000-3-2, EN61000-3-3 AND EN50082-1

INCLUDING EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5,

EN61000-4-6, EN61000-4-11 LEVEL 4, UNIT IS ELIGIBLE

FOR CE MARK.

CE MARK :

(201)784-1000

www.globtek.com

Te l . : 2 0 1 - 7 8 4 - 1 0 0 0

F a x : 2 0 1 - 7 8 4 - 0 111

G l o b t e k , I n c . 1 8 6 Ve t e r a n s D r i v e , N o r t h v a l e , N J 0 7 6 4 7 .
