FREQ1HFFG18PF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> FREQ1HFFG18PF

FREQ1HFFG18PF: DescriptionParallel - Fundamental Quartz Crystal, 35MHz Min, 50MHz Max, RESISTANCE WELDED PACKAGE-2; CategoryPassive components Crystal/resonator; File Size144KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/

Download Datasheet Parametric View All

FREQ1HFFG18PF Overview

Parallel - Fundamental Quartz Crystal, 35MHz Min, 50MHz Max, RESISTANCE WELDED PACKAGE-2

FREQ1HFFG18PF Parametric

Parameter Name	Attribute value
Maker	Euroquartz
package instruction	RESISTANCE WELDED PACKAGE-2
Reach Compliance Code	compli
Other features	AT-CUT CRYSTAL
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	10 ppm
load capacitance	18 pF
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	35 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L7.8XB3.2XH8.0 (mm)/L0.307XB0.126XH0.315 (inch)
Series resistance	15 Ω
surface mount	NO

Preview

Download Datasheet

View All

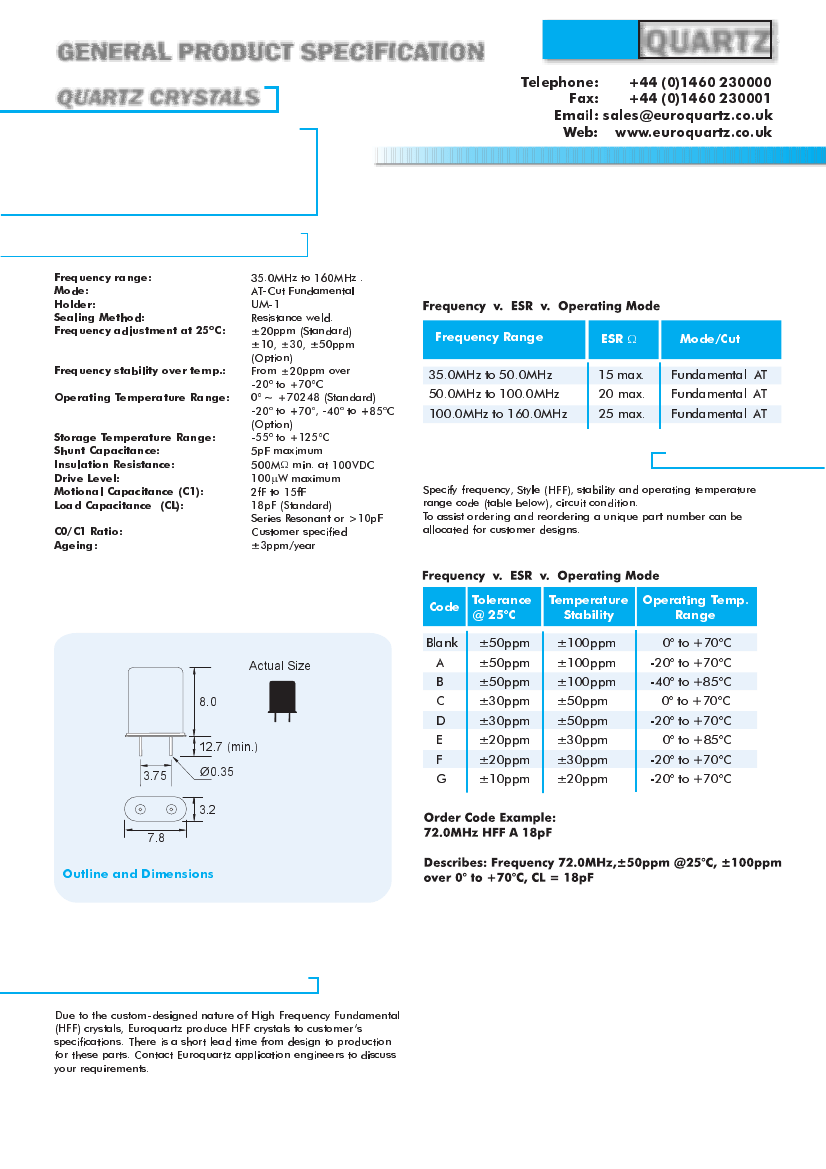

GENERAL PRODUCT SPECIFICATION

QUARTZ CRYSTALS

HFF

CRYSTALS

HIGH-FREQUENCY

FUNDAMENTAL

QUARTZ

CRYSTALS

EUROQUARTZ

Telephone:

Fax:

Web:

+44 (0)1460 230000

+44 (0)1460 230001

www.euroquartz.co.uk

Email: sales@euroquartz.co.uk

General Specification

Frequency range:

Mode:

Holder:

Sealing Method:

Frequency adjustment at 25ºC:

35.0MHz to 160MHz .

AT-Cut Fundamental

UM-1

Resistance weld.

±20ppm (Standard)

±10, ±30, ±50ppm

(Option)

•

Fundamental Frequency 35MHz to 160MHz

•

Low ESR from 15

Ω

•

Ideal for low-noise oscillators

Frequency Range

ESR

Mode/Cut

Frequency stability over temp.:

Operating Temperature Range:

From ±20ppm over

-20° to +70°C

0° ~ +70248 (Standard)

-20° to +70°, -40° to +85°C

(Option)

35.0MHz to 50.0MHz

50.0MHz to 100.0MHz

100.0MHz to 160.0MHz

15 max.

20 max.

25 max.

Fundamental AT

Storage Temperature Range:

Shunt Capacitance:

Insulation Resistance:

Drive Level:

Motional Capacitance (C1):

Load Capacitance (CL):

C0/C1 Ratio:

Ageing:

-55° to +125°C

5pF maximum

500M

100 W maximum

2fF to 15fF

18pF (Standard)

Series Resonant or >10pF

Customer specified

±3ppm/year

Specify frequency, Style (HFF), stability and operating temperature

range code (table below), circuit condition.

To assist ordering and reordering a unique part number can be

allocated for customer designs.

min. at 100VDC

To order

Code

Tolerance

@ 25°C

Temperature

Stability

Operating Temp.

Range

Actual Size

8.0

12.7 (min.)

3.75

Ø0.35

Blank

±50ppm

±30ppm

±20ppm

±10ppm

±100ppm

±50ppm

±30ppm

±20ppm

0° to +70°C

-20° to +70°C

-40° to +85°C

0° to +70°C

-20° to +70°C

0° to +85°C

-20° to +70°C

3.2

7.8

Outline and Dimensions

Custom crystal service

Due to the custom-designed nature of High Frequency Fundamental

(HFF) crystals, Euroquartz produce HFF crystals to customer s

specifications. There is a short lead time from design to production

for these parts. Contact Euroquartz application engineers to discuss

your requirements.
