Finisar
Product Specification
+3200 ps/nm (~200km) DWDM XFP Optical Transceiver
FTLX4213x3xxxx
PRODUCT FEATURES
Supports 10.7Gb/s to 11.35Gb/s
-500 to +3200 ps/nm Dispersion
Tolerance
Supports ITU C & L-Band
DWDM channels
Supports 8x50GHz tuning range
for C-band and 2x200GHz range
for L-Band
Temperature-stabilized DWDM
CML
TM
transmitter
Temperature range: 0°C to 70°C
RoHS-6 Compliant (lead-free)
Power dissipation <4.0W
Adjustable receiver threshold
APPLICATIONS
Amplified DWDM 10Gb/s SONET/SDH
w/FEC
Amplified DWDM 10Gb/s Ethernet
and 10Gb/s Fibre Channel w/FEC
Finisar’s FTLX4213x3xxxx Small Form Factor 10Gb/s (XFP) transceiver complies with
the XFP Multi-Source Agreement (MSA) Specification
1
. It supports amplified DWDM
10Gb/s SONET/SDH +FEC,10 Gigabit Ethernet +FEC, and 10 Gigabit Fibre Channel
+FEC applications over ~200km of fiber without dispersion compensation. The standard
product supports narrow tunability on the C- and L-Band channels with 50GHz spacing.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in the
XFP MSA. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC
3
,
and Finisar Application Note AN-2038
4
.
PRODUCT SELECTION
FTLX4213x3xxxx
x:
tuning range
xxxx:
ITU-T Channel#
(see next page)
Finisar Corporation 23-November-2011
Rev C7
Page 1
FTLX4213x3xxxx 3200ps/nm DWDM XFP Product Specification – November 2011
Finisar

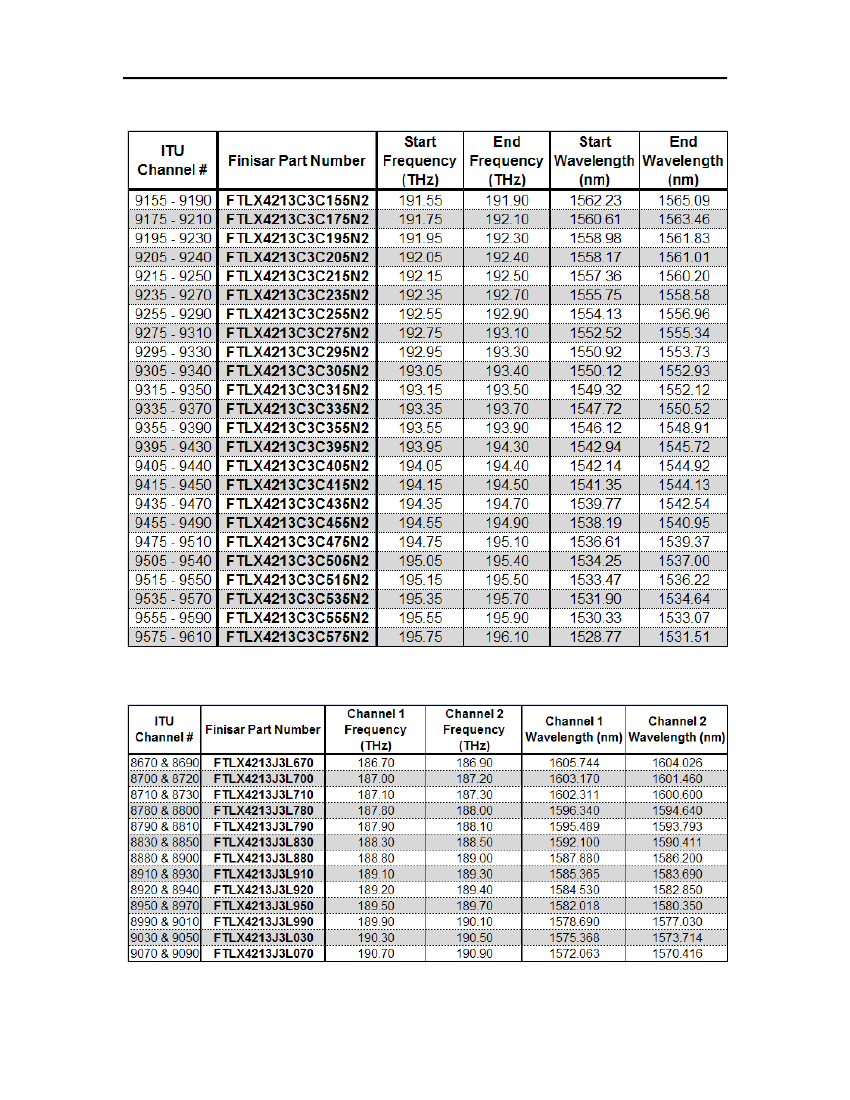

C-Band, 8x50GHz XFPs (FTLX4213C3Cxxx)
L-Band, 2x200GHz XFPs (FTLX4213J3Lxxx)
Note*
Please contact your Finisar representative for any requirements not
supported by the above channel plan.
Finisar Corporation 23-November-2011
Rev C7
Page 2
FTLX4213x3xxxx 3200ps/nm DWDM XFP Product Specification – November 2011
Finisar
I.
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Pin Descriptions
Logic
LVTTL-I
LVTTL-O
LVTTL-I
Symbol
GND
VEE5
Mod-Desel
Interrupt
TX_DIS
VCC5
GND
VCC3
VCC3
SCL
SDA
Mod_Abs
Mod_NR
RX_LOS
GND
GND
RD-
RD+
GND
VCC2
P_Down/RST
Name/Description
Module Ground
Optional –5.2 Power Supply –
Not required
Module De-select; When held low allows the module to
respond to 2-wire serial interface commands
Interrupt (bar); Indicates presence of an important condition
which can be read over the serial 2-wire interface
Transmitter Disable; Transmitter laser source turned off
+5 Power Supply
Module Ground
+3.3V Power Supply
+3.3V Power Supply
Serial 2-wire interface clock
Serial 2-wire interface data line
Module Absent; Indicates module is not present. Grounded
in the module.
Module Not Ready; Finisar defines it as a logical OR
between RX_LOS and Loss of Lock in TX/RX.
Receiver Loss of Signal indicator
Module Ground
Module Ground
Receiver inverted data output
Receiver non-inverted data output
Module Ground
+1.8V Power Supply –
Not required
Power Down; When high, places the module in the low
power stand-by mode and on the falling edge of P_Down
initiates a module reset
Reset; The falling edge initiates a complete reset of the
module including the 2-wire serial interface, equivalent to a
power cycle.
+1.8V Power Supply –
Not required
Module Ground
Reference Clock non-inverted input, AC coupled on the
host board –
Not required
Reference Clock inverted input, AC coupled on the host
board –
Not required
Module Ground
Module Ground
Transmitter inverted data input
Transmitter non-inverted data input
Module Ground
Ref.
1
2
1
LVTTL-I
LVTTL-
I/O
LVTTL-O
LVTTL-O
LVTTL-O
2
2
2
2
2
1
1
CML-O
CML-O
1
LVTTL-I
22
23
24
25
PECL-I
PECL-I
VCC2
GND
RefCLK+
RefCLK-
1
26
GND
1
27
GND
1
28
CML-I
TD-
29
CML-I
TD+
30
GND
1
Notes:
1. Module circuit ground is isolated from module chassis ground within the module.
2. Open collector; should be pulled up with 4.7k – 10kohms on host board to a voltage between 3.15V
and 3.6V.
Finisar Corporation 23-November-2011
Rev C7
Page 3
FTLX4213x3xxxx 3200ps/nm DWDM XFP Product Specification – November 2011
Finisar

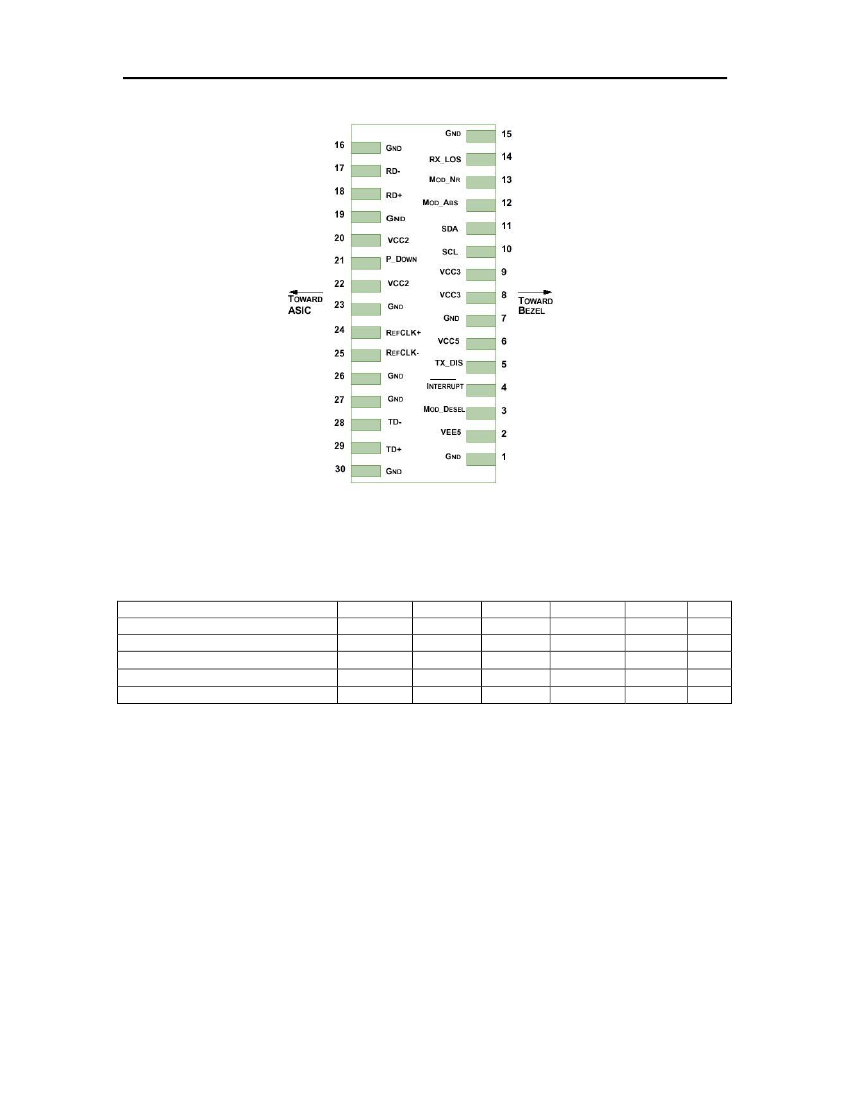

Diagram of Host Board Connector Block Pin Numbers and Names
II.
Absolute Maximum Ratings
Parameter
Maximum Supply Voltage #1
Maximum Supply Voltage #2
Storage Temperature
Case Operating Temperature
Receiver Damage Threshold
Symbol
Vcc3
Vcc5
T
S
T
OP
P
Rdmg
Min
-0.5
-0.5
-40
0
+5
Typ
Max
4.0
6.0
85
70
Unit
V
V
C
C
dBm
Ref.
Finisar Corporation 23-November-2011
Rev C7
Page 4
FTLX4213x3xxxx 3200ps/nm DWDM XFP Product Specification – November 2011
Finisar
III.
Electrical Characteristics
(T
OP
= 0 to 70
C,
V
CC5
= 4.75 to 5.25 Volts)
Symbol
Vcc5
Vcc3
Icc5
Icc3
P
R
in
Vin,pp
V
D
V
EN
Min
4.75
3.13
Typ
Max
5.25
3.46
500
750
4.0
Unit
V
V
mA
mA
W
mV
V
V
us
mV
ps
ps
V
V
Ref.
Parameter
Supply Voltage #1
Supply Voltage #2
Supply Current – Vcc5 supply
Supply Current – Vcc3 supply
Module total power
Transmitter
Input differential impedance
Differential data input swing
Transmit Disable Voltage
Transmit Enable Voltage
Transmit Disable Assert Time
Receiver
Differential data output swing
Data output rise time
Data output fall time
LOS Fault
LOS Normal
Power Supply Rejection
1
2
3
100
120
2.0
GND
820
Vcc
GND+ 0.8
100
850
38
38
Vcc
HOST
GND+0.5
See Note 7 below
650
Vout,pp
t
r
t
f
V
LOS fault
V
LOS norm
PSR
340
Vcc – 0.5
GND
4
5
5
6
6
7
Notes:
1. Maximum total power value is specified across the full temperature and voltage range.
2. After internal AC coupling.
3. Or open circuit.
4. Into 100 ohms differential termination.
5. 20 – 80 %
6. Loss Of Signal is open collector to be pulled up with a 4.7k – 10kohm resistor to 3.15 – 3.6V. Logic 0
indicates normal operation; logic 1 indicates no signal detected.
7. Per Section 2.7.1. in the XFP MSA Specification
1
.
Finisar Corporation 23-November-2011
Rev C7
Page 5
