BLY232 Overview

Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal

BLY232 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fischer Elektronik
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BL
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

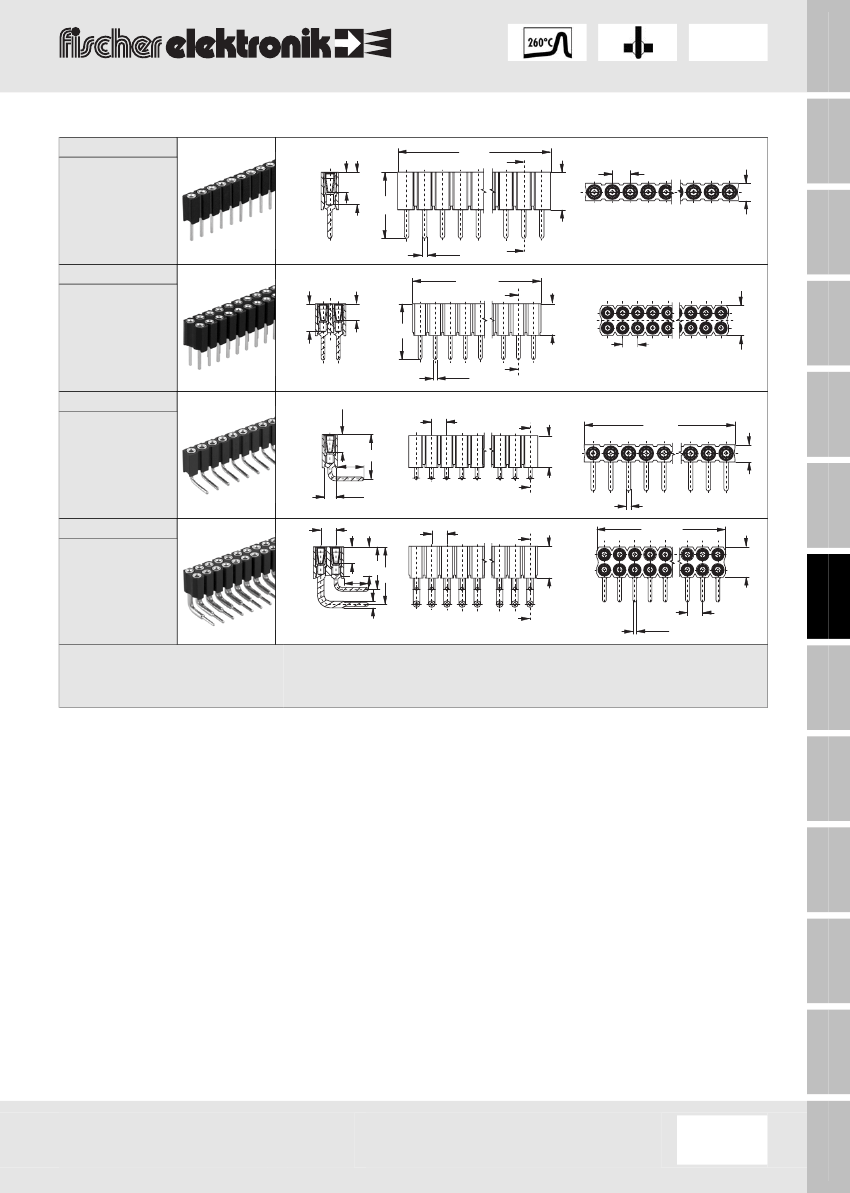

2.00

High-precision female headers soldering technique

for

0.5 mm and up to 0.56 mm Ø

art. no.

2,2

3,8

n x 2,0

A

B

A

2

4,2

2

7,4

C

BLY 1 ...

art. no.

3,8

Ø 0,5

A

n/2 x 2,0

A

4,2

2,2

7,4

D

2

Ø 0,5

A

BLY 2 ...

art. no.

2,2

2

4

A

4,2

n x 2,0

E

2

3,3

1,45

5,6

A

Ø 0,5

BLY 3 ...

art. no.

F

4

2

2,2

3,8

5,6

7,6

2

A

4,2

n/2 x 2,0

3,3

Ø 0,9

A

2

Ø 0,5

G

BLY 4 ...

please indicate:

... no. of contacts

one row 1-50

two rows 2-100

H

contact shell surface:

tin-plated

contact spring:

gold-plated

No capilliary action when soldering due to protected contact insert.

V-notches permit breaking! Therefore any required number of contacts is available.
