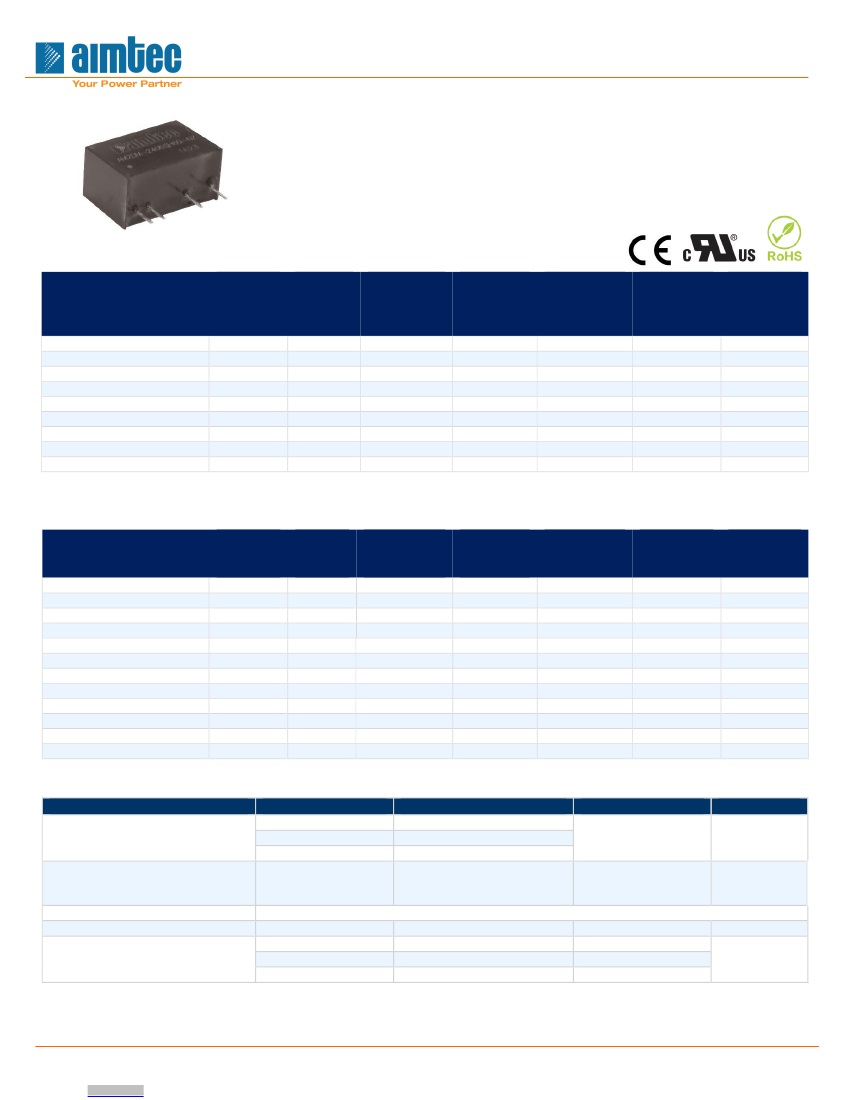

Series AM2DM-NZ
2 Watt | DC-DC Converter
FEATURES:
•
•
•
•
7 pin SIP package
High efficiency up to 84%
Reinforced insulation
Leakage current < 2µA
•
•
•
•
•
Operating temperature -40
°
C to + 85
°
C
Isolation voltage: 4200VAC or 6000VDC
Ultra-low Isolation capacitance of 5pF
IEC/EN/UL60601-1
1xMOPP/2xMOOP
Models
Single output
Model
AM2DM-0505SH60-NZ
AM2DM-0512SH60-NZ
AM2DM-0515SH60-NZ
AM2DM-1205SH60-NZ
AM2DM-1212SH60-NZ
AM2DM-1215SH60-NZ
AM2DM-2405SH60-NZ
AM2DM-2412SH60-NZ
AM2DM-2415SH60-NZ
Input
Voltage
(V)
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
Output
Voltage
(V)
5
12
15
5
12
15
5
12
15
Output
Current
max
(mA)
400
167
133
400
167
133
400
167
133
Max.
Capacitive
Load (µF)
1000
470
470
1000
470
470
1000
470
470
Isolation
(VAC)
Isolation
(VDC)
Efficiency
(%)
4200
4200
4200
4200
4200
4200
4200
4200
4200
6000
6000
6000
6000
6000
6000
6000
6000
6000
77
79
79
77
80
82
79
82
84
Models
Dual output
Model
AM2DM-0505DH60-NZ
AM2DM-0509DH60-NZ
AM2DM-0512DH60-NZ
AM2DM-0515DH60-NZ
AM2DM-1205DH60-NZ
AM2DM-1209DH60-NZ
AM2DM-1212DH60-NZ
AM2DM-1215DH60-NZ
AM2DM-2405DH60-NZ
AM2DM-2409DH60-NZ
AM2DM-2412DH60-NZ
AM2DM-2415DH60-NZ
Input
Voltage
(V)
4.5-5.5
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
21.6-26.4
Output
Voltage
(V)
±5
±9
±12
±15
±5
±9
±12
±15
±5
±9
±12
±15
Output
Current
max (mA)
±200
±111
±83
±67
±200
±111
±83
±67
±200
±111
±83
±67
Max.
Capacitive
Load (µF)
470
470
220
220
470
470
220
220
470
470
220
220
Isolation
(VAC)
4200
4200
4200
4200
4200
4200
4200
4200
4200
4200
4200
4200
Isolation
(VDC)
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
Efficiency
(%)
78
78
78
80
78
82
82
80
79
81
82
81
Input Specifications
Parameters
Voltage range
Nominal
5
12
24
5V
12V
24V
Typical
4.5-5.5
10.8-13.2
21.6-26.4
Maximum
Units
VDC
Absolute Max Input Voltage (1s)
Filter
Input reflected ripple current
Input Current (no load/full load)
-0.7 - 9
-0.7 - 18
-0.7 - 30
Capacitor
200
35/274
15/114
10/56
VDC
mA p-p
mA
5
12
24
www.aimtec.com
F 051e R7
Tel: +1 514 620 2722
1 of 4
Toll free: + 1 888 9 AIMTEC (926 6832)
North America only
Series AM2DM-NZ
2 Watt | DC-DC Converter
Isolation Specifications
Parameters
Tested I/O voltage
Resistance
Capacitance
Leakage current
Conditions
60sec
Typical
> 1000
5
Rated
4200
6000
Units
VAC
VDC
MOhm
pF
µA
250VAC, 50/60Hz
2
Output Specifications
Parameters
Voltage accuracy
Short Circuit protection
Line voltage regulation
Load voltage regulation
Temperature coefficient
Ripple & Noise
Conditions
For 1.0% of Vin
10~100% load, 5V
10~100% load, Others
Full load
At 20MHz Bandwidth
Typical
Maximum
±1.2
20
15
Units
% of Vout
%
%/
o
C
mV p-p
See tolerance graph
Momentary (3 sec.)
±0.02
100
150
General Specifications
Parameters
Conditions
Typical
Maximum
Units
Switching frequency
100% load
100
KHz
o
C
Max Case temperature
100
o
C
Operating temperature
With no derating
-40 to +85
o
C
Storage temperature
-55 to +125
Cooling
Free air convection
Humidity
95
%
Case material
Black flame-retardant and heat-resistant plastic (UL94V-0)
Weight
4.2
g
Dimensions
(L x W x H)
0.77 x 0.39 x 0.49 inch
19.50 x 9.80 x 12.5 mm
MTBF
>3,500,000 hrs (MIL-HDBK -217F, Ground Benign, t=+25
o
C)
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified
Safety Specifications
Parameters
Approvals
Standards
UL60601-1
EN55022 Class B (see recommended circuit)
IEC61000-4-2, Perf. Criteria B (ESD Contact +/- 8KV)
Pin Out Specifications
Pin
1
2
5
6
7
Single
+ V Input
- V Input
- V Output
No pin
+ V Output
Dual
+ V Input
- V Input
- V Output
Common
+ V Output
www.aimtec.com
F 051e R7
Tel: +1 514 620 2722
2 of 4
Toll free: + 1 888 9 AIMTEC (926 6832)
North America only
Series AM2DM-NZ
2 Watt | DC-DC Converter
Dimensions
6000 DVC
19.50
(0.77)
9.8
(0.39)
PRINTED
FACE
12.50
(0.49)
12.5
(0.49)
0.50
(0.02)
2.54
(0.10)
4.10
(0.16)
15.24
(0.60)
0.50
(0.02)
9.8
(0.39)
Dimensions are in mm (inch)
Pin Pitch Tolerance: ±0.10 mm (±0.004 inch)
Case Tolerance: ±0.25 mm (±0.01 inch)
0.3(0.01)
3.20
(0.05)
0.50
(0.02)
Typical Characteristics
5V output models
Temperature
+ 15%
Output Power (%)
Derating Graph
Tolerance Envelope Graph
Free Air Convection
Others
Tolerance Envelope Graph
+10%
+5%
Typical Load Line
+2.5%
Typical Load Line
85ºC
+ 5%
Nominal
Voltage
100
80
Safe Operating Area
60
+2.5%
Output Voltage
Output Voltage
40
-2.5%
-7.5%
0
20
40
60
80
-2.5%
-7.5%
20
0
-40 -20
100
Ambient
Temperature º C
10%
50%
Output Current (%)
100%
10%
50%
Output Current(%)
100%
www.aimtec.com
F 051e R7
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC (926 6832)
North America only
Series AM2DM-NZ
2 Watt | DC-DC Converter
Typical application circuit
Single
Vin+
Vo+
External capacitor – Single output
Cout
Cin
Vin-
Vo-
Vin
(VDC)
5
12
24
Cin
(μF)
10
4.7
2.2
Vout
(VDC)
5
12
15
Cout
(μF)
10
2.2
1
Dual
Vin+
Cout
Com
Cin
Cout
Vin-
Vo-
Vo+
External capacitor – Dual output
Vin
(VDC)
5
12
24
Cin
(μF)
10
4.7
2.2
Vout
(VDC)
±5
±9
±12/±15
Cout
(μF)
4.7
2.2
1
EMI
Recommended Circuit (Class B)
LDM
6.8µH
+V output
DC/DC
Converter
C1
4.7µF/
50V
C2
4.7µF/
50V
+V input
Cout
Load
-V input
-V output
NOTE: Cout value is the same as referenced in the Application Circuit. For 24V input voltage models the recommended
LDM value is 15µH.
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
www.aimtec.com
F 051e R7
Tel: +1 514 620 2722
4 of 4
Toll free: + 1 888 9 AIMTEC (926 6832)
North America only
