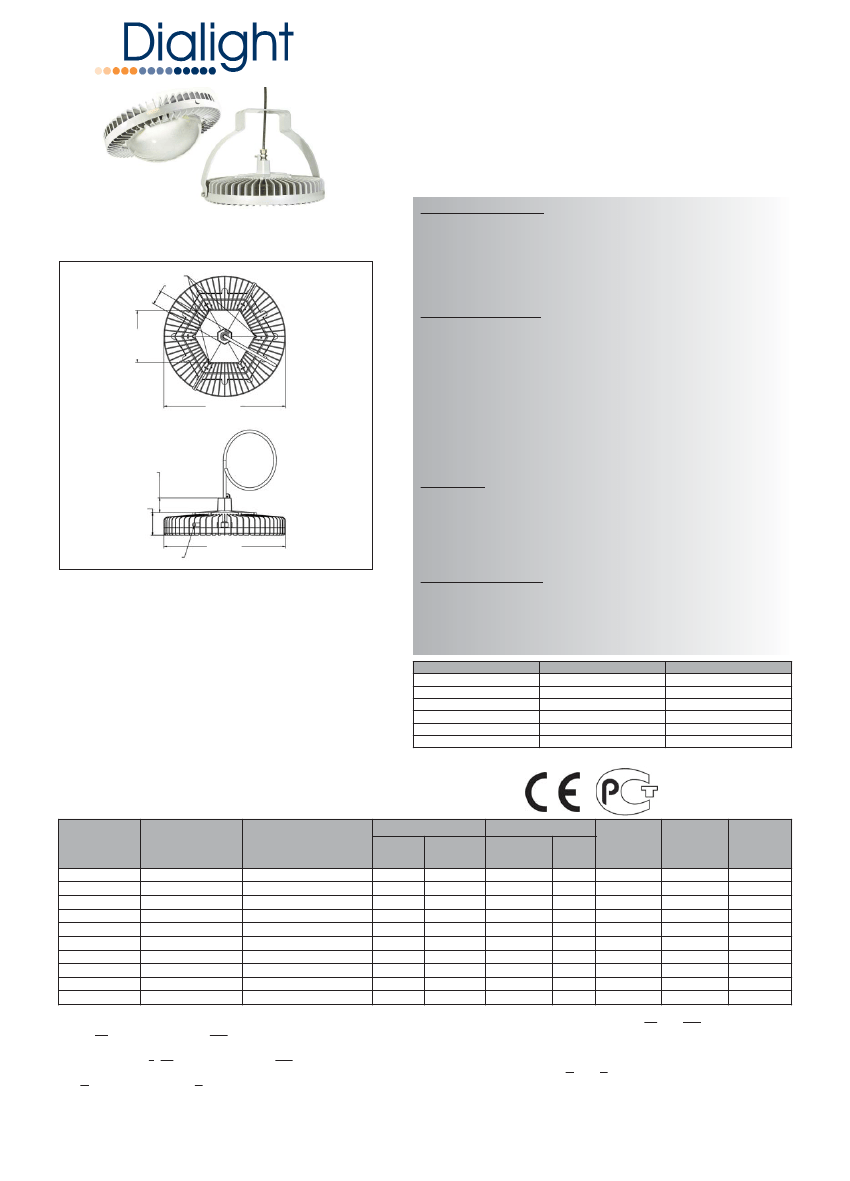

Application:
The first of its kind, the Dialight DuroSite
®
LED High Bay luminaire was designed
specifically to replace conventional lighting in a wide variety of industrial
applications, both indoor and outdoor. Its low profile, light weight design
and versatile mounting options make it ideal for many applications such as
for many applications such as high bay lighting, warehouse, factories, cold
stores, restricted access areas, service areas and other applications with
mounting heights greater than 4 meters.
All of Dialight’s long life LED luminaires are designed to meet the most
demanding specification criteria while offering maximum energy
savings, reduced maintenance costs, and a superior quality of light.
Hazardous area versions are also available.
DuroSite Series LED High Bay
Luminaire - CE Approved
(6) 1/4”-20 SELF TAPPING
SCREW HOLE
®
Mechanical Information
Fixture Weight:
Mounting:
Fixing :
1
8.2 kg (18 lbs)
Swivel bracket or hook (see page 2)
Factory installed 3 meter 3 core PVC cable
Factory installed junction box (see ordering note,
for mechanical drawing see page 4)
Custom cable lengths available (consult factory)
47.75 [1.88]
Electrical specifications
174.75
[6.88]
Operating Voltage, Input Current, Power Consumption: See Table
Operating Temp:
Harmonics:
Surge Protection:
406.40
[16.00]
-40
°
C to +65
°
C (-40
°
F to +149
°
F)
EN 61000-3-2
EN 61000-4-5
1 kV line to line
2 kV line to ground
<5% (120VAC)
<10% (230/240VAC)
<12% (277VAC)
> 0.9
LM6 marine grade aluminium
Light grey powder coated (RAL7001)
Acrylic (PMMA)
Polycarbonate (PC)
Tempered Glass
> 70
5,650K (cool white)
4,300K (neutral white)
THD:
3.05m
[10’]
cord
49.53
[1.95]
Power Factor:
Construction
Housing:
Finish:
Lens:
Dimensions in mm [Inches]
76.20
[3.00]
18-5/16” X .75” THREADED (2)
406.40
[16.00]
Certifications & Ratings:
•
CE - compliant
EN 55015:2006 / EN 61547:2009 / EN 60598:2008
•
BS EN 62471:2008
•
Gost R approval
•
IEC60068 salt spray testing- severity 1
•
IK10 to EN50102 (polycarbonate lens only)
•
IP66 to EN60529
Photometric Information
CRI:
CCT:
All values typical unless otherwise state
Operating Voltage
Input Wattage
Input Current
277
134
0.5
230
137
0.6
200
137
0.7
150
139
0.9
120
141
1.2
100
144
1.4
°
C ambient, all values +/-15%
All measurements taken at 25
Features & Benefits:
•
5 year full performance warranty
•
Zone 1 hazardous area versions also available
•
May be used with remote occupancy sensor
•
Instant on/off operation
•
Superior colour rendition index compared to HPS, LPS, MV
•
Mercury free, lead free
•
Replaces up to 400 Watt HID light sources
•
Resistant to shock and vibration
•
Temperature compensation technology for longer life
•
L70 rated for 100,000 hours @ 25°C
Order Codes:
Part Number
HBGC4P-EU
IP66
(Acrylic Lens)
IP66 to EN60529
(Polycarbonate Lens)
(Tempered Glass Lens)
2
Lens
Clear
Diffused
Optical Pattern
Circular
Aisle
CCT
Cool
Cool
Cool
Cool
Cool
Cool
Cool
Cool
Cool
Cool
3
Initial Fixture
Lumens
14,000
11,500
10,000
9,750
11,500
11,500
10,000
10,750
10,750
10,750
Lumens
Per Watt
4
90
82
71
70
82
82
71
77
77
77
HB6C4M-EU
HB2C4M-EU
HB7C4M-EU
HB1C4N-EU
HB6C4N-EU
HB0C4M-EU
HB4C4M-EU
HB5C4N-EU
HB3C4N-EU
1
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
White
White
White
White
White
White
White
White
White
White
Part numbers in the above table include 3M PVC cable, for units including an attached junction box replace prefix
HB
with
HBJ
in the order
code,
HB2C4M-EU
becomes
HBJ2C4M-EU.
For mechanical drawing see page 4.
2
Circular optical pattern, polycarbonate lens part numbers can be ordered with a factory installed dome lens. For dome lens option ; replace
3rd numeral with
L,
HB2C4M-EU
becomes
HBLC4M-EU
For mechanical drawing see page 4.
3
Part numbers in the above table are cool white models, for neutral white replace the 3rd character
C
with
N
in the order code,
HB2C4M-EU becomes HB2N4M-EU
4
Lumens per Watt calutated based on 140W except for HBG2C4P-EU
5
HBG2C4P-EU is available in 230/240VAC only. Lumen values for HBG2C4P-EU is based on 156W @ 230 VAC, electrical specifications chart does
not apply to this part number
www.dialight.com
DuroSite
®
Series
LED High Bay Fixture Options and Accessories

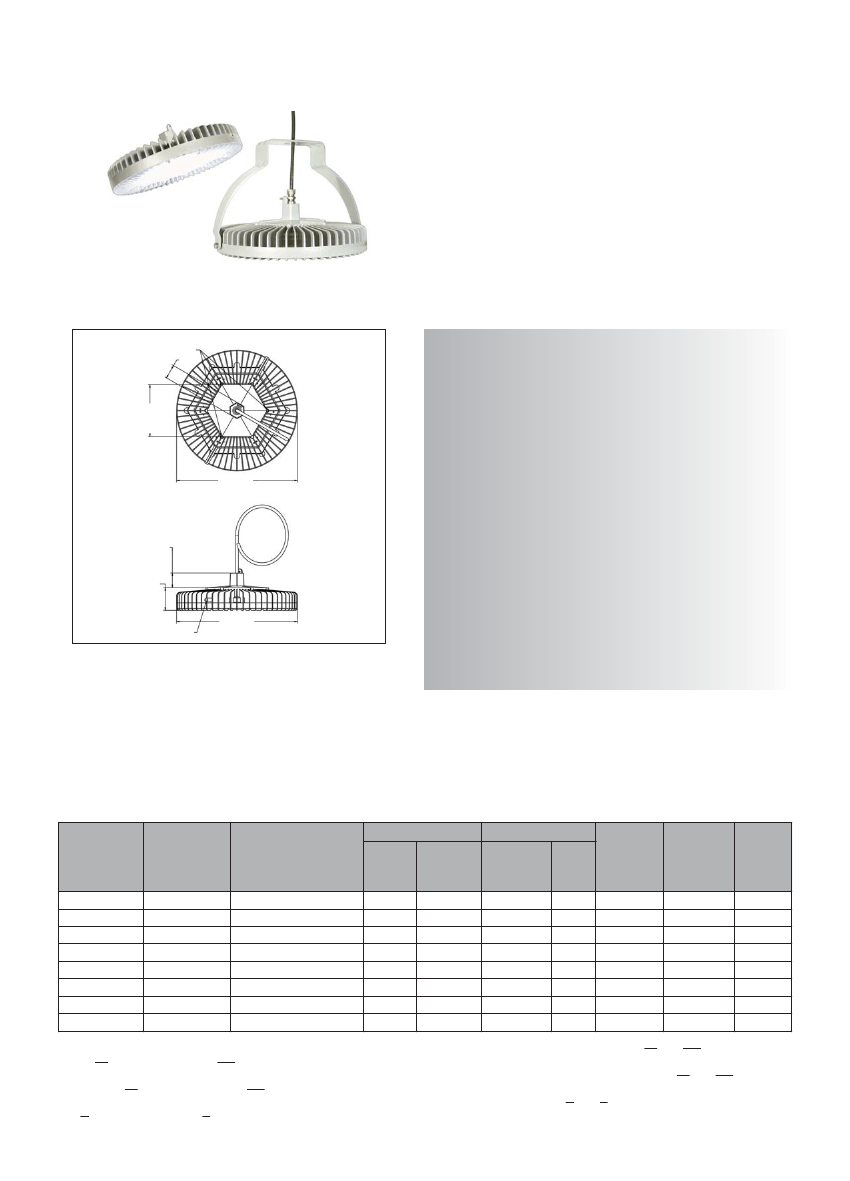

Variable Dimming Version: 0-10 VDC
Application:
Dialight offers a series of High Bay products with ACTIVE Dimming.
Dimming permits the user to select a specific light output and power con-
sumption to meet their requirements. The reduction in light output and
power consumption are approximately proportional. Reducing the light
output by 50% will reduce the power consumption by 50%. LEDs are par-
ticularly well suited for dimming as compared to other industrial light
sources.
(6) 1/4”-20 SELF TAPPING
SCREW HOLE
47.75 [1.88]
Mechanical, Electrical and Photometric information is the same
as on page 1 except where detail is provided
Variable Dimming Cable
:
Dimming connections included in
factory installed 5 core cable. Multiple
high bays can be connected to the
same dimmer, consult dimming instruc-
tions and manufacturer
Variable Dimming
Control:
Dimming Range
1
174.75
[6.88]
406.40
[16.00]
0-10 VDC active
10 VDC = 100% light output
0 VDC = 15% light output
49.53
[1.95]
3.05m
[10’]
cord
Features and Benefits
•
3 meter, 5 core PVC cable pre-installed
•
Dimming cabling independent of fixture wiring
76.20
[3.00]
18-5/16” X .75” THREADED (2)
406.40
[16.00]
Dimensions in mm [Inches]
•
Multiple High Bays can be connected to the same dimmer
•
May also be configured to operate in a single STEP Dimming
configuration, please consult technical department
STEP Dimming Mode
The variable dimming High Bays may also be configured to operate in a
single STEP Dimming configuration.
When the dimming control
conductors are connected together, the light output will be reduced to
approximately 15% of the maximum light output. The total fixture power
consumption will also be reduced to approximately 20% (30 W).
Connecting the leads together can be accomplished with a common
wall switch.
Order Codes:
Lens
IP66
IP66 to EN60529
Part Number
(Acrylic Lens) (Polycarbonate Lens)
HB2C4M-EUD
HB7C4M-EUD
HB1C4N-EUD
HB6C4N-EUD
HB0C4M-EUD
HB4C4M-EUD
HB5C4N-EUD
HB3C4N-EUD
1
Optical Pattern
Circular
Aisle
CCT
3
2
Clear
Diffused
Initial
Fixture
Lumens
10,000
9,750
11,500
11,500
10,000
10,750
10,750
10,750
Lumens
4
Per Watt
71
70
82
82
71
77
77
77
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Cool White
Cool White
Cool White
Cool White
Cool White
Cool White
Cool White
Cool White
•
•
•
•
Part numbers in the above table include 3M PVC cable, for units including an attached junction box replace prefix
HB
with
HBJ
in the order
code,
HB2C4M-EUD
becomes
HBJ2C4M-EUD.
For mechanical drawing see page 4.
2
Polycarbonate lens part numbers can be ordered with a factory installed dome lens. For dome lens option replace prefix
HB
with
HBL
in the
order code,
HB2C4M-EUD
becomes
HBL2C4M-EUD
For mechanical drawing see page 4.
3
Part numbers in the above table are cool white models, for neutral white replace the 3rd character
C
with
N
in the order code,
HB2C4M-EUD becomes HB2N4M-EUD
4
Lumens per Watt calutated based on 140W.
www.dialight.com
DuroSite
®
LED High Bay Fixture Options and Accessories

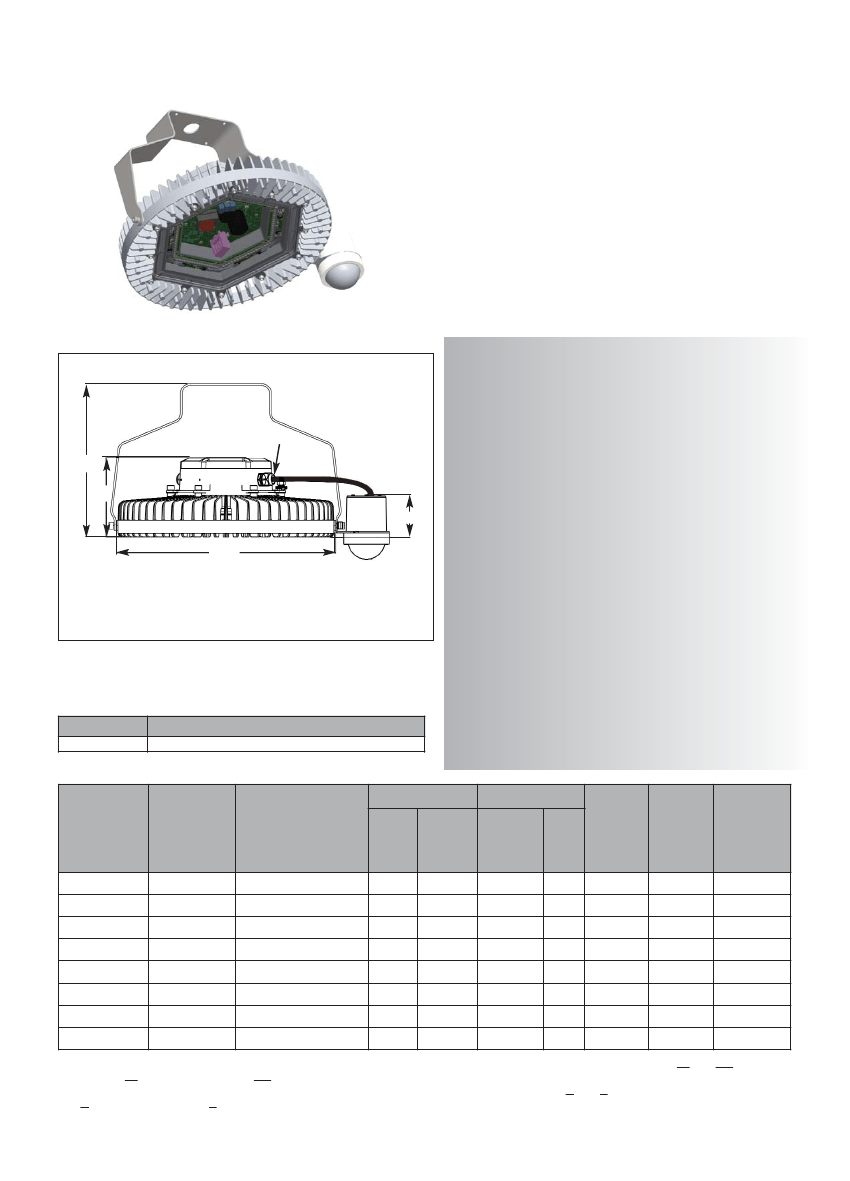

Occupancy Sensor Version
Application:
Dialight offers a series of High Bay products with an attached
occupancy sensor. The occupancy sensor leverages the High Bay’s
instant-on and instant-off capability to increase energy savings and
enhance ROI. Other industrial lighting sources such as HID fixtures do not
offer instant-on capability. Sensor can be programmed by the user
during installation and commissioning via a IR remote control (sold
separately), one remote can program an infinite number of luminaires.
Mechanical, Electrical and Photometric information is the same
as on page 1 except where detail is provided
Weight:
Gland entries (2) x M20
290
151
80
413
Operating voltage
Operating Temperature
Dimensions in mm
8.6kg (19lbs)
Attached to the luminaire via a bracket,
cable connected via junction box on the
luminaire
30 seconds to 20 minutes
Dependant on application and height,
please consult technical department
230/240 VAC only
-10
o
C + 50
o
C (-14
o
F + 122
o
F)
-25
o
C + 50
o
C (-13
o
F + 122
o
F) version
available, consult factory
Sensor Mounting:
Sensor Timing
Sensor operation
Features and Benefits
•
No additional electrical connections required for installation
Ordering Info:
Part Number
HBX-RC
Description
IR remote control
•
Remote control for on site programming during commissioning
•
Dimming option available please consult factory for details
Lens
Part Number
IP66
IP66 to EN60529
(Acrylic Lens) (Polycarbonate Lens)
1
Optical Pattern
Circular
Aisle
CCT
2
Clear
Diffused
Initial
Fixture
Lumens
10,000
9,750
11,500
11,500
10,000
10,750
10,750
10,750
Lumens
Per Watt
3
HB2C4M-EUOS
HB7C4M-EUOS
HB1C4N-EUOS
HB6C4N-EUOS
HB0C4M-EUOS
HB4C4M-EUOS
HB5C4N-EUOS
HB3C4N-EUOS
1
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Cool White
Cool White
Cool White
Cool White
Cool White
Cool White
Cool White
71
70
82
82
71
77
77
77
•
•
•
•
Cool White
Polycarbonate lens part numbers can be ordered with a factory installed dome lens. For dome lens option replace prefix
HB
with
HBL
in the
order code,
HB2C4M-EUOS
becomes
HBL2C4M-EUOS
For mechanical drawing see page 4.
2
Part numbers in the above table are cool white models, for neutral white replace the 3rd character
C
with N in the order code,
HB2C4M-EUOS becomes HB2N4M-EUOS
3
Lumens per Watt calutated based on 140W.
www.dialight.com
DuroSite
®
Series LED High Bay Fixture
Accessories
Part Number
HBXW3
Description
Swivel Bracket
Grey (RAL7001) powder coated aluminium
(Interior or exterior use)
Hook
(IP40)
Glare Shield - sets of 10
Grey (RAL7001) powder coated spun aluminium
(Interior use only, for use with flat lens options)
Kit Includes
Swivel Bracket
Bracket to fixture hardware
HBXH-EU
Hanger Hook
HBXGS
Aluminium shield and securing hardware
HBXREF2
558.8mm Acrylic Reflector
(for use with HBXH only)
Dust cover, clamp, space

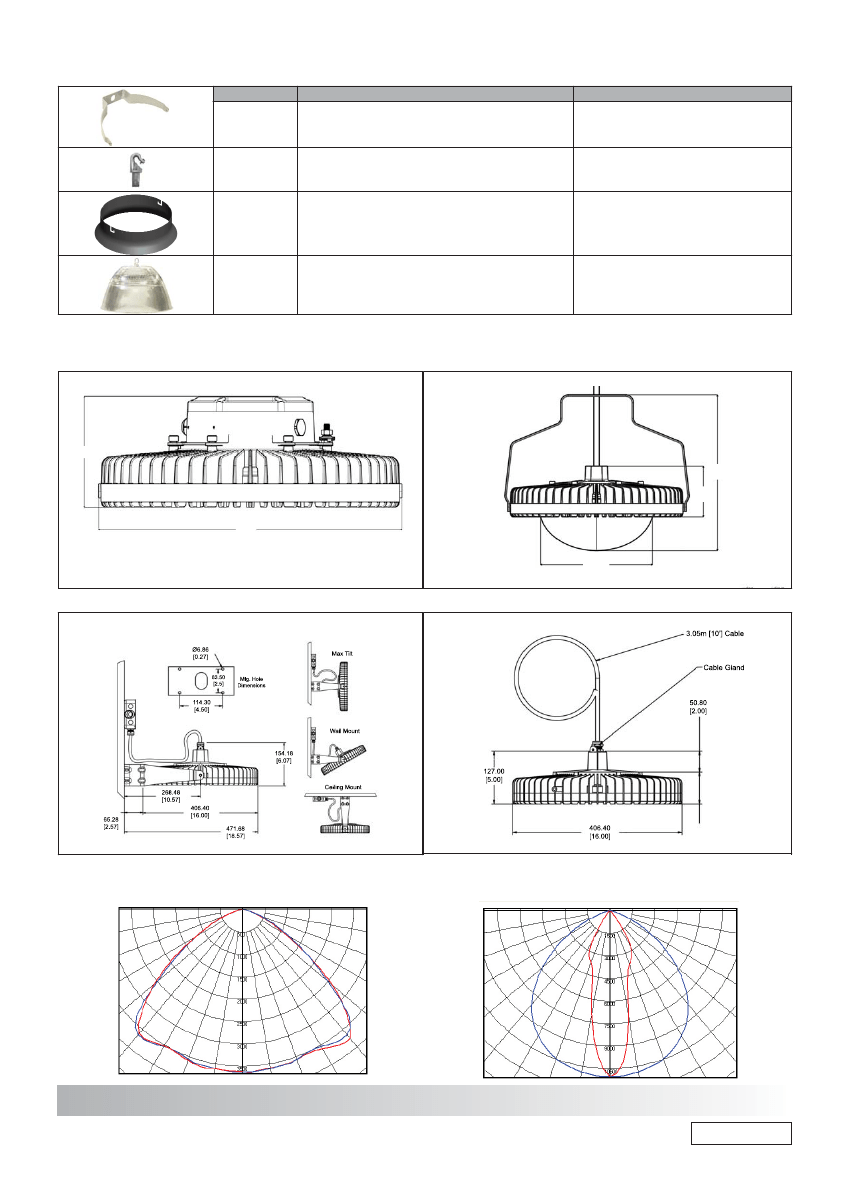

Mechanical Drawings
HBJXX4X - Junction Box
HBLXX4X - Dome Lens
151
369,7
(14.55)
119,9
(4.72)
413
263,5
(10.37)
HBXW3 - Swivel Bracket
HBXX4X-EU
Dimensions in mm [Inches]
Polar Plots
Circular Pattern
Aisle Pattern
Dialight reserves the right to make changes at any time in order to supply the best product possible. The most current version of this
document will always be available at: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDEXHBEU001.pdf
www.dialight.com
MDEXHBEU001_E
