HDSP-C5x1/C5x3
0.52” Single Digit PCB Based LED Display
Data Sheet
Description
This is 0.52” height single digit display. It utilizes GaAsP/
GaP Red, Orange, Yellow, Green and AlGaAs/GaAs Red
chips. This device is halogenated.
All devices are categorized for luminous intensity. The
orange, yellow and green devices are categorized for
color. Use of similar device categories will yield a uniform
display.
Features
x
High reliability
x
Excellent characters appearance
x
Available in CA and CC
x
RoHS Compliant
x
Gray top surface with white diffused segments.
Ordering Information
Red
HDSP-C5E1
HDSP-C5E3
Green
HDSP-C5G1
HDSP-C5G3
Yellow
HDSP-C5Y1
HDSP-C5Y3
Orange
HDSP-C5L1
HDSP-C5L3
AlGaAs Red
HDSP-C5A1
HDSP-C5A3
Description
Common Anode, Right Hand Decimal
Common Cathode, Right Hand Decimal

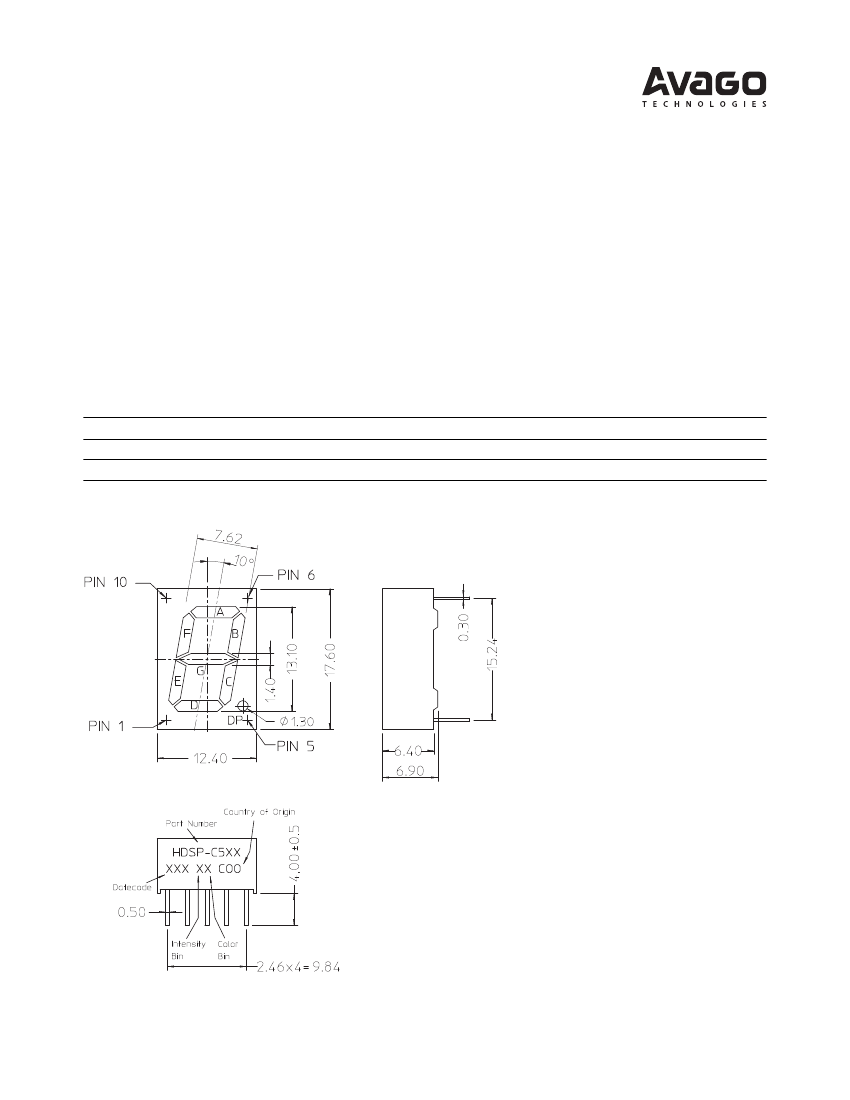

Package Dimensions
Notes:
1. All dimensions are in millimeter.
2. Unless otherwise stated, the tolerance is ± 0.25mm.

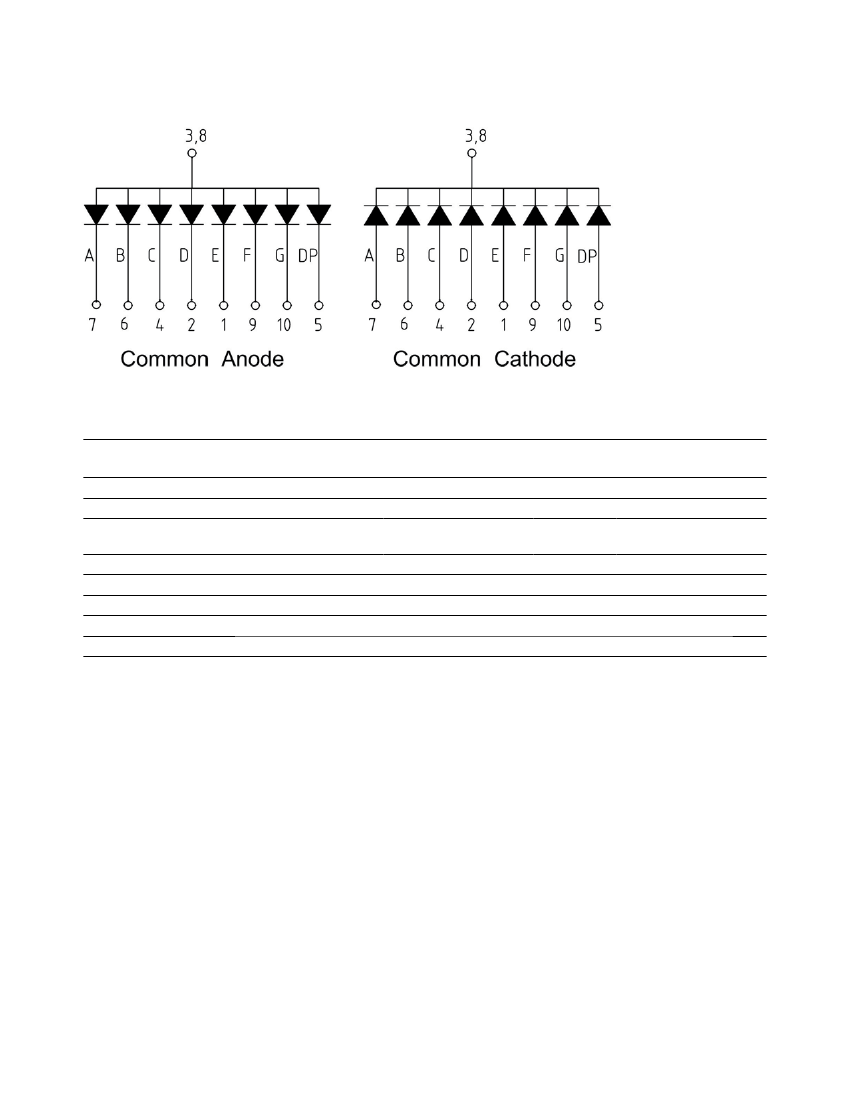

Circuit Diagram
Absolute Maximum Ratings at T
A
= 25°C
Parameter
Power Dissipation per segment or Dot Point (DP)
Continuous Forward Current per segment
Peak Forward Current per segment
(1/10 Duty Cycle, 0.1m sec pulse width)
Derating Linearly from 25°C per segment
Reverse Voltage per segment or DP
Operating Temperature
Storage Temperature
Wave solder Condition 1.6mm below body
V
R
T
O
T
S
Symbol
P
D
I
F
Red/Yellow/
Orange
57.5
25
80
0.33
Green
62.5
25
80
0.33
5
-40 to 85
-40 to 85
AlGaAs Red
50
25
80
0.33
Units
mW
mA
mA
mA/°C
V
°C
°C
260°C peak for 5 secs max
2
Electrical / Optical Characteristic at T
A
= 25°C
Red
Parameter
Average Luminous Intensity (Digit Average)
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment or DP
Reverse Current
Luminous Intensity Matching Ratio
(Segment to Segment)
Symbol
I
v
O
p
O
d
V
F
I
R
I
v–M
Min
–
–
–
–
–
Typ
4.0
640
626
2.0
–
2:1
Max
–
–
–
2.3
100
Units
mcd
nm
nm
V
PA
Test Conditions
I
F
= 10mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 10mA
Green
Parameter
Average Luminous Intensity (Digit Average)
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment or DP
Reverse Current
Luminous Intensity Matching Ratio
(Segment to Segment)
Symbol
I
v
O
p
O
d
V
F
I
R
I
v–M
Min
–
–
–
–
–
Typ
6.0
565
569
2.25
–
2:1
Max
–
–
–
2.5
100
Units
mcd
nm
nm
V
PA
Test Conditions
I
F
= 10mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 10mA
Yellow
Parameter
Average Luminous Intensity (Digit Average)
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment or DP
Reverse Current
Luminous Intensity Matching Ratio
(Segment to Segment)
Symbol
I
v
O
p
O
d
V
F
I
R
I
v–M
Min
–
–
–
–
–
Typ
3.0
587
589
2.15
–
2:1
Max
–
–
–
2.3
100
Units
mcd
nm
nm
V
PA
Test Conditions
I
F
= 10mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 10mA
3
Orange
Parameter
Average Luminous Intensity (Digit Average)
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment or DP
Reverse Current
Luminous Intensity Matching Ratio
(Segment to Segment)
Symbol
I
v
O
p
O
d
V
F
I
R
I
v–M
Min
–
–
–
–
–
Typ
4.0
610
605
2.15
–
2:1
Max
–
–
–
2.3
100
Units
mcd
nm
nm
V
PA
Test Conditions
I
F
= 10mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 10mA
AlGaAs Red
Parameter
Average Luminous Intensity (Digit Average)
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment or DP
Reverse Current
Luminous Intensity Matching Ratio
(Segment to Segment)
Symbol
I
v
O
p
O
d
V
F
I
R
I
v–M
Min
–
–
–
–
–
Typ
16
660
643
1.85
–
2:1
Max
–
–
–
2.0
100
Units
mcd
nm
nm
V
PA
Test Conditions
I
F
= 10mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 10mA
4
Red
2.5
RELATIVE LUMINOUS INTENSITY
(NORMALIZED AT 10 mA)
FORWARD CURRENT - mA
0
5
10
15
20
DC FORWARD CURRENT - mA
25
30
2
1.5
1
0.5
0
30
25
20
15
10
5
0
0
0.5
1
1.5
2
FORWARD VOLTAGE - V
2.5
3
Figure 1. Relative Luminous Intensity Vs Forward Current
Figure 2. Forward Voltage Vs Current
1
0.8
RELATIVE INTENSITY
0.6
0.4
0.2
0
380
430
480
530 580 630
WAVELENGTH - nm
680
730
780
Figure 3. Relative Luminous Intensity Vs Wavelength
5
