Common Mode Choke Coils(Line Filters)
For power line, Closed magnetic circuit core type
HF Series
Type:
Vertical type
HF2316/HF2318 /HF2922
For large inductance
HF2024/HF2422/HF2430/HF2826/HF2836/HF3545
Issue date:
December 2010
• All specifications are subject to change without notice.
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
(1/10)
Common Mode Choke Coils(Line Filters) for AC Power Supply
Conformity to RoHS Directive
Closed Magnetic Circuit Core Type HF Series
TDK common mode choke coils(line filters) are used in a wide
range of prevention of electromagnetic interference(EMI) and radio
frequency interference(RFI) from power supply lines and for pre-
vention of multifunctioning of products such as measuring equip-
ment and system equipment.
FEATURES
• Wide range of selection.
• High impedance at applicable frequency.
• High self-resonant frequency.
PRODUCT IDENTIFICATION
HF
(1)
(2)
V - A
(3) (4)
Y
(5)
R
(6)
- 01
(7)
(1) Core shape
HF: Square shaped closed magnetic circuit core type
(2) Dimensional code
Width×Depth
(3) External shape code
V:
Vertical type
H:
Horizontal type
(4) High µ material
(5) Inductance value
Example) 133:13mH
(6) Rated current value
Example) 3R0:3.0A
(7) Product management number
SELECTION CHART
Series
Configuration
Type
Inductance value
(mH)min.
Rated current
(A)
Handling power
∗
L×I
2
(mH×A
2
)
Weight
(g)typ.
Minimum
package quantity
(pieces/box)
800
800
440
800
540
400
480
400
140
Vertical type
HF
Closed magnetic
circuit
core types
HF2316
HF2318
HF2922
HF2024
HF2422
HF2430
HF2826
HF2836
HF3545
1.2 to 145
1.5 to 100
3.2 to 100
0.6 to 33
2.4 to 68
2.4 to 68
1.8 to 35
1.8 to 35
4.7 to 33
0.2 to 3
0.3 to 3
0.5 to 3
0.3 to 3
0.4 to 2.5
0.4 to 2.5
1 to 4
1 to 4
1.5 to 4
10.5
13
29
7.6
15
15
35
35
75
10.5
13.5
20
10
19.5
19.5
28
30
65
Handling power=(Inductance value)×(Current)
2
. It is possible to design within the range below this value.
[Example] The coil for 2A can make even the inductance of 2.5mH or less a product for handling power 10.
∗
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
001-02 / 20101125 / e93_hf.fm
(2/10)
Closed Magnetic Circuit Core Type HF Series
FEATURES
• As closed magnetic circuit core as same as a toroidal core, even
at its compact size, it offers large inductance and keeps the high
impedance levels required in high frequency ranges.
• Since it uses a closed magnetic circuit core, the leakage flux is
relatively small, allowing designers to improve the mounting
density of their circuits.

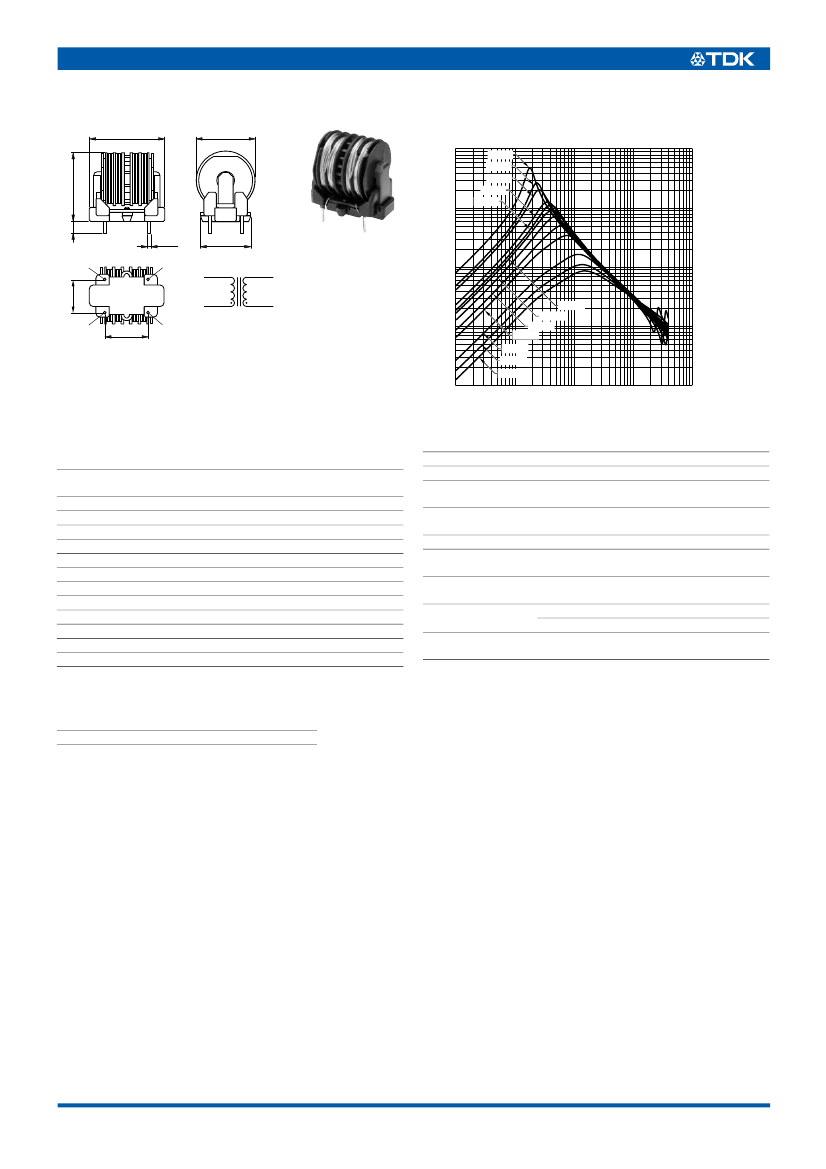

HF2316-A(SQUARE SHAPED CLOSED MAGNETIC CIRCUIT CORE) TYPE
SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM
TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
23max.
16max.
1000
20max.
144Y
823Y
533Y
403Y
263Y
100
3.5±1
ø0.8
1
4
1
4
15.5max.
Impedance (kΩ)
10
203Y
153Y
103Y
652Y
452Y
242Y
172Y
122Y
0.1
1
Frequency (MHz)
10
100
10±0.5
2
2
3
13±0.5
3
Weight: 10.5g typ.
Recommended hole diameter: ø1.3
Dimensions in mm
1
0.1
0.01
ELECTRICAL CHARACTERISTICS
(STANDARD LINE UP)
Part No.
HF2316-A144Y0R2-01
HF2316-A823Y0R3-01
HF2316-A533Y0R4-01
HF2316-A403Y0R5-01
HF2316-A263Y0R6-01
HF2316-A203Y0R7-01
HF2316-A153Y0R8-01
HF2316-A103Y1R0-01
HF2316-A652Y1R2-01
HF2316-A452Y1R5-01
HF2316-A242Y2R0-01
HF2316-A172Y2R5-01
HF2316-A122Y3R0-01
Inductance
(mH)min.
145
82
53
40
26
20
15
10
6.5
4.5
2.4
1.7
1.2
DC resistance
(Ω )max.
6.8
4
2.4
1.7
1.2
1
0.7
0.5
0.3
0.2
0.12
0.09
0.06
Rated current
Iac(A)max.
0.2
0.3
0.4
0.5
0.6
0.7
0.8
1
1.2
1.5
2
2.5
3
RATINGS
Item
Standard value
Conditions
Rated voltage(V)
80 to 280
50Hz/60Hz
Dielectric withstanding
Between each winding for
2000
voltage(V)
1 minute
Insulation resistance
Between each winding for
100min.
(MΩ )
DC.500V
Temperature rise(°C)
45max.
With line resistance
Operating temperature
Including self-temperature
–20 to +120
range(°C)
rise
Storage temperature
–20 to +85
range(°C)
260±5°C, 10±1sec Solder bath method
Resistance to
∗1
350±5°C, 5sec max. Soldering iron method
soldering tenperature
Applicable safety
Electrical Appliance and Material Safety
∗2
Law ("DENAN"), IEC60065, UL6500, CSA C22.2
standard
∗1
Pb free solder(Sn-3Ag-0.5Cu)
∗2
However, this product is not recognized by each regulations.
• Measuring equipment of inductance value:
LCR meter(HP4261A, HP4263B or equivalent)[f=1kHz]
PACKAGING QUANTITIES
HF2316-A
800pieces/box
• All specifications are subject to change without notice.
001-02 / 20101125 / e93_hf.fm
(3/10)

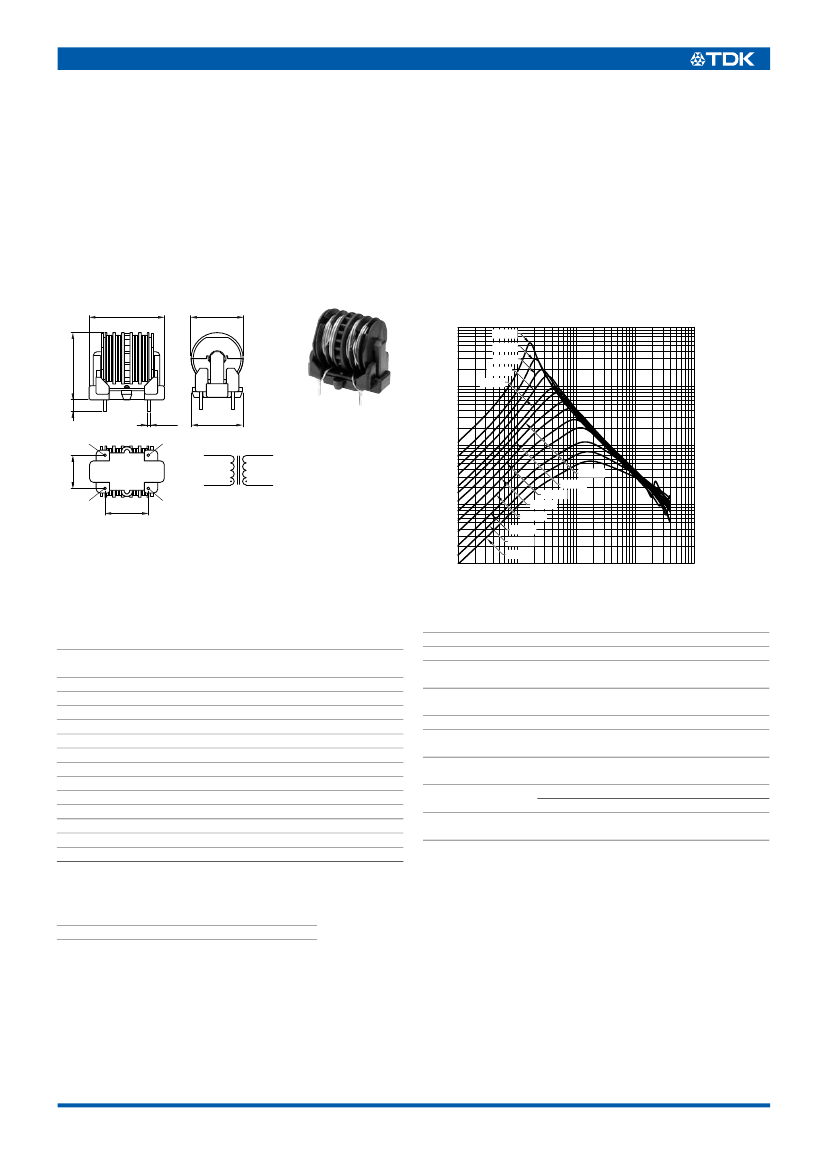

HF2318-A(SQUARE SHAPED CLOSED MAGNETIC CIRCUIT CORE) TYPE
SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM
TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
23max.
18max.
1000
22max.
104Y
633Y
503Y
303Y
243Y
100
3.5±1
ø0.8
1
4
1
4
15.5max.
Impedance (kΩ)
10
10±0.5
2
2
3
13±0.5
3
Weight: 13.5g typ.
Recommended hole diameter: ø1.3
Dimensions in mm
1
213Y
163Y
113Y
752Y
322Y
222Y
152Y
0.1
1
Frequency (MHz)
10
100
0.1
0.01
ELECTRICAL CHARACTERISTICS
(STANDARD LINE UP)
Part No.
HF2318-A104Y0R3-01
HF2318-A633Y0R4-01
HF2318-A503Y0R5-01
HF2318-A303Y0R6-01
HF2318-A243Y0R7-01
HF2318-A213Y0R8-01
HF2318-A163Y1R0-01
HF2318-A113Y1R2-01
HF2318-A752Y1R5-01
HF2318-A322Y2R0-01
HF2318-A222Y2R5-01
HF2318-A152Y3R0-01
Inductance
(mH)min.
100
63
50
30
24
21
16
11
7.5
3.2
2.2
1.5
DC resistance
(Ω )max.
3.6
2.2
1.8
1.1
1
0.75
0.5
0.35
0.26
0.12
0.1
0.07
Rated current
Iac(A)max.
0.3
0.4
0.5
0.6
0.7
0.8
1
1.2
1.5
2
2.5
3
RATINGS
Item
Standard value
Conditions
Rated voltage(V)
80 to 280
50Hz/60Hz
Dielectric withstanding
Between each winding for
2000
voltage(V)
1 minute
Insulation resistance
Between each winding for
100min.
(MΩ )
DC.500V
Temperature rise(°C)
45max.
With line resistance
Operating temperature
Including self-temperature
–20 to +120
range(°C)
rise
Storage temperature
–20 to +85
range(°C)
260±5°C, 10±1sec Solder bath method
Resistance to
soldering tenperature
∗1
350±5°C, 5sec max. Soldering iron method
Applicable safety
Electrical Appliance and Material Safety
∗2
Law ("DENAN"), IEC60065, UL6500, CSA C22.2
standard
∗1
Pb free solder(Sn-3Ag-0.5Cu)
∗2
However, this product is not recognized by each regulations.
• Measuring equipment of inductance value:
LCR meter(HP4261A, HP4263B or equivalent)[f=1kHz]
PACKAGING QUANTITIES
HF2316-A
800pieces/box
• All specifications are subject to change without notice.
001-02 / 20101125 / e93_hf.fm
(4/10)

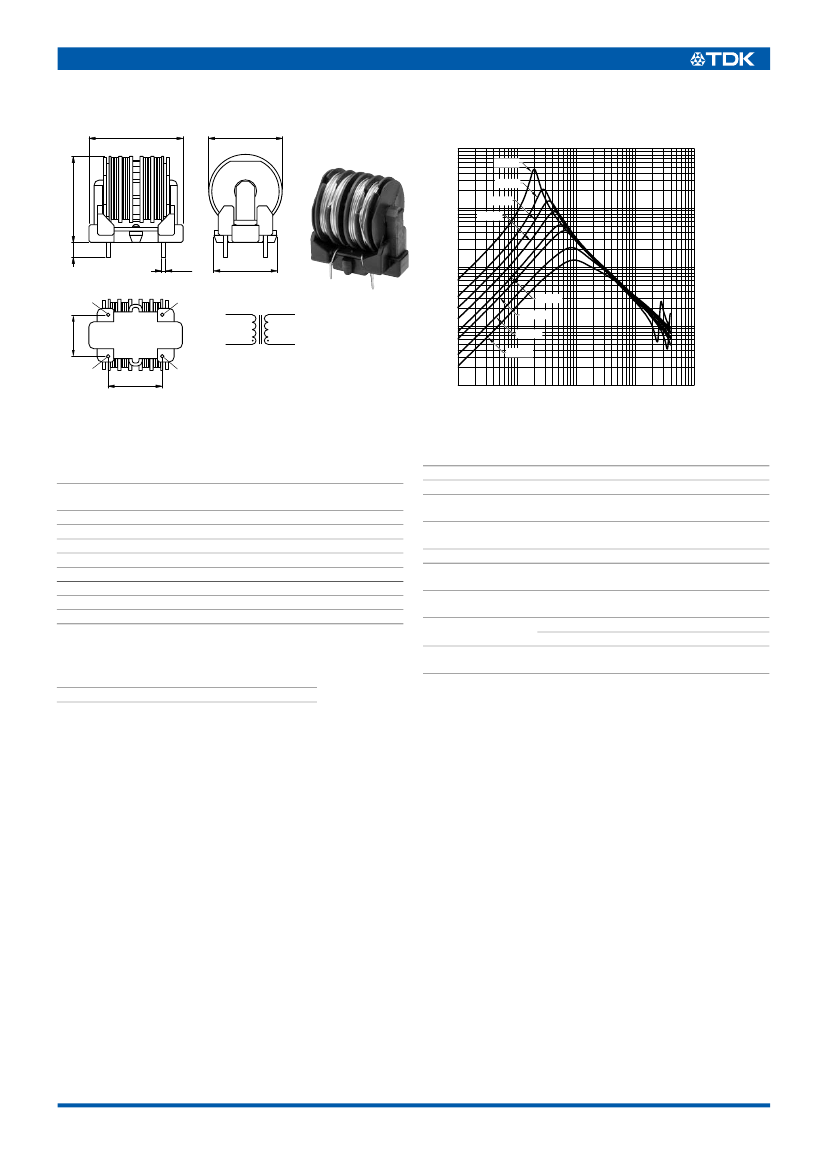

HF2922-A(SQUARE SHAPED CLOSED MAGNETIC CIRCUIT CORE) TYPE
SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM
TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
29max.
22max.
1000
104Y
28max.
503Y
100
Impedance (kΩ)
323Y
203Y
3.5±1
ø0.8
18max.
10
133Y
952Y
1
502Y
322Y
1
4
1
4
10±0.5
2
2
3
3
Weight: 20g typ.
Recommended hole diameter: ø1.3
Dimensions in mm
0.1
0.01
0.1
1
Frequency (MHz)
10
100
13±0.5
ELECTRICAL CHARACTERISTICS
(STANDARD LINE UP)
Part No.
HF2922-A104Y0R5-01
HF2922-A503Y0R8-01
HF2922-A323Y1R0-01
HF2922-A203Y1R2-01
HF2922-A133Y1R6-01
HF2922-A952Y2R0-01
HF2922-A502Y2R5-01
HF2922-A322Y3R0-01
Inductance
(mH)min.
100
50
32
20
13
9.5
5
3.2
DC resistance
(Ω )max.
1.7
0.95
0.59
0.38
0.25
0.19
0.12
0.08
Rated current
Iac(A)max.
0.5
0.8
1
1.2
1.6
2
2.5
3
RATINGS
Item
Standard value
Conditions
Rated voltage(V)
80 to 280
50Hz/60Hz
Dielectric withstanding
Between each winding for
2000
voltage(V)
1 minute
Insulation resistance
Between each winding for
100min.
(MΩ )
DC.500V
Temperature rise(°C)
45max.
With line resistance
Operating temperature
Including self-temperature
–20 to +120
range(°C)
rise
Storage temperature
–20 to +85
range(°C)
260±5°C, 10±1sec Solder bath method
Resistance to
soldering tenperature
∗1
350±5°C, 5sec max. Soldering iron method
Electrical Appliance and Material Safety
Applicable safety
Law ("DENAN"), IEC60065, UL6500, CSA C22.2
standard
∗2
∗1
Pb free solder(Sn-3Ag-0.5Cu)
∗2
However, this product is not recognized by each regulations.
• Measuring equipment of inductance value:
LCR meter(HP4261A, HP4263B or equivalent)[f=1kHz]
PACKAGING QUANTITIES
HF2316-A
440pieces/box
• All specifications are subject to change without notice.
001-02 / 20101125 / e93_hf.fm
