HE700 D.I.L. Relay Features and Benefits
Features
•
Miniature dual in line package
•
Choice of normally open, normally
closed and change over contacts
•
High voltage switching option
•
Up to 2 normally open contacts
•
Available with 5V, 12V or 24V coil
options as standard
•
Magnetic shield option
•
Diode suppression option
•
Diagonal coil option
Benefits
•
One relay, various contacts choices
reducing space and cost without
compromising flexibility
•
Lower power coil consumption
than competing electromechanical
devices.
•
Hermetically sealed switching
contact is immune to the effects of
its environment
•
Transfer moulded package gives
maximum component protection
Applications
•
Security
•
Telecoms
•
Instrumentation
•
Process Control
•
Industrial

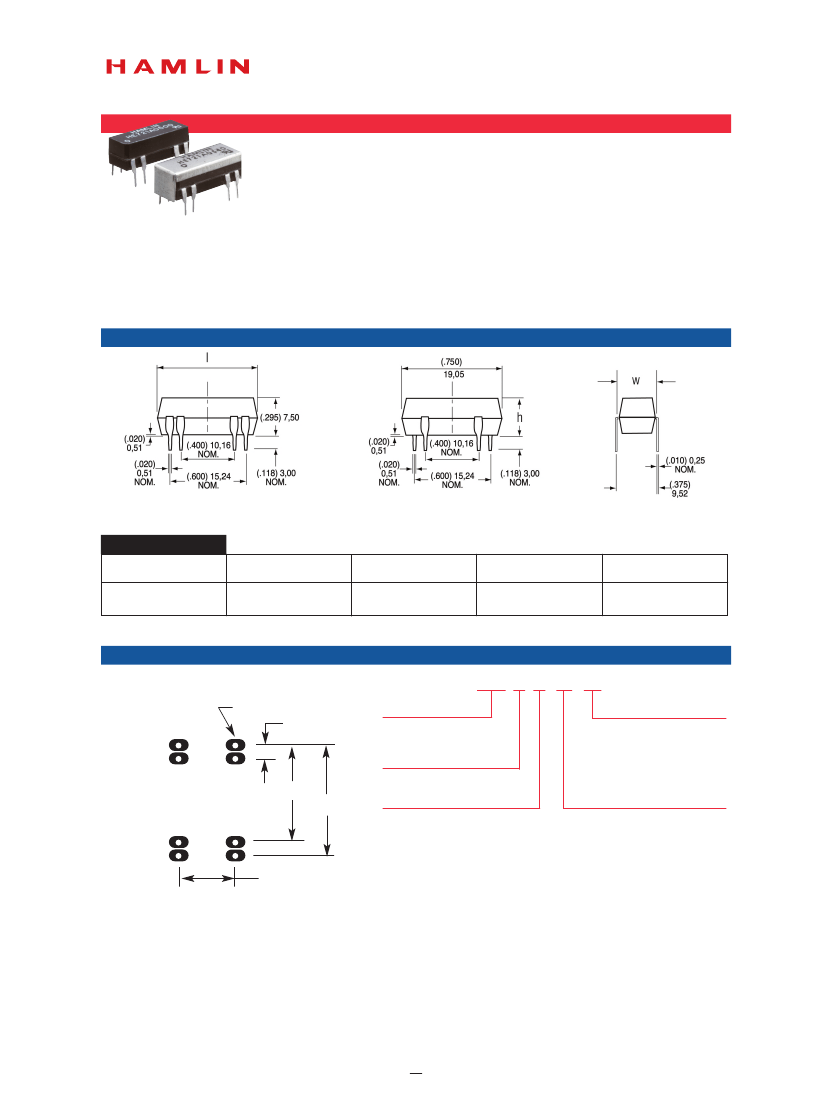

DIMENSIONS (in) mm
Figure 1
HE700
Figure 2
HE751
Figure 3
HE700 (All)
Table 1
Relay Type
HE700
Body Type
Transfer Molded
External Shield
l
(.750) 19,05
(.795) 20,19
w
(.285) 7,24
(.300) 7,62
h
(.295) 7,50
(.305) 7,75
HE700 PCB LAYOUT
(Bottom View)
ORDERING INFORMATION
PART NUMBER
HE7X X X XX XX
General Options
00 - No Options
10 - Coil Suppression Diode
20 - Electrostatic Shield
30 - Coil Diode and E.S. Shield
40 - External Magnetic Shield
50 - External Magnetic Shield
and Diode
Standard Coil
05 - 5 Volt
12 - 12 Volt
24 - 24 Volt
Ø (.024) 0,61 HOLE
(.100) 2,54
Model Number
HE72 - Standard
HE75 - High Voltage
Number of Contacts
1,2
(.500) 12,70
(.600) 15,24
(.300) 7,62
Contact Type
A - Form A (SPST-NO)
B - Form B (SPST-NC)
C - Form C (SPDT-CO)
E - Form C (SPDT-CO) alternate foot print 1
R - Form C (SPDT-CO) alternate foot print 2
EXAMPLE:
The HE721A0540 is a 1 Form relay with a 5 Volt coil and external magnetic shield
Contact the Hamlin Applications Engineering Department for low profile and other option
combinations available.
See next page for: Electrical and Operating Characteristics Description and Coil Characteristics
Hamlin USA
Hamlin UK
Hamlin Germany
Hamectrol France
Tel:
Tel:
Tel:
Tel:
+1 920 648 3000
•
Fax: +1 920 648 3001
•
Email: sales.us@hamlin.com
+44 (0)1379 649700
•
Fax: +44 (0)1379 649702
•
Email: sales.uk@hamlin.com
+49 (0) 6181 953660
•
Fax: +49 (0) 6181 9536666
•
Email: sales.de@hamlin.com
+33 (0) 1 4687 0202
•
Fax: +33 (0) 1 4686 6786
•
Email: sales.fr@hamlin.com
50
ISSUE No: 4 DATE: 1/5/3
Table 2
Column Number
Contact Type
HE700 Series
Recognised File #E47258
Electrical and Operating Characteristics
1
Form A
SPST, DPST
Standard
2
Form C
SPDT-CO
Standard
3
Form A
SPST
High Voltage
HE751
10
300
0.5
1.2
450
2500
N/A
N/A
0.150
10
10
10
10
1.0
1.0
-20 to +85
-40 to +105
20
50
@ 25
˚
C.
4
Form B
SPST-NC
Standard
HE721
10
200
0.5
1.2
250
500
N/A
N/A
0.150
10
10
10
10
1.0
1.0
-40 to +85
-40 to +105
20
50
Relay Types
CONTACT RATINGS Power, Switching
Contact Hamlin for
Voltage, Switching
specific load/life details Current, Switching
Current, Carry
VOLTAGE HOLD-OFF
Across Open Contacts
Contacts to Coil
Coil to E. Shield
Between Isolated Terminals
Contact, Initial
Insulation:Across Open Contacts
Between Isolated Terminals
Operate Time
Release Time
Temperature, Operating
Temperature, Storage
Vibration Resistance
Shock Resistance
Watt - max.
Vdc - max.
A - max.
A - max.
Vdc - min.
Vac - min.
Vac - min.
Vac - min.
Ω
- max.
Ω
- min.
Ω
- min.
ms - max.
ms - max.
°C
°C
G - max. 10-2000 Hz.
G - max. 11 ms,
1
⁄
2
sine
HE721, HE722 HE721C, E, R
10
200
0.5
1.2
250
500
150
500
0.150
10
10
10
10
1.0
1.0
-40 to +85
-40 to +105
20
50
5
175
0.25
1.5
200
500
150
N/A
0.200
10
9
10
10
3.0
3.0
-40 to +85
-40 to +105
20
50
RESISTANCE
TIMING
ENVIRONMENTAL
Table 3
Contact
Form
HE700 Series Miniature Relay
Electrical &
Dimensions
Operating
Characteristics
Part
Number
Nominal
Coil Voltage
Vdc
5
12
24
Coil
Resistance
±10% Ohms
500
1000
2150
Coil Characteristics
@ 25˚C.
Must
Operate
Vdc
3.75
8.0
16.0
Must
Release
Vdc
0.5
1.0
2.0
Maximum Top View 2,54 mm, 0.1 in. Grid
Coil Voltage
Dot on Case: Pin 1
Vdc
Numbers not printed on case.
12
31
46
See Note 2, 3
1A
SPST-NO
See Table 2
Column 1
Figure 1
HE721A0500
HE721A1200
HE721A2400
1B
SPST-NC
See Table 2
Column 4
Figure 1
HE721B0500
HE721B1200
HE721B2400
5
12
24
5
12
24
5
12
24
5
12
24
5
12
24
5
12
24
500
500
2150
200
500
2000
200
500
2000
200
500
2000
200
500
2150
500
1000
2150
3.75
9.0
18.0
3.75
8.0
16.0
3.75
8.0
16.0
3.75
8.0
16.0
3.75
8.0
16.0
3.75
8.0
16.0
0.5
1.0
2.0
0.5
1.0
2.0
0.5
1.0
2.0
0.5
1.0
2.0
0.5
1.0
2.0
0.5
1.0
2.0
6.5
14
28
14
22
44
14
22
44
14
22
44
12
22
46
12
31
46
1C
SPDT-CO
See Table 2
Column 2
Figure 1
HE721C0500
HE721C1200
HE721C2400
1C
SPDT-CO
See Table 2
Column 2
Figure 1
HE721E0500
HE721E1200
HE721E2400
1C
SPDT-CO
See Table 2
Column 2
Figure 1
HE721R0500
HE721R1200
HE721R2400
2A
DPST-NO
See Table 2
Column 1
Figure 1
HE722A0500
HE722A1200
HE722A2400
1A
SPST-NO
High Voltage
See Table 2
Column 3
Figure 2
HE751A0500
HE751A1200
HE751A2400
Notes:
1) The HE 700 Series is also available in low profile with
(.225) 5,72mm height. Contact Hamlin for details.
2) HE721B - Exceeding recommended voltage may cause
contact reclosure.
3) Optional external magnetic shield not available on
Form B relays.
INFORMATION PROVIDED ON THIS DATA SHEET IS PROVIDED FOR INFORMATION PURPOSES ONLY AND SHOULD NOT BE RELIED
UPON AS BEING ACCURATE FOR ANY PARTICULAR PURPOSE. Product performance may be affected by the application to which the product
is put. Upon request, HAMLIN will assist purchasers by providing information specific to any particular application. HAMLIN disclaims any and all
liability whatsoever for any purchaser’s reliance upon the information contained on this data sheet without further consultation with authorised
representatives of HAMLIN.
