M22-2030606

Description
Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size271KB,2 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric View All

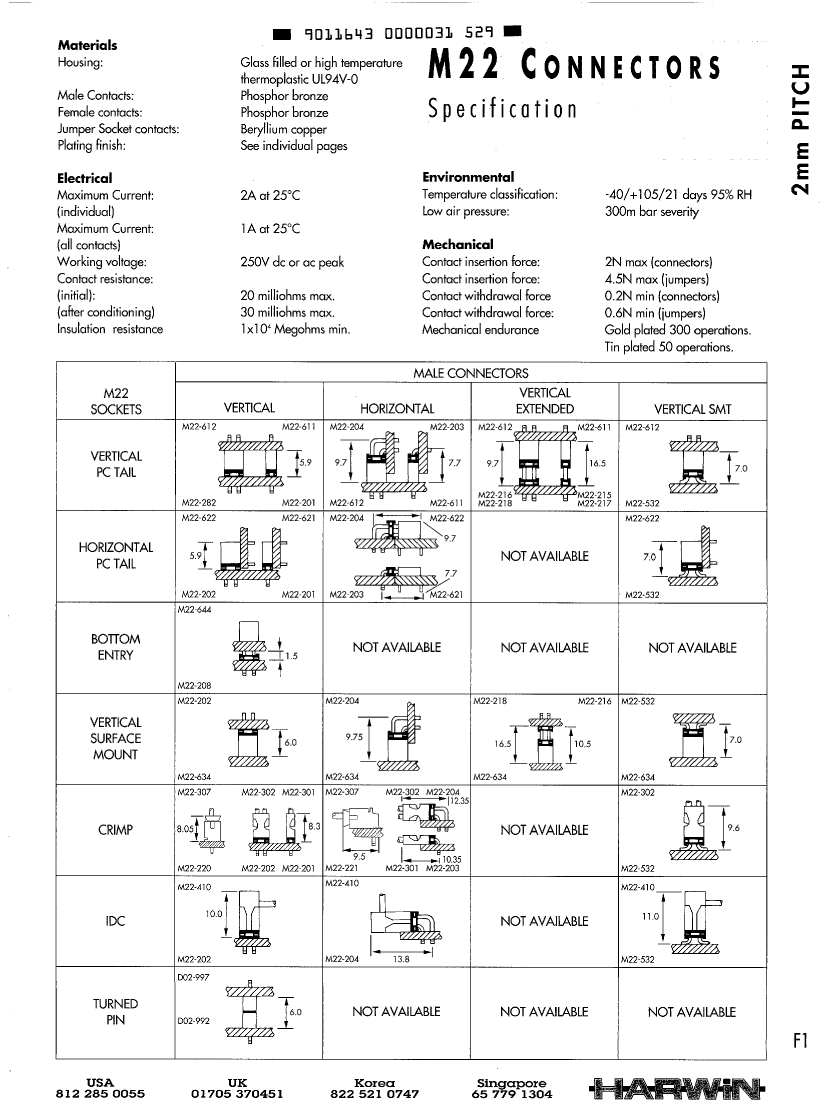

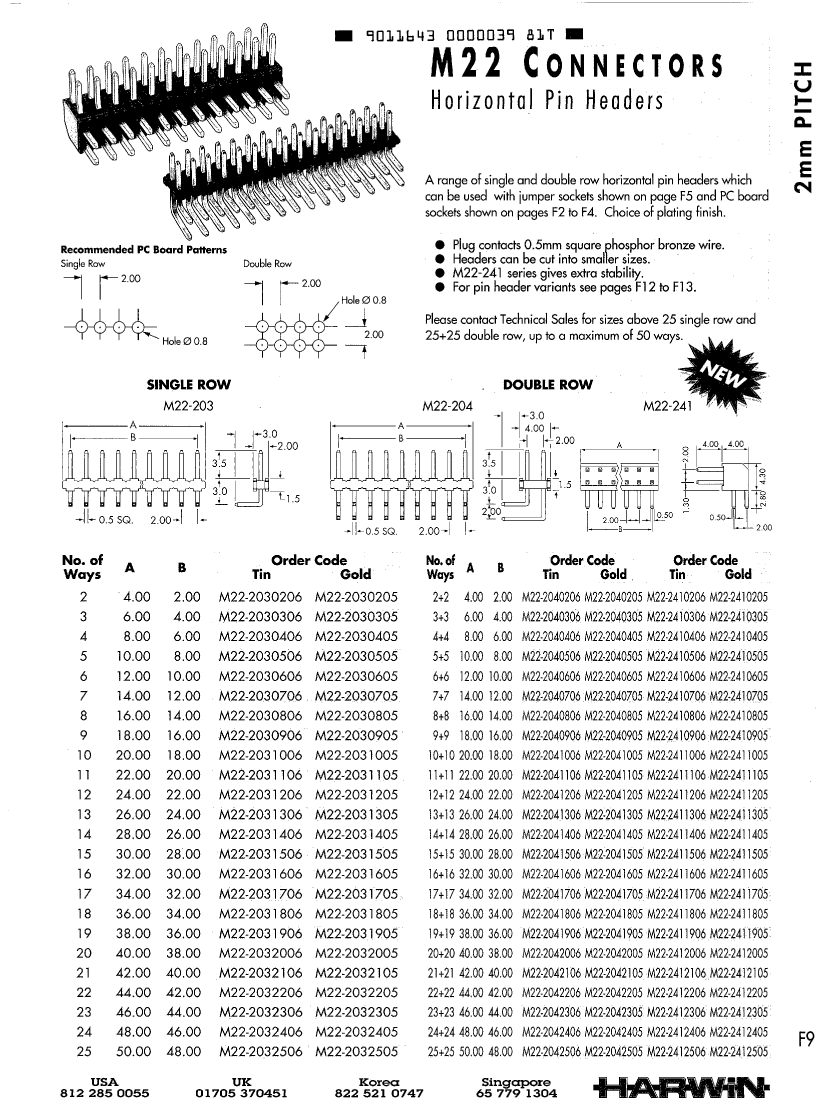

M22-2030606 Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle

M22-2030606 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerHarwin
Reach Compliance Codeunknow
ECCN codeEAR99
body width0.079 inch
subject depth0.118 inch
body length0.472 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage250VDC V
Durability50 Cycles
maximum insertion force2.0016 N
Insulation resistance10000000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial numberM22
Plug contact pitch0.079 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts6
