A3940LP

Description
Half Bridge Based MOSFET Driver, 0.8A, PDSO28, TSSOP-28
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size389KB，9 Pages
ManufacturerAllegro
Websitehttp://www.allegromicro.com/
Download Datasheet Parametric Compare View All

A3940LP Overview

Half Bridge Based MOSFET Driver, 0.8A, PDSO28, TSSOP-28

A3940LP Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAllegro
Parts packaging codeSSOP
package instructionHTSSOP,
Contacts28
Reach Compliance Codeunknow
ECCN codeEAR99
high side driverYES
Interface integrated circuit typeHALF BRIDGE BASED MOSFET DRIVER
JESD-30 codeR-PDSO-G28
JESD-609 codee0
length9.7 mm
Number of functions1
Number of terminals28
Maximum operating temperature135 °C
Minimum operating temperature-40 °C
Nominal output peak current0.8 A
Package body materialPLASTIC/EPOXY
encapsulated codeHTSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)240
Certification statusNot Qualified
Maximum seat height1.2 mm
Maximum supply voltage40 V
Minimum supply voltage7 V
surface mountYES
Temperature levelAUTOMOTIVE
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
Disconnect time0.215 µs
connection time0.215 µs
width4.4 mm

A3940LP Preview

3940
3940
ADVANCED DATASHEET – 4/9/03
(Subject to change without notice.)
H-BRIDGE POWER
MOSFET CONTROLLER
The A3940 was designed specifically for driving high power DC
motors in automotive applications. The A3940 provides four high current gate
drive outputs capable of driving a wide range of power N-channel MOSFETs.
Bootstrap capacitors are utilized to provide the above battery supply
voltage required for N-channel FETs. An internal charge pump for the high-
side will allow for DC (100% duty cycle) operation of the bridge.
PHASE and ENABLE input terminals are provided for use in
controlling the speed and direction of a DC motor with externally applied
PWM control signals.
Protection features include supply under-voltage and over-voltage,
programmable deadtime adjustment for cross-conduction protection, thermal
shutdown, and motor lead short-to-supply and short-to-ground protection.
The A3940 is available in 28L low profile (1mm) e-TSSOP
packaging (LP) which has an exposed pad solderable to PCB layers for
improved thermal and electrical performance. Also, it is available in the wide-
body, SOIC (LW) package.
VDRAIN 1
LSS 2
GLB 3
SB 4
GHB 5
CB 6
VIN 7
VREG13 8
CA 9
GHA 10
SA 11
GLA 12
VBB 13
CP2 14
28 VDSTH
27 IDEAD
26 LONG
25 RESET
24 PHASE
23 ENABLE
A3940LP, LW
22 SR
21 MODE
20 VREG5
19 OVSET
18 FAULT
17 GND
16 CP1
15 VCP
ABSOLUTE MAXIMUM RATINGS
Load Supply Voltages
V
BB,
Vdrain, CP1 ………….
-0.6 V to +40 V
Logic Input/Output Voltage Range,
V
in/out …………….
-0.3 V to +6.5 V
LSS Voltage................................
-2 V to + 6.5 V
Pins SA/SB ....................................
-2 V to +45 V
Pins GHA/GHB ................................
-2 to + 55 V
Pins CA/CB………….………….…-0.6
to + 55 V
Pins CP2/VCP/VIN ..……………–0.6
to + 52 V
Operating Temperature Range,
T
A
............................
-40
°C
to +135
°C
Max. Junction Temperature, T
J
...............
+150
°C
Storage Temperature Range,
T
S
.............................
-55
°C
to +150
°C
------------------------------------------------------------
T
HERMAL
I
MPEDANCE
, typical (Ta = +25
°C)*
A3940LP,
θ
JA …………………….
28
°C/W
A3940LW,
θ
JA
……………………
44
°C/W
*
Measured with JEDEC standard “High K” 4 layer
board.
FEATURES
High Current Gate Drive for Driving
a Wide Range of N-ch MOSFET’s
Charge Pump to boost gate drive at
low battery input conditions.
Bootstrapped Gate Drive with
Charge Pump for 100% Duty Cycle
Synchronous Rectification
Fault Diagnostic Output
Adjustable Dead Time Cross-
Conduction Protection
Motor Lead Short-to-Ground
and Short-to- Supply
Protection.
Thermal Shutdown
Gate Drive for External
Reverse Battery MOSFET
Under-voltage Protection
Over-voltage Protection
-40
°C
to 150
°C,
Tj Operation
H-BRIDGE POWER MOSFET CONTROLLER

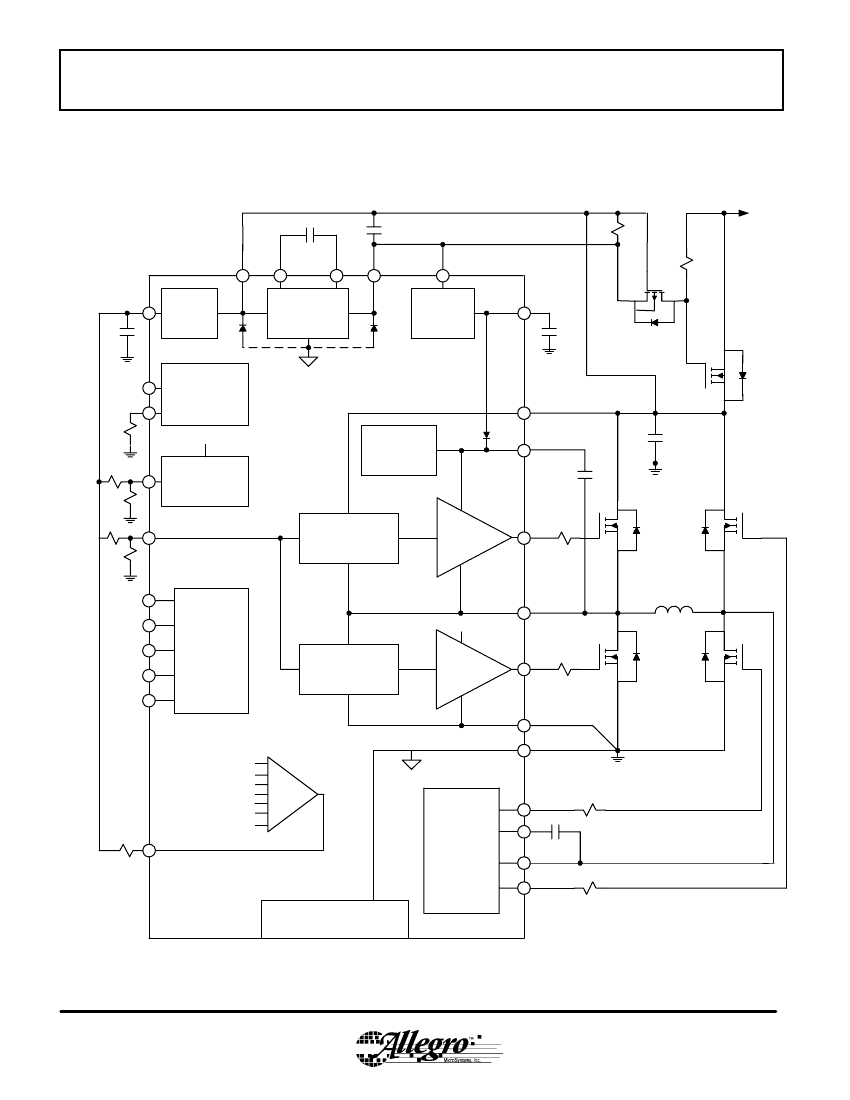

Functional Block Diagram
0.47 uF
Cr
Cp
VBB
CP1
CP2
VCP
VIN
1 uF
47K
10K
+VBAT
VREG5
-
+
VREG13
+5Vreg
Charge
Pump
Linear
Reg
10 uF
+
BSS84/110 or other low
Idss, p-ch FET.
Reverse
Battery
Protection
0.1 uF
LONG
IDEAD
Dead-Time
Adjust
VBB
VDRAIN
+
OVSET
Undervoltage/
Overvoltage
Detect
Top-off
Charge
Pump
CA
C
BOOT
High
Side
Driver
VDSTH
Short to Ground
Protection
GHA
ENABLE
PHASE
MODE
RESET
SR
LSS
GND
Vdrain Open
Short-to-Battery
Short-to-Ground
VBB Over-voltage
VBB Under-voltage
VREG13 Under-voltage
TSD
FAULT
VREG13
SA
Control
Logic
Short to Supply
Protection
Low
Side
Driver
GLA
O.D.
GLB
GATE
DRIVE B
CB
SB
GHB
e-PAD
3940
14MAY02
H-BRIDGE POWER MOSFET CONTROLLER
ELECTRICAL CHARACTERISTICS:
Unless noted, otherw
ise: TA = - 40°C to +135°C, TJ = - 40°C to +150°C, V
BB
= 7 to 40
V,
Vin < Vbb,
Cp = 0.47 uF, Cr = 1 uF, Creg5 = 0.1 uF, Creg13 = 10 uF, Cboot = .1 uF, PWM (Sq.Wave) Freq = 22.5 kHz
. Typ.
values sim. at 25
°C, Max/Min values sim. over TJ
range. Negative current flows out of designated pin.
Characteristics
V
BB
Quiescent Currents
Symbol
Test Conditions
RESET=1, Vbb=Vin=40 V, Coast, stopped,
CP disabled, Idead = 170 uA.
RESET=1, Vbb=Vin=15 V, Coast, stopped,
CP disabled, Idead = 170 uA.
RESET=1, Vbb=40 V, Vin=Vcp, Coast,
stopped, Idead = 170 uA. Icp=2.5 mA
RESET=1, Vbb=15 V, Vin=Vcp, Coast,
stopped, Idead = 170 uA. Icp=2.5 mA
RESET = 0
Min.
Typ.
11.0
8.7
10.5
10.3
Max.
14.0
10.4
12
12
1
Units
mA
mA
mA
mA
uA
V
mV
mV
mA
I
VBB
VREG5 Output Voltage
VREG5 Line Regulation
VREG5 Load Regulation
VREG5 Short -circuit Current
VCP Output Voltage Levels
V
REG5
V
REG5
V
REG5
Ilimit5
V
CP
no load
I
REG5
= 4.0 mA
I
REG5
= 0 - 4.0 mA, Vbb = 40 V
Vbb = 40 V, VREG5 = 0
V
BB
= 14 - 40 V, Icp = 15 mA
V
BB
= 7 V, Icp = 15 mA
4.5
5
5
5
28
5.5
V
BB
+10
11.7
15
V
BB
+11
13
V
BB
+ 12
13.8
V
V
mA
VCP Gate Drive
VCP Output Voltage Ripple
VCP Pump-up time
I
CP
V
CP
Tup
SR=1, MODE=0, ENABLE=PWM
Icp = 15 mA, V
BB
= 14 - 40 V
Vin = VCP, V
BB
= 14 - 40 V
Vin = VCP, V
BB
= 7 V
500
2.5
3.5
1.4
12.6
13.3
0.7
2
2
60
14.0
mV/pp
mS
mS
mA
V
V
mV
mV
mA
uS
mS
VREG13 Input Current (Quiescent)
VREG13 Output Voltage
VREG13 Dropout Voltage
VREG13 Line Regulation
VREG13 Load Regulation
VREG13 Short -circuit Current
GO-SLEEP Response Time
WAKE-UP Response Time
Ivin
V
REG13
V
REGDV
V
REG13
V
REG13
Ilimit13
RESET=1, Vbb=Vin=40 V, Coast, stopped.
V
IN
= 15 V, no load
I
REG13
= 15mA, V
IN
= 11 - 14 V
Vin = 15 - 40 V, I
REG13
= 15 mA
Vin = 40 V, I
REG13
= 0 - 15 mA
Vin = 40 V, VREG13 = 0 (pulse)
RESET = 0 to VREG5 = 4 V
RESET = 1 to VREG13_UV cleared.
Tsleep
Twake
4
25
1.4
H-BRIDGE POWER MOSFET CONTROLLER
Characteristics
Control Logic
Logic Input Voltages
V
IN(1)
V
IN(1)
V
IN(0)
Logic Input Current
I
IN(1)
I
IN(0)
I
IN(0)
HIGH level input (Logic 1), except RESET.
HIGH level input (Logic 1) for RESET
LOW level input (Logic 0)
V
IN
= 2.0
V
IN
= .8, except RESET(0)
V
IN
= .8, RESET(0)
-
2.0
2.2
–
–
-
-
–
40
16
-
-
.8
100
40
1
V
uA
uA
uA
V
Symbol
Test Conditions
Min.
Typ.
Max.
Units
Gate Drives, GHx, GLx ( internal SOURCE or upper switch stages)
Output HIGH Voltage
V
DSL
(HI)
GHx: I
xU
= -10 mA, Vsx = 0
GLx: I
xU
= -10 mA, Vlss = 0
Source Current (pulsed)
Ixu
V
SDU
= 10 V, Tj = 25
°C
V
SDU
= 10 V, Tj = 135
°C
Source ON Resistance
R
SDU
(ON)
I
xU
= -150 mA, Tj = 25
°C
I
xU
= -150 mA, Tj = 135
°C
Source Load Rise-time (20 - 80%)
Trise
Measure V
DSL
. Cload = 3300 pF.
400
4
7
90
13
23
V
REG 13
– 2.2
V
REG 13
– 0.2
700
V
REG13
V
REG13
V
V
mA
mA
Ω
Ω
nS
Gate Drives, GHx, GLx ( internal SINK or lower switch stages)
Sink Current (pulsed)
I
xL
V
DSL
= 10 V, Tj = 25
°C
V
DSL
= 10 V, Tj = 135
°C
Sink ON Resistance
R
DSL
(ON)
I
xL
= +150 mA, Tj = 25
°C
I
xL
= +150 mA, Tj = 135
°C
Sink Load Fall-time (20 - 80%)
Tfall
Measure V
DSL
. Cload = 3300 pF.
550
1.8
3.0
70
6.0
7.5
800
mA
mA
Ω
Ω
nS
Gate Drives, GHx, GLx (General)
Propagation Delay
Prop Delay Differences
Dead Time (between GHx, GLx
transitions of same phase)
t
PROP
t
PROP
t
DEAD
Logic inputs to unloaded GHx, GLx
Grouped by rising and falling edge transitions.
Long = 0, Rdead =12.1K (Idead =167uA)
Long = 0, Rdead =499K (Idead =4uA)
Long = 1, Rdead =12.1K (Idead =167uA)
Long = 1, Rdead =499K (Idead =4uA)
8.5
0.3
215
50
nS
nS
uS
10.5
uS
uS
320
uS
Notes:
For
GH
X
: V
SDU
= V
CX
– V
GHX
,
V
DSL
= V
GHX
– V
SX
,
V
DSL
(HI) = V
CX
– V
SDU
– V
SX
.
For
GL
X
: V
SDU
= V
REG13
– V
GLX
, V
DSL
= V
GLX
– V
LSS
, V
DSL
(HI) = V
REG13
– V
SDU
– V
LSS
.
H-BRIDGE POWER MOSFET CONTROLLER
Characteristics
Bootstrap Circuit
Diode Forward Current Limits
Diode Forward Drop
Diode Resistance
Top-off CP Source Current at Cx
Icx
Vd
Rd
Icx
3V <[ (VREG13 = 13.5V) - Vcx] < 12V
Id = 10 mA
Rd(100) = [Vd(150) - Vd(50)] / 100
Vcx-Vsx=8V, Vbb=40V, GHx=1(no load)
140
0.8
1.5
50
1000
2.0
6.5
mA
V
Ω
uA
Symbol
Test Conditions
Min.
Typ.
Max.
Units
Fault/Protection Circuits
VBB Under-voltage
VBB UV Hysteresis
VREG13 Under-voltage
VREG13 Hysteresis
VBB Over-voltage
Vbbuv
Vbbuvhy
V13uv
V13uvhy
Vbbov
VBB decreasing
Recovery = Vbbuv + Vbbuvhy
Vin decreasing
Recovery = V13uv + V13uvhy
Vbb increasing, Vovset = 0 V
Vbb increasing, Vovset = 0.45 V
Vbb increasing, Vovset = 0.9 V
VBB OV Hysteresis
OVSET Input Current
Short-to-Ground Threshold
Vbbovhy
Iovset
Vstg
Recovery = Vbbov - Vbbovhy
Vovset = 0 to 0.9 V
0.5 < Vdsth < 3.0 V
Vdsth –
0.4
Short-to-Battery Threshold
Vstb
0.5 < Vdsth < 3.0 V
Vdsth –
0.4
Vdrain/Open-Bridge Threshold
VDSTH Input Current
Vdrain/Open-Bridge Current
Vdoth
Idsth
Ivdrain
If Vdrain < Vdoth a Bridge fault occurs
1.0V < Vdsth < 3.0 V
RESET = 0
RESET = 1, Vdsth < 3.0 V
Fault Latch Clear Pulsewidth
Fault Clear Prop Delay
Fault Detection Noise Filter
Fault Output
Tlatch
Tprop
Tnoise
Vout(0)
Iout(1)
Thermal Shutdown Temp.
Thermal Shutdown Hysteresis
T
JTSD
∆T
J
Iout = 5 mA, faults negated.
Vout = 5V, open-drain, fault asserted.
Temperature increasing.
Recovery = T
JTSD
-
∆T
J
172
12
RESET= 0, pulse
From RESET=1 to FAULT=0
0.15
2.0
1.7
0.4
1
1
4.5
200
7.5
200
16
24
32.5
2.1
5.25
450
8.25
450
19.6
28
36.4
3.1
6.0
700
9.0
700
22
30.5
39
4.1
1.4
Vdsth +
0.3
Vdsth +
0.3
3
1
1
0.5
2.0
V
uA
uA
mA
uS
uS
uS
V
uA
°C
°C
V
V
mV
V
mV
V
V
V
V
uA
V
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

A3940LP Related Products

A3940LP A3940LW
Description Half Bridge Based MOSFET Driver, 0.8A, PDSO28, TSSOP-28 Half Bridge Based MOSFET Driver, 0.8A, PDSO28, SOIC-28
Is it Rohs certified? incompatible incompatible
Maker Allegro Allegro
Parts packaging code SSOP SOIC
package instruction HTSSOP, SOP,
Contacts 28 28
Reach Compliance Code unknow unknown
ECCN code EAR99 EAR99
high side driver YES YES
Interface integrated circuit type HALF BRIDGE BASED MOSFET DRIVER HALF BRIDGE BASED MOSFET DRIVER
JESD-30 code R-PDSO-G28 R-PDSO-G28
JESD-609 code e0 e0
length 9.7 mm 17.9 mm
Number of functions 1 1
Number of terminals 28 28
Maximum operating temperature 135 °C 135 °C
Minimum operating temperature -40 °C -40 °C
Nominal output peak current 0.8 A 0.8 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code HTSSOP SOP
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH SMALL OUTLINE
Peak Reflow Temperature (Celsius) 240 240
Certification status Not Qualified Not Qualified
Maximum seat height 1.2 mm 2.65 mm
Maximum supply voltage 40 V 40 V
Minimum supply voltage 7 V 7 V
surface mount YES YES
Temperature level AUTOMOTIVE AUTOMOTIVE
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING
Terminal pitch 0.65 mm 1.27 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature 30 30
Disconnect time 0.215 µs 0.215 µs
connection time 0.215 µs 0.215 µs
width 4.4 mm 7.5 mm

Recommended Resources

Circuit diagram of miniature wireless alarm transmitter

Power circuit diagram

Cordless telephone power-on encoding and decoding circuit diagram

Simple long-distance wireless intercom circuit diagram

Computer motherboard circuit diagram 440LX2_16

Computer motherboard circuit diagram 810 2_14

Fresh graduates can't afford to look for jobs
Reprinted from a recruitment website:In Guangzhou, if I have 2-3 interviews a day, I need to take the subway from the rental place, visit these three places, and then return to the rental place becaus...
woven Talking about work
Fatal warning in keil51
例1：WARNING L15: MULTIPLE CALL TO SEGMENTSEGMENT: ?PR?_WRTOROM?WORKTIME_02 CALLER1: ?PR?TIM?WORKTIME_02CALLER2: ?C_C51STARTUPThe above warning indicates that the function WRTOROM() is called multiple t...
piggyfeng 51mcu
"Constant power" power control strategy for hard-start loads (such as high-power permanent magnet brushed motors and solenoid valves)
Simple hardware constant power control, when long-term repeated over-current applications are required, the output current is doubled and the voltage is half, the starting stress is as low as 1/4, the...
PowerAnts Power technology
What is the difference between ccs6.0 and the previous ccs5?
1. There are release notes that explain the differences. Programs…Texas…Instruments…CCS 6.0…should be there. 2. There is a list of compiler versions, also in the release notes. CCS6 should have better...
Aguilera Microcontroller MCU
Looking to buy a set of easy ARM213X development board
Does anyone have an easy ARM213X development board set that is idle? I need it urgently. I am learning ARM7 recently and would like some guidance. Thank you....
josephF Embedded System
Under what circumstances should you consider using 51?
On the one hand, many friends are using 51, why? Because it is cheap, affordable, and familiar. On the other hand, the MCU with cortex core is coming fiercely and has the potential to replace 51. So, ...
clark 51mcu
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. 171-007-6P-.110-PBMH
  2. S1R107S0-26M3-180
  3. 803-013-CA8MT14-12NZ-72
  4. CDR12BP181AKWS
  5. M80-4T12205F2-02-302-05-322
  6. M80-4T12401F2-12-322-08-322
  7. CX635A-A2B4C250-11.0D18
  8. MSR-1X36-1U-RS2-15-9-SC/UPC-B-R
  9. AME8501AEFVCF23
  10. A2508WV-3P-GWT
  11. A2541WV-2x35P-C1321D808-G15
  12. UPZ1005D100-2R0TF

Popular Articles

  1. 51 single chip microcomputer - fine-tuning timing and precise time
  2. How much lithium carbonate and cobalt does an electric car need in total?
  3. LeTV's first "nationally produced" mobile phone S1 will go on sale at 10:00 on September 30
  4. Cree changes its name to Wolfspeed and will be listed on the New York Stock Exchange on October 4
  5. What is the applicable scope of the breathing valve air tightness tester
  6. Apple Music releases 2021 music memory playlist: all the songs you love
  7. Industry: Folding phone prices are falling rapidly, second-hand phones drop 40% in half a year
  8. Analysis of the application of voltage clamp circuit in automobile electrical system
  9. How to use an oscilloscope as a recorder
  10. STMicroelectronics' octal-output high-side switch integrates rich protection and diagnostic functions in a compact package

Technical ResourceMore

  1. GALIL controller function introduction
  2. MPLAB IDE Integrated Development Environment MPLAB v7.50
  3. Refrigeration system schematic
  4. High-speed PCB design and APSIM simulation tools
  5. Design of microcomputer protection device interfaced with electronic mutual inductor
  6. Three-phase AC circuit - Electrical and Electronic Technology Unit 3
  7. Computer Security Technology Downloads
  8. Application of polarization effect in semiconductor form factor de novo device theory
  9. Remote Sewage Tester Based on MSP430
  10. Chinese Notes on Cisco Routers

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2139  77  2721  1974  1238  44  2  55  40  25
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
