334DCV5R5ZBD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 334DCV5R5ZBD

334DCV5R5ZBD: DescriptionSpecial Capacitor, 5.5V, 330000uF; CategoryPassive components capacitor; File Size120KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

334DCV5R5ZBD Overview

Special Capacitor, 5.5V, 330000uF

334DCV5R5ZBD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Illinois Capacitor
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	330000 µF
Capacitor type	SPECIAL CAPACITOR
diameter	11.5 mm
length	4.5 mm
negative tolerance	20%
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Package form	Radial
positive tolerance	80%
Rated (DC) voltage (URdc)	5.5 V
Terminal pitch	5 mm

Preview

Download Datasheet

View All

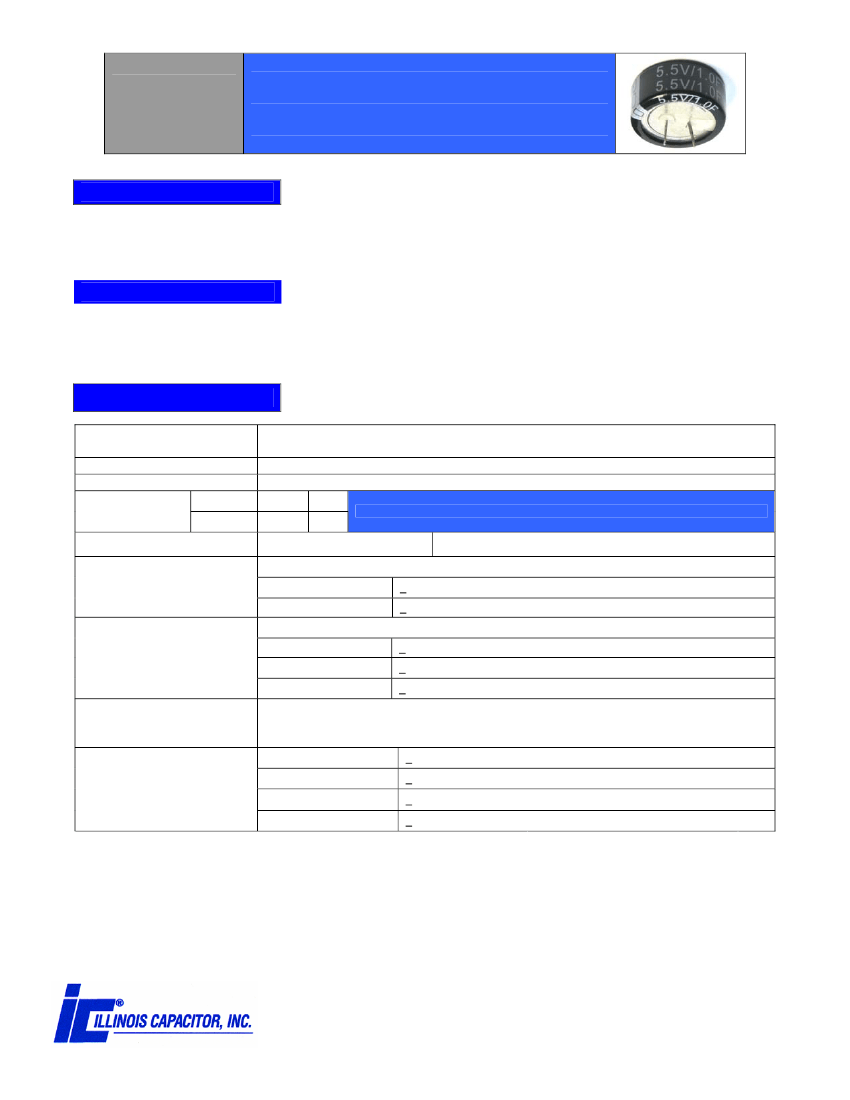

APPLICATIONS



Power meters

Water meters

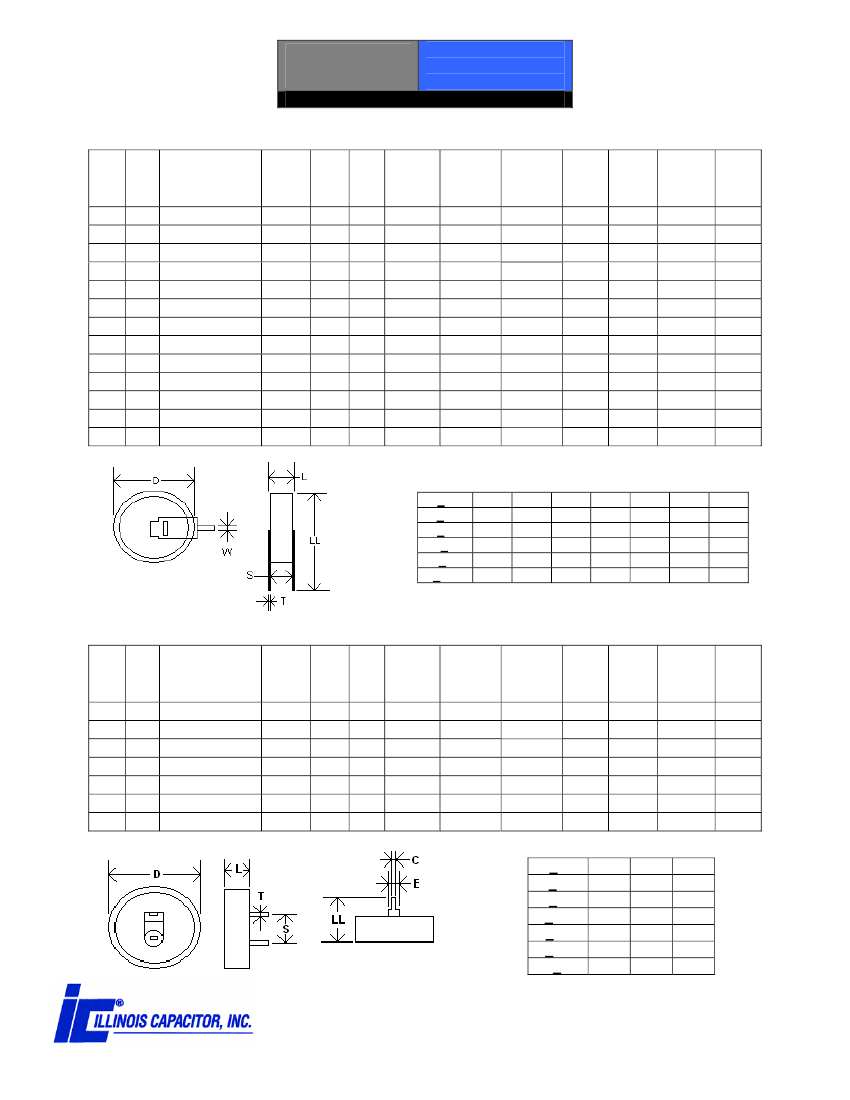

Coin Type Radial Leaded

Super Capacitors



Digital cameras

UPS systems



Digital books

Battery Backup

FEATURES



High Capacitance



Long Life



Multiple lead style



Very fast charge/discharge cycling

Circuit board mountable

High power density



RoHS compliant

Compact size

IEC 62391 compliant

SPECIFICATIONS

Operating Temperature

Range

Storage Temperature

Capacitance Tolerance

WVDC

Surge voltage

SVDC

Maximum Current

Life time

(25°C)

-25°C to +70°C

-40°C to +85°C

+80%/-20% @ 20°C (Z tolerance code)

2.7

3.0

5.5

6.0

1 second discharge to ½ WVDC

500 hours at 70°C and rated voltage

Capacitance change

ESR

<30% of initially measured values

<400% of initially specified values

See standard part listing

240 hours at 40°C and 90~95% relative humidity

Humidity resistance

Capacitance change

ESR

Leakage Current

<30% of initially measured values

<400% of initially measured values

<200% of initially measured values

Soldering

Only solder using hand soldering or wave soldering. 230°C Maximum soldering

temperature for 5 seconds.

Capacitors cannot be used in reflow or infrared soldering processes.

Capacitance change

<30% of initially measured values at 70°C

<100% of initially specified values at 70°C

<50% of initially measured values at -25°C

<400% of initially specified values at -25°C

ESR

Capacitance change

ESR

Temperature

characteristic

3757 W. Touhy Ave., Lincolnwood, Il 60712

●

(847)675-1760●

Fax (847) 675-2850

●

www.illcap.com
