AF9945NSA: DescriptionPower Field-Effect Transistor, 3.3A I(D), 60V, 0.1ohm, 2-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SO-8; CategoryDiscrete semiconductor The transistor; File Size453KB，5 Pages; ManufacturerIntegrated Circuit Systems（IDT ）

Download Datasheet Parametric Compare View All

AF9945NSA Overview

Power Field-Effect Transistor, 3.3A I(D), 60V, 0.1ohm, 2-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SO-8

AF9945NSA Parametric

Parameter Name	Attribute value
Maker	Integrated Circuit Systems（IDT ）
Parts packaging code	SOT
package instruction	SMALL OUTLINE, R-PDSO-G8
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (ID)	3.3 A
Maximum drain-source on-resistance	0.1 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G8
Number of components	2
Number of terminals	8
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	20 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON

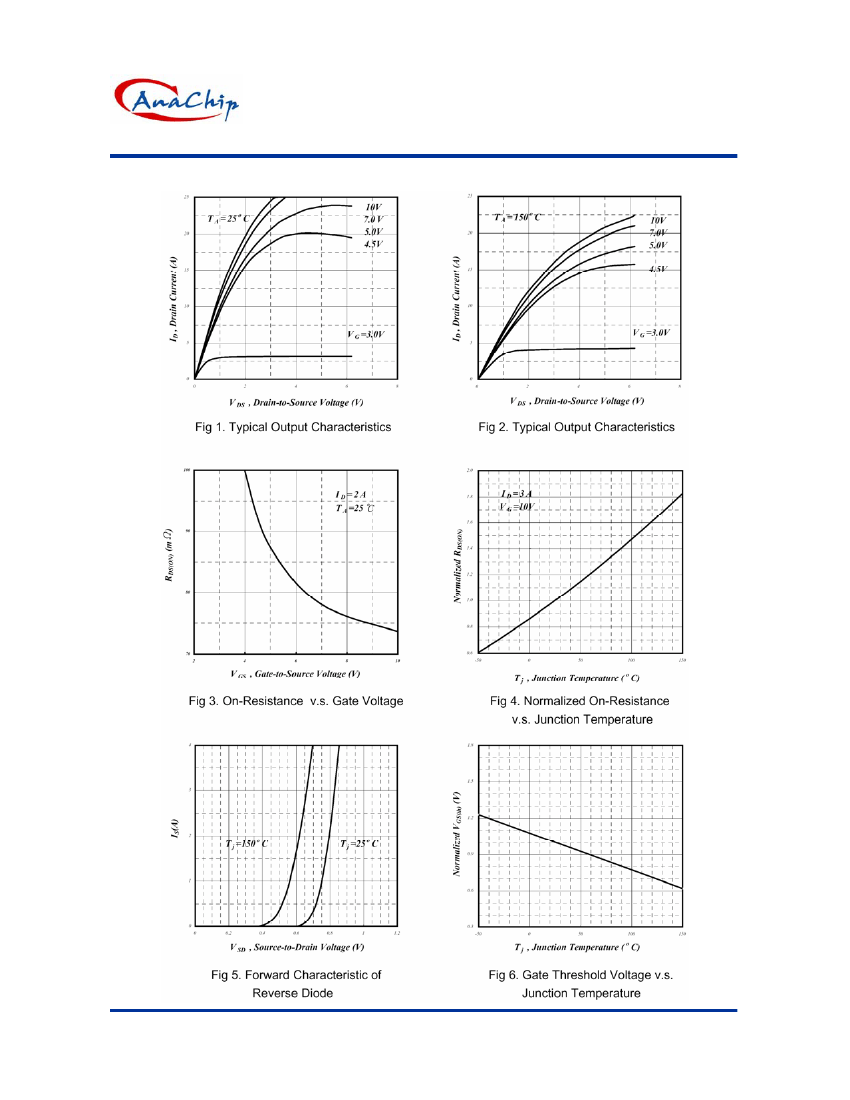

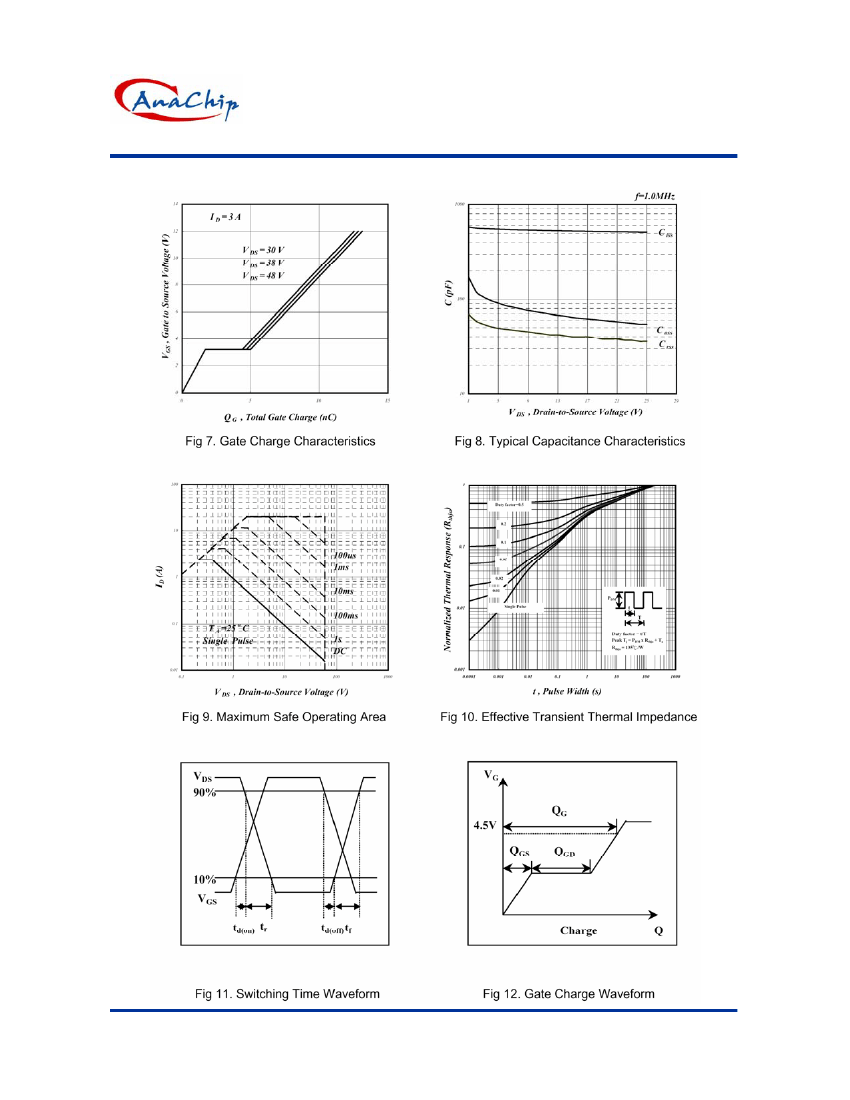

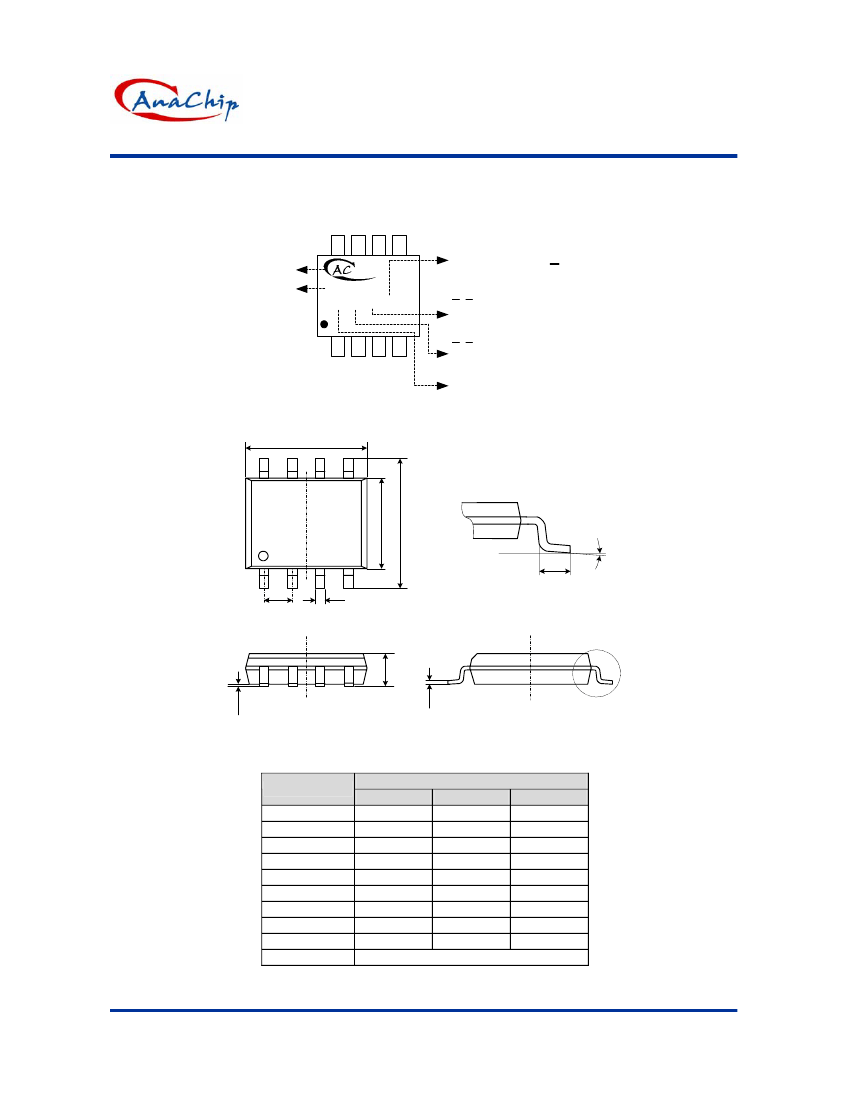

Preview

Download Datasheet

View All

AF9945N

N-Channel Enhancement Mode Power MOSFET

Features

- Low On-resistance

- Single Drive Requirement

- Surface Mount Package

General Description

The advanced power MOSFET provides the designer

with the best combination of fast switching,

ruggedized device design, ultra low on-resistance and

cost-effectiveness.

Product Summary

DSS

(V)

DS(ON)

(mΩ)

100

(A)

3.3

Pin Assignments

Pin Descriptions

Pin Name

S1/2

G1/2

D1/2

Description

Source

Gate

Drain

SO-8

Ordering information

A X

Feature

F :MOSFET

9945N X X X

Package

S: SO-8

Lead Free

Blank : Normal

L : Lead Free Package

Packing

Blank : Tube or Bulk

A : Tape & Reel

This datasheet contains new product information. Anachip Corp. reserves the rights to modify the product specification without notice. No liability is assumed as a result of the use of

this product. No rights under any patent accompany the sale of the product.

Rev. 1.1 Sep 5, 2005

1/5
