AP9A107B-12TC Overview

Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, TSOP-32

AP9A107B-12TC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Integrated Silicon Solution ( ISSI )
package instruction	TSOP-32
Reach Compliance Code	compli
ECCN code	3A991.B.2.B
Maximum access time	12 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	18.4 mm
memory density	1048576 bi
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP32,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum standby current	0.015 A
Minimum standby current	4.5 V
Maximum slew rate	0.12 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	8 mm

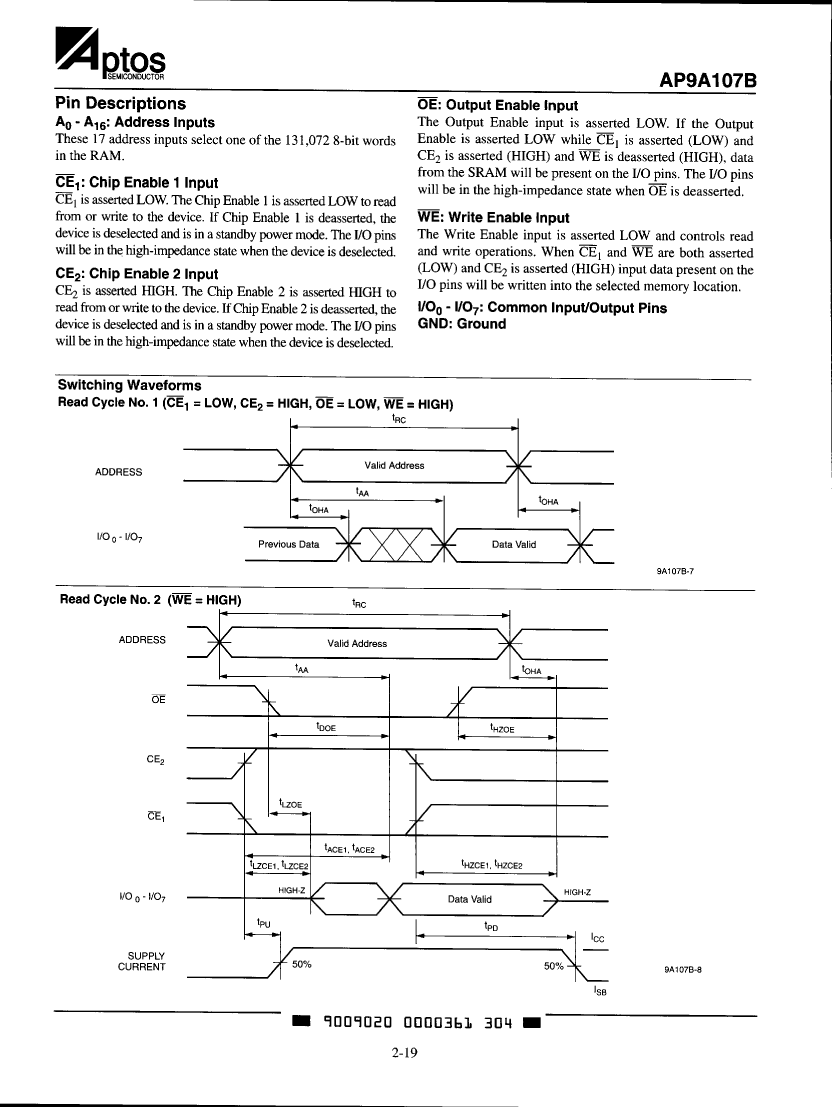

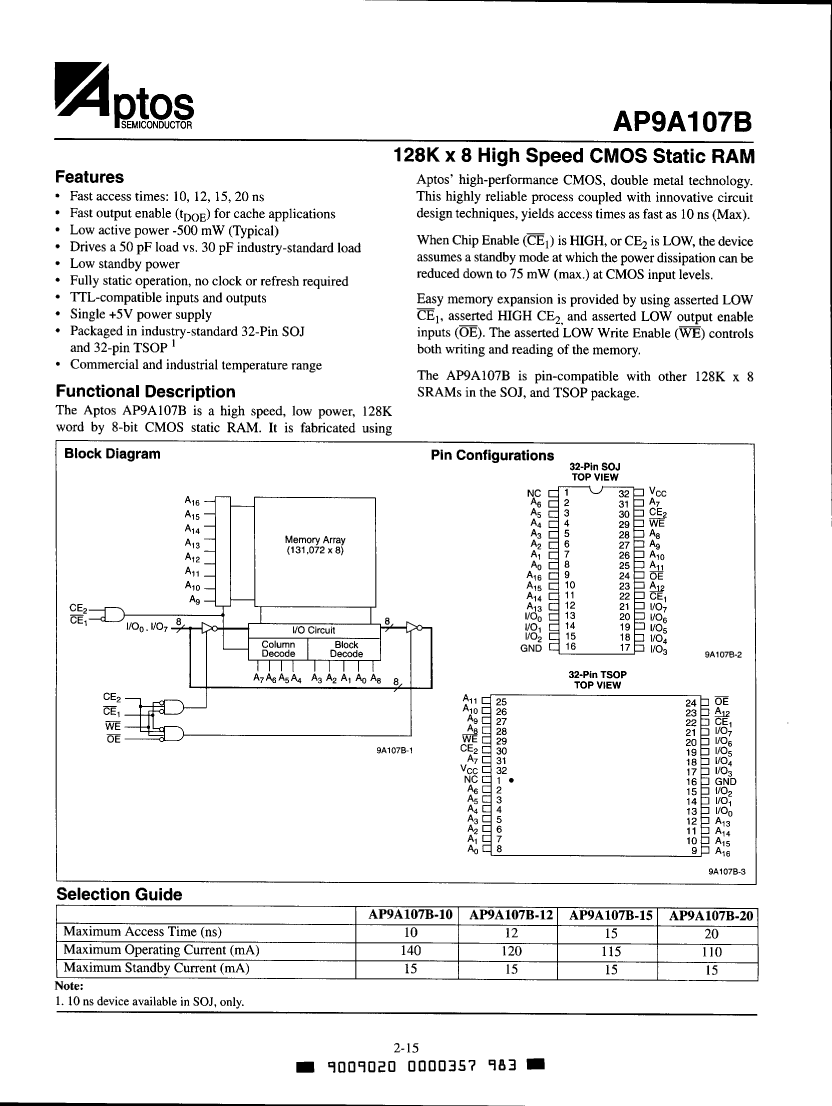

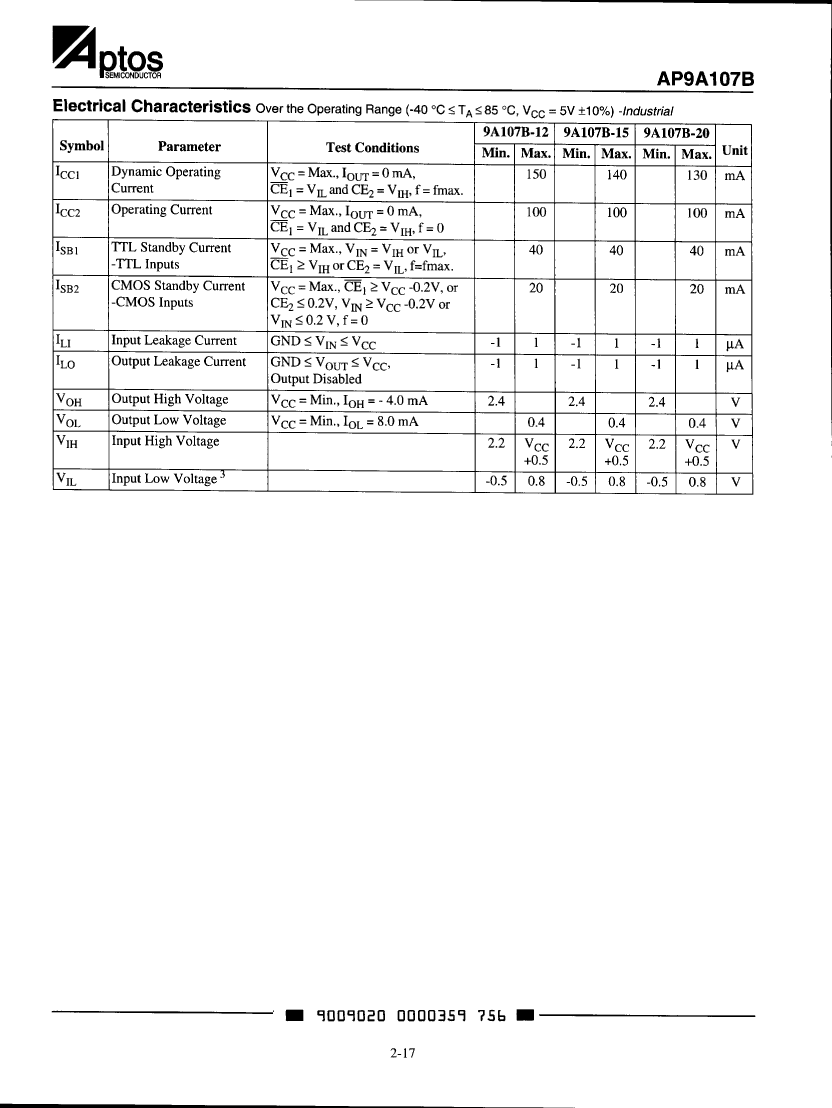

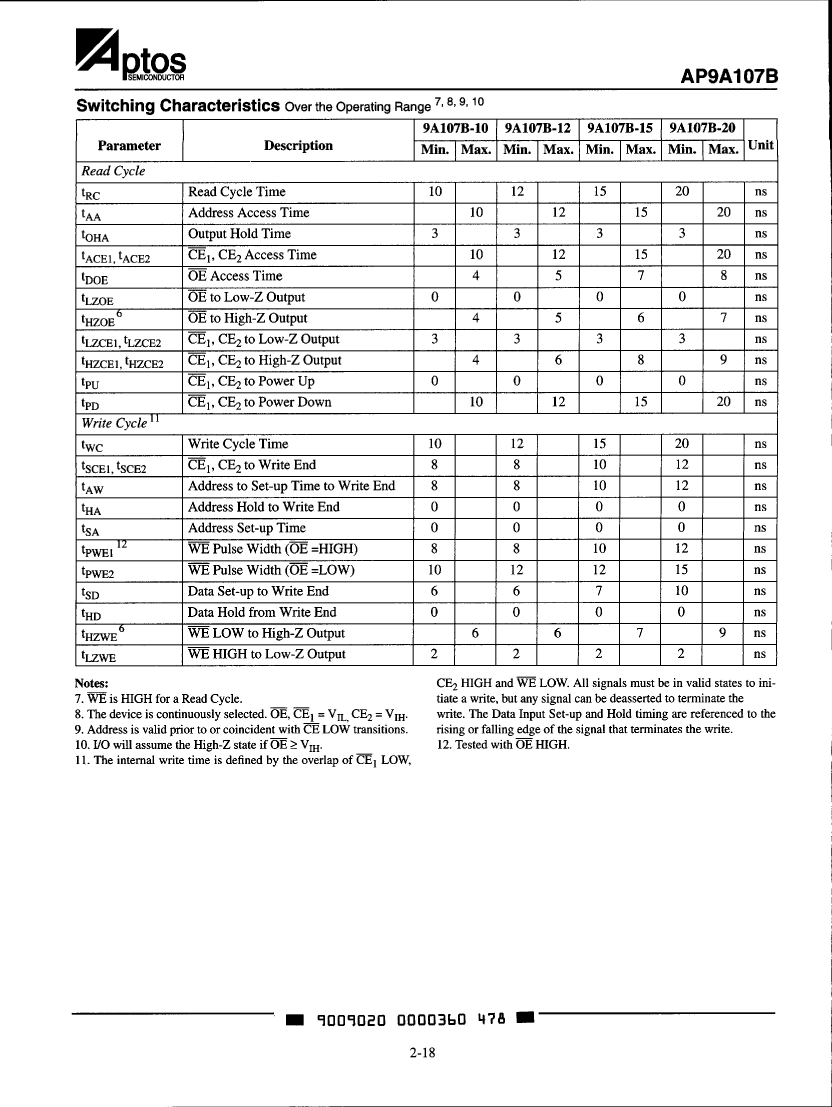

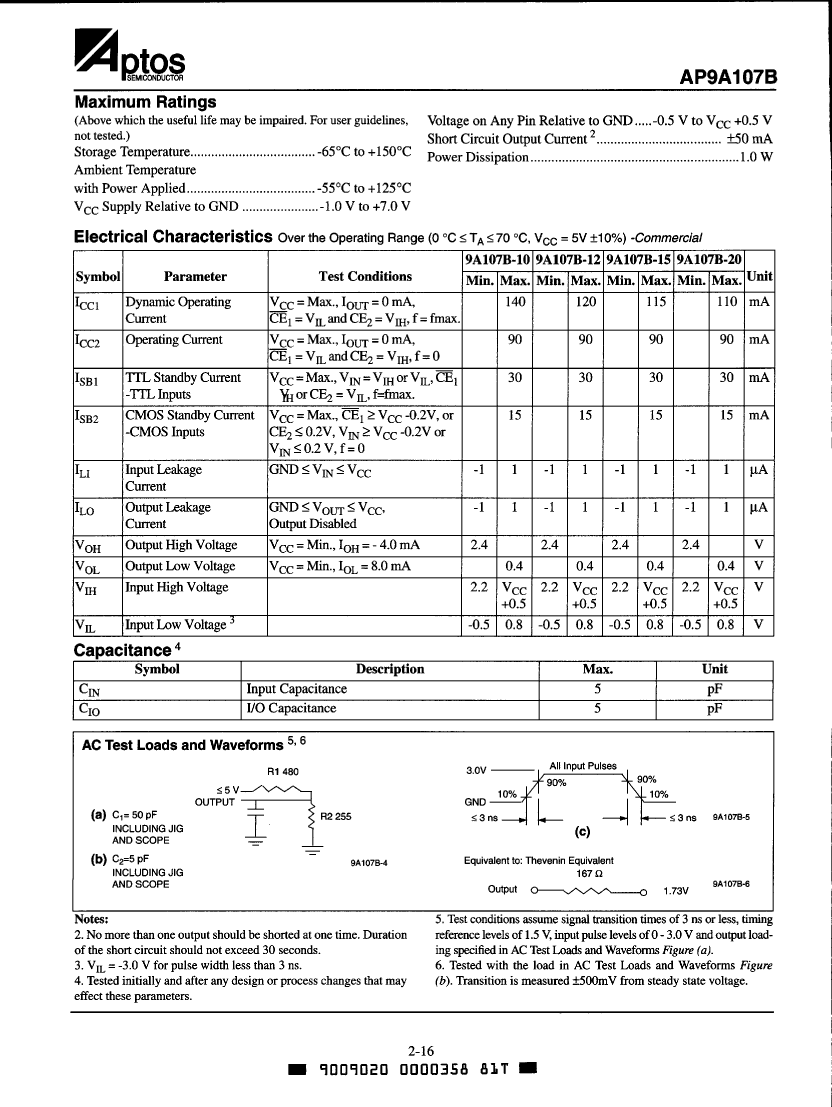

Preview

Download Datasheet

View All

AP9A107B-12TC Related Products

	AP9A107B-12TC	AP9A107B-15TC	AP9A107B-10VC	AP9A107B-20VC	AP9A107B-20VI	AP9A107B-12VI	AP9A107B-12VC	AP9A107B-15VC	AP9A107B-15VI	AP9A107B-20TC
Description	Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, TSOP-32	Standard SRAM, 128KX8, 15ns, CMOS, PDSO32, TSOP-32	Standard SRAM, 128KX8, 10ns, CMOS, PDSO32, 0.400 INCH, SOJ-32	Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, SOJ-32	Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, SOJ-32	Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, 0.400 INCH, SOJ-32	Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, 0.400 INCH, SOJ-32	Standard SRAM, 128KX8, 15ns, CMOS, PDSO32, 0.400 INCH, SOJ-32	Standard SRAM, 128KX8, 15ns, CMOS, PDSO32, 0.400 INCH, SOJ-32	Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, TSOP-32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	TSOP-32	TSOP-32	0.400 INCH, SOJ-32	0.400 INCH, SOJ-32	0.400 INCH, SOJ-32	0.400 INCH, SOJ-32	0.400 INCH, SOJ-32	0.400 INCH, SOJ-32	0.400 INCH, SOJ-32	TSOP-32
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli	compli
Maximum access time	12 ns	15 ns	10 ns	20 ns	20 ns	12 ns	12 ns	15 ns	15 ns	20 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G32	R-PDSO-G32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32	R-PDSO-G32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	18.4 mm	18.4 mm	21 mm	21 mm	21 mm	21 mm	21 mm	21 mm	21 mm	18.4 mm
memory density	1048576 bi	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bi	1048576 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32	32	32	32
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C	70 °C	70 °C	85 °C	70 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	TSSOP
Encapsulate equivalent code	TSSOP32,.8,20	TSSOP32,.8,20	SOJ32,.44	SOJ32,.44	SOJ32,.44	SOJ32,.44	SOJ32,.44	SOJ32,.44	SOJ32,.44	TSSOP32,.8,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	3.7 mm	3.7 mm	3.7 mm	3.7 mm	3.7 mm	3.7 mm	3.7 mm	1.2 mm
Maximum standby current	0.015 A	0.015 A	0.015 A	0.015 A	0.02 A	0.02 A	0.015 A	0.015 A	0.02 A	0.015 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.12 mA	0.115 mA	0.14 mA	0.11 mA	0.13 mA	0.15 mA	0.12 mA	0.115 mA	0.14 mA	0.11 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	GULL WING
Terminal pitch	0.5 mm	0.5 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	8 mm	8 mm	10.2 mm	10.2 mm	10.2 mm	10.2 mm	10.2 mm	10.2 mm	10.2 mm	8 mm
Maker	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	-	-	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )	Integrated Silicon Solution ( ISSI )
