Pm25WQ020/040
2 Mbit / 4 Mbit bit Single
Operating Voltage Serial Flash
Memory With 104 MHz Dual- or
Quad-Output SPI Bus Interface
•
Low Power Consumption
-
Max 15 mA active read current
- Max 20 mA program/erase current
-
Max 50uA standby current
•
Hardware Write Protection
- Protect and unprotect the device from write
operation by Write Protect (WP#) Pin
•
Software Write Protection
-
The Block Protect (BP3, BP2, BP1, BP0) bits
allow partial or entire memory to be configured as
read-only
•
High Product Endurance
- Guaranteed 100,000 program/erase cycles per
single sector
- Minimum 20 years data retention
•

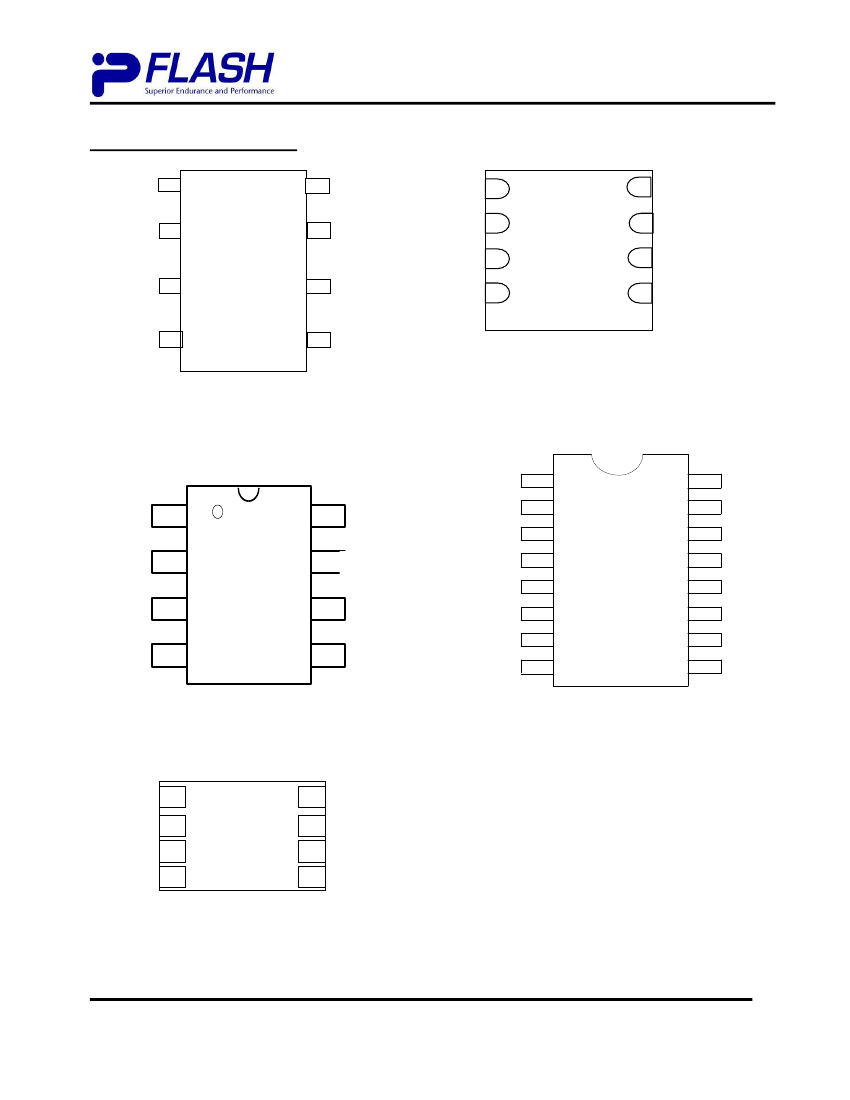

Industrial Standard Pin-out and Package
- 8-pin PDIP
- 8-pin 208mil SOIC
- 8-pin 150mil SOIC
- 8-pin 150mil VVSOP
- 8-contact WSON
- 8-contact USON
- 16-pin 300mil SOP
- Lead-free (Pb-free), halogen-free package
Additional 256-byte Security information one-time
programmable (OTP) area
FEATURES
•
Single Power Supply Operation
- Low voltage range: 1.65 V – 2 V
• Memory Organization
- Pm25WQ020: 256K x 8 (2 Mbit)
- Pm25WQ040: 512K x 8 (4 Mbit)
•
Cost Effective Sector/Block Architecture
- 2Mb/4Mb : Uniform 4KByte sectors / Sixteen
uniform 64KByte blocks
•
Serial Peripheral Interface (SPI) Compatible
- Supports single-, dual- or quad-output
- Supports SPI Modes 0 and 3
- Maximum 33 MHz clock rate for normal read
- Maximum 104 MHz clock rate for fast read
- Maximum 208MHz clock rate
- Maximum 416MHz clock rate equivalent Quad SPI
•
Byte Program Operation
- Typical 8 us/Byte
•
Page Program (up to 256 Bytes) Operation
- Maximum 1 ms per page program
•
Sector, Block or Chip Erase Operation
- Sector Erase (4KB)
120ms
(Typ)
- Block Erase (64KB)
250ms
(Typ)
- Chip Erase
(2Mb)
1.5s (Max)
- Chip Erase
(4Mb)
3s (Max)
•Deep
power-down mode
1uA (Typ)
GENERAL DESCRIPTION
The Pm25WQ020/040 are 2Mbit / 4Mbit Serial Peripheral Interface (SPI) Flash memories, providing single-,
dual or quad-output. The devices are designed to support a 33 MHz fclock rate in normal read mode, and 104
MHz in fast read, the fastest in the industry. The devices use a single low voltage power supply, ranging from
1.65 Volt to 2.0 Volt, to perform read, erase and program operations. The devices can be programmed in
standard EPROM programmers.

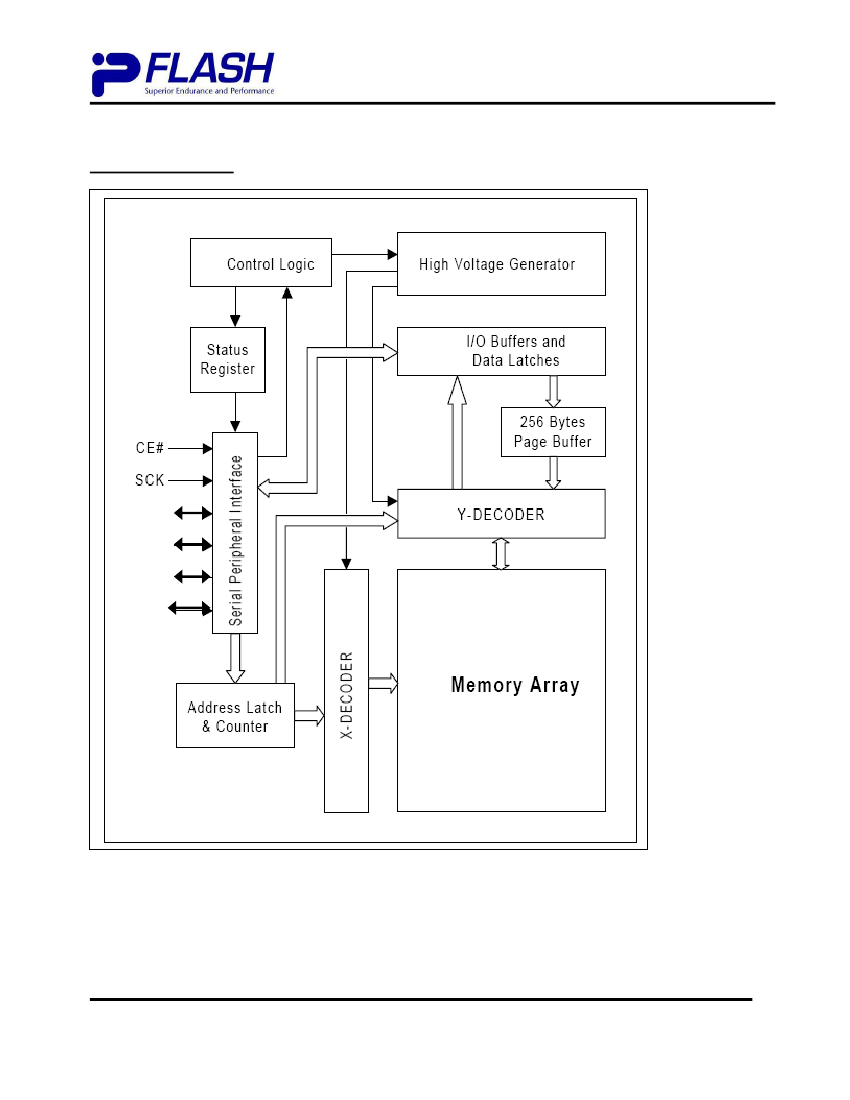

The Pm25WQ020/040 are accessed through a 4-wire SPI Interface consisting of Serial Data Input/Output (Sl),
Serial Data Output (SO), Serial Clock (SCK), and Chip Enable (CE#) pins. The devices support page program
mode, where 1 to 256 bytes data can be programmed into the memory in one program operation. These
devices are divided into uniform 4 KByte sectors or uniform 64 KByte blocks.
The Pm25WQ020/040 are manufactured on pFLASH™’s advanced non-volatile technology. The devices are
offered in 8-pin SOIC 150mil/208mil, 8-contact WSON, 8-pin PDIP,8-pin VVSOP 150mil and 8-contact WSON
Chingis Technology Corp.
1
DRAFT
Date June, 2012, Rev: 0.4
Pm25WQ020/040
PIN DESCRIPTIONS
SYMBOL
CE#
TYPE
INPUT
DESCRIPTION
Chip Enable: CE# low activates the devices internal circuitries for
device operation. CE# high deselects the devices and switches into
standby mode to reduce the power consumption. When a device is not
selected, data will not be accepted via the serial input pin (Sl), and the
serial output pin (SO) will remain in a high impedance state.
Serial Data Clock
Serial Data Input/Output
Serial Data Input/Output
Ground
Device Power Supply
Write Protect/Serial Data Output: A hardware program/erase protection for all or
part of a memory array. When the WP# pin is low, memory array write-protection
depends on the setting of BP3, BP2, BP1 and BP0 bits in the Status Register.
When the WP# is high, the status register are not write-protected.
SCK
SI (IO0)
SO (IO1)
GND
Vcc
WP#
(IO2)
INPUT
INPUT/OUTPUT
INPUT/OUTPUT
INPUT/OUTPUT
HOLD#
(IO3)
INPUT/OUTPUT
Hold: Pause serial communication by the master device without resetting
the serial sequence.
Serial Data
Input & Output (for 4xI/O read mode)
