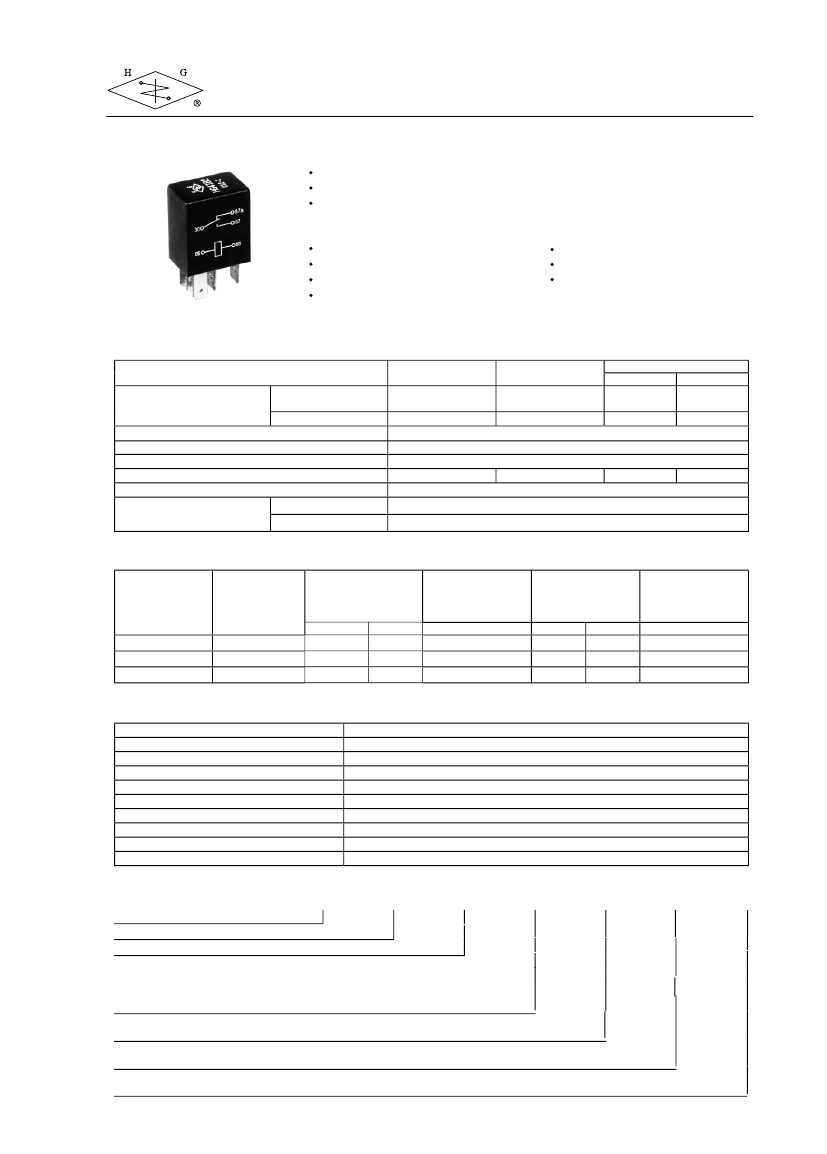

Micro Automotive Plug-In / PCB Power Relay
FEATURES
Micro size plug-in design
20A continuous current capacity
Plastic cover for rough environment protection
TYPICAL AUTOMOTIVE APPLICATIONS
Blower motor control
Ventilation motor
Compressor control system
Radiator cooling fan
HG4182
Stationary heating
Head lights, full beam/dimmed
Fog lights
CONTACT DATA
Form
Max. Switching Current
Material
Initial Contact Resistance
Max. Switching Voltage
Max. Continuous Current
Min. Load
Service Life
Mechanical
Electrical
Make
Break
1 Form A (H)
90A
(S: 120A)
30A
1 Form C (Z)
NO
NC
90A
20
20A
(S: 120A)
30A
15A
15
AgNi0.15, AgSnOInO
100 mΩ max. at 0.1A, 6VDC
See curve, current dependent
15A
20A
10A
0.1A, 12VDC
10
7
ops.
1 Form B (D)
2 x 10
5
ops, see Note 4
20A
COIL DATA
Coil Voltage
Code
006
012
024
Nominal
Voltage
( VDC)
6
12
24
Resistance
(Ω) ±10%
A, B
32
123
483
C
25
97
384
Nominal Operate
Voltage max.
(VDC)
A, B, C
3.6
7.2
14.3
Allowable Voltage
(VDC)
A, B
10.4
20.4
40.4
C
9.2
18.1
36.0
Nominal Release
Voltage min.
( VDC)
A, B, C
0.6
1.2
2.4
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Drop Resistance
Power Consumption
Ambient Temperature
Weight
9 ms. typical
7 ms. typical
100 MΩ, at 500 VDC, 50%RH
500 Vrms, 1 min.
20 g, 11ms.
10-40 Hz: DA 1.27 mm; 40-70 Hz: 5 g; 70-100 Hz: DA 0.5 mm; 100-500 Hz: 10 g.
1 M height drop on concrete
1.6W, unsuppressed; 1.81W, with resistor
-40ºC to 125ºC operating; -40ºC to 155ºC storage
Plug-In: 14 g; PCB: 12 g, approx.
ORDERING DESIGNATION
HG4182 /
Example:
Model
Coil Voltage Code
Paralleled Component
Nil: Nil; R: Resistor;
D: Diode (+) 85~86 (-);
DR: Diode Reversed (-) 85~86 (+)
Contact Form
H: 1 Form A; D: 1 Form B; Z: 1 Form C
Contact Material
Nil: AgNi10; A: AgNi0.15; C: AgCdO; S: AgSnOInO
Mounting Version
Nil: Plug-In; 4: PCB
012
R-
H
A
4
HG4182
1/2
HG4182
REFERENCE CURVE
Power Load Limit

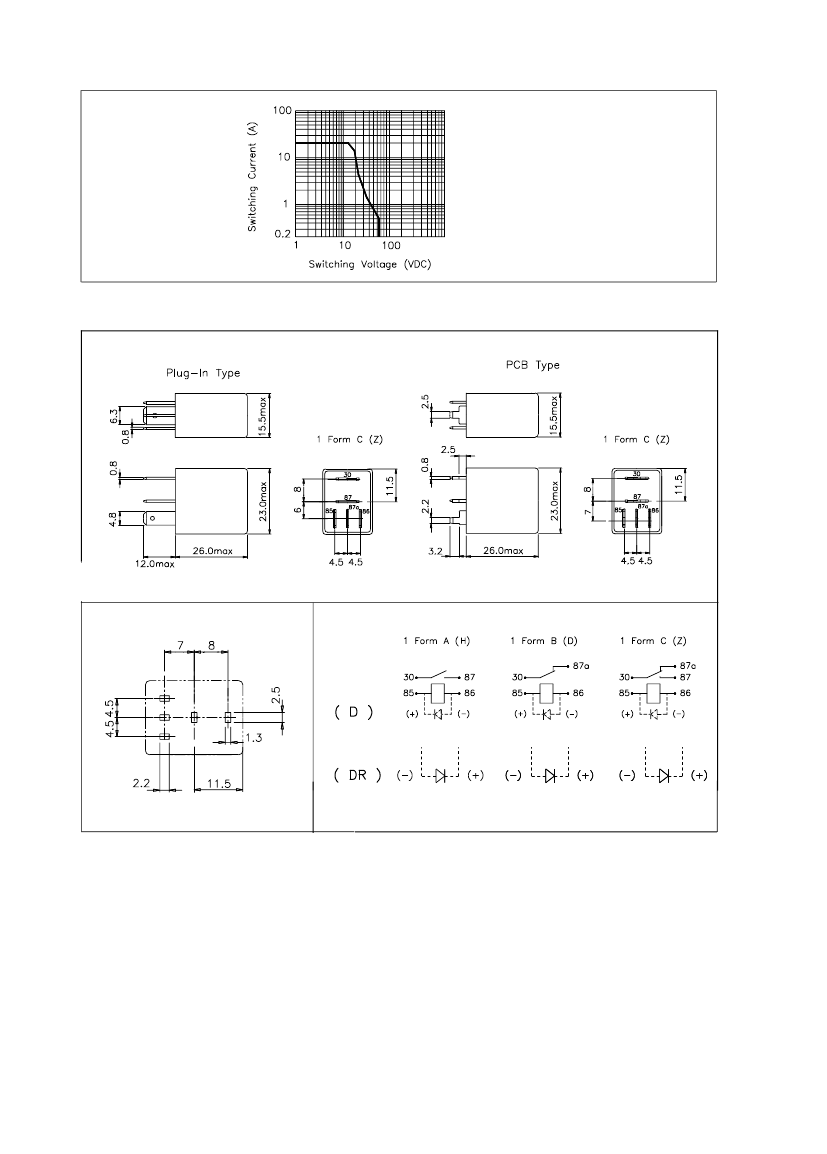

OVERALL DIMENSIONS, TERMINAL LAYOUTS, MOUNTING HOLES AND WIRING DIAGRAMS (mm)
Overall Dimensions
PCB Type Mounting Holes (Bottom View)
Wiring Diagrams
NOTES
1.
2.
3.
4.
5.
6.
All parameters, unless otherwise specified, are measured at ambient temperature 23ºC.
Maximum make current refers to inrush current of lamp load.
At ambient temperature of 85ºC, maximum allowable voltage should be reduced to 72%.
Electrical life obtained at resistive or inductive load at 20A, 15VDC with suitable arc-suppression circuit attached with operating
frequency of 1 ops/sec.
Custom-made services available with operational quantity. Please let us know your special requirements.
Specifications subject to change without prior notice.
