D Subminiature
Straight PC Tails — European (Sizes DE-DD)

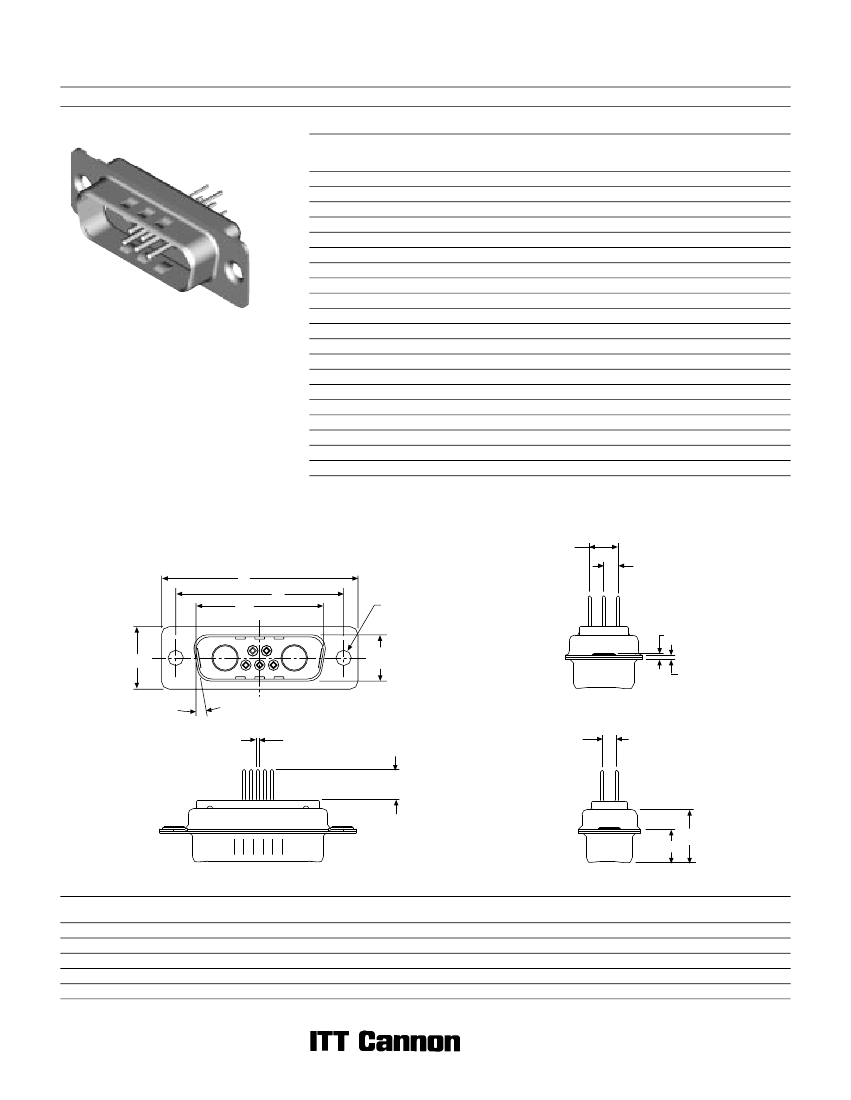

Plug
Part Numbers
Shell Size
DE
DA
DA
DA
DA
DB
DB
DB
DB
DB
DC
DC
DC
DC
DC
DC
DD
DD
DD
DD
Layout
5W1
7W2
11W1
3W3
3WK3
5W5
9W4
13W3
17W2
21W1
8W8
13W6
17W5
21WA4
25W3
27W2
24W7
36W4
43W2
47W1
Part Number
X
4,60 (.181)
DEM-5W1P-OL2-K87
DAM-7W2P-OL2-K87
DAM-11W1P-OL2-K87
DAM-3W3P-OL2-K87
DAM-3WK3P-OL2-K87
DBM-5W5P-OL2-K87
DBM-9W4P-OL2-K87
DBM-13W3P-OL2-K87
DBM-17W2P-OL2-K87
DBM-21W1P-OL2-K87
DCM-8W8P-OL2-K87
DCM-13W6P-OL2-K87
DCM-17W5P-OL2-K87
DCM-21WA4P-OL2-K87
DCM-25W3P-OL2-K87
DCM-27W2P-OL2-K87
DDM-24W7P-OL2-K87
DDM-36W4P-OL2-K87
DDM-43W2P-OL2-K87
DDM-47W1P-OL2-K87
Combo D
®
Reader’s Resource
For contact cavity arrangements,
see page 222.
For P.C. hole patterns, see pages 266-268.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
Part Number
X
6,05 (.238)
DEM-5W1P-OL4-K87
DAM-7W2P-OL4-K87
DAM-11W1P-OL4-K87
DAM-3W3P-OL4-K87
DAM-3WK3P-OL4-K87
DBM-5W5P-OL4-K87
DBM-9W4P-OL4-K87
DBM-13W3P-OL4-K87
DBM-17W2P-OL4-K87
DBM-21W1P-OL4-K87
DCM-8W8P-OL4-K87
DCM-13W6P-OL4-K87
DCM-17W5P-OL4-K87
DCM-21WA4P-OL4-K87
DCM-25W3P-OL4-K87
DCM-27W2P-OL4-K87
DDM-24W7P-OL4-K87
DDM-36W4P-OL4-K87
DDM-43W2P-OL4-K87
DDM-47W1P-OL4-K87
Note: Performance class 3 standard, for performance class 2 add -A191. Example: DEM-5W1P-OL2-A191-K87
Keyed.
DD Configuration
Engaging Face
A
C
B
Ø 3,05
(.120)
K
E
D
L
5,69
(.224)
2,84
(.112)
10°
Ø 0,60
(.024)
2,84
(.112)
X
F
W
Dimensions
Shell Size
DE
DA
DB
DC
DD
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
66,93 (2.635)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
52,81 (2.079)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
61,11 (2.406)
D
±0,13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
11,07 (.436)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
15,37 (.605)
F
W
W
K
K
±0,25
(.010)
±0,368
(.0145)
±0,41
(.016)
±0,317
(.0125)
±0,25
(.010)
10,72 (.422) 6,693 (.2635)
—
1,206 (.0475)
—
10,72 (.422) 6,693 (.2635)
—
1,206 (.0475)
—
10,82 (.426)
—
6,84 (.269)
—
1,52 (.060)
10,82 (.426)
—
6,84 (.269)
—
1,52 (.060)
10,82 (.426)
—
6,84 (.269)
—
1,52 (.060)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
0,99 (.039)
76
Dimensions are shown in mm (inch)
Dimensions subject to change
D Subminiature
Straight PC Tails — European (Sizes DE-DD)

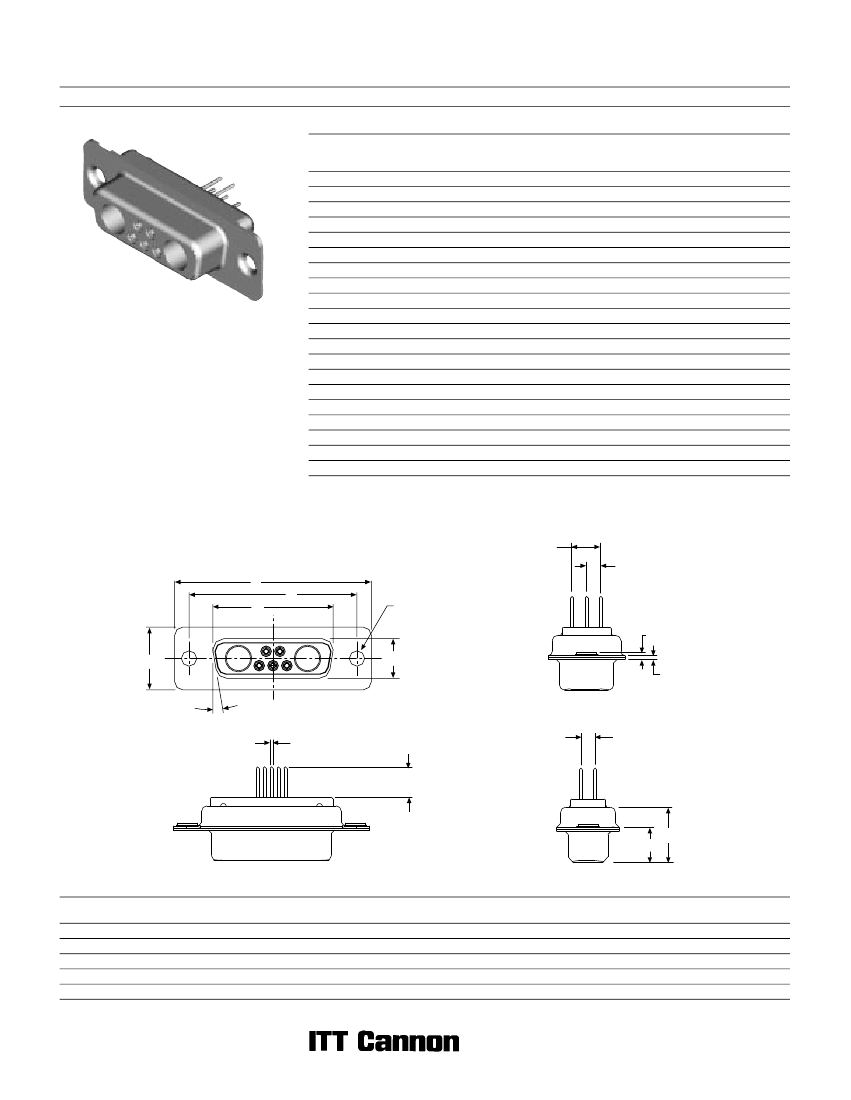

Receptacle
Part Numbers
Shell Size
DE
DA
DA
DA
DA
DB
DB
DB
DB
DB
DC
DC
DC
DC
DC
DC
DD
DD
DD
DD
Layout
5W1
7W2
11W1
3W3
3WK3
5W5
9W4
13W3
17W2
21W1
8W8
13W6
17W5
21WA4
25W3
27W2
24W7
36W4
43W2
47W1
Part Number
X
4.60 (.181)
DEM-5W1S-OL2-A197
DAM-7W2S-OL2-A197
DAM-11W1S-OL2-A197
DAM-3W3S-OL2-A197
DAM-3WK3S-OL2-A197
DBM-5W5S-OL2-A197
DBM-9W4S-OL2-A197
DBM-13W3S-OL2-A197
DBM-17W2S-OL2-A197
DBM-21W1S-OL2-A197
DCM-8W8S-OL2-A197
DCM-13W6S-OL2-A197
DCM-17W5S-OL2-A197
DCM-21WA4S-OL2-A197
DCM-25W3S-OL2-A197
DCM-27W2S-OL2-A197
DDM-24W7S-OL2-A197
DDM-36W4S-OL2-A197
DDM-43W2S-OL2-A197
DDM-47W1S-OL2-A197
Combo D
®
Reader’s Resource
For contact cavity arrangements,
see page 223.
For P.C. hole patterns, see pages 269-271.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
Part Number
X
6.05 (.238)
DEM-5W1S-OL4-A197
DAM-7W2S-OL4-A197
DAM-11W1S-OL4-A197
DAM-3W3S-OL4-A197
DAM-3WK3S-OL4-A197
DBM-5W5S-OL4-A197
DBM-9W4S-OL4-A197
DBM-13W3S-OL4-A197
DBM-17W2S-OL4-A197
DBM-21W1S-OL4-A197
DCM-8W8S-OL4-A197
DCM-13W6S-OL4-A197
DCM-17W5S-OL4-A197
DCM-21WA4S-OL4-A197
DCM-25W3S-OL4-A197
DCM-27W2S-OL4-A197
DDM-24W7S-OL4-A197
DDM-36W4S-OL4-A197
DDM-43W2S-OL4-A197
DDM-47W1S-OL4-A197
Note: Performance class 3 standard, for performance class 2 add -A191. Example: DEM-5W1S-OL2-A191-A197
Keyed.
DD Configuration
Engaging Face
A
C
B
Ø 3,05
(.120)
K
E
D
L
5,69
(.224)
2,84
(.112)
10°
Ø 0,60
(.024)
X
2,84
(.112)
F
W
Dimensions
Shell Size
DE
DA
DB
DC
DD
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
66,93 (2.635)
B
±0,13
(.005)
16,33 (.643)
24,66 (.971)
38,38 (1.511)
54,84 (2.159)
52,42 (2.064)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
61,11 (2.406)
D
±0,13
(.005)
7,90 (.311)
7,90 (.311)
7,90 (.311)
7,90 (.311)
10,74 (.423)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
15,37 (.605)
F
±0,25
(.010)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
K
±0,318
(.0125)
1,206 (.0475)
1,206 (.0475)
1,206 (.0475)
1,206 (.0475)
1,206 (.0475)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
Dimensions are shown in mm (inch)
Dimensions subject to change
77
