Cannon 75 Ohm Connectors
QT-BNC

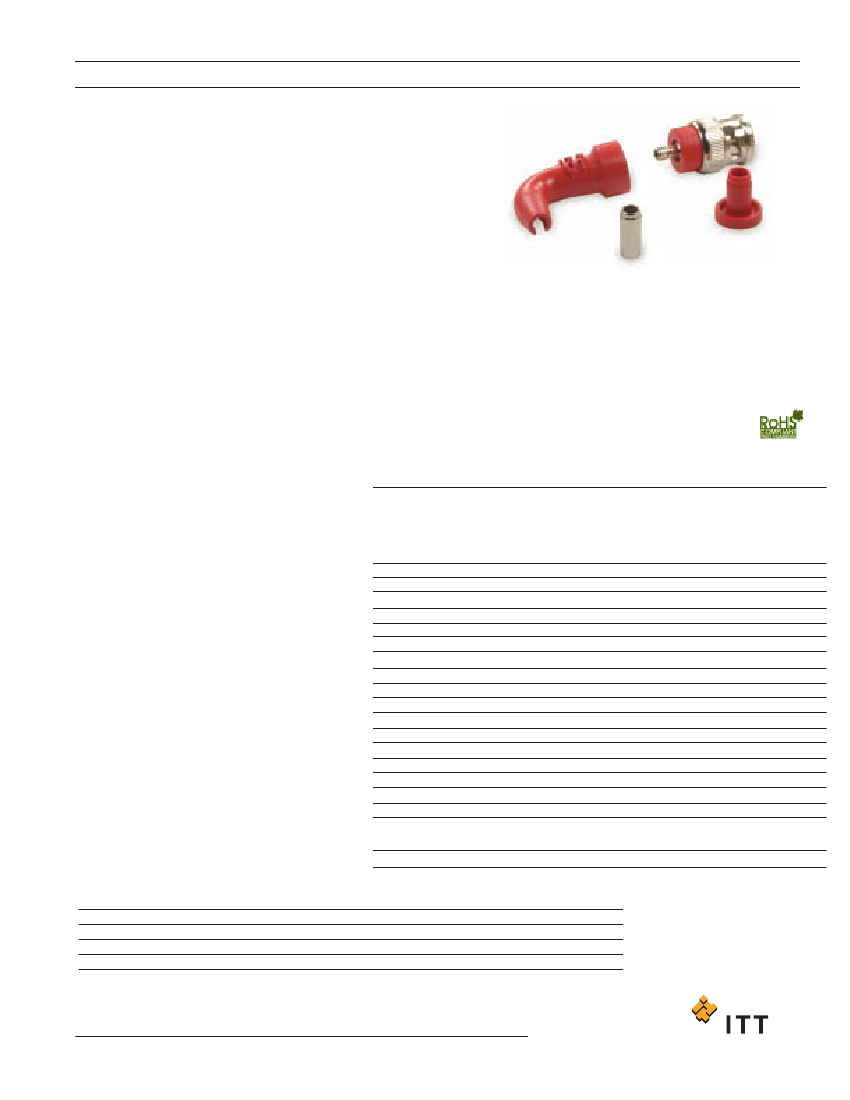

This innovative termination technique provides the QT-BNC with
a high pressure, gas tight center conductor joint of exceptional
mechanical integrity, without crimping the center contact. The
QT-BNC is a 75 ohm pre-assembled connector with an integral
central contact and rear crimp ferrule. This connector may be
terminated onto cable in under 20 seconds, significantly
reducing installation costs.
Applications
• Central Office Switching • Cross Connect Equipment • Telecommunications
Features and Benefits
Designed to simplify field installa-
tions with less piece parts
Plastic rear cap is color coded for
easy identification of cable type
Optional right angle strain relief
boot accessory (show above)
Compatible with select competitive
crimp tools and die sets
Telcordia Audited and Approved
3:1 reduction in assembly time
than conventional 3 piece crimp
BNC plugs
RoHS Compliant Part Numbers
Specifications
Bump
Cable Retention
4000 total at 390 m/s
2
Cable
Axial Force
Torque
M17/29-RG59/
133 N (30 lbs) min.
0,9 Nm (8.0 in. lbs)
734 type
311 N (70 lbs) min.
0,9 Nm (8.0 in. lbs)
735A type
111 N (25 lbs) min.
0,45 Nm (4.0 in. lbs)
BT3002
111 N (25 lbs) min.
0,45 Nm (4.0 in. lbs)
500 mating cycles min.
1.5 A dc max.
22,3 N (5 lbs) min. axial force
Outer contact: 1.0 mΩ max.; Braid to body: 1.0 mΩ max.
375 V ac rms min. at 21 km (70,000 ft)
445 N (100 lbs) min.
1500 V ac rms at sea level
DC to 2.0 GHz
75Ω nominal
22,3 N (5 lbs) max.
0.2 dB max. at 2 GHz
5000 MΩ min.
–40°C to 85°C (–40°F to 185°F)
500 V ac rms at sea level
–60 dB typical up to 2 GHz
490 m/s
2
for 11 ms
3 mΩ max. (excluding pole resistance)
(a) Frequency range from 10 Hz to 500 Hz. (b) Displacement: 0.75 (.029),
(c) Acceleration: 98 m/s
2
,.(d) Duration: 6 hours.
1.2 max. (DC to 1 GHz); 1.3 max. (1 to 2 GHz)
Finish
3.5 µM (140 µ in.) Nickel
—
1.27 µM (50 µ in.) Gold
2.0 µM (80 µ in.) Nickel
3.8 µM (150 µ in.) Nickel
—
Connector Durability
Contact Current Rating
Contact/Insulator Retention
Contact Resistance
Corona Level
Coupling Mechanism Retention
DWV
Frequency Range
Impedance
Insertion Force
Insertion Loss
Insulation Resistance
Operating Temperature
Operating Voltage
RF Leakage
Shock
Termination Resistance (QT Center contact)
Vibration
VSWR
Description
Connector Body
Insulators
Center Contact Male
Coupling Nut
Crimp Ferrule
Spring
Material
Phosphor bronze
Polymers rated to UL 94V-0
Beryllium copper
Die Cast, Copper Zinc Alloy
Annealed Copper Alloy
Stainless Steel
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
17
Cannon 75 Ohm Connectors
QT-BNC

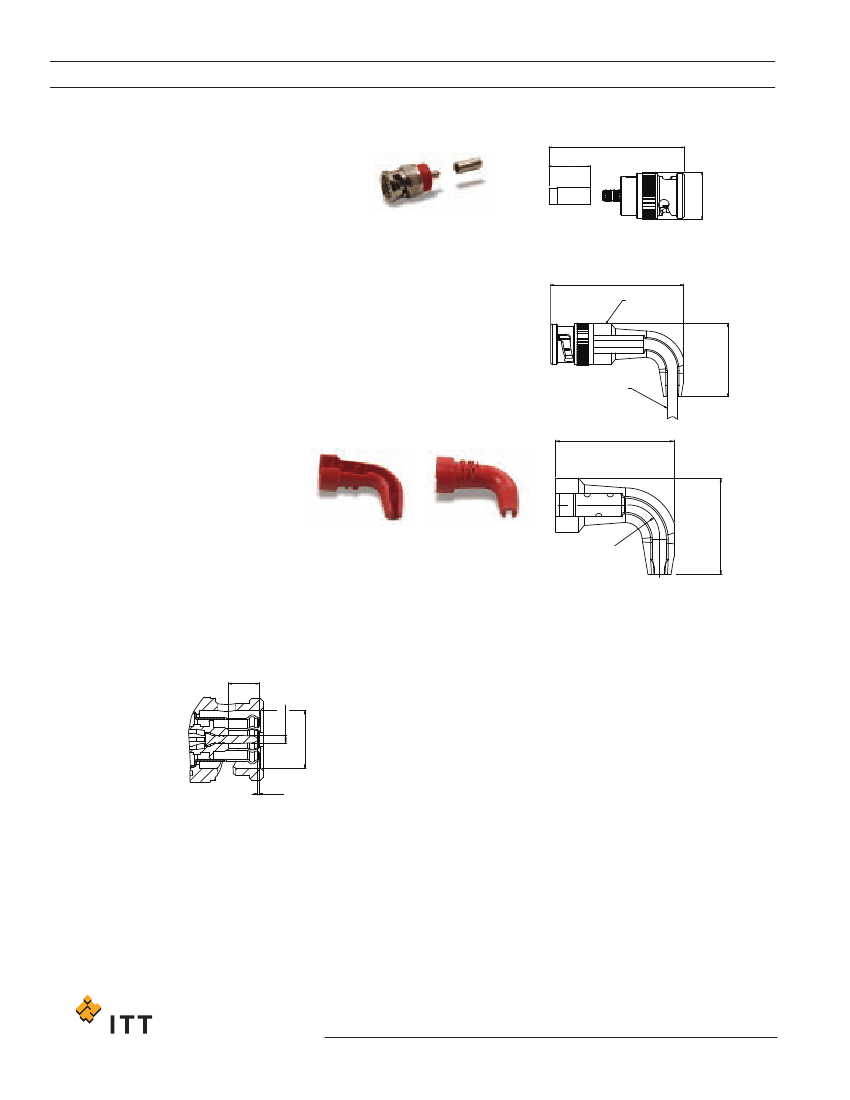

QT BNC Plug
32,50
(1.280)
12,70
(0.500)
Part Number
W58-124-9019910
W58-124-901991A
W58-124-9019916
W58-124-9039910
W58-124-9039916
W58-124-9069910
W58-124-9069916
W58-124-908991A
W58-124-919991A
W58-124-901991S
W58-124-901991R
33533-47-010006
Cap Color
Red
Red
Red
Yellow
Yellow
Blue
Blue
White
Red
Red
Red
Cable Type
735A
735A
735A
RG59B
RG59B
734
734
0.4/2.42/4.07
735A
735A
735A
QT-BNC w/Boot
QT-BNC w/Boot
RTA Boot Only for 735A
30.75
45.43
RIGHT ANGLE
BOOT.
CABLE
Assembly Instructions:
BBAI 1243 (RG-59)
BBAI 1262 (735, 734)
BBAI 1268 (BT 3002, TCZ75024)
R9
.00
Mating Interface
5.28
MIN.
± 0.02
ø 1.34
0.4 ± 0.3
SHOWN IN
TERMINATED
POSITION.
TO END
OF
CONTACT.
Tooling Accessories:
Dual Action QT-BNC Hand Crimp Tool
QT-BNC Pneumatic Crimp Tool
Powered Coaxial Cable Strip Tools and Cutter Heads
Please refer to the Tooling section pages 22-25 for part numbers.
ø 9.85 ± 0.06
Last digit in p/n signifies packaging type:
0 = single bag
A = 25 pc tray
6 = 100 pc bag
S = single
R = 100 pc bag
RTA Boot = 1000 pc bag
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
18
25.00
25.00
BT3002 / TZC75024
Ø 14,45
(0.569)
