"High Frequency Ceramic Solutions"
2450 / 5400 MHz Diplexer
Detail Specification: 12/16/2011

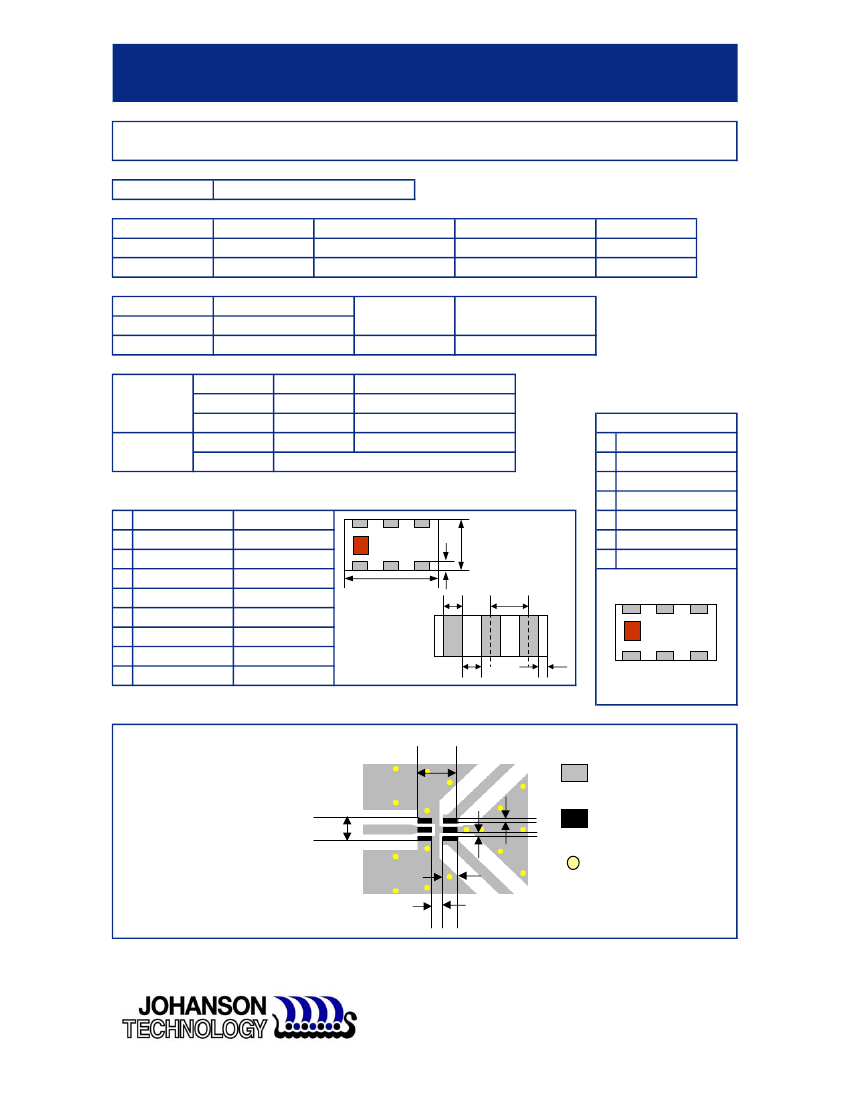

General Specifications
Part Number
2450DP15H5400
P/N 2450DP15H5400
Page 1 of 2
Passband (MHz)
2400 - 2500
4900 - 5900
Insertion Loss
0.7 max
1.0 max
2 Watts max.
50
Ω
-40 to +85°C
Suffix = S
Suffix = E
Suffix = R
Suffix = None
Attenuation I
18 min @ 4.8 ~ 6.0 GHz
19 min @ 1.8 ~ 2.5 GHz
Attenuation II
18 min @ 7.2 ~ 7.5 GHz
25 ref. @ 10.3 ~ 10.7 GHz
Return Loss
9.5 min.
9.5 min.
Input Power
Impedance
Operating Temp
Bulk
Storage Temp
+5 ~ +35°C, Humidity:
45~75%RH, 18 mos. Max
4000
Reel Quanity
Eg. 5400BL15B200S
Eg. 5400BL15B200E
Eg. 5400BL15B200R
Eg. 5400BL15B200(E or S)
Packaging
Style*
Termination
Style
T&R
T & R
(Reverse)
100% Tin
Tin / Lead
Terminal Configuration
No.
1
2
3
Function
Higher Freq. Port (P1)
GND
Lower Freq. Port (P3)
GND
Common Port (P2)
GND
3
2
1
Please consult Factory
*
http://johansontechnology.com/en/integrated-passives/integrated-passive-tape-a-reel-packaging.html
Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.079 ± 0.004
0.049 ± 0.004
0.022 ± 0.004
0.012 ± 0.004
0.008 ± 0.004
0.012 +.004/-.008
0.014 ± 0.004
0.026 ± 0.002
mm
2.00 ± 0.10
1.25 ± 0.10
0.55 ± 0.10
0.30 ± 0.10
0.20 ± 0.10
0.30
+0.1/-0.2
Unit : mm
4
c
W
5
6
L
a
p
T
g
b
4
5
6
0.35 ± 0.10
0.65 ± 0.05
Mounting Considerations
Mount these devices with brown mark facing up.
Line width should be designed to provide 50
Ω
impedance matching characteristics.
Units: mm
2.80
*
0.35
Solder Resist
1.65
*
0.30
1.00
0.80
Land
Through-hole (
φ
0.35)
*
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2011 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2450 / 5400 MHz Diplexer
Detail Specification: 12/16/2011

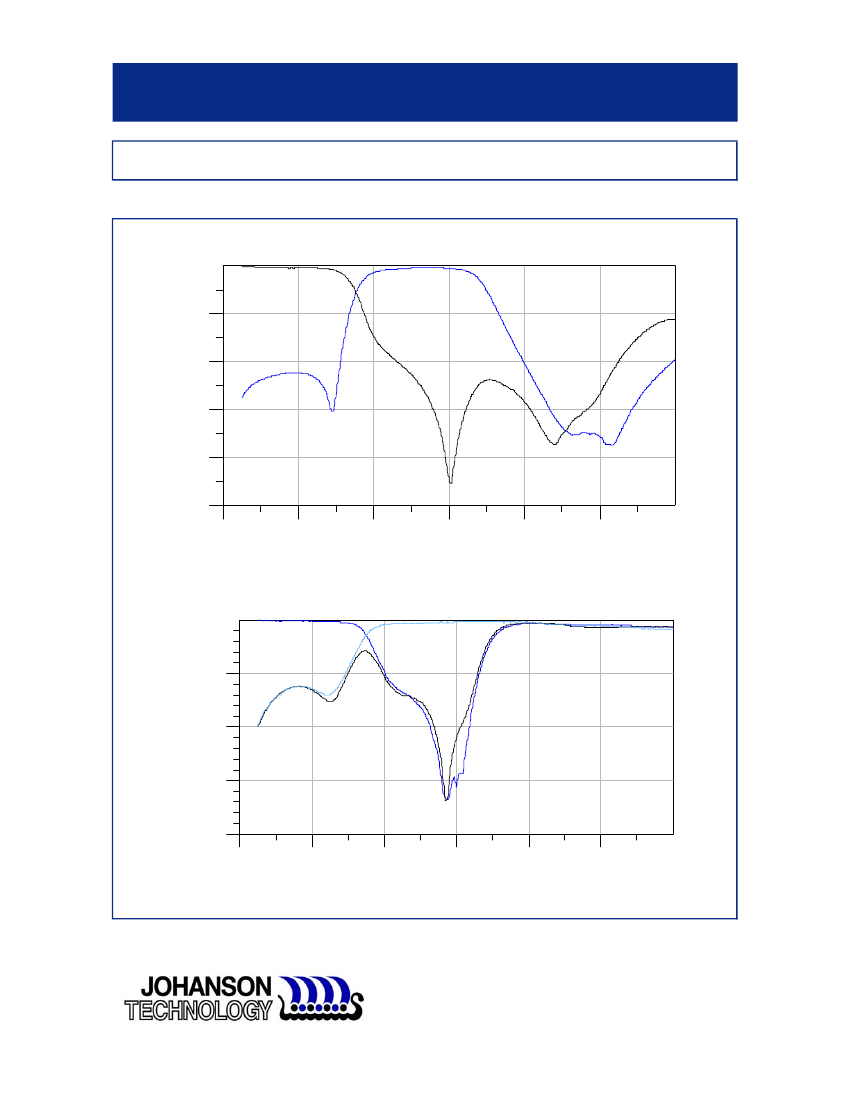

Typical Electrical Performance (T=25°C)
P/N 2450DP15H5400
Page 2 of 2
)
)
)
0
-10
Attenuation
)
)
)
)
)
)
S_32
S_12
-20
)
-30
-40
-50
0
2
4
)
)
6
freq, GHz
8
10
12
)
Return Loss
0
)
-10
)
)
S_33
S_22
S_11
-20
-30
-40
0
2
4
)
6
freq, GHz
8
10
12
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2011 Johanson Technology, Inc. All Rights Reserved
