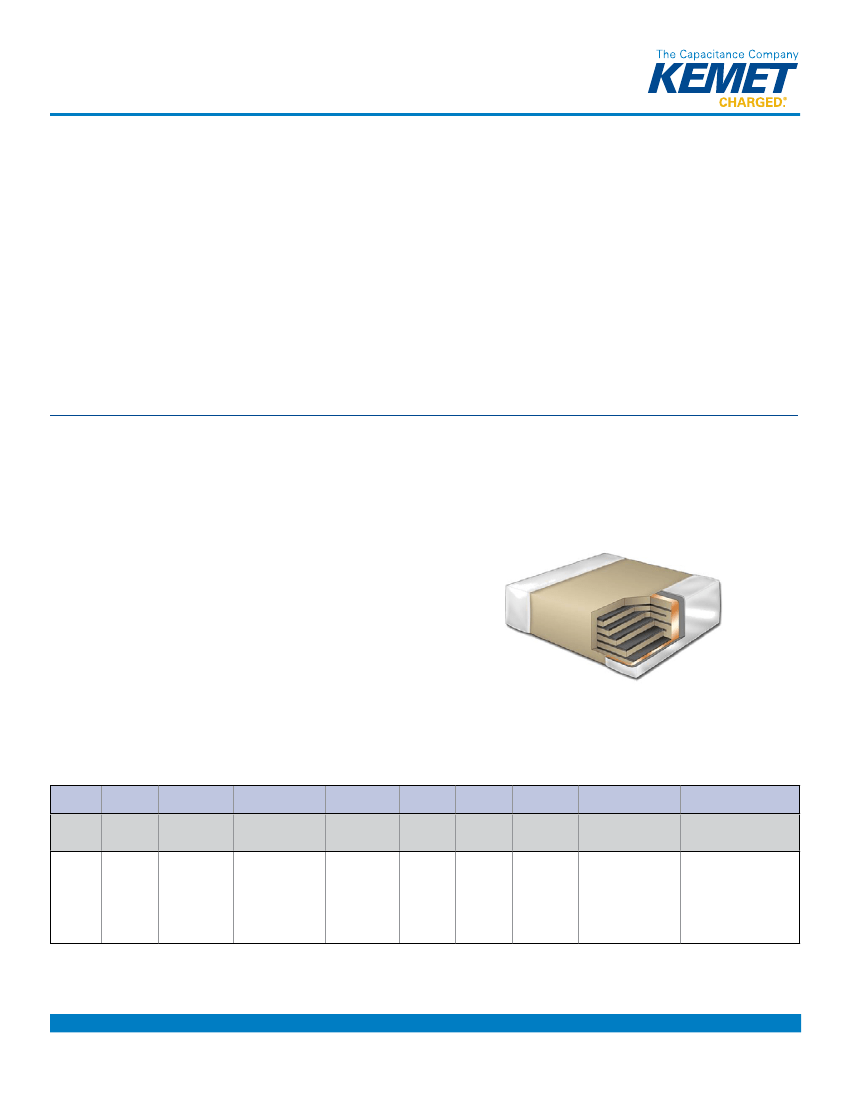

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
X5R Dielectric, 4 – 50 VDC (Automotive Grade)
Overview
KEMET’s Automotive Grade Series surface mount capacitors in
X5R dielectric are suited for a variety of applications requiring
proven, reliable performance in harsh environments. Whether
under-hood or in-cabin, these devices emphasize the vital
and robust nature of capacitors required for mission and
safety critical automotive circuits. Stricter testing protocol and
inspection criteria have been established for automotive grade
products in recognition of potentially harsh environmental
conditions. KEMET automotive grade series capacitors meet
the demanding Automotive Electronics Council's AEC–Q200
qualification requirements
KEMET’s X5R dielectric features an 85°C maximum operating
temperature and is considered “semi-stable.” The Electronics
Industries Alliance (EIA) characterizes X5R dielectric as a Class
II material. Components of this classification are fixed, ceramic
dielectric capacitors suited for bypass and decoupling applications
or for frequency discriminating circuits where Q and stability
of capacitance characteristics are not critical. X5R exhibits a
predictable change in capacitance with respect to time and voltage
and boasts a minimal change in capacitance with reference to
ambient temperature. Capacitance change is limited to ±15% from
-55°C to +85°C.
Benefits
•
•
•
•
•
•
•
•
•
•
AEC–Q200 automotive qualified
-55°C to +85°C operating temperature range
Pb-Free and RoHS Compliant
Temperature stable dielectric
EIA 0402, 0603, 0805, 1206, and 1210 case sizes
DC voltage ratings of 4 V, 6.3 V, 10 V, 16 V, 25 V, 35 V,
and 50 V
Capacitance offerings ranging from 0.012 μF to 22 μF
Available capacitance tolerances of ±10% and ±20%
Non-polar device, minimizing installation concerns
100% pure matte tin-plated termination finish allowing for
excellent solderability
Applications
Typical applications include decoupling, bypass and filtering.
Ordering Information
C
Ceramic
1206
C
475
Capacitance
Code (pF)
K
Capacitance
Tolerance
3
Voltage
7=4V
9 = 6.3 V
8 = 10 V
4 = 16 V
3 = 25 V
P
Dielectric
P = X5R
A
C
AUTO
Packaging/Grade
(C-Spec)
2
Case Size Specification/
(L" x W")
Series
0402
0603
0805
1206
1210
Failure Rate/
Termination Finish
1
Design
A = N/A
C = Standard 2 Significant Digits K = ±10%
+ Number of Zeros M = ±20%
C = 100% Matte Sn AUTO = Automotive
Grade 7" Reel
Unmarked
1
2
Additional termination finish options may be available. Contact KEMET for details
Additional reeling or packaging options may be available. Contact KEMET for details.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1024_X5R_AUTO_SMD • 10/5/2012
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X5R Dielectric, 4 – 50 VDC (Automotive Grade)
Dimensions – Millimeters (Inches)
W
T
S
L
B
Nickel Plate
Electrodes
Conductive Metalization
100% Tin or SnPb Plate
EIA
Size
Code
0402
0603
0805
1206
1210
Metric
Size
Code
1005
1608
2012
3216
3225
L
Length
W
Width
T
Thickness
B
Bandwidth
0.30 (.012) ± 0.10 (.004)
0.35 (.014) ± 0.15 (.006)
S
Separation
Minimum
0.30 (.012)
0.70 (.028)
0.75 (.030)
N/A
Mounting
Technique
Solder Reflow Only
Solder Wave or
Solder Reflow
Solder Reflow Only
1.00 (.040) ± 0.05 (.002) 0.50 (.020) ± 0.05 (.002)
1.60 (.063) ± 0.15 (.006) 0.80 (.032) ± 0.15 (.006)
2.00 (.079) ± 0.20 (.008) 1.25 (.049) ± 0.20 (.008)
See Table 2 for
0.50 (0.02) ± 0.25 (.010)
Thickness
3.20 (.126) ± 0.20 (.008) 1.60 (.063) ± 0.20 (.008)
0.50 (0.02) ± 0.25 (.010)
0.50 (0.02) ± 0.25 (.010)
3.20 (.126) ± 0.20 (.008) 2.50 (.098) ± 0.20 (.008)
Qualification/Certification
Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding test
methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive Components. For additional
information regarding the Automotive Electronics Council and AEC–Q200, please visit their website @www.aecouncil.com.
Environmental Compliance
Pb-Free and RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
Ceramic Surface Mount
C1024_X5R_AUTO_SMD • 10/5/2012
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X5R Dielectric, 4 – 50 VDC (Automotive Grade)
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
Dielectric Withstanding Voltage (DWV)
Dissipation Factor (DF) Maximum Limit @ 25ºC
Insulation Resistance (IR) Limit @ 25°C
-55°C to +85°C
±15%
4.0%
250% of rated voltage
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
See Dissipation Factor Limit Table
See Insulation Resistance Limit Table
(Rated voltage applied for 120 ±5 seconds @ 25°C)
Parameters/Characteristics
Regarding aging rate: Capacitance measurements (including tolerance) are indexed to a referee time of 1,000 hours.
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and dissipation factor (DF) measured under the following conditions:
1 kHz ±50 Hz and 1.0 ±0.2 Vrms if capacitance ≤ 10 µF
120 Hz ±10 Hz and 0.5 ±0.1 Vrms if capacitance > 10 µF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known as
Automatic Level Control (ALC). The ALC feature should be switched to "ON."
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
Rated DC
Voltage
> 25
X5R
25
< 25
< 25
Capacitance
Value
All
< 0.56 µF
≥ 0.56 µF
Dissipation Factor
(Maximum %)
3.0
7.5
7.5
12.0
±20%
10% of Initial Limit
Capacitance
Shift
Insulation
Resistance
Dissipation Factor Limit Table
Rated Voltage
50 – 200 V
25 V
< 25 V
< 25 V
Capacitance
All
All
< 0.56 µF
≥ 0.56 µF
Dissipation Factor
3%
5%
5%
10%
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1024_X5R_AUTO_SMD • 10/5/2012
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X5R Dielectric, 4 – 50 VDC (Automotive Grade)
Insulation Resistance Limit Table
EIA Case Size
0201
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
1,000 Megohm
Microfarads or 100 GΩ
N/A
< 0.012 µF
< 0.047 µF
< 0.047 µF
< 0.22 µF
< 0.39 µF
ALL
< 2.2 µF
ALL
< 10 µF
ALL
500 Megohm
Microfarads or 10 GΩ
ALL
≥ 0.012 µF
≥ 0.047 µF
≥ 0.047 µF
≥ 0.22 µF
≥ 0.39 µF
N/A
≥ 2.2 µF
N/A
≥ 10 µF
N/A
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1024_X5R_AUTO_SMD • 10/5/2012
4
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – X5R Dielectric, 4 – 50 VDC (Automotive Grade)
Table 1 – Capacitance Range/Selection Waterfall (0402 – 1206 Case Sizes)
Series
Capacitance
12,000 pF
15,000 pF
18,000 pF
22,000 pF
27,000 pF
33,000 pF
39,000 pF
47,000 pF
56,000 pF
68,000 pF
82,000 pF
0.10 µF
0.12 µF
0.15 µF
0.18 µF
0.22 µF
0.27 µF
0.33 µF
0.39 µF
0.47 µF
0.56 µF
0.68 µF
0.82 µF
1.0 µF
1.2 µF
1.5 µF
1.8 µF
2.2 µF
2.7 µF
3.3 µF
3.9 µF
4.7 µF
5.6 µF
6.8 µF
8.2 µF
10 µF
12 µF
15 µF
18 µF
22 µF
C0402
7
4
9
6.3
8
10
7
4
9
6.3
C0603
8
10
4
16
3
25
5
50
7
4
9
6.3
C0805
8
10
4
16
3
25
5
50
9
6.3
C1206
8
10
4
16
3
25
1
50
9
6.3
8
10
C1210
4
16
3
25
6
35
35
6
5
50
50
5
Cap
Code
123
153
183
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
564
684
824
105
125
155
185
225
275
335
395
475
565
685
825
106
126
156
186
226
Voltage Code
Voltage DC
Capacitance
Tolerance
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
K
M
Voltage DC
Voltage Code
Product Availability and Chip Thickness Codes – See Table 2 for Chip Thickness Dimensions
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
DC
DD
DE
DF
DC
DD
DE
DF
DC
DD
DE
DF
DC
DD
DE
DF
DC
DD
DE
DF
DC DC DC DC
DC DC DC DC
DD DD DD DD
DL DL DL DL
DL DL DL DG
DG DG DG DG
DG DG DG
DG DG DG
EB
EB
EB
EC
ED
EE
EF
EF
EC
EC
EC
EE
EF
EB
EB
EB
EC
ED
EE
EF
EF
EC
EC
EC
EE
EF
EB
EB
EB
EC
ED
EE
EF
EF
EC
EC
EC
EE
EF
EB
EB
EB
EC
ED
EE
EF
EH
EC
EC
EC
EE
EF
EH EH EH EH
EK EK
EH
EK EK
EH
ED ED EH
FD
FD
FD
FD
FF
FH
FD
FD
FD
FG
FG
FH
FJ
FK
FG
FJ
FK
FH
FD¹
FF
FG
FH
6.3
50
1
9
FD
FD
FD
FD
FF
FH
FD
FD
FD
FG
FG
FH
FJ
FK
FG
FJ
FK
FH
FD
FF
FG
FH
10
8
FD
FD
FD
FD
FF
FH
FD
FD
FD
FG
FG
FH
FJ
FK
FG
FJ
FK
FH
FG
FG
FH
FJ
16
4
FD
FD
FD
FD
FF
FH
FD
FD
FD
FG
FG
FH
FJ
FK
FE
FJ
FG
FH
FD
FD
FD
FD
FF
FH FH
6.3
6.3
6.3
6.3
50
50
25
25
25
Capacitance
Cap
Code
7
9
8
7
9
8
4
3
5
7
9
8
4
3
5
9
8
4
3
Series
C0402
C0603
C0805
C1206
C1210
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1024_X5R_AUTO_SMD • 10/5/2012
25
3
10
10
16
10
16
10
16
4
4
4
5
Roll Over for
Order Info.
