316896-8: Description160 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG; CategoryThe connector The connector; File Size84KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

316896-8 Overview

160 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG

316896-8 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	316896
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	160
UL Flammability Code	94V-0
Base Number Matches	1

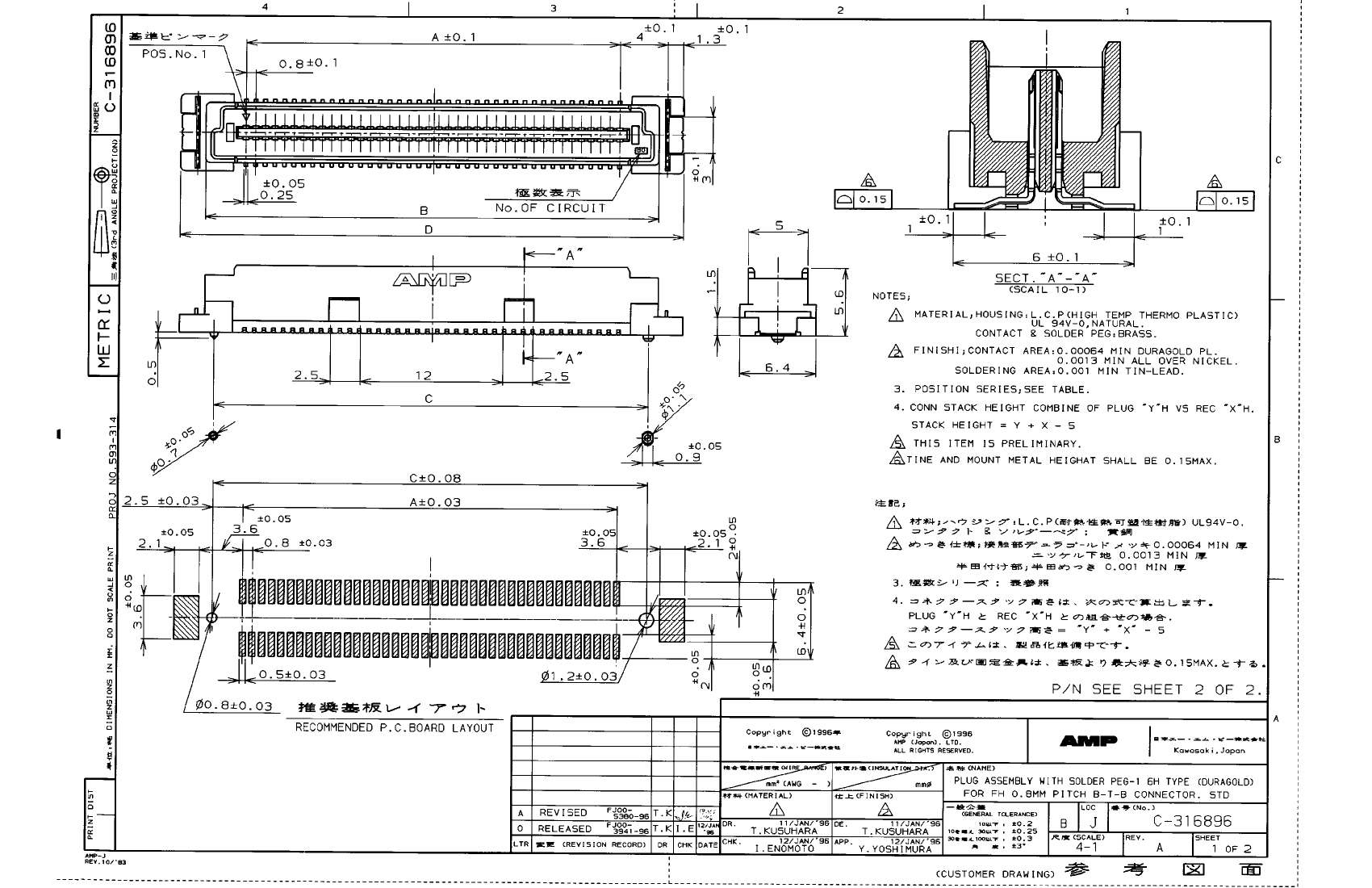

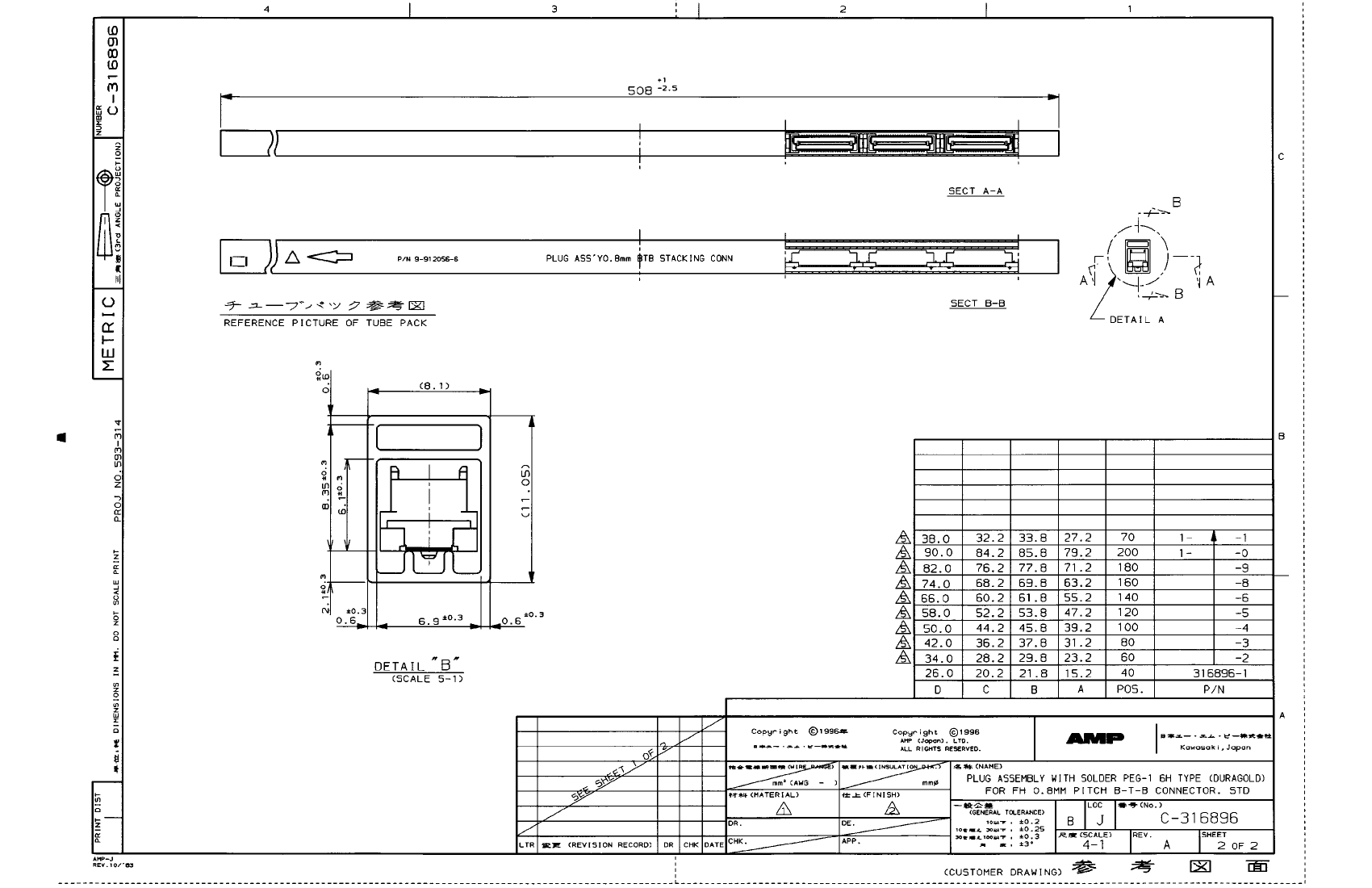

Preview

Download Datasheet

View All

316896-8 Related Products

	316896-8	1-316896-0	1-316896-1	316896-6	CFM0204T103GB	20020161-H192A01LF	316896-5	316896-9	FP60S-2184-DBW	316896-3
Description	160 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG	200 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG	70 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG	140 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG	Carbon Film MELF Resistor	Strip Terminal Block	120 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG	180 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG	Fixed Resistor, Metal Film, 1W, 2180000ohm, 350V, 0.5% +/-Tol, 200ppm/Cel,	80 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, PLUG
Reach Compliance Code	unknow	unknow	unknow	unknow	-	unknown	unknown	unknown	compliant	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG	-	-	PLUG	PLUG	-	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	-	-	MALE	MALE	-	MALE
DIN compliance	NO	NO	NO	NO	-	-	NO	NO	-	NO
Filter function	NO	NO	NO	NO	-	-	NO	NO	-	NO
IEC compliance	NO	NO	NO	NO	-	-	NO	NO	-	NO
MIL compliance	NO	NO	NO	NO	-	-	NO	NO	-	NO
Manufacturer's serial number	316896	316896	316896	316896	-	20020161	316896	316896	-	316896
Mixed contacts	NO	NO	NO	NO	-	-	NO	NO	-	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	-	STRAIGHT	STRAIGHT	-	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	-	-	BOARD	BOARD	-	BOARD
Number of rows loaded	2	2	2	2	-	-	2	2	-	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	-	-	0.8 mm	0.8 mm	-	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT
Total number of contacts	160	200	70	140	-	-	120	180	-	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-	-	94V-0	94V-0	-	94V-0
Base Number Matches	1	1	1	1	-	-	1	1	-	1
