SM22N682M102MM: DescriptionCeramic Capacitor, Ceramic, 1000V, 20% +Tol, 20% -Tol, C0G, -/+30ppm/Cel TC, 0.0068uF, 2520,; CategoryPassive components capacitor; File Size200KB，5 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

SM22N682M102MM Overview

Ceramic Capacitor, Ceramic, 1000V, 20% +Tol, 20% -Tol, C0G, -/+30ppm/Cel TC, 0.0068uF, 2520,

SM22N682M102MM Parametric

Parameter Name	Attribute value
Maker	KEMET
package instruction	, 2520
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.0068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	4.57 mm
length	6.35 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	PCB Mou
positive tolerance	20%
Rated (DC) voltage (URdc)	1000 V
Guideline	MIL-PRF-49467
series	SM22(C0G,1KV)
size code	2520
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
width	5.08 mm

Preview

Download Datasheet

View All

High Voltage

L and J Leaded Ceramic Capacitor

SM Series

FEATURES

1. Silver plated copper alloy terminal for easy soldering.

2. Mounting tabs are designed to minimize the effect of thermal

stress introduced by the differences in coefficient of thermal

expansion between the capacitor and the mounting surface.

3. Low ESR.

4. High current discharge capability.

5. Group A and B screening per MIL-PRF-49467 available .

6. Standard lead configuration is 'B'.(J) If lead configuration is

left out of part number the lead style is assumed to be 'B'.

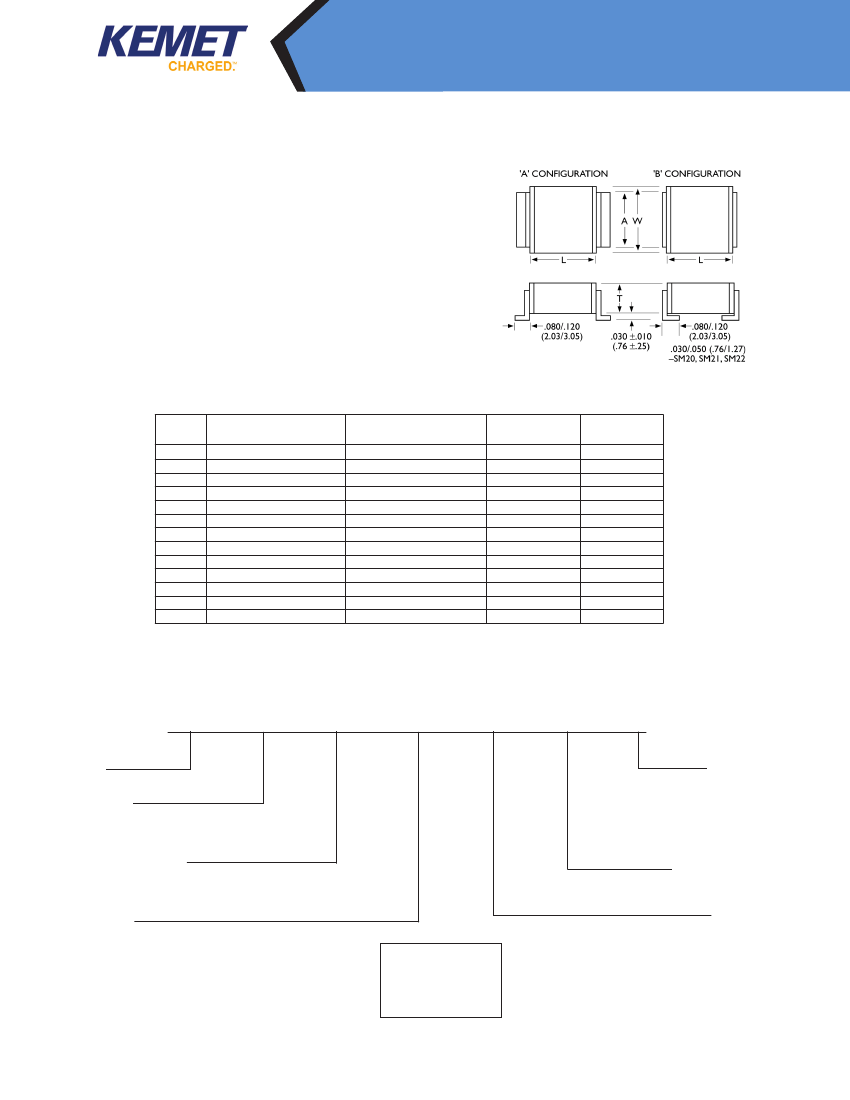

CAPACITOR OUTLINE DRAWING

STANDARD

(L)

(J)

(L)

(J)

DIMENSIONS

Style

SM20

SM21

SM22

SM2

SM25

SM26

SM0

SM1

SM5

SM6

Length (L)

Inches (mm)

.150 ±.015 (3.81 ±.38)

.200 ±.020 (5.08 ±.51)

.250 ±.020 (6.35 ±.51)

.350 ±.030 (8.89 ±.76)

.450 ±.030 (11.43 ±.76)

.550 ±.030 (14.00 ±.76)

.650 ±.030 (16.50 ±.76)

.300 ±.030 (7.62 ±.76)

.400 ±.030 (10.20 ±.76)

.700 ±.030 (17.08 ±.76)

.900 ±.030 (22.90 ±.76)

1.100 ±.030 (27.90 ±.76)

1.350 ±.030 (33.00 ±.76)

Width (W)

Inches (mm)

.150 ±.015 (3.81 ± .38)

.200 ±.020 (5.08 ± .51)

.300 ±.030 (7.62 ± .76)

.400 ±.030 (10.20 ± .76)

.500 ±.030 (12.70 ± .76)

.600 ±.030 (15.20 ± .76)

.150 ±.015 (3.81 ± .38)

.200 ±.020 (5.08 ± .51)

.300 ±.030 (7.62 ± .76)

.400 ±.030 (10.20 ±. 76)

.500 ±.030 (12.70 ±. 76)

.600 ±.030 (15.20 ±. 76)

Thickness (T) max

Inches (mm)

.130

.180

.220

.140

.130

.180

.220

(3.30)

(4.57)

(5.59)

(3.55)

(3.30)

(4.57)

(5.59)

Tab (A) max

Inches (mm)

.100

.200

.300

.400

.500

.100

.200

.300

.400

.500

(2.54)

(5.08)

(7.62)

(10.2)

(12.7)

(2.54)

(5.08)

(7.62)

(10.2)

(12.7)

PART NUMBER AND ORDERING INFORMATION

SM2

Style

SM24, etc.

202

Group A

Screening*

Dielectric

B = X7R

N = C0G (NP0)

Add to part

number if required

*MIL-PRF-49467

(subgroup 1)

except Corona

Capacitance Value

First two digits are significant,

last digit is number of zeros,

i.e., 472=4700pF

Configuration

A=Config (L)

B=Config (J)

Tolerance

J = ±5% C0G (NP0)

K = ±10%

M = ±20%

P = 0/+100%

Z = -20%/+80%

MARKING

Not applicable

As required by

customer only.

First two digits are

significant, last digit

is number of zeros,

i.e., 202=2000V

Voltage
