SURFACE MOUNT DISPLAY
APSA56-41SRWA-F01
SUPER BRIGHT RED
Features
0.56INCH DIGIT HEIGHT.
LOW CURRENT OPERATION.
EXCELLENT CHARACTER APPEARANCE.
I.C. COMPATIBLE.
MECHANICALLY RUGGED.
GRAY FACE,WHITE SEGMENT.
PACKAGE:800PCS/ REEL.
RoHS COMPLIANT.
Description
The Super Bright Red source color devices are made
with Gallium Aluminum Arsenide Red Light Emitting
Diode.

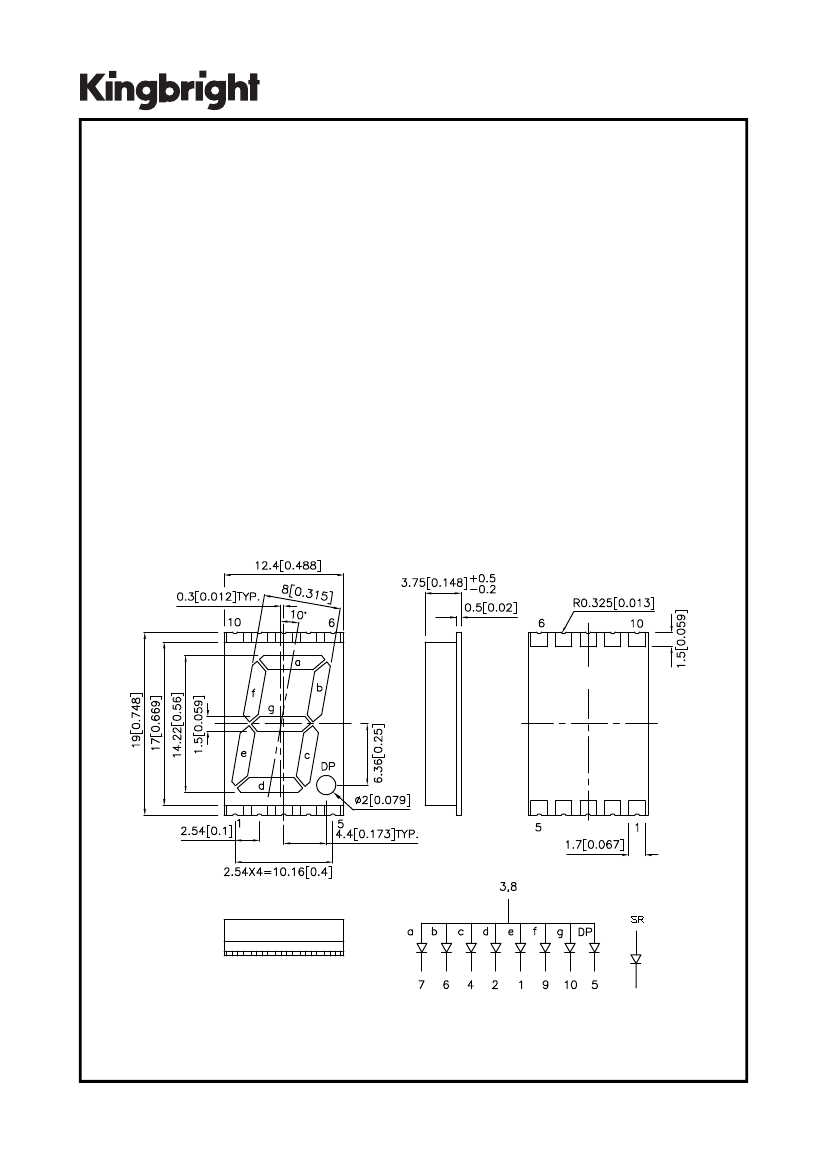

Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is
±0.25(0.01")unless
otherwise noted.
2. Specifications are subject to change without notice.
SPEC NO: DSAF2818
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE: APR/25/2005
DRAWN: H.Q.YUAN
PAGE: 1 OF 5
ERP:1351000085-01
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd)
@ 10mA
Min.
APSA56-41SRWA-F01
SUPER BRIGHT RED (GaAIAs)
WHITE DIFFUSED
3000
Typ.
15500
Common Anode,Rt.
Hand Decimal.
Description
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
Super Bright Red
Typ.
660
640
20
45
1.85
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Super Bright Red
100
30
155
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAF2818
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE: APR/25/2005
DRAWN: H.Q.YUAN
PAGE: 2 OF 5
ERP:1351000085-01

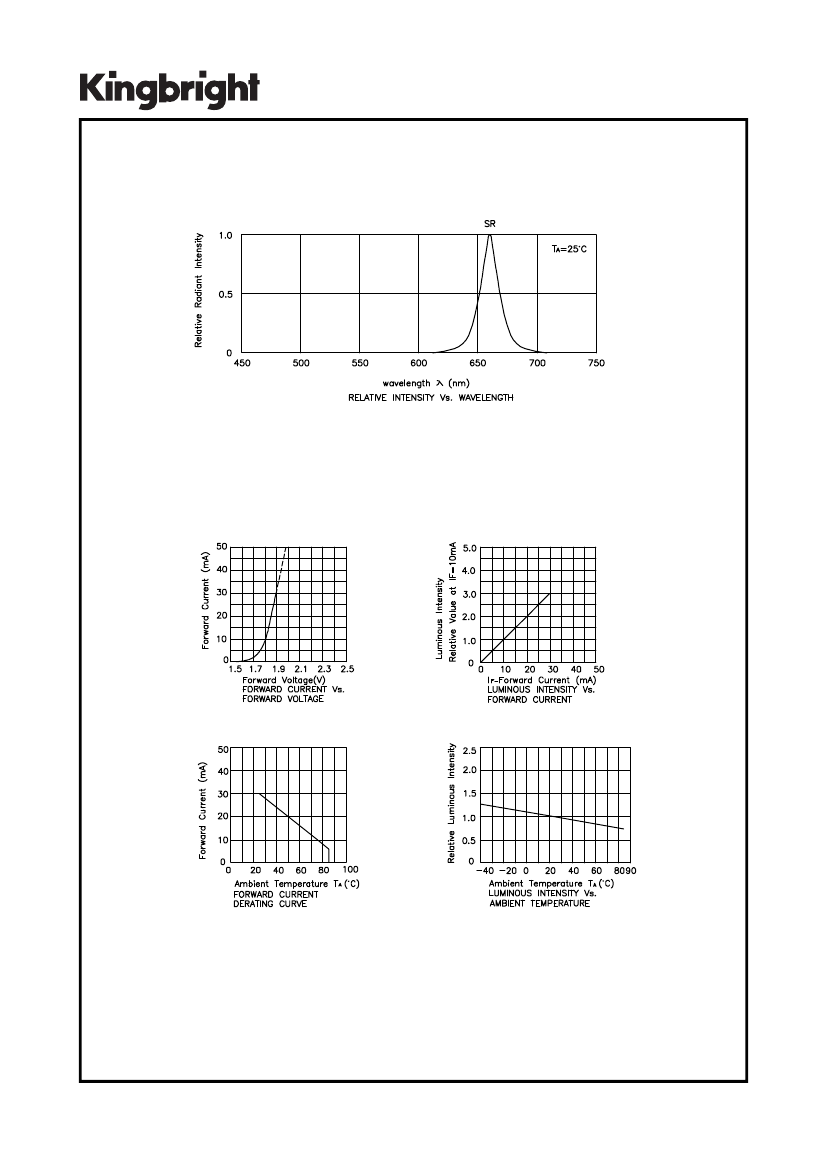

Super Bright Red
APSA56-41SRWA-F01
SPEC NO: DSAF2818
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE: APR/25/2005
DRAWN: H.Q.YUAN
PAGE: 3 OF 5
ERP:1351000085-01
APSA56-41SRWA-F01

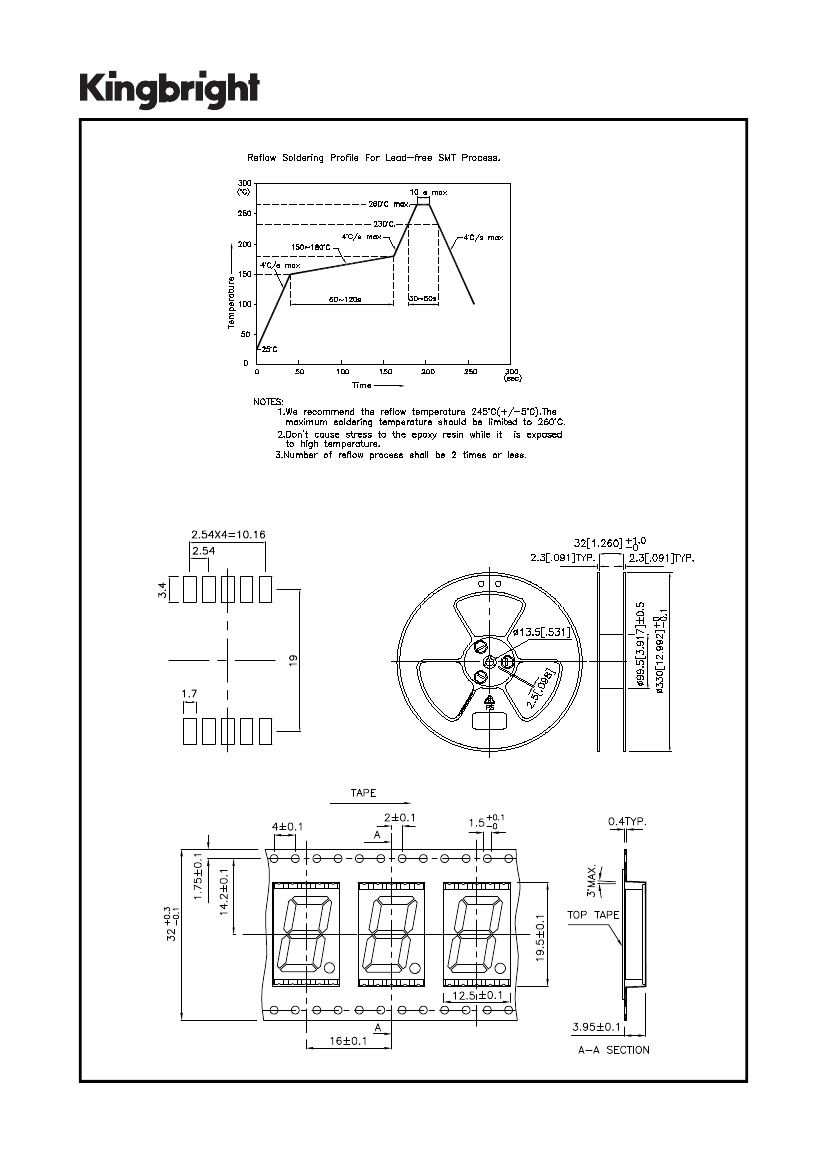

Recommended Soldering Pattern
(Units : mm)
Reel Dimension
Tape Specifications
(Units : mm)
SPEC NO: DSAF2818
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE: APR/25/2005
DRAWN: H.Q.YUAN
PAGE: 4 OF 5
ERP:1351000085-01

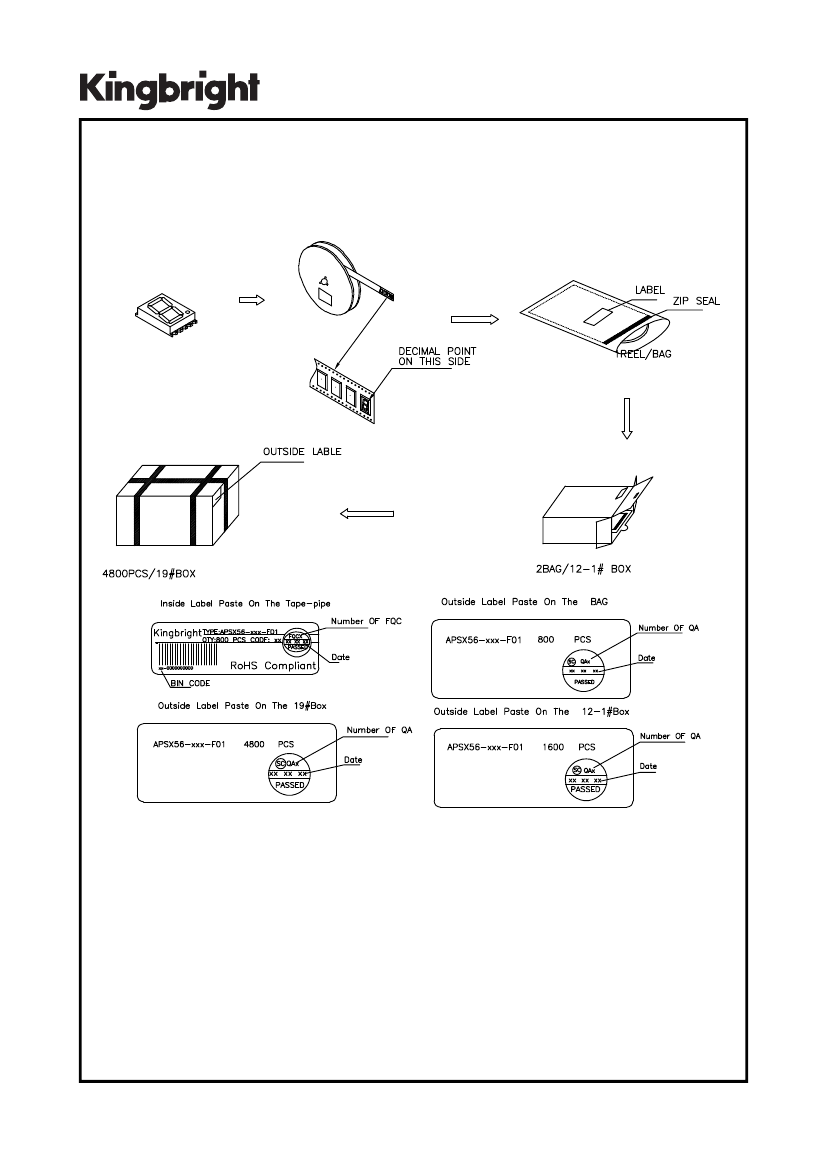

PACKING & LABEL SPECIFICATIONS
APSA56-41SRWA-F01
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAF2818
APPROVED: J. Lu
REV NO: V.1
CHECKED: Joe Lee
DATE: APR/25/2005
DRAWN: H.Q.YUAN
PAGE: 5 OF 5
ERP:1351000085-01
