5300-519-151-52 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 5300-519-151-52

5300-519-151-52: DescriptionUSB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size130KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric Compare View All

5300-519-151-52 Overview

USB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle

5300-519-151-52 Parametric

Parameter Name	Attribute value
Maker	Tekcon Electronics Corp
Reach Compliance Code	unknow
Board mount options	LOCATING POSTS
body width	0.243 inch
subject depth	0.48 inch
body length	0.591 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	USB, SER A FLAT
Dielectric withstand voltage	500VAC V
Durability	10000 Cycles
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	5300
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	COPPER ALLOY
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

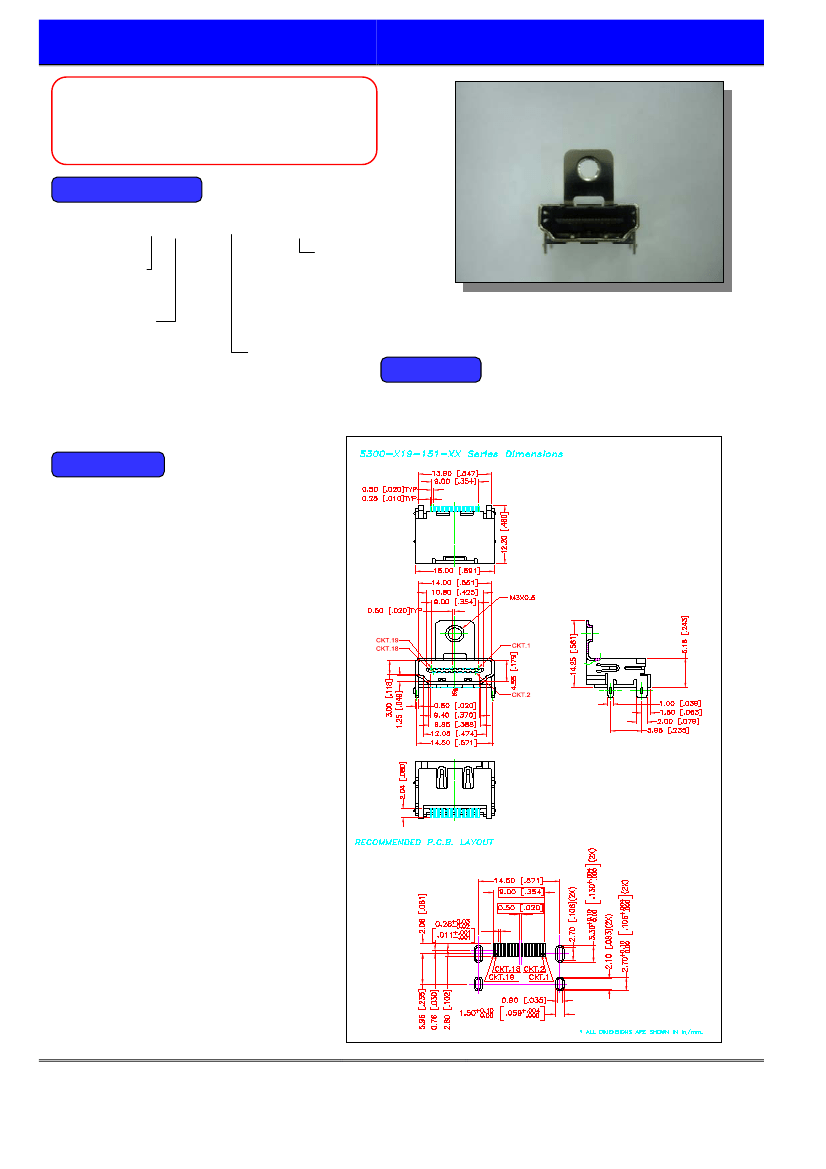

TEKCON

5300 Series

HDMI RIGHT ANGLE HEADER 19PIN SMT

TYPE 11.38mm SCREW HIGH

Ordering Information

http://www.tekcon.com.tw

5300 – X19 – 151 – XX

Contact Area Plating:

0:Gold/Flash/Tin

5:15u”Gold/Tin

3:30u”Gold/Tin

No of Contact：19Pin

51:Lead Free Shell Without

Salient Point, Bright Tin

52:Lead Free Shell With

Salient Point, Bright Tin

E1:Lead Free Shell Without

Salient Point, Matte Tin

E2:Lead Free Shell With

Salient Point, Matte Tin

15:11.38mm Screw High SMT Type

Dimensions

Specification

Material:

♦

Insulator:

Thermoplastic UL 94V-0

Color：Black

♦

Contact:

Copper Alloy

♦

Shell：Copper

Alloy

Electrical:

♦

Contact Current Rating: 0.5

♦

Rated voltage:40V AC.

♦

Dielectric Withstanding Voltage:

500V AC

♦

Contact Resistance:

Contact (30 Milliohms Max.)

Shell (50 Milliohms Max.)

♦

Insulation Resistance:

100 Megaohms Min.(Unmated)

10 Megaohms Min.(Mated)

Mechanical:

♦

Insertion Force:4.5Kg

(MAX)

♦

Withdrawal Fore: 0.5 Kg

~ 4.0 Kg

♦

Durability：10,000 Cycles.

Enviromental:

♦

Temperature range:

-20℃ to + 85℃

All Dimensions are shown in in/mm.

The above ordering data is for our standard products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.
