KUSBX-SMT-AS1NB30TR

Description
4 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT
CategoryThe connector    The connector
File Size718KB,2 Pages
ManufacturerKycon
Download Datasheet Parametric View All

KUSBX-SMT-AS1NB30TR Overview

4 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT

KUSBX-SMT-AS1NB30TR Parametric

Parameter NameAttribute value
MakerKycon
package instructionROHS COMPLIANT
Reach Compliance Codeunknow
Other featuresROHS COMPLIANT
Board mount optionsSOLDERABLE RETENTION CLIPS
body width0.28 inch
subject depth0.551 inch
body length0.571 inch
Body/casing typeRECEPTACLE
Connector typeUSB CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact resistance30 mΩ
Contact styleUSB, SER A FLAT
DIN complianceNO
Dielectric withstand voltage500VAC V
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
insulator materialTHERMOPLASTIC
MIL complianceNO
Manufacturer's serial numberKUSBX-SMT
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceNICKEL OVER COPPER
Shell materialPOLYETHYLENE
Termination typeSURFACE MOUNT
Total number of contacts4
UL Flammability Code94V-0

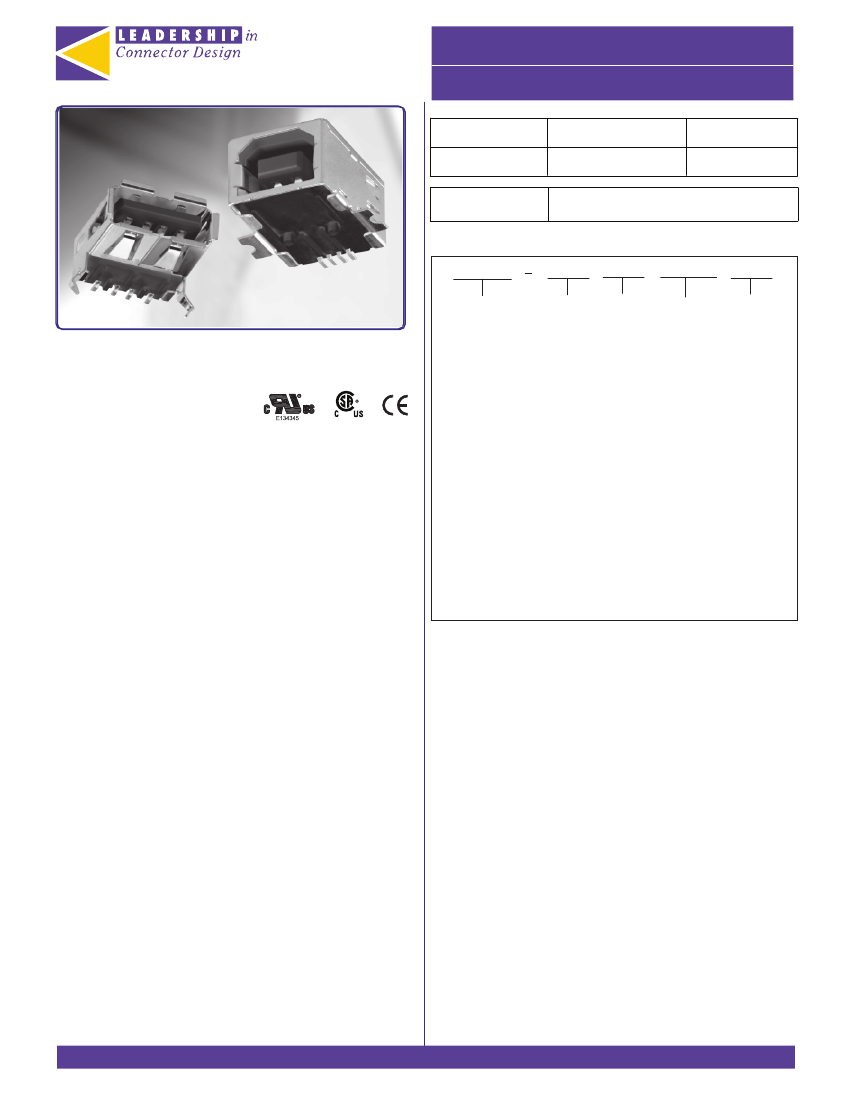

UNIVERSAL SERIAL BUS
KYCON
RoHS
KUSBX SMT Series
Documentation &
Ordering Information
Drawing
Sample
Stock
Email
CofC
RFQ
Kycon Part #
KUSBX-SMTBS1NBTR
Part Number Builder
KUSBX-SMT
Series
BS1N
Type
B
Insulator
Color
TR
KUSBX SMT Series
Surface Mount
Universal Serial Bus
Features
• Surface Mount
• Compatible with Many Computer Peripherals
• A and B Types Available
• Supports Hot Plugging
• Contact Area with Gold Plating
• CSA/NRTL Certified File No. LR78160
LR78160
Plating Packaging
Option
Series
KUSBX-SMT
KUSBX-SMT
-
Surface Mount
Universal Serial Bus
Type
AS1N
AS1N - A Type
BS1N
BS1N - B Type
Insulator Color Option
B
- Black
B
W-
W
White
Plating Option
Blank
Blank
- Gold Flash
30 - 30
µ"Gold
30
Packaging
Blank
- Bulk
Blank
TR - Tape and Reel
TR
Performance Specifications
Materials and Finish
Insulator:
High Temperature Thermoplastic, UL 94V-0 Rated,
Black or White Color
Contacts:
Phosphor Bronze
Contact Plating:
Gold over Nickel on Contacts
Tin over Nickel on Termination End
Shell:
Copper Alloy, Nickel Plated over Copper
Electrical Characteristics
Rated Voltage:
30V AC
Rated Current:
1A
Contact Resistance:
30 milliohms Max.
Insulation Resistance:
1000 Megohms Min.
Dielectric Withstanding Voltage:
500V AC For 1 Minute
Operating Temperature:
See Drawing

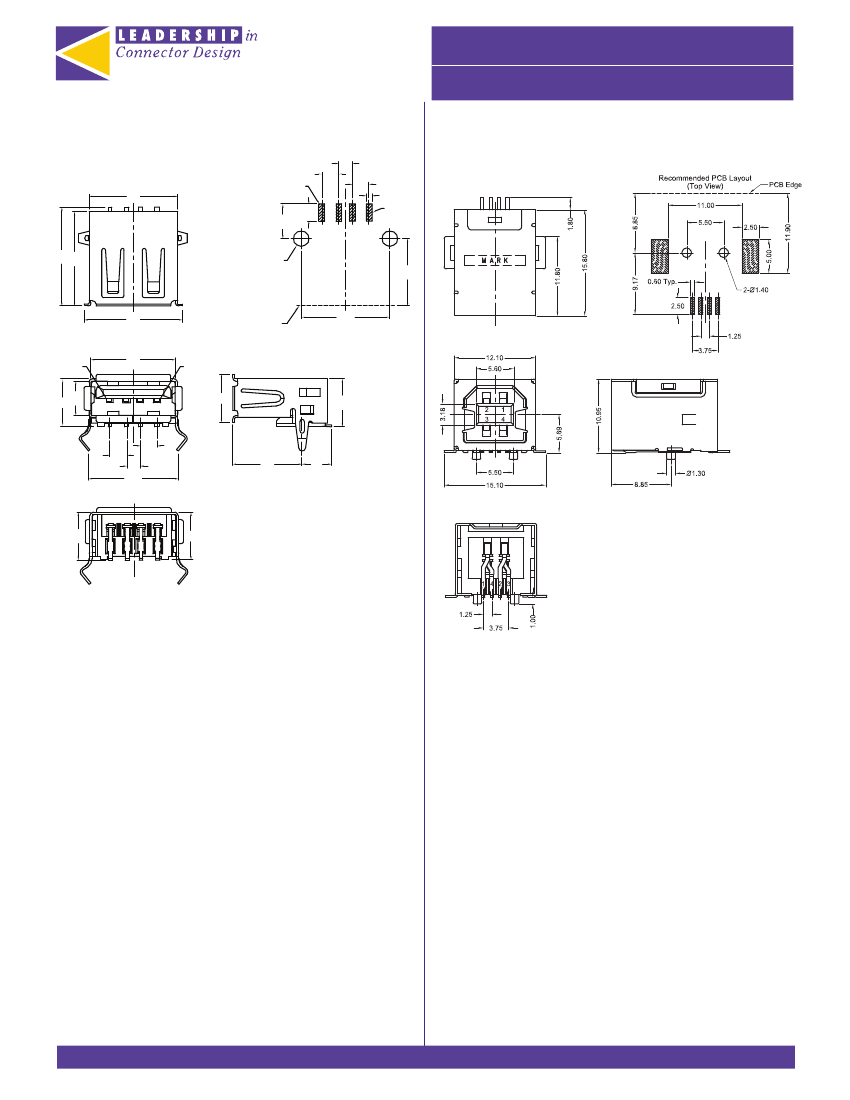

*See next page for dimensions
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
2013
