8354602 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8354602

8354602: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male; CategoryThe connector The connector; File Size330KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric Compare View All

8354602 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male

8354602 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LATCHED, PANEL MOUNTABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	83546
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	2
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

83545

83546

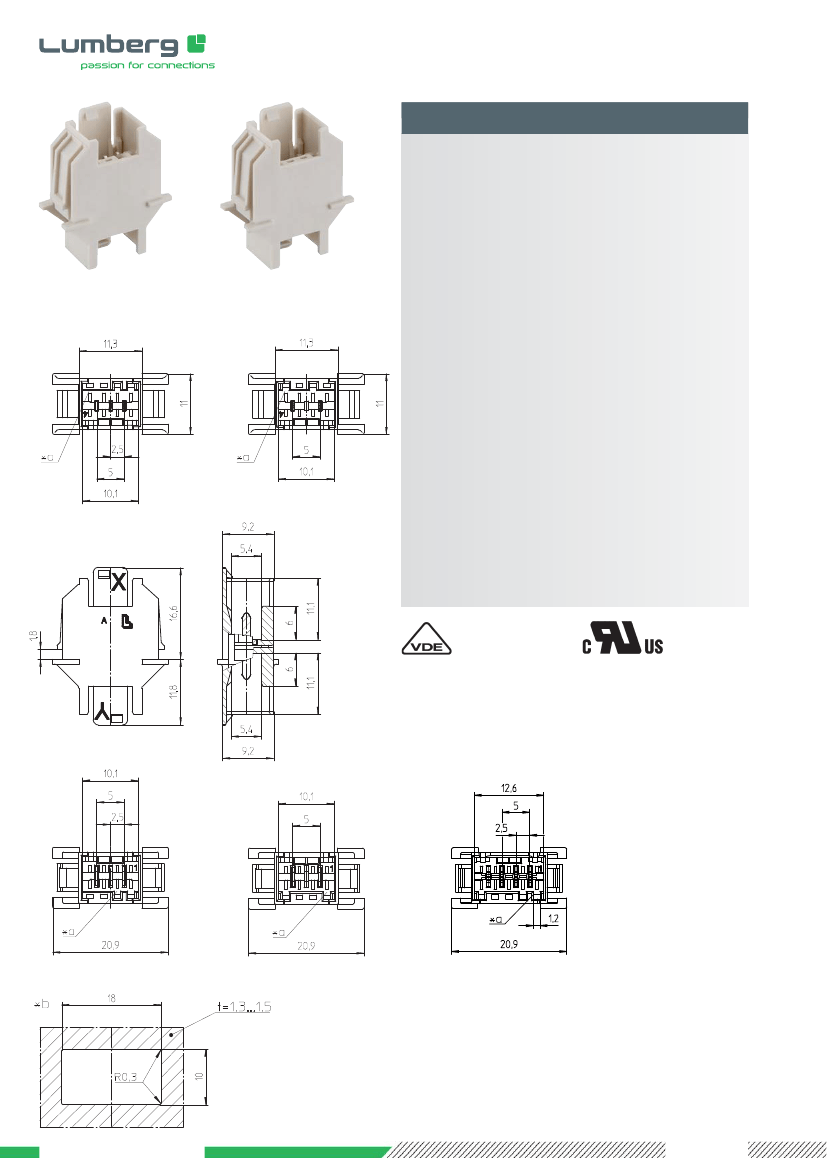

RAST-2.5-Doppel-Einbaustiftleiste, mit Verriegelungslaschen

83545:

Kontaktraster 2,5 mm

83546:

Kontaktraster 5,0 mm

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Kontaktstift

3. Mechanische Daten

PA GF, V0 nach UL 94

CuZn, unternickelt und verzinnt

-40 °C/+120 °C

83545

83546

Steckverbindern 3521, 3521-2, 352100,

Steckverbindern nach RAST-2.5-

Standard

Steckverbindern 3523, 3523-2,

83546 mit

352300, 3570, 357000

Steckverbindern nach RAST-2.5-

Standard

Kodiervorschläge im Internet unter www.lumberg.com

4. Elektrische Daten

(bei T

25 °C)

Bemessungsstrom

Bemessungsspannung

83545

83546

4 A bei T

60 °C

2 A bei T

120 °C

160 V AC (Verschmutzungsgrad 2)

40 V AC (Verschmutzungsgrad 3)

400 V AC (Verschmutzungsgrad 2)

250 V AC (Verschmutzungsgrad 3)

IIIa (CTI

≥

250)

Kontaktierung

83545 mit

Isolierstoffgruppe

Kriechstrecke

83545

1,9 mm

83546

4,4 mm

Luftstrecke

83545

1,9 mm

83546

4,4 mm

Isolationswiderstand

> 1 GΩ

Bauteil glühdrahtbeständig nach IEC 60695-2-11 bzw. IEC 60335-1

(GWT 750 °C ohne Flamme)

nach IEC 60664/DIN EN 60664 in Zusammenhang mit RAST-2.5-Steck-

verbinder

Reg.-Nr. 6937

*a Kodierung

keying

codage

*b Einbauöffnung, identisch bei allen drei Polzahlen

port, identical for all three pole numbers

ouverture d’emplacement, identique pour tous les trois nombres de pôles

*c 83545, 4-polige Ausführung

83545, 4 pole version

83545, version à 4 pôles

www.lumberg.com

03/2014

8354602 Related Products

	8354602	8354503
Description	Board Connector, 2 Contact(s), 1 Row(s), Male	Board Connector, 3 Contact(s), 1 Row(s), Male
Maker	Lumberg	Lumberg
Reach Compliance Code	compliant	compliant
Other features	LATCHED, PANEL MOUNTABLE	LATCHED, PANEL MOUNTABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Manufacturer's serial number	83546	83545
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	2	3
UL Flammability Code	94V-0	94V-0
