315-43-101-41-004000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 315-43-101-41-004000

315-43-101-41-004000: DescriptionIC Socket,; CategoryThe connector socket; File Size119KB，3 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

315-43-101-41-004000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	315-43-101-41-004000	-	-	View	Buy Now

315-43-101-41-004000 Overview

IC Socket,

315-43-101-41-004000 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	unknow
Device slot type	IC SOCKET

Preview

Download Datasheet

View All

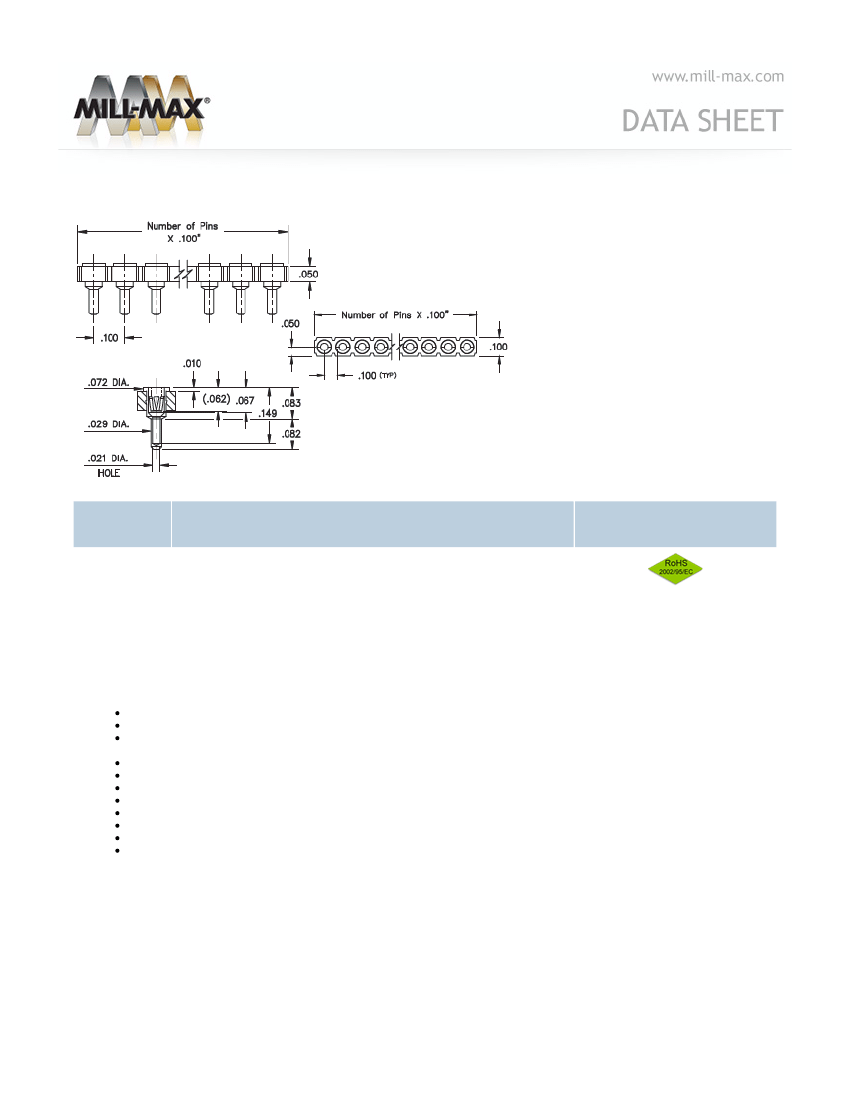

Product Number: 315-43-101-41-004000

Description:

Interconnect Socket

Low Profile Solder Tail Socket

Accepts .015"- .022" (0,38 - 0,559

mm) dia leads

Single Row

Through Hole

Plating Code:

Shell Plating:

200 μ" Tin (matte finish) over 100

μ" Nickel

Inner Contact Plating:

30 μ" Gold over 50 μ" Nickel

Pins

Mill-Max

Part

Number

315-43-101-41-004000

RoHS

Compliant

CONTACT:

Contact Used: #12, Standard 4 Finger Contact

Current Rating =

3 Amps

BERYLLIUM COPPER ALLOY

172 (UNS C17200) per ASTM B 194

Properties of BERYLLIUM COPPER:

Chemical composition: Cu 98.1%, Be 1.9%

Temper as stamped: TD01

Properties after heat treatment (TH01):

Hardness: 36-43 Rockwell C

Mechanical Life: 1000 Cycles Min.

Density: .298 lbs/in3

Electrical Conductivity: 22% IACS*

Resistance: 10 miliohms Max

Operating Temperature: -55°C/+125°C

Melting point: 980°C/865°C (liquidus/solidus)

Stress Relaxation†: 96% of stress remains after 1,000 hours @ 100 °C; 70% of stress remains after 1,000 hours

@ 200 °C

*International Annealed Copper Standard, i.e. as a % of pure copper.

†Since BeCu loses its spring properties over time at high temperatures; it is rated for continuous use up to 150°C. For

applications up to 300°C, Mill-Max offers many contacts in Beryllium Nickel. Contact Tech Support for more info.

Mill-Max Mfg. Corp. Datasheet — Last Modified 4/1/2018

Page 1 of 3

LOOSE PIN:

Pin Used: 0512 (Brass Alloy)

BRASS ALLOY

360 per ASTM B 16, or 385 per ASTM B455

Properties of BRASS ALLOY 360 ASTM B 16:

Chemical composition: Cu 63% (max), Pb 3.7% (max)†, Fe .35% (max), Zn remainder

Temper as machined: H02/H04

Yield Strength: 25-45 ksi

Tensile strength: 57-80 ksi

Hardness as machined: 80-90 Rockwell B

Electrical conductivity: 26% IACS*

Melting point: 1000°C/840°C (liquidus/solidus)

Properties of BRASS ALLOY 385 ASTM B 455:

Chemical composition: Cu 60% (max), Pb 3.5% (max)†, Fe .35% (max), Zn remainder

Temper as machined: H02/H04

Yield Strength: 16 ksi(min)

Tensile strength: 48 ksi(min)

Hardness as machined: 80-90 Rockwell B

Electrical conductivity: 28% IACS*

Melting point: 1000°C/840°C (liquidus/solidus)

After machining, brass parts are often annealed (softened) for subsequent bending, swaging or crimping. A partial anneal

down to 60±10 RB is recommended for 90° bends, a full anneal down to 35±15 RB is recommended for pins or terminals

that are swaged (riveted) to a circuit board or crimped to a wire.

†RoHS-2 directive 2011/65/EU, exemption 6c allows up to 4% lead as an alloy agent in copper.

*International Annealed Copper Standard, i.e. as a % of pure copper.

INSULATOR INFORMATION:

PCT

Polyester, (Thermx CG933, black)

High Temperature

Properties of PCT Polyester:

Brand: Thermx

Grade: CG-933

Rated voltage: 100 VRMS/150 VDC

Insulation resistance: 10,000 Megaohms min.

Material Heat Deflection Temp (per ASTM D 648): 529°F (276°C) @ 66 psi

Dielectric strength: 1000 VRMS min. (700 VRMS min. for series 117 Shrink DIP)

Note: Materials above 446°F (230°C) are considered suitable for "eutectic" reflow soldering, above 500°F (260°C) for

"lead-free" reflow soldering.

Certificate of Compliance:

This is to Certify that the product described above is manufactured to Mill-Max quality standards in accordance with all

applicable specifications and drawing. Mill-Max certifies this product to be free from defects of materials and workmanship.

This Certificate of Compliance covers the following requirements:

Dimensional (all features verified to be within tolerances described on the applicable drawing).

Raw Material (materials and properties verified to be as described on the applicable drawing).

Plating (platings as required, thickness verified, and performance including solderability per mil-standard).

Performance (insertion extraction or other force requirements as described on the applicable drawing).

Mill-Max Mfg. Corp. Datasheet — Last Modified 4/1/2018

Page 2 of 3

Compliance Statement for RoHS and RoHS-2,

on the restriction of the use of certain hazardous substances in electrical

and electronic equipment, for Mill-Max products.

1. Directive 2015/863/EU of 31 March 2015 amending Annex II to Directive 2011/65/EU of the European Parliament and of

the Council as regards the list of restricted substances.

2. Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of

certain hazardous substances in electrical and electronic equipment (recast)

3. Directive 2002/95/EC of the European Parliament and of the Council of January 27 2003 on the restriction of the use of

certain hazardous substances in electrical and electronic equipment.

In reference to the directives described above, Mill-Max Mfg.Corp. certifies that its product labeled as RoHS and RoHS-2 are

compliant to the above directives with exemption 6c, (copper alloy containing up to 4 % lead by weight). No warranty or

liability of indemnification is expressed or implied with this information.

Compliance Statement for Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Reference:

1. Regulation EC No 1907/2006 of the European Parliament and of the Council of 18 December 2006, concerning the

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

2. ECHA, Candidate list of Substances of Very High Concern (SVHC)

http://echa.europa.eu/reach_en.asp

Mill-Max is aware of the regulation and the SVHC list the EU published (referenced above). Mill-Max does not produce or

sell any of the listed substances in their homogeneous form. These substances are not intentionally added during the

manufacturing of any Mill-Max products. To our knowledge, our products do not contain the substances described on the

ECHA SVHC list. Testing is not performed for materials and substances that were not intentionally added. No warranty,

liability of indemnification is expressed or implied with this information. Mill-Max maintains surveillance of the ECHA website

to obtain the latest information and periodically reviews the SVHC list for changes and additions.

Compliance Statement for DRC Conflict Free products.

Reference:

Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502, reporting requirements for users of conflict

minerals.

“Conflict minerals,” are Columbite-tantalite (coltan), cassiterite, gold, wolframite, or their derivatives; or any other mineral

or its derivatives determined by the Secretary of State to be financing conflict in the Democratic Republic of the Congo

(DRC) or an adjoining country. Metals derived from these minerals are tin, tantalum, tungsten, and gold. By this definition,

the only minerals of concern that may be found in Mill-Max products are tin and gold.

Mill-Max Mfg.Corp. hereby certifies that its products are manufactured with tin and gold that is derived from material that

is considered DRC Conflict Free. Mill-Max provides this assurance as a result of a due diligence process that includes

traceability to the source and in some cases the identification of recycled and scrap materials included in the subject

material.

Mill-Max Mfg. Corp. Datasheet — Last Modified 4/1/2018

Page 3 of 3
