EVM3G, 3E, 3Y, 3S : 2 to 20 mN·m / EVM3R : 1 to 20 mN·m
±250
×
10
–6
/°C
Temperature Coefficient of Resistance
Minimum Quantity/Packing Unit
Taping
Part Number
EVM3G, EVM3E
EVM3Y, EVM3S
EVM3R
Quantity per reel
2,000
Packaging quantity
10,000
Dia. of reel
(mm)
0178
The standard packaging methods for a reel is
0178.
Please contact us, if you would like different packaging methods. (Bulk, Reel of
0330,
Reel of
0380)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
03
Jul. 2014
SMT Trimmer Potentiometers
Dimensions in mm (not to scale)
●

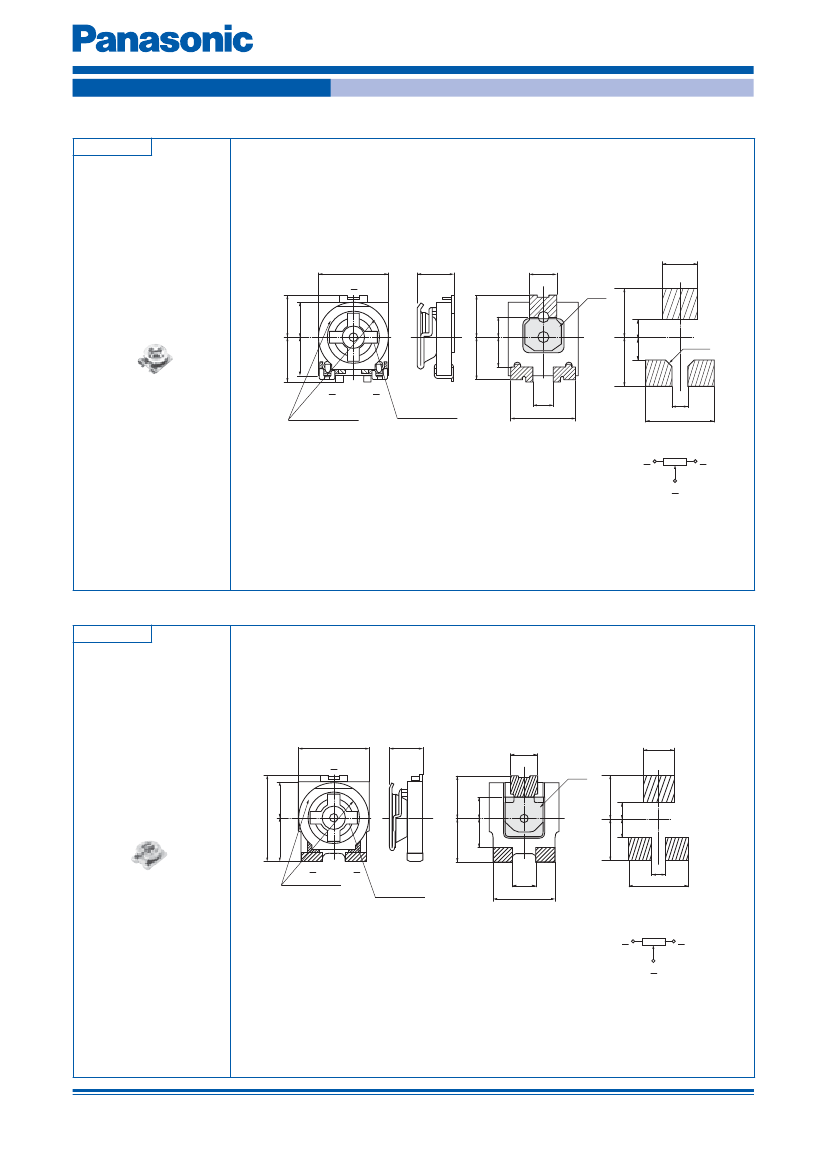

3-terminal, for Automatic Trimming Adjustment .................................................................................... EVM3G, EVM3E
No. 1
3.1
b
1.62
1.2
Resin
1.85
2.2
2.4
1.0 0.9
1.6
1.85
1.55
4
0.9
1.95
1.7
a
Resistance
c
Driver Slot
width 0.6
length 2.1
depth 0.4
1.9
1.3
Mass (Weight) : 45 mg/pc.
●
3-terminal, for Automatic Trimming Adjustment ................................................................................................... EVM3Y
2
C 0.3
0.9
2.8
0.8
3.2
(Recommended Land Pattern)
a
b
(Circuit diagram)
c
No. 2
3.1
b
1.55
1.2
1.6
Resin
1.85
3.75
1.55
0.9
2.4
2.2
1.0 0.9
4
1.9
a
Resistance
c
1.9
1.25
Mass (Weight) : 42 mg/pc.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
03
2
Driver Slot
width 0.6
length 2.1
depth 0.4
1.0
2.8
0.8
3.2
(Recommended Land Pattern)
a
b
c
(Circuit diagram)
Jul. 2014
SMT Trimmer Potentiometers
Dimensions in mm (not to scale)
●

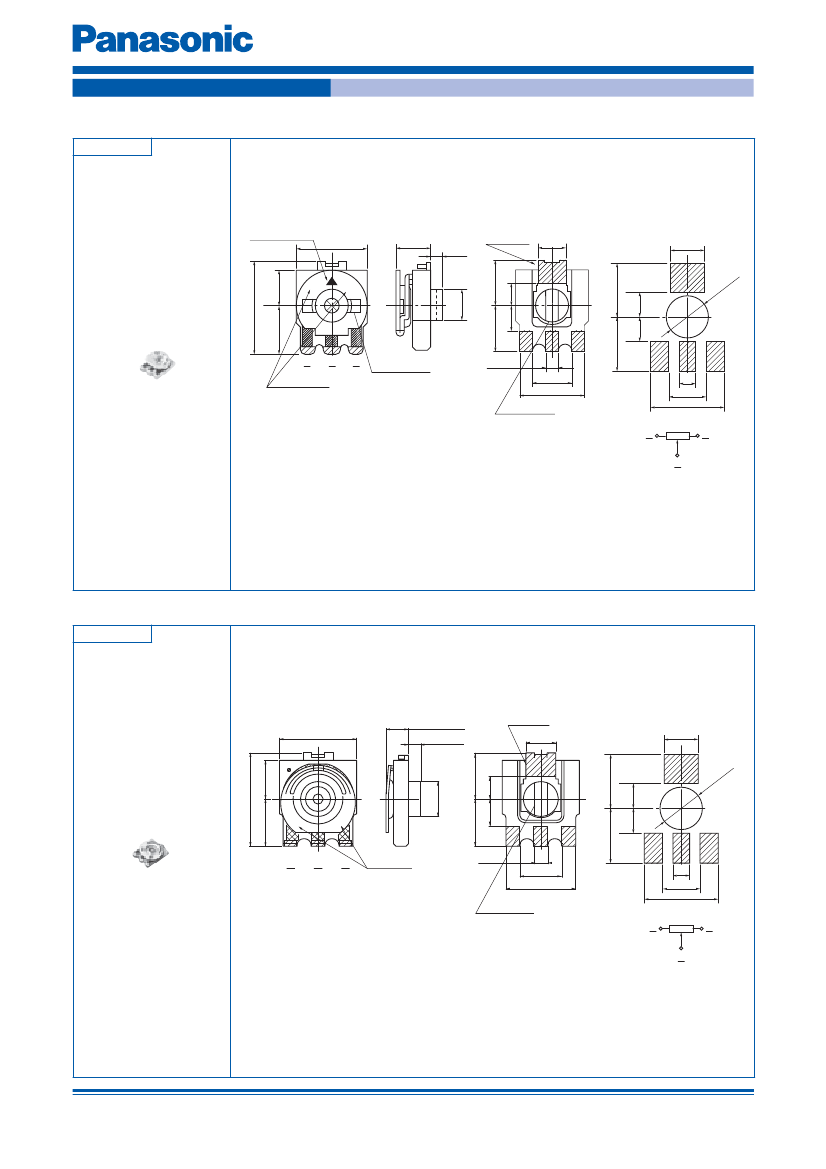

3-terminal, Both Sides Adjust ............................................................................................................................... EVM3S
No. 3
Wiper
position mark
3.1
1.4
Dummy
0.5
1.85
1.2
1.4
1.55
f1.3
0.9
2.3
4
2
f
1
1.1
.8
3.75
1.9
1.1
1.9
a
Resistance
b
c
Driver Slot
width 0.55
length 2.5
depth 0.3
0.56
1.68
2.8
2.3
1.1
Driver Slot
width 0.4
depth 0.35
0.7
1.7
3.2
(Recommended Land Pattern)
a
c
b
(Circuit diagram)
Mass (Weight) : 45 mg/pc.
●
3-terminal, Back Side Adjust ................................................................................................................................ EVM3R
No. 4
0.9 (1.0 max.)
3.1
0.5 max.
1.85
0.9
Dummy
1.2
1.4
1.55
3.75
f1.4
2.3
f
1
1.1
.8
1.9
1.9
1.1
2
4
a
b
c
Resistance
0.56
1.68
2.8
Driver Slot
width 0.45
depth 0.3
0.7
1.7
3.2
(Recommended Land Pattern)
c
a
b
(Circuit diagram)
Mass (Weight) : 32 mg/pc.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
