HA4-5135-8 Overview

HA4-5135-8

HA4-5135-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	_compli
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.004 µA
frequency compensation	YES
Maximum input offset voltage	130 µV
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
low-dissonance	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
minimum slew rate	0.5 V/us
Maximum slew rate	1.7 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

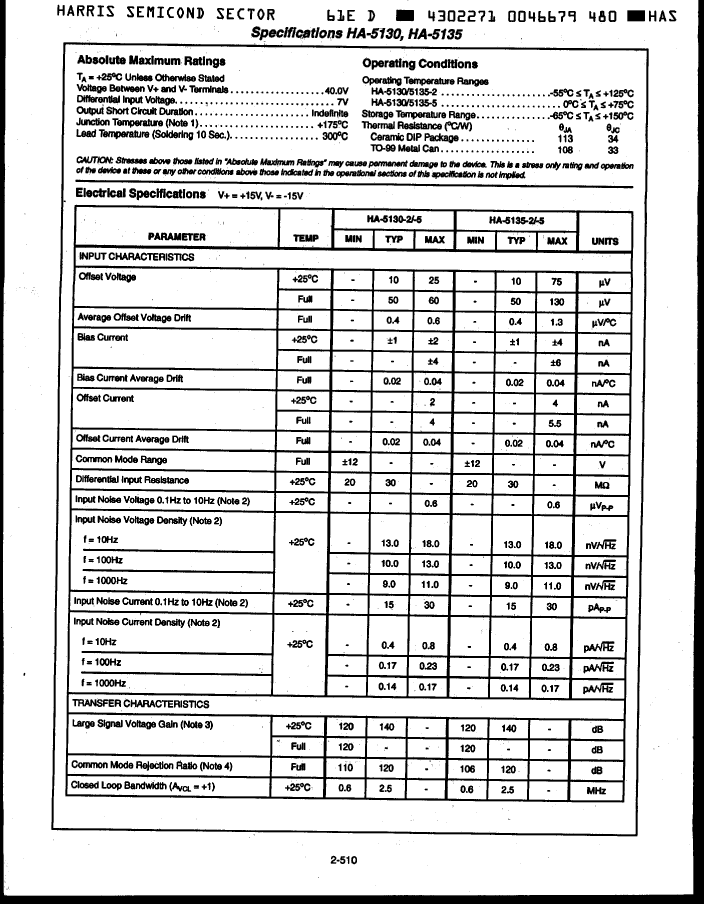

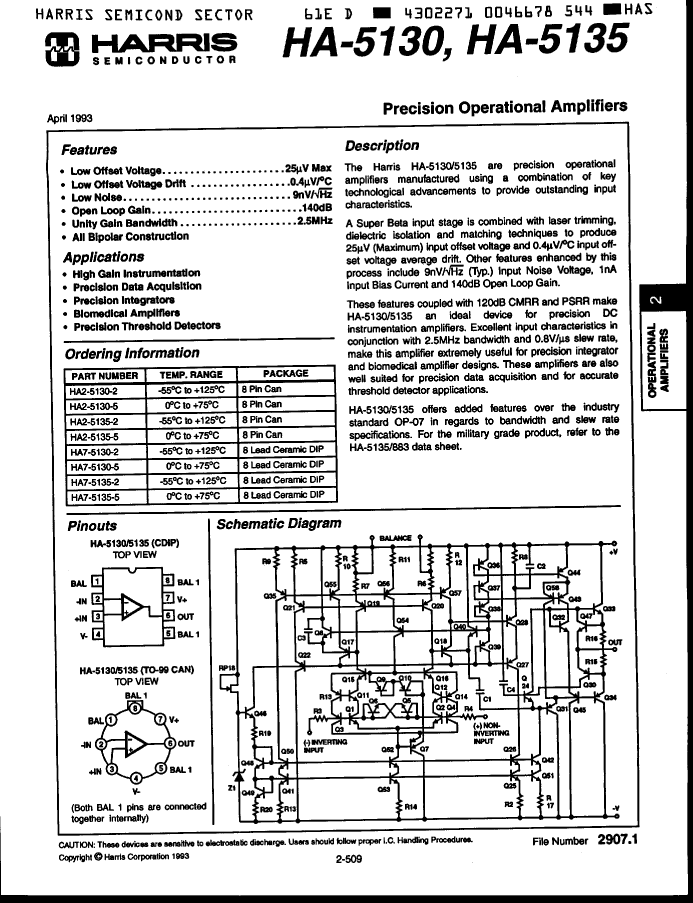

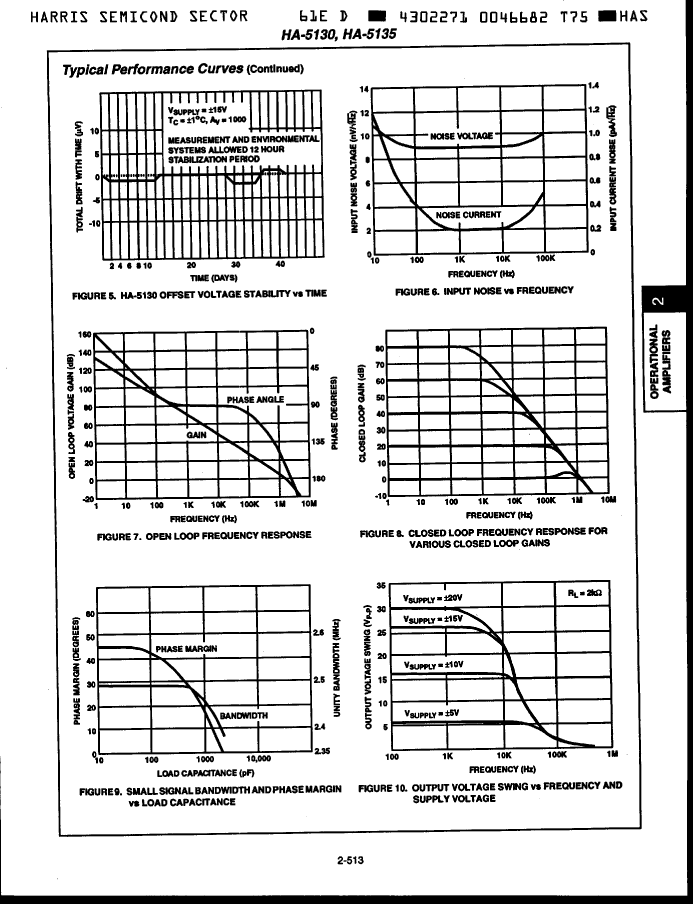

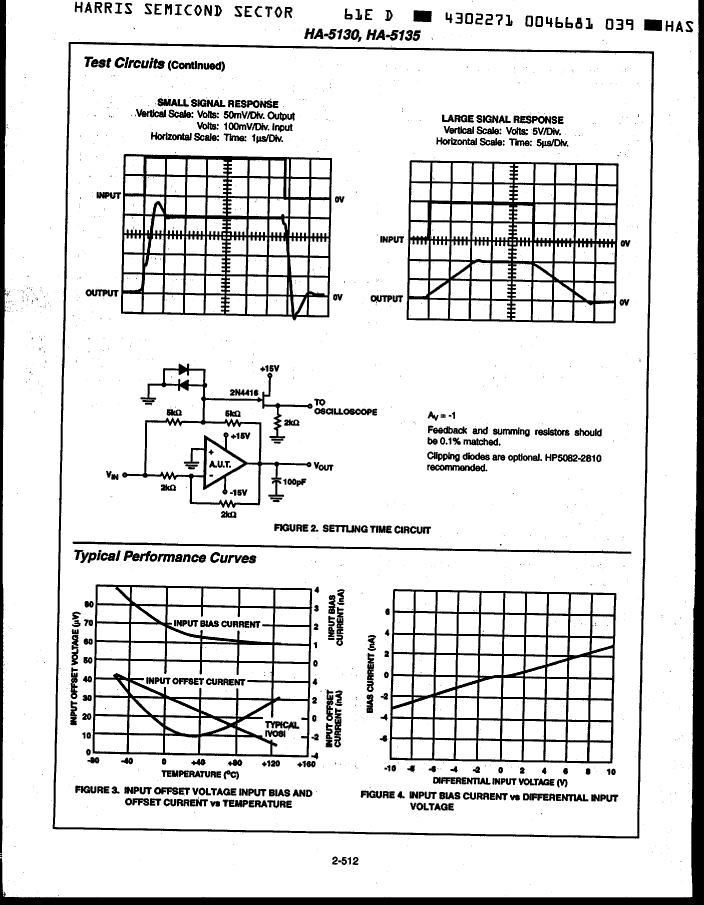

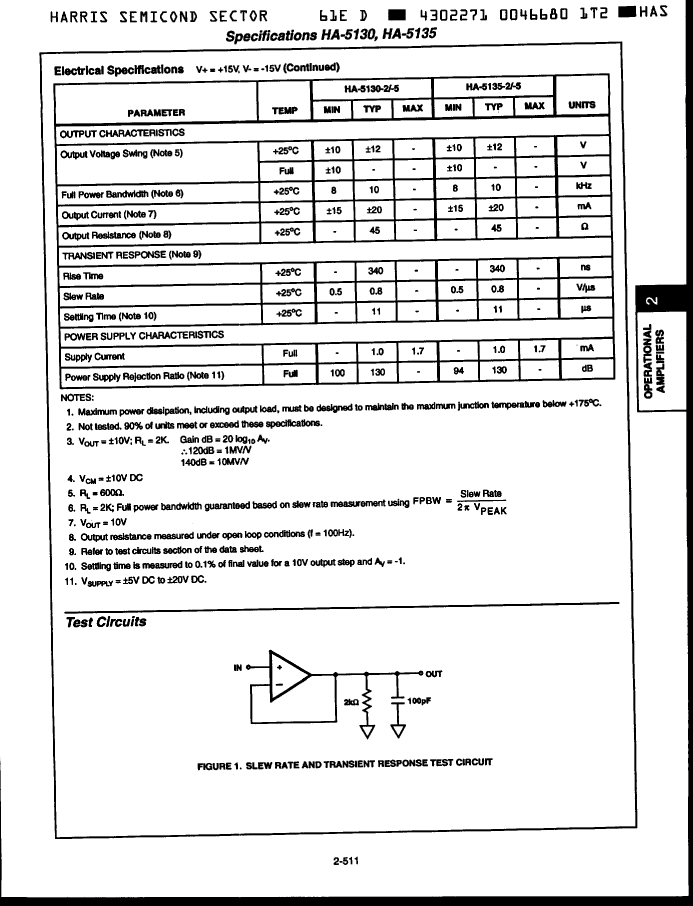

Preview

Download Datasheet

View All

HA4-5135-8 Related Products

	HA4-5135-8	5962-01-327-9878	HA3-5135-5	5962-01-301-5577
Description	HA4-5135-8	IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL	HA3-5135-5	IC,OP-AMP,SINGLE,BIPOLAR,LLCC,20PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	QCCN, LCC20,.35SQ	, CAN8,.2	DIP, DIP8,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	_compli	_compli	not_compliant	_compli
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.004 µA	0.002 µA	0.004 µA	0.004 µA
frequency compensation	YES	YES	YES	YES
Maximum input offset voltage	130 µV	60 µV	130 µV	130 µV
JESD-30 code	S-XQCC-N20	O-MBCY-W8	R-PDIP-T8	S-XQCC-N20
low-dissonance	YES	YES	YES	YES
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	20	8	8	20
Maximum operating temperature	125 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
Package body material	CERAMIC	METAL	PLASTIC/EPOXY	CERAMIC
Encapsulate equivalent code	LCC20,.35SQ	CAN8,.2	DIP8,.3	LCC20,.35SQ
Package shape	SQUARE	ROUND	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	CYLINDRICAL	IN-LINE	CHIP CARRIER
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	0.5 V/us	0.5 V/us	0.5 V/us	0.5 V/us
Maximum slew rate	1.7 mA	1.7 mA	1.7 mA	1.7 mA
Supply voltage upper limit	20 V	20 V	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	COMMERCIAL	MILITARY
Terminal form	NO LEAD	WIRE	THROUGH-HOLE	NO LEAD
Terminal location	QUAD	BOTTOM	DUAL	QUAD
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation
ECCN code	EAR99	EAR99	-	EAR99
encapsulated code	QCCN	-	DIP	QCCN
surface mount	YES	-	NO	YES
Terminal pitch	1.27 mm	-	2.54 mm	1.27 mm
