3-2110105-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-2110105-5

3-2110105-5: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size233KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-2110105-5 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK

3-2110105-5 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.909 inch
subject depth	1.272 inch
body length	1.047 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Durability	200 Cycles
maximum insertion force	40.032 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	2110105
Plug contact pitch	0.075 inch
Match contact row spacing	0.053 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	15
Number of rows loaded	15
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.75 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.047 inch
Terminal pitch	1.905 mm
Termination type	PRESS FIT
Total number of contacts	150

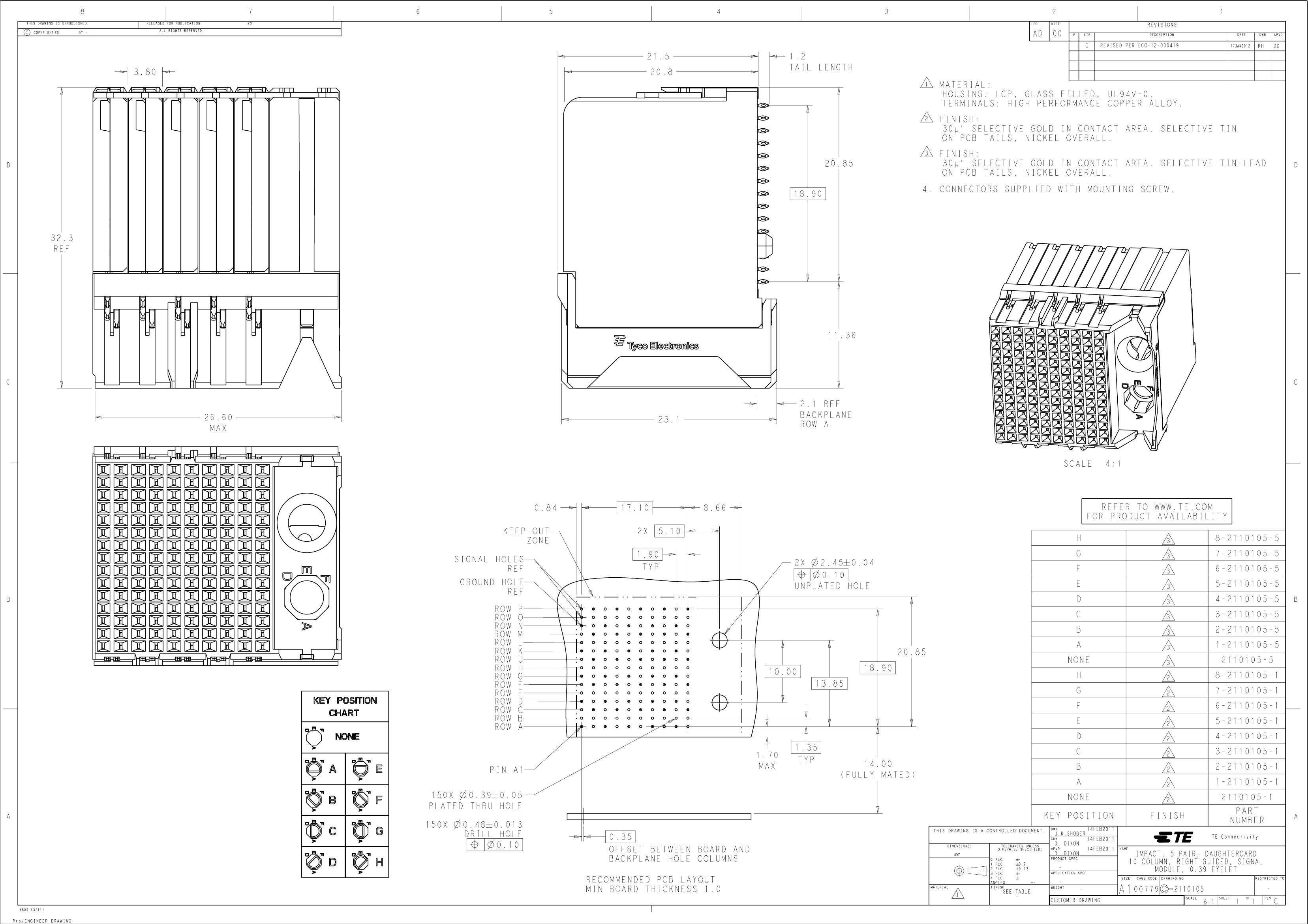

Preview

Download Datasheet

View All

3-2110105-5 Related Products

	3-2110105-5	2-2110105-5	5-2110105-1	8-2110105-5	2-2110105-1	4-2110105-5	5-2110105-5	8-2110105-1
Description	HEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,150 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,LOCKING,BLACK
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
body width	0.909 inch	0.909 inch	0.909 inch	0.909 inch	0.909 inch	0.909 inch	0.909 inch	0.909 inch
subject depth	1.272 inch	1.272 inch	1.272 inch	1.272 inch	1.272 inch	1.272 inch	1.272 inch	1.272 inch
body length	1.047 inch	1.047 inch	1.047 inch	1.047 inch	1.047 inch	1.047 inch	1.047 inch	1.047 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN OVER NICKEL	TIN/LEAD OVER NICKEL	TIN OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles
maximum insertion force	40.032 N	40.032 N	40.032 N	40.032 N	40.032 N	40.032 N	40.032 N	40.032 N
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	2110105	2110105	2110105	2110105	2110105	2110105	2110105	2110105
Plug contact pitch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Match contact row spacing	0.053 inch	0.053 inch	0.053 inch	0.053 inch	0.053 inch	0.053 inch	0.053 inch	0.053 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	15	15	15	15	15	15	15	15
Number of rows loaded	15	15	15	15	15	15	15	15
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.3462 mm	1.3462 mm	1.3462 mm	1.3462 mm	1.3462 mm	1.3462 mm	1.3462 mm	1.3462 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.047 inch	0.047 inch	0.047 inch	0.047 inch	0.047 inch	0.047 inch	0.047 inch	0.047 inch
Terminal pitch	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	150	150	150	150	150	150	150	150
ECCN code	EAR99	-	-	-	EAR99	EAR99	EAR99	EAR99
