STH51004G: DescriptionFIBER OPTIC LASER DIODE EMITTER, 1280-1330nm, 1000Mbps, PANEL MOUNT, TO-46, FC/PC CONNECTOR; CategoryLED optoelectronic/LED; File Size90KB，4 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Compare View All

STH51004G Overview

FIBER OPTIC LASER DIODE EMITTER, 1280-1330nm, 1000Mbps, PANEL MOUNT, TO-46, FC/PC CONNECTOR

Preview

Download Datasheet

View All

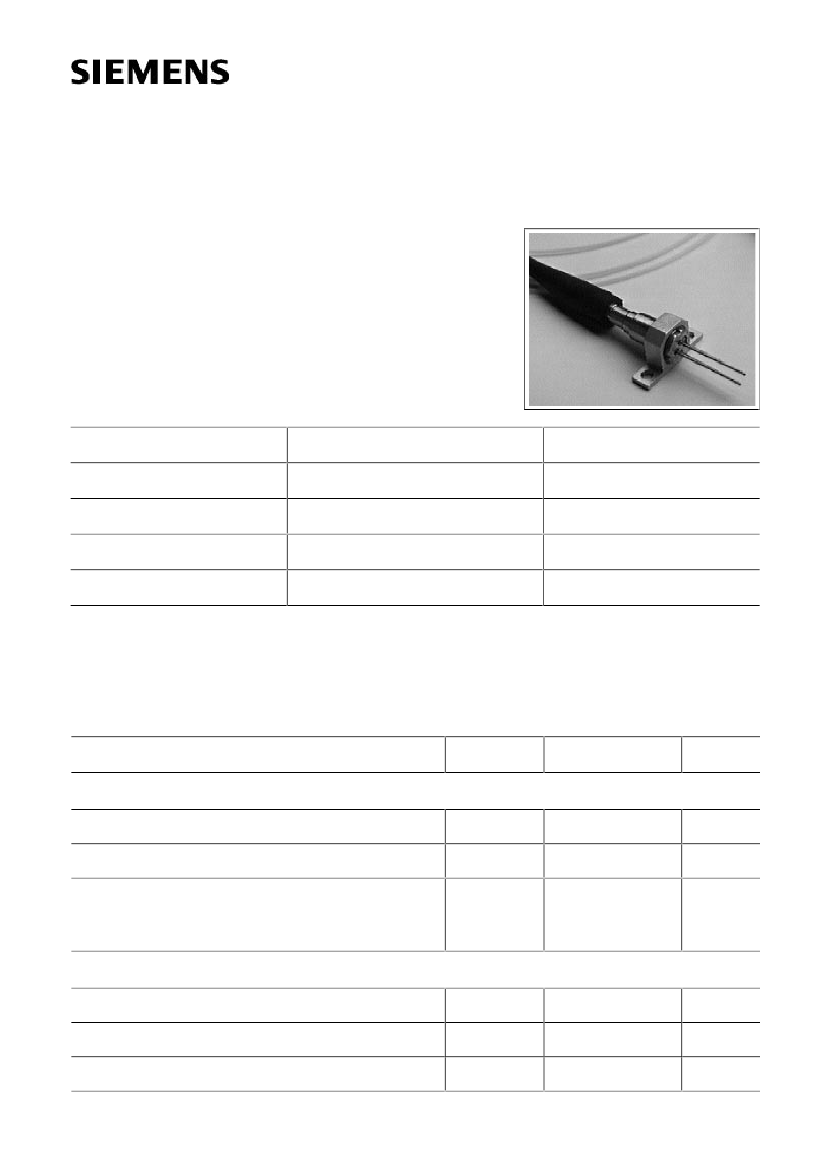

1300 nm Laser in Coaxial Package with SM-Pigtail,

High Power

STH 51004X

STH 51005X

•

Designed for application in fiber-optic networks

Laser Diode with Multi-Quantum Well structure

Suitable for bit rates up to 1 Gbit/s

Ternary photodiode at rear mirror for monitoring and

control of radiant power

•

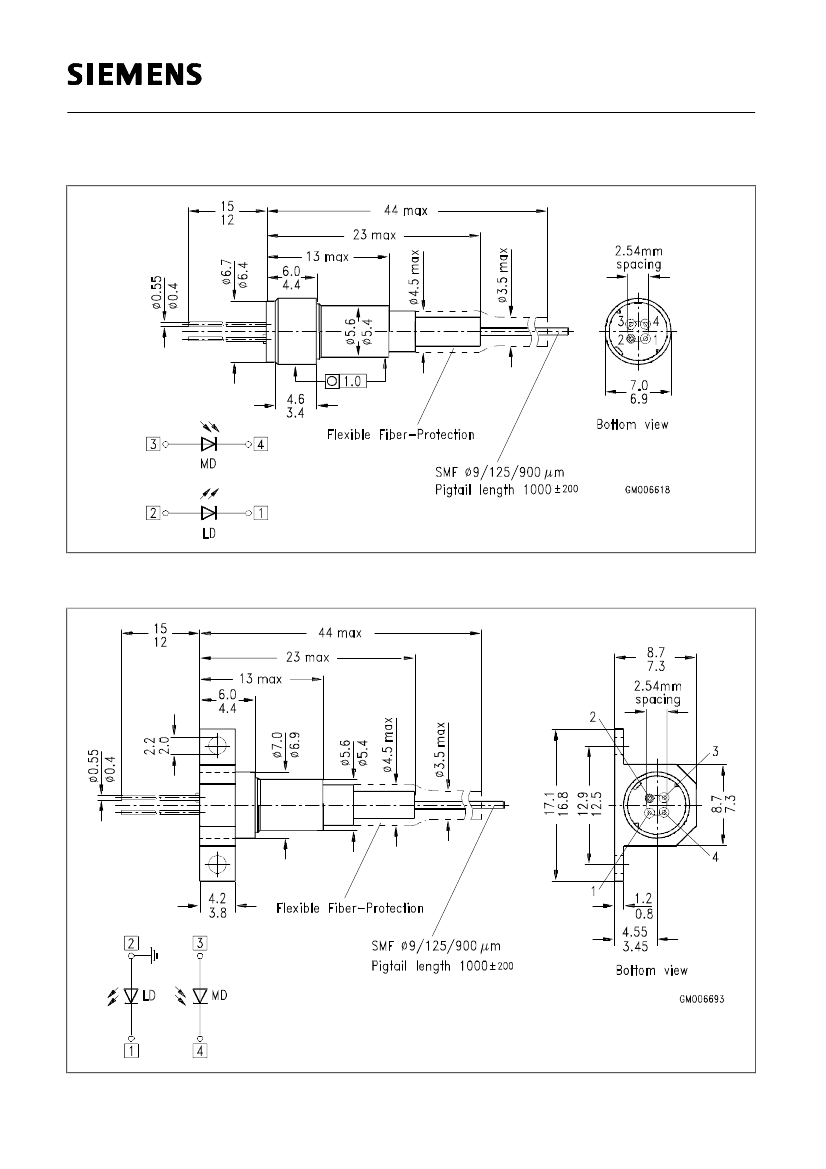

Hermetically sealed subcomponent, similar to TO 18

•

SM Pigtail with optional flange

Type

STH 51004G

STH 51004A

STH 51005G

STH 51005A

Ordering Code

Q62702-P3002

Q62702-Pxxxx

Q62702-P3083

Q62702-Pxxxx

Connector/Flange

FC / without flange

DIN / without flange

FC / with flange

DIN / with flange

Component with other connector types on request.

Maximum Ratings

Output power ratings refer to the SM fiber output. The operating temperature of the

submount is identical to the case temperature.

Parameter

Module

Operating temperature range at case

Storage temperature range

Soldering temperature

max

= 10 s, 2 mm distance from bottom edge of

case

Laserdiode

Direct forward current

Radiant power CW

Reverse voltage

Symbol

Values

Unit

stg

−

…

+ 85

−

…

+ 85

260

°C

F max

120

R max

Semiconductor Group

02.95
