4310R-102-753 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 4310R-102-753

4310R-102-753: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.3W, 75000ohm, 100V, 2% +/-Tol, -100,100ppm/Cel, 9808,; CategoryPassive components The resistor; File Size180KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

4310R-102-753 Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.3W, 75000ohm, 100V, 2% +/-Tol, -100,100ppm/Cel, 9808,

4310R-102-753 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Bourns
Reach Compliance Code	_compli
ECCN code	EAR99
structure	Molded
Lead length	3.43 mm
lead spacing	2.54 mm
Network Type	Isolated
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	4.95 mm
Package length	24.99 mm
Package form	SIP
Package width	2.16 mm
Rated power dissipation(P)	0.3 W
resistance	75000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	4300R(102,G TOL)
size code	9808
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	-100,100 ppm/°C
Tolerance	2%
Operating Voltage	100 V

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

■

RoHS compliant* (see How to Order

“Termination” option)

Low profile provides compatibility with

DIPs

Compatible with automatic insertion

equipment

Superior package integrity

■

Marking on contrasting background for

permanent identification

Now available with improved tolerance

to ±0.5 %

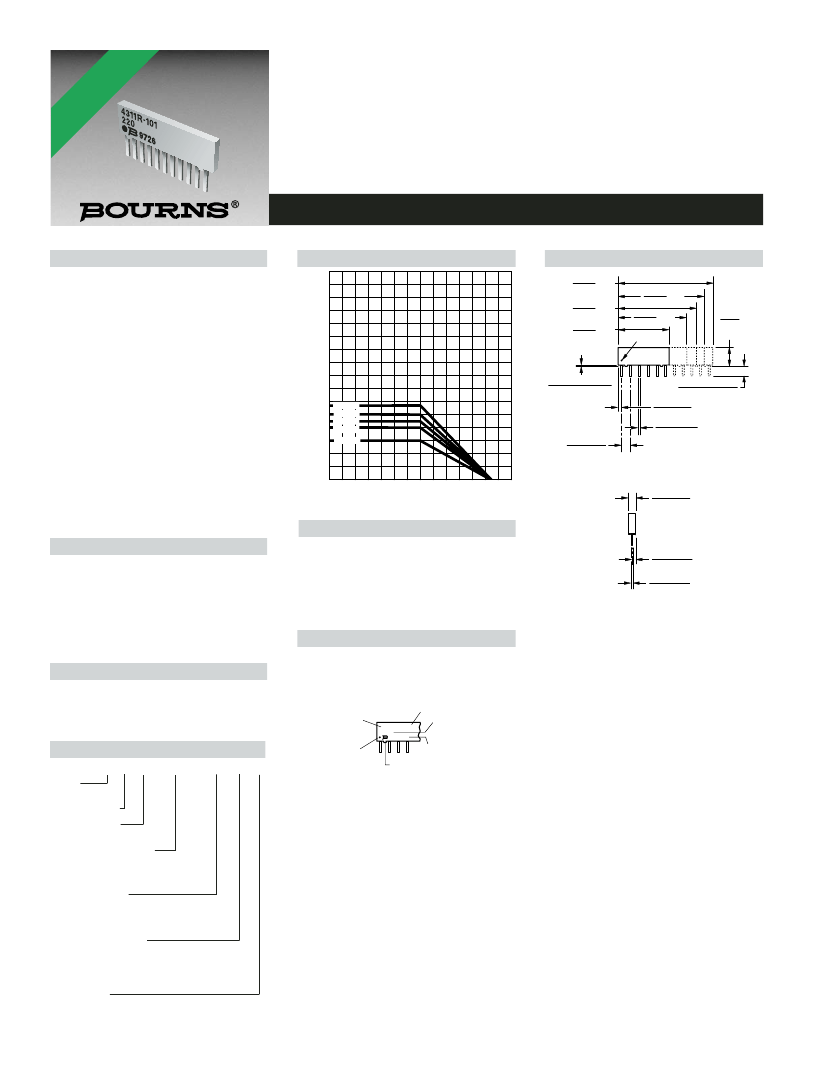

4300R Series - Thick Film Molded SIPs

Product Characteristics

Resistance Range

......................10 ohms to 10 megohms

Maximum Operating Voltage..........100 V

Temperature Coefficient of Resistance

50 ohms to 2.2 megohms ..±100 ppm/°C

below 50 ohms................±250 ppm/°C

above 2.2 megohms........±250 ppm/°C

TCR Tracking .........................50 ppm/°C

maximum; equal values

Resistor Tolerance ................See circuits

Operating Temperature

.................................-55 °C to +125 °C

Power Rating ....................Derate to zero

power from + 70 °C to + 125 °C

Insulation Resistance

..................10,000 megohms minimum

Dielectric Withstanding Voltage

.............................................200 VRMS

Lead Solderability

.....Meet requirements of MIL-STD-202

Method 208

Environmental Characteristics

TESTS PER MIL-STD-202.........∆R MAX.

Short Time Overload..................±0.25 %

Load Life ....................................±1.00 %

Moisture Resistance ..................±0.50 %

Resistance to Soldering Heat

................................................±0.25 %

Terminal Strength.......................±0.25 %

Thermal Shock...........................±0.25 %

Physical Characteristics

Flammability .........Conforms to UL94V-0

Lead Frame Material

..........................Copper, solder coated

Body Material ..................Novolac epoxy

How To Order

Package Power Temp. Derating Curve

Product Dimensions

27.53

MAX.

(1.084)

3.50

3.00

2.50

2.00

1.50

1.00

.50

22.45

MAX.

(.884)

14.83 MAX.

(.584)

24.99

MAX.

(.984)

19.92

MAX.

(.784)

PIN #1 REF.

4.95

(.195)

MAX.

WATTS

.407 + .102/ - .000

(.016 + .004/ - 000)

4311R

4310R

4309R

4308R

4306R

2.54

.07

(.100

.003*)

TYP.

NON-ACCUM.

125

AMBIENT TEMPERATURE (

C )

3.43 + .38/ - .25

(.135 + .015/ - .010)

1.02

.12

(.040

.005)

.483

.050

TYP.

(.020

.002)

2.16

.10

(.085

.004)

Package Power Rating at 70

°C

4306R......................................0.75 watts

4308R......................................1.00 watts

4309R......................................1.13 watts

4310R......................................1.25 watts

4311R......................................1.38 watts

Typical Part Marking

Represents total content. Layout may vary.

Marking may be truncated on shorter

versions due to size constraints.

PART

NUMBER

4306R-101-

222

YYWW

1.02

.05

(.0425

.002)

.254

.050

(.010

.002)

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

CIRCUIT

RESISTANCE

CODE

DATE CODE

43 06 R - 101 - 222 __ __

Model

(43 = Molded SIP)

PIN ONE

INDICATOR

MANUFACTURER'S

TRADEMARK

Number of Pins

Physical Config.

(R = Thick Film Low Profile)

Electrical Configuration

• 101 = Bussed

• 102 = Isolated

• 104 = Dual Terminator

Resistance Code

• First 2 digits are significant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 1 megohm)

• D = ±0.5 % (100 ohms - 1 megohm)

Terminations

• All electrical configurations EXCEPT 104:

LF = Tin-plated (RoHS compliant version)

• ONLY electrical configuration 104:

L = Tin-plated (RoHS compliant version)

• Blank = Tin/Lead-plated

Consult factory for other available options.

For Standard Values Used in Capacitors,

Inductors, and Resistors,

click here.

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
