Features
■
■
■
■
Lead free version available (see How to
Order “Termination” options)
RoHS compliant*
Power rating at 70 °C: CR2010 - 1/2 W,
CR2512 - 1 W
Tight tolerances of bottom electrode
width
■
■
■
Three layer termination process with
nickel barrier prevents leaching and
provides excellent solderability
Suitable for most types of soldering
processes
Standard packaging on tape and reel
*R

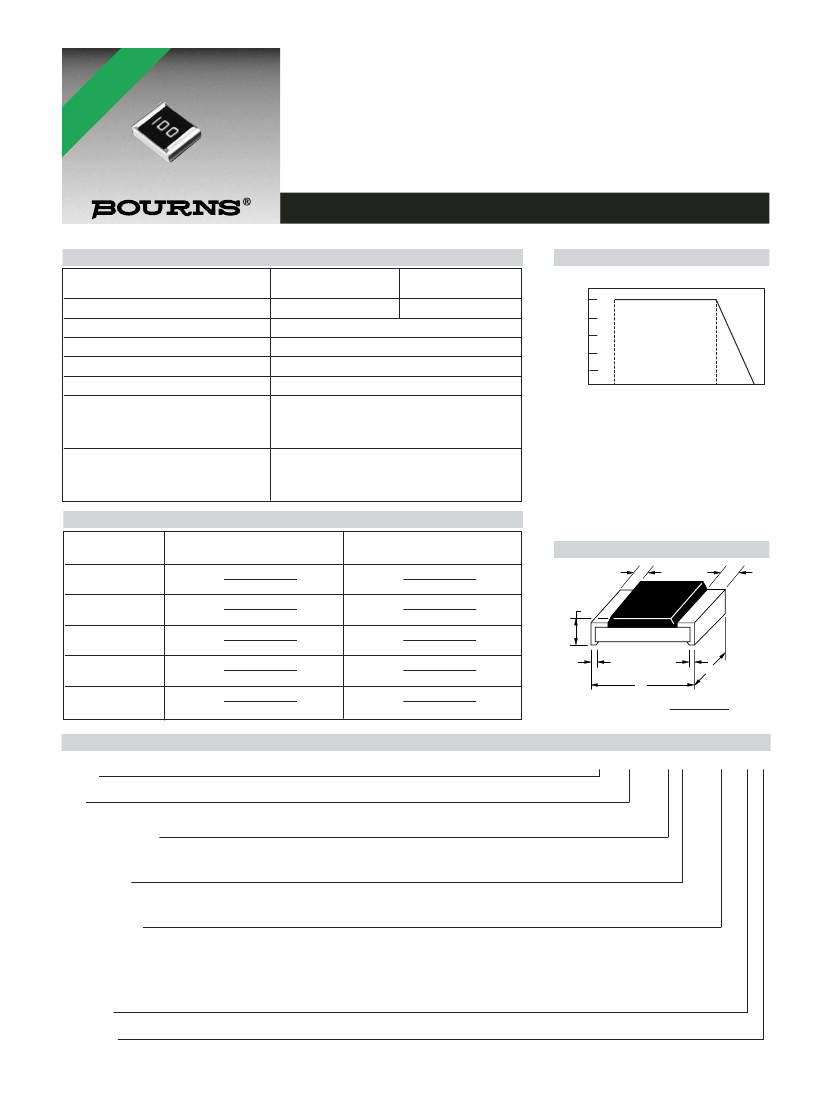

CR2010/CR2512 - Chip Resistors
Electrical Characteristics
Characteristic
Power Rating @ 70 °C
Operating Temperature Range
Derated to 0 Load at
Maximum Working Voltage
Maximum Overload Voltage
Resistance Range:
1 %, E-96 + E-24
5 %, E-24
Temperature Coefficient:
1 % Tolerance
5 % Tolerance
1 ohm to 10 ohms
Model
CR2010
1/2 W
-55 °C to +125 °C
+125 °C
200 V
400 V
10 ohms to 1 megohm
1 ohm to 10 megohms
0 ohm Jumper <50 milliohms
±100 ppm/°C
±200 ppm/°C
-200 ppm/°C to +500 ppm/°C
Model
CR2512
1W
Derating Curve
Rated power in percentage (%)
100
80
60
40
20
0
-55
0
70
(°C) Ambient temperature
125
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
Chip Dimensions
Dimension
L
W
H
I1
I2
Model
CR2010
5.00 ± 0.20
(0.197 ± 0.008)
2.50 ± 0.20
(0.098 ± 0.008)
0.60 ± 0.10
(0.024 ± 0.004)
0.60 ± 0.25
(0.024 ± 0.010)
0.60 ± 0.25
(0.024 ± 0.010)
Model
CR2512
6.30 ± 0.20
(0.248 ± 0.008)
3.10 ± 0.20
(0.122 ± 0.008)
0.60 ± 0.15
(0.024 ± 0.006)
0.60 ± 0.25
(0.024 ± 0.010)
0.60 ± 0.25
(0.024 ± 0.010)
I2
L
I2
W
H
Dimensional Drawing
I
1
I
1
g
DIMENSIONS ARE:
MM
(INCHES)
How To Order
CR 2010 - F X - 8252 E __
Model
(CR = Chip Resistor)
Size
• 2010
• 2512
Resistance Tolerance
F = ±1 % ............Used with “X” TCR code only for values from 10 ohms through 1 megohm.
J = ±5 % ............Used with “W” TCR code for values from 10 ohms through 10 megohms. Used with “/” TCR code for zero ohm (jumper)
and for values from 1 ohm through 9.1 ohms.
TCR (ppm/°C)
X = ±100 ..............Used with “F” Resistance Tolerance code only for values from 10 ohms through 1 megohm.
W = ±200 ..............Used with “J” Resistance Tolerance code only for values from 10 ohms through 10 megohm.
/ = -250 to +500 ..Used with “J” Resistance Tolerance code only for zero ohm (jumper), and for values from 1 ohms through 9.1 ohms.
Resistance Value
For 1 % Tolerance:
<100 ohms..............“R” represents decimal point (example: 24R3 = 24.3 ohms)
≥100
ohms ..............First three digits are significant, fourth digit represents number of zeros to follow (example: 8252 = 82.5k
Ω).
For 5 % Tolerance:
<10 ohms................“R” represents decimal point (example: 4R7 = 4.7 ohms)
≥10
ohms ................First two digits are significant, third digit represents number of zeros to follow (example: 474 = 470k ohms; 000 = Jumper).
Packaging
E = Embossed Plastic Tape (4,000 pcs.) on 7 ” Plastic Reel
Termination
LF = Tin-plated (lead free)
__ = Solder-plated
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice
Customers should verify actual device performance in their specific applications..
CR2010/CR2512 - Chip Resistors
Soldering Profile for Lead Free Chip Resistors and Arrays
275
<1>
Maximum of 20 seconds between
Marking Explanation
Resistors with 5 % tolerance may have a
3-digit or 4-digit resistance code.
Complete information about resistance
value and tolerance is found on the label of
the reel of chip resistors.
• 5 %: 3 digits, first two digits are
significant, third digit is number of
zeros to follow. Letter R is decimal point
for values from 1 to 9.9 ohms.
• 5 %: 4 digits, first three digits are
significant, fourth digit is number of
zeros to follow. Letter R is decimal point
for values from 1 to 99.9 ohms.
• 1 %: 4 digits, first three digits are
significant, fourth digit is number of
zeros to follow. Letter R is decimal for
values from 1 to 99.9 ohms.
260 °C peak
<1>
255 °C
+255 °C and +260 °C
225
220 °C
Temperature (°C)
190 °C
175
150 °C
60 - 90
seconds
Ramp Down
3 °C/second
125
60 - 120 seconds
10 seconds minimum
75
Ramp Up
3 °C/second maximum
25
0
50
100
150
Time (seconds)
200
250
300
Packaging Dimensions
4.0
±
0.1
(.157
±
.004)
A
B
F
W
2.0
±
0.05
(.079
±
.002)
Dimension
A
B
W
Model
CR2010
2.8 ± 0.2
(0.110 ± 0.008)
5.5 ± 0.2
(0.217 ± 0.008)
12.0 ± 0.3
(0.472 ± 0.012)
5.5 ± 0.05
(0.217 ± 0.002)
4.0 ± 0.1
(0.157 ± 0.004)
Model
CR2512
3.5 ± 0.2
(0.138 ± 0.008)
6.7 ± 0.2
(0.264 ± 0.008)
12.0 ± 0.3
(0.472 ± 0.012)
5.5 ± 0.05
(0.217 ± 0.002)
4.0 ± 0.1
(0.157 ± 0.004)
P0
1.5 +0.1/-0
(.056 + .004/-0)
1.75
±
0.1
(.059
±
.004)
F
P0
2.0
±
0.5
(.080
±
.020)
13.0
±
0.5
(.512
±
.020)
80.0
±
0.5
(3.150
±
.020)
DIMENSIONS ARE:
MM
(INCHES)
20.0
MIN.
(.787)
178.0
±
2.0
(7.008
±
.080)
16.7
MAX.
(.657)
REV. 05/06
Specifications are subject to change without notice
Customers should verify actual device performance in their specific applications..
