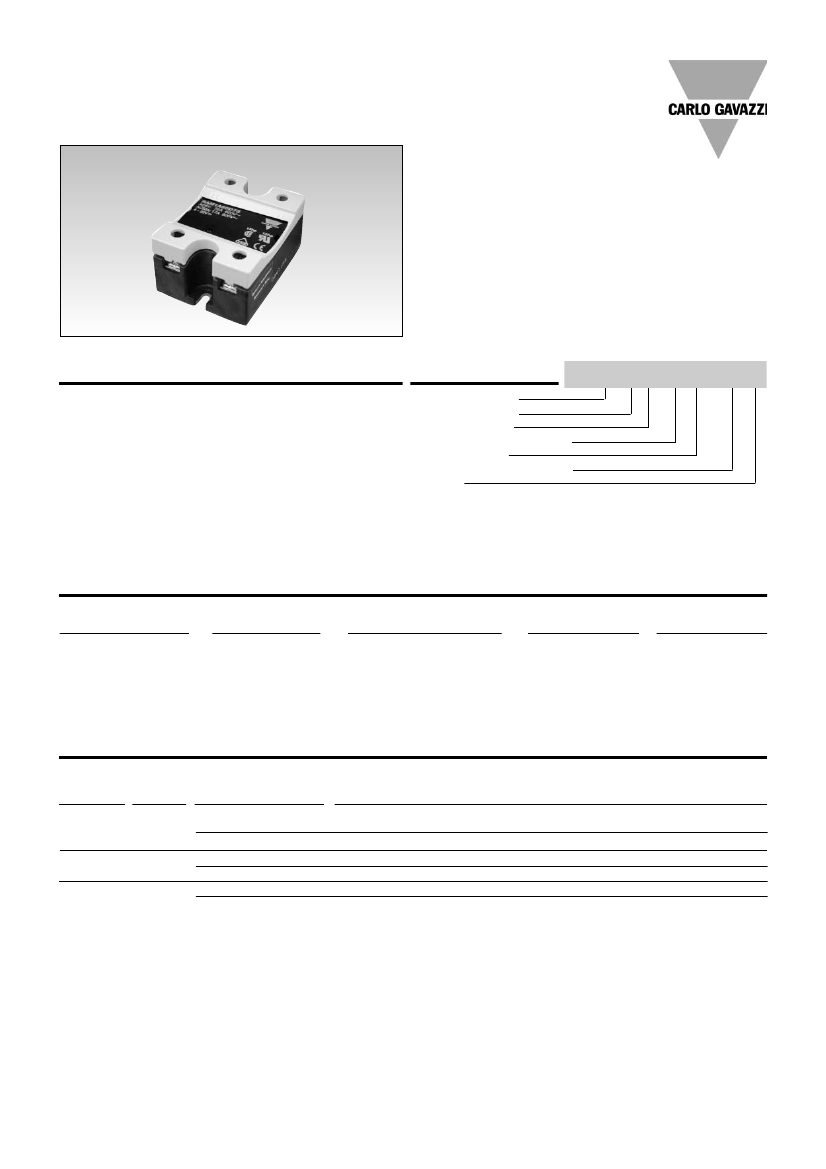

Solid State Relays

Industrial, 1-Phase ZS (IO) w. LED

Types RAM1A, RAM1B

• Zero switching (RAM1A) or instant-on

switching (RAM1B) AC Solid State Relay

• Direct copper bonding (DCB) technology

• LED indication

• Clip-on IP 20 protection cover

• Self-lifting terminals

• Housing free of moulding mass

• 2 input ranges: 3-32 * and 20-280 VAC/22-48VDC

• Operational ratings: Up to 125AACrms and 600VACrms

• Blocking voltage: Up to 1600V

p

• Opto-isolation: > 4000VACrms

• Integrated overvoltage protection by self

switching (suffix “Z” option)

Product Description

The industrial, 1-phase relay

with antiparallel thyristor out-

put is the most widely used

industrial SSR due to its mul-

tiple application possibilities.

The relay can be used for

resistive,

inductive

and

capacitive loads. The zero

switching relay switches ON

when the sinusoidal curve

crosses zero and switches

OFF when the current cross-

es zero. The instant-on relay

with DC control input can be

used for phase angle control.

The built-in snubber secures

transient protection. The LED

indicates the status of the

control input. The clip-on cov-

er secures touch protection

(IP 20). Protected output ter-

minals can handle cables up

to 16 mm

2

.

Ordering Key

Solid State Relay

Number of poles

Switching mode

Rated operational voltage

Control voltage

Rated operational current

Options

RAM 1 A 60 D 125 Z

Type Selection

Switching mode

A: Zero Switching

B: Instant-on switching

(DC Control only)

Rated operational

voltage

23: 230VACrms

60: 600VACrms

69: 690VACrms

Control voltage

A: 20-280 VAC/22-48VDC

D: 3 - 32VDC*

* 4 to 32VDC for RAM1A60..., RAM1A69...

* 4 to 32VDC for RAM1B types

Rated operational

current

25 : 25AACrms

50 : 50AACrms

75 : 75AACrms

100:100AACrms

125:125AACrms

Options

Z: Overvoltage

protection (self-

switching)

Selection Guide

Rated

operational

voltage

230VACrms

600VACrms

690VACrms

Blocking

voltage

Control

voltage

Rated operational current

25A

50A

75A

100A

125A

650V

p

1200V

p

1600V

p

3 - 32VDC

20-280VAC/22-48VDC

4 - 32VDC

20-280VAC/22-48VDC

4-32VDC

20-280VAC/ 22-48VDC

RAM1A23D25 RAM1A23D50 RAM1A23D75 RAM1A23D100 RAM1A23D125

RAM1A23A25 RAM1A23A50 RAM1A23A75 RAM1A23A100 RAM1A23A125

RAM1A60D25 RAM1A60D50 RAM1A60D75 RAM1A60D100 RAM1A60D125

RAM1A60A25 RAM1A60A50 RAM1A60A75 RAM1A60A100 RAM1A60A125

-

RAM1A69D75 RAM1A69D100 RAM1A69D125

-

RAM1A69A75 RAM1A69A100 RAM1A69A125

Options

1

Overvoltage protection by self-switching: add suffix Z to include. Example: RAM1A60D25Z. Not applicable for 690V version.

Specifications are subject to change without notice (28.02.2007)

1

RAM1A, RAM1B

General Specifications

RAM1.23..

Operational voltage range

RAM1A...

RAM1B...

Blocking voltage

Zero voltage turn-on

Operational frequency range

Power factor

Approvals

CE-marking

* VDE0805

** Heatsink must be conected to ground

RAM1.60..

RAM1.69..

24 to 265VACrms

42 to 265VACrms

≥

650V

p

≤

10V

45 to 65Hz

> 0.5 @ 230VACrms

UL, cUL, CSA, VDE*

Yes

42 to 660VACrms

≥

1200V

p

≤

10V

45 to 65Hz

> 0.5 @ 600VACrms

UL, cUL, CSA, VDE*

Yes**

42 to 760VACrms

≥

1600V

p

≤

10V

45 to 65Hz

> 0.5 @ 690VACrms

-

Yes**

Input Specifications

RAM1...D..

Control voltage range

RAM1A23...

RAM1A60..., RAM1A69...

RAM1B...

Pick-up voltage @ Ta = 25˚C

RAM1A23...

RAM1A60..., RAM1A69...

RAM1B...

Reverse voltage

Drop out voltage

Input current @ max input voltage

RAM1A

RAM1B

Response time pick-up

RAM1A

RAM1B

Response time drop-out

RAM1...A..

3-32VDC

4-32VDC

2.5VDC

3.5VDC

32VDC

1.2VDC

≤

12mA

≤

15mA

≤

1/2 cycle

≤

0.1ms

≤

1/2 cycle

20-280VAC, 22-48VDC

-

18VAC/DC

-

6VAC/DC

≤

20mA

-

≤

12ms

-

≤

40ms

Output Specifications

RAM1...25

Rated operational current

AC51 @ Ta=25°C

AC53a @ Ta=25°C

Min. operational current

Rep. overload current t=1 s

Non-rep. surge current t=10 ms

Off-state leakage current @

rated voltage and frequency

I

2

t for fusing t= 10 ms

On-state voltage drop

Critical dV/dt off-state min.

25Arms

5Arms

150mA

< 55AACrms

325A

p

< 3mArms

< 520A

2

s

≤

1.6Vrms

1000V/µs

RAM...50

50Arms

15Arms

250mA

< 125AACrms

600A

p

< 3mArms

< 1800A

2

s

≤

1.6Vrms

1000V/µs

RAM1...75

75Arms

17Arms

400mA

< 130 AACrms

800A

p

< 3mArms

< 3200A

2

s

≤

1.6Vrms

1000V/µs

RAM1...100

100Arms

20Arms

400mA

< 150 AACrms

1150A

p

< 3mArms

< 6600A

2

s

≤

1.6Vrms

1000V/µs

RAM...125

125Arms

30Arms

500mA

< 200AACrms

1900A

p

< 3mArms

<18000A

2

s

≤

1.6Vrms

1000V/µs

2

Specifications are subject to change without notice (28.02.2007)

RAM1A, RAM1B

Housing Specifications

Weight

25A, 50A

75A, 100A, 125A

Housing material

Baseplate

25A, 50A

75A, 100A, 125A

Approx. 60g

Approx. 100g

Noryl, black

Aluminium

Copper, nickel-plated

Relay

Mounting screws

Mounting torque

Control terminal

Mounting screws

Mounting torque

Power terminal

Mounting screws

Mounting torque

M5

1.5-2.0Nm

M3 x 9

0.5Nm

M5 x 9

2.4Nm

Functional Diagram

Dimensions

+

A1

(

~

)

REGULATION

T1

ZC

IO

-

A2(~ )

L1

LED

APPLY

HEATSINK

COMPOUND

All dimensions in mm.

Heatsink Dimensions

RAM..25

Load

current [A]

Thermal resistance

[K/W]

(load current versus ambient temperature)

RAM..50

Power

dissipation [W]

Load

current [A]

Thermal resistance

[K/W]

Power

dissipation [W]

25.0

22.5

20.0

17.5

15.0

12.5

10.0

7.5

5.0

2.5

3.23

3.70

4.30

5.07

6.12

7.58

9.80

2.80

3.21

3.74

4.41

5.33

6.61

8.55

2.37

2.73

3.17

3.76

4.54

5.64

7.30

1.94

2.24

2.61

3.10

3.75

4.66

6.05

1.51

1.75

2.05

2.44

2.96

3.69

4.80

6.66

1.09

1.26

1.49

1.78

2.17

2.72

3.55

4.94

0.66

0.78

0.92

1.12

1.38

1.75

2.30

3.23

5.09

10.7

80

23

21

18

15

13

10

8

6

4

2

T

A

50.0

45.0

40.0

35.0

30.0

25.0

20.0

15.0

10.0

5.0

1.25

1.46

1.73

2.08

2.56

3.24

4.26

5.99

9.49

-

20

1.07

1.25

1.49

1.80

2.22

2.81

3.71

5.22

8.27

17.5

30

0.88

1.04

1.25

1.51

1.87

2.38

3.15

4.45

7.06

15.0

40

0.70

0.84

1.01

1.23

1.53

1.95

2.59

3.67

5.85

12.4

50

0.52

0.63

0.77

0.94

1.18

1.52

2.03

2.90

4.64

9.91

60

0.34

0.42

0.52

0.66

0.84

1.09

1.47

2.12

3.43

7.39

70

0.16

0.21

0.28

0.37

0.49

0.66

0.92

1.35

2.22

4.86

80

55

48

41

35

29

23

18

13

8

4

T

A

13.5 11.80 10.09 8.37

-

20

18.3

-

30

15.7 13.04 10.39 7.74

-

40

-

50

-

60

16.2

70

Ambient temp. [°C]

Specifications are subject to change without notice (28.02.2007)

3

RAM1A, RAM1B

Heatsink Dimensions (cont.)

RAM..75

Load

current [A]

Thermal resistance

[K/W]

Power

dissipation [W]

RAM..100

Load

current [A]

Thermal resistance

[K/W]

Power

dissipation [W]

75.0

67.5

60.0

52.5

45.0

37.5

30.0

22.5

15.0

7.5

0.94

1.10

1.30

1.57

1.95

2.48

3.32

4.75

7.68

-

20

0.82

0.96

1.14

1.38

1.70

2.17

2.90

4.15

6.72

0.70

0.82

0.98

1.18

1.46

1.86

2.49

3.56

5.76

0.58

0.69

0.81

0.98

1.22

1.55

2.07

2.97

4.80

0.47

0.55

0.65

0.79

0.97

1.24

1.66

2.37

3.84

0.35

0.41

0.49

0.59

0.73

0.93

1.24

1.78

2.88

6.25

70

0.23

0.27

0.33

0.39

0.49

0.62

0.83

1.19

1.92

4.17

80

85

73

61

51

41

32

24

17

10

5

T

A

100.0 0.60

90.0

80.0

70.0

60.0

50.0

40.0

30.0

20.0

10.0

0.74

0.91

1.09

1.33

1.66

2.16

3.01

4.73

9.94

20

0.52

0.64

0.79

0.96

1.16

1.45

1.89

2.64

4.14

8.70

30

0.43

0.54

0.68

0.82

1.00

1.24

1.62

2.26

3.55

7.45

40

0.34

0.44

0.56

0.68

0.83

1.04

1.35

1.88

2.96

6.21

50

0.26

0.34

0.45

0.55

0.66

0.83

1.08

1.51

2.37

4.97

60

0.17

0.24

0.33

0.41

0.50

0.62

0.81

1.13

1.78

3.73

70

0.09

0.14

0.22

0.27

0.33

0.41

0.54

0.75

1.18

2.48

80

117

101

87

73

60

48

37

27

17

8

T

A

14.59 12.50 10.42 8.34

30

40

50

60

Ambient temp. [°C]

RAM..125

Load

current [A]

Thermal resistance

[K/W]

Power

dissipation [W]

Heatsink Selection

Carlo Gavazzi Heatsink

(see Accessories)

No heatsink required

RHS 300

RHS 100

RHS 45C

RHS 45B

RHS 90A

RHS 45C plus fan

RHS 45B plus fan

RHS 112A

RHS 301

RHS 90A plus fan

RHS 112A plus fan

RHS 301 plus fa

Consult your distribution

Infinite heatsink - No solution

Thermal

resistance...

---

5.00 K/W

3.00 K/W

2.70 K/W

2.00 K/W

1.35 K/W

1.25 K/W

1.20 K/W

1.10 K/W

0.80 K/W

0.45 K/W

0.40 K/W

0.25 K/W

> 0.25 K/W

---

for power

dissipation

N/A

>0W

> 25 W

> 55 W

> 60 W

>0W

> 100 W

> 80 W

>0W

N/A

125.0 0.63

112.5 0.73

100.0 0.84

87.5

75.0

62.5

50.0

37.5

25.0

12.5

0.99

1.20

1.48

1.92

2.65

4.12

8.55

20

0.55

0.64

0.74

0.87

1.05

1.30

1.68

2.32

3.60

7.48

30

0.47

0.54

0.63

0.74

0.90

1.11

1.44

1.98

3.09

6.41

40

0.40

0.45

0.53

0.62

0.75

0.93

1.20

1.65

2.57

5.34

50

0.32

0.36

0.42

0.50

0.60

0.74

0.96

1.32

2.06

4.27

60

0.24

0.27

0.32

0.37

0.45

0.56

0.72

0.99

1.54

3.21

70

0.16

0.18

0.21

0.25

0.30

0.37

0.48

0.66

1.03

2.14

80

126

110

95

81

67

54

42

30

19

9

T

A

Ambient temp. [°C]

Thermal Specifications

Operating temperature

Storage temperature

Junction temperature

-40° to +80°C (-40˚ to +176˚F)

-40° to +100°C (-40˚ to +212˚F)

≤

125˚C (257˚F)

Isolation

Rated isolation voltage

Input to output

Output to case

≥

4000VACrms

≥

4000VACrms

4

Specifications are subject to change without notice (28.02.2007)

RAM1A, RAM1B

Faston terminals

• Faston tabs

• Tab dimensions accord-

ing to DIN 46342 part 1

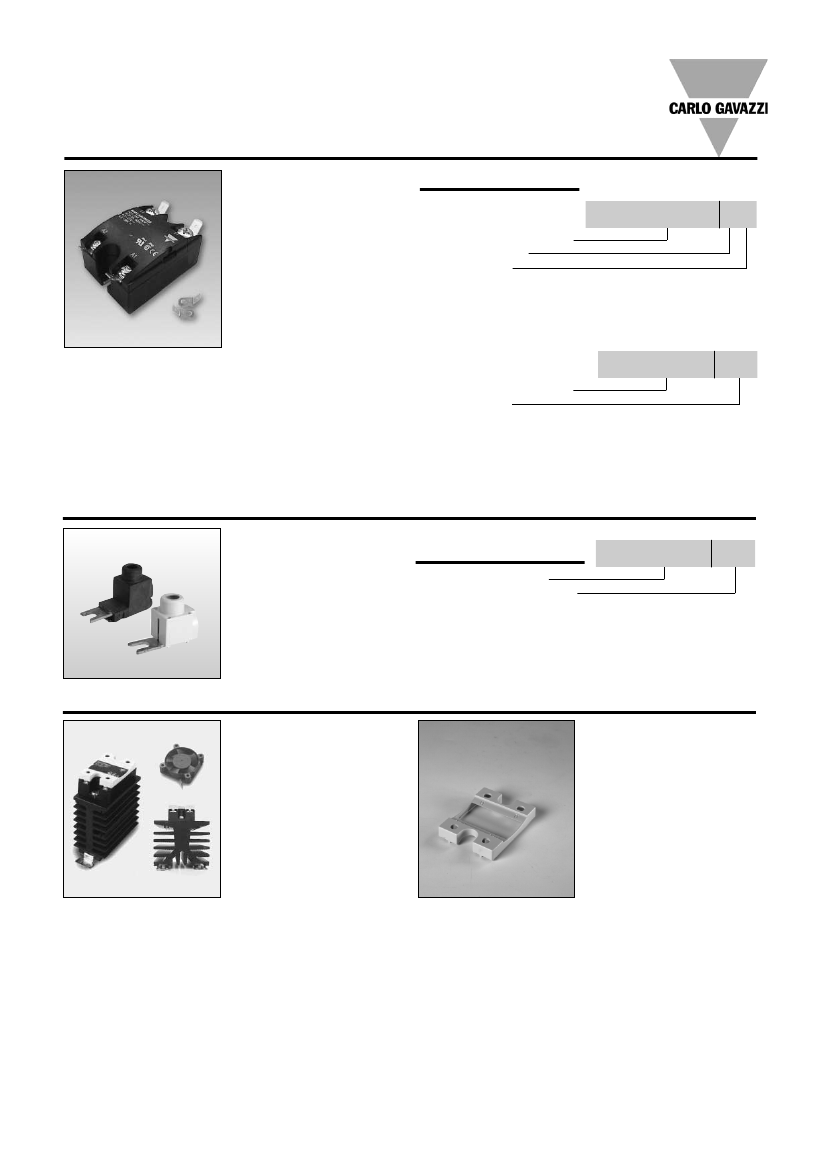

• Pure tin-plated brass

Ordering Key

Screw mounted

Faston terminals

RAM Solid State Relay

Faston terminals

Tab orientation

Input Tab width: 4.8mm

Output Tab width: 6.3mm

RAM1A60D25 F 4

*

Faston terminals

in packs of 20

RM48

**

F4

*

RS, RM Solid State Relay

Tab orientation

* 0: Flat (0º)

4: Angled (45º)

** 48: 4.8mm faston for input

63: 6.3mm faston for output

Fork Terminals

• Terminal adaptors

for 35mm

2

cable

• Type RM635FK

• Pack size: 20 pieces

Ordering Key

RM terminal adaptor

Touch protected (optional)

RM635FK

P

Other Accessories

•

Heatsinks and fans

Type RHS....

0.25 to 5.00 k/W

Single and dual

relay types

•

Touch safety cover

Type RMIP20

IP20 protection degree

Pack size: 20 pieces

All accessories can be ordered pre-assembled with Solid State Relays.

Other accessories include DIN rail adaptors, fuses, varistors and spacers.

For futher information refer to Accessories datasheets.

Specifications are subject to change without notice (28.02.2007)

5

Parameter Name	Attribute value
Maker	Carlo Gavazzi
Reach Compliance Code	compli

RAM1A23A125Z

RAM1A23A125Z Overview

RAM1A23A125Z Parametric

Preview

RAM1A23A125Z Related Products

Recommended Resources

	RAM1A23A125Z	RAM1A23D25Z	RAM1A60D50Z	RAM1B23A100	RAM1B23A100Z
Description	Solid State Relay	Solid State Relay	Solid State Relay	Solid State Relay	Solid State Relay
Reach Compliance Code	compli	compliant	compliant	compli	compli
Maker	Carlo Gavazzi	-	Carlo Gavazzi	Carlo Gavazzi	Carlo Gavazzi
