3186GF274U025DRR1 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 3186GF274U025DRR1

3186GF274U025DRR1: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 270000uF, Stud Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size150KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

3186GF274U025DRR1 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 75% +Tol, 10% -Tol, 270000uF, Stud Mount, CAN, ROHS COMPLIANT

3186GF274U025DRR1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	270000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	76.71 mm
dielectric materials	ALUMINUM (WET)
ESR	3 mΩ
leakage current	0.006 mA
length	118.31 mm
Manufacturer's serial number	3186
Installation features	STUD MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	75%
Rated (DC) voltage (URdc)	25 V
ripple current	35000 mA
series	3186
surface mount	NO
Terminal pitch	31.8 mm
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

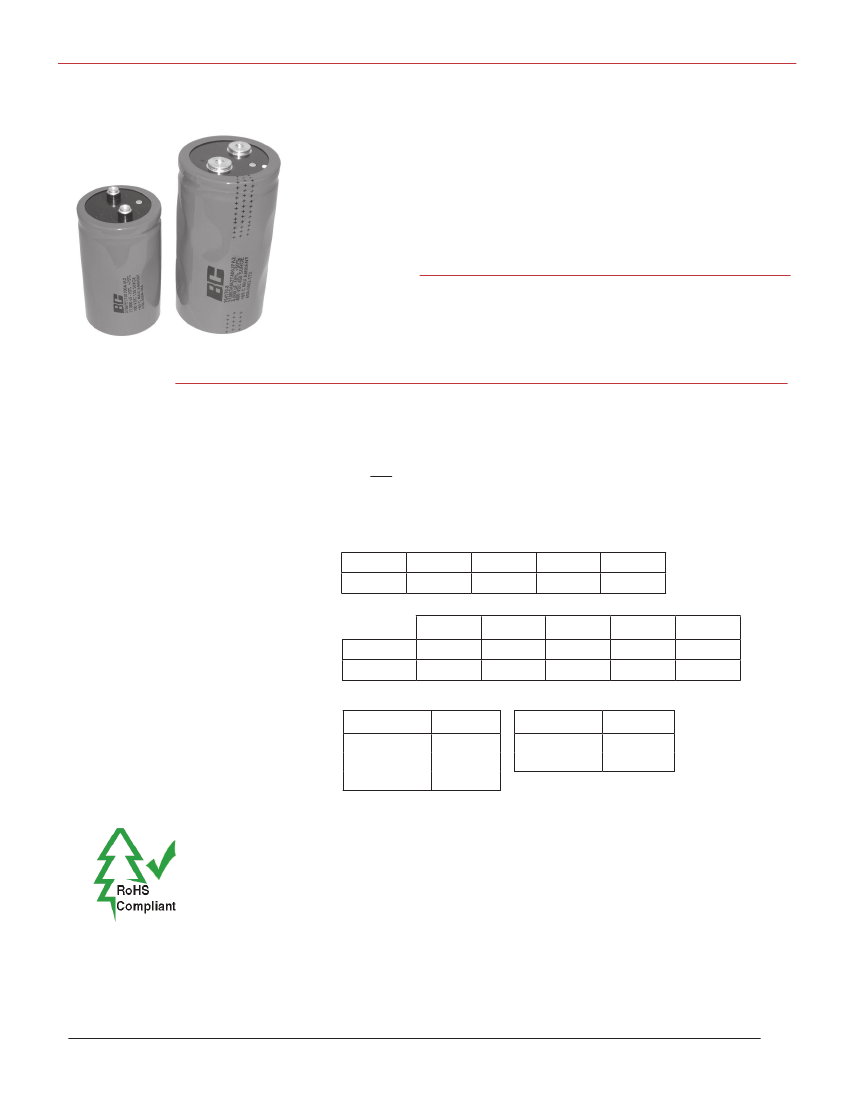

Type 3186

High Capacitance, Aluminum Electrolytic Screw Terminal

Type 3186, 85 °C Best-Value, High-Capacitance, Aluminum.

Choice of Potted or Rilled High-Vibration Construction

Best Value Screw Terminal Type

Type 3186 is available with the capacitor element potted in place for

lowest-cost or secured by rills, spoon shaped dimples in the side of

the can. Rilled construction offers the industry’s highest vibration and

shock withstanding and excellent heat transfer into the sides and bot-

tom of the can. Besides increasing ripple current handling, the rilled

construction extends the great value of Type 3186 into military and

transportation settings that require rugged mechanical capability.

Highlights

฀฀

฀

฀ ฀

฀

฀ ฀

฀

Speciﬁcations

Operating Temperature:Rated

Voltage:

Capacitance:

Capacitance Tolerance:

DC Leakage Current:

Cold Impedence:

–40 °C to 85 °C

16 to 500 Vdc

220 µF to 1.0 F

–10% +75% up to 100 Vdc, –10 + 50% 200 Vdc & up

≤6√CV µA (6 mA max.) at 5 minutes

–20 °C multiple of 25 °C Z ≤ 8 for 16–50V, 4 for 63–100V,

3 for 150V and up.

Ripple Current Multipliers:

Ambient Temperature

45 °C

2.24

55 °C

2.00

60 Hz

16–100 V

200–500 V

0.90

65 °C

1.73

120 Hz

1.00

75 °C

1.41

300 Hz

1.15

1.25

85 °C

1.00

1000 Hz

1.25

1.40

≥10 kHz

1.30

1.50

Frequency

Series Inductance:

case dia (in)

1.375

1.75

ESL (nH)

case dia (in)

2.5

ESL (nH)

Life Endurance Test:

2,000 h at 85 °C and rated voltage

∆Capacitance ±10%

ESR 200% of limit

DCL 100% of limit

Shelf Life:

500 h @ 85 °C and no voltage

∆Capacitance ±10%

ESR 175% of limit

Complies with the EU Directive

2002/95/EC requirement restricting

DCL 200% of limit

the use of Lead (Pb), Mercury (Hg),

Cadmium (Cd), Hexavalent chromium

Vibration:

Potted: 10 to 55 Hz, 0.06” and 10g max, 1.5 h ea. of 2 axis

(Cr(VI)), PolyBrominated Biphenyls

Rilled: 10 to 55 Hz, 0.06” and 15g max, 1.5 h ea. of 2 axis

(PBB) and PolyBrominated Diphenyl

Ethers (PBDE).

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
