B081-0932-0061-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> B081-0932-0061-Z

Preview

B081-0932-0061-Z: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size337KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B081-0932-0061-Z Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

B081-0932-0061-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.335 inch
body length	0.45 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	B081
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

No.

1*02

1*03

1*04

1*05

1*06

1*07

1*08

1*09

1*10

1*11

1*12

1*13

1*14

1*15

1*16

1*17

1*18

1*19

1*20

1*21

1*22

1*23

1*24

1*25

1*26

1*27

1*28

1*29

1*30

1*31

1*32

1*33

1*34

1*35

1*36

1*37

1*38

1*39

1*40

A

2.54

3.81

5.08

6.35

7.62

8.89

10.16

11.43

12.70

13.97

15.24

16.51

17.78

19.05

20.32

21.59

22.86

24.13

25.40

26.67

27.94

29.21

30.48

31.75

33.02

34.29

35.56

36.83

38.10

39.37

40.64

41.91

43.18

44.45

45.72

46.99

48.26

49.53

50.80

B

1.27

2.54

3.81

5.08

6.35

7.62

8.89

10.16

11.43

12.70

13.97

15.24

16.51

17.78

19.05

20.32

21.59

22.86

24.13

25.40

26.67

27.94

29.21

30.48

31.75

33.02

34.29

35.56

36.83

38.10

39.37

40.64

41.91

43.18

44.45

45.72

46.99

48.26

49.53

2.7mm + 0.2

-

*

3.0mm PC Tail Length Available.

Contact SMP Purchasing for part No.

HOW TO ORDER:

B

0

8

1

-

X

3

2

-

0

X

-

Z

RoHS

COMPLIANT

ELECTRICAL:

CURRENT: 1A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: - 40° C TO +105° C

VOLTAGE: 100V AC/DC

NUMBER OF CONTACTS:

02 thru 50

CONTACT TYPE:

2 - Tuning Fork

MATERIAL:

INSULATOR:

Nylon 6T

(UL94V-0)

CONTACT: PHOSPHOR BRONZE, FULL SELECTIVE GOLD; MATTE TIN

MAX. PROCESSING TEMPERATURE: 260°C FOR 10 SECONDS

Rev

0

Issued

Drawn Checked Approved

Date

B.S.

S.M.

12/07/07

PLATING:

0 - Au

1 - 10u" Au

2 - 15u" Au

3 - 30u" Au

SELECTIVE PLATING:

4 - Au - Tin Tail

5 - 10u" Au - Tin Tail

6 - 15u" Au - Tin Tail

7 - 30u" Au - Tin Tail

PACKAGING:

1 - Intube

2 - w/ Cap In Tube

3 - w/ Film In Tube

4 - w/ Film / Tube

5 - w/ Film / Tape / Reel

6 - Tray

SMP TECHNOLOGY, INC.

RECEPTACLE ASSEMBLY, 1.27mm Pitch, SINGLE ROW,

SCALE

TOL. DEC.

.X +/- 0.20

.XX +/- 0.15

ANGLE +/- 5°

UNIT: mm

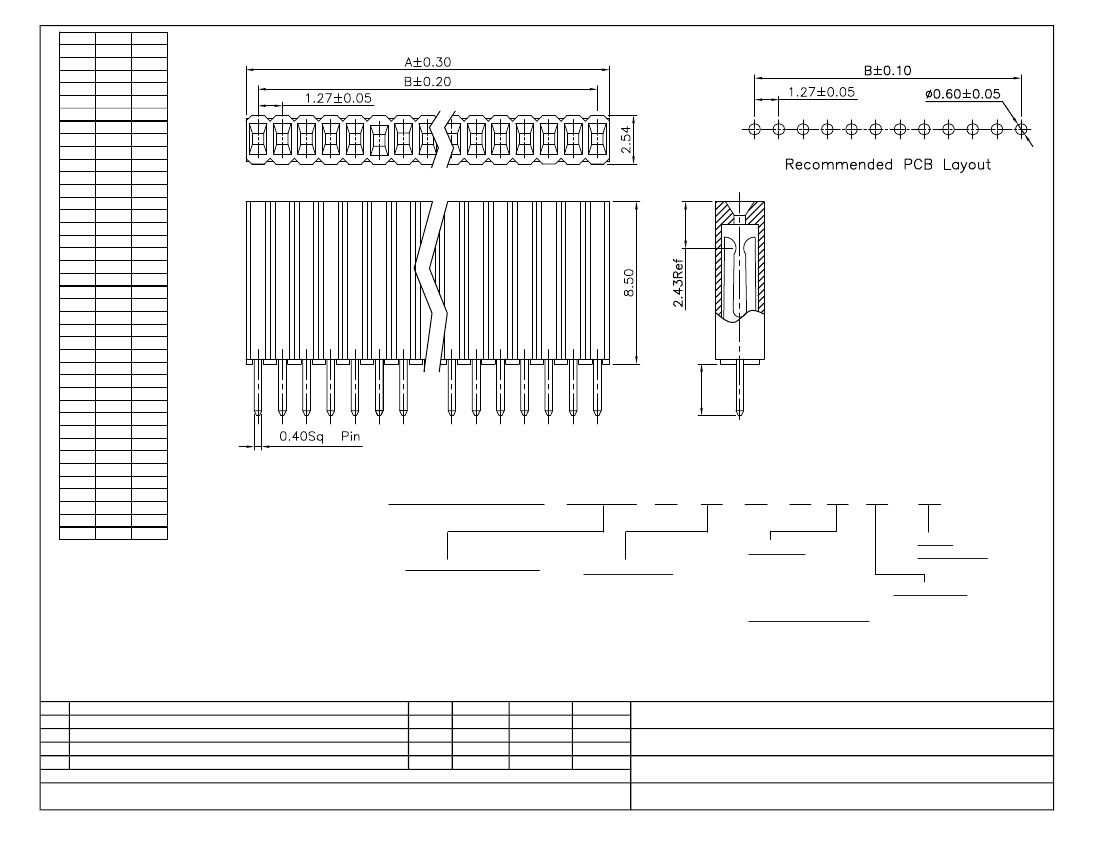

TUNING FORK, 8.5mm Height

P/N: B081-XX32-00XX-Z

Pg: 1
