Standard Products
Datasheet
RadHard-by-Design
RHD5930 Digital-to-Analog Converter
11-Bit Ladder Output
www.aeroflex.com/RHDseries
January 29, 2014
FEATURES
Radiation performance
- Total dose:
- ELDRS Immune
- SEL Immune:
- Neutron Displacement Damage:
11-Bit DAC
>1 Mrad(Si), Dose rate = 50 - 300 rads(Si)/s
>100 MeV-cm
2
/mg
>10
14
neutrons/cm
2
VCC PREF
Single power supply operation at +3.3V to +5V
Low Power
Full 4-quadrant multiplying DAC
CMOS/TTL inputs
Full military temperature range
Designed for aerospace and high reliability space applications

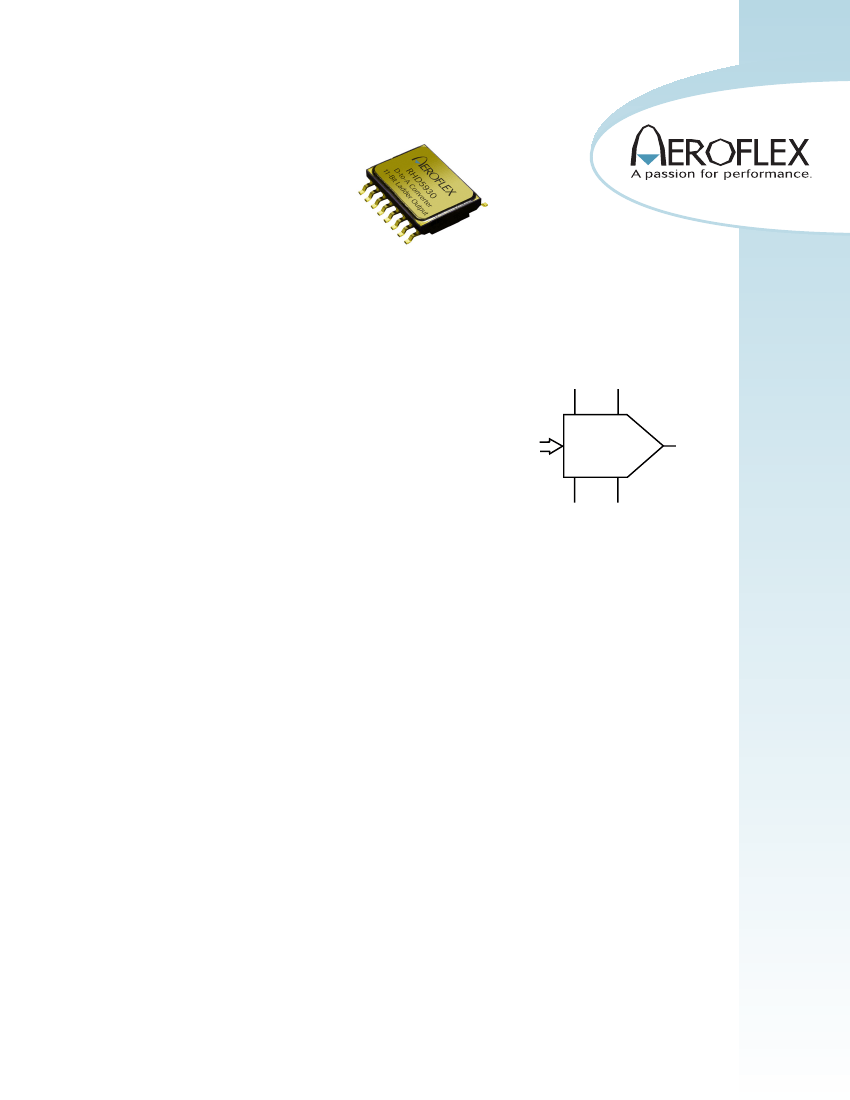

Packaging – Hermetic ceramic SOIC
- 16 leads, 0.417"L x 0.300"W x 0.105"Ht
- Typical Weight 0.8 grams
D10:D00
AOUT
GND NREF
SCHEMATIC SYMBOL
Aeroflex Plainview’s Radiation Hardness Assurance Plan is DLA Certified to MIL-PRF-38534, Appendix G.
GENERAL DESCRIPTION
The Aeroflex 11-Bit DAC is a standard CMOS R/2R Kelvin resistor network. The digital inputs, D10
(MSB)
through D00
(LSB)
, are buffered to drive single-pole double-throw CMOS switches to apply either the PREF
or NREF signals to the 2R legs of the resistor network. The output is unbuffered.
PREF and NREF inputs can be any static or dynamic voltage within the power supply range. The nominal
values or R and 2R are 5K and 10K respectively. The characteristic impedance of the resistor network is
approximately 5K.
The voltage-output configuration of the integrated circuit can be thought of as a digitally controlled voltage
with a value of PREF-NREF and an output impedance of approximately 5K. The output will swing
rail-to-rail if unloaded.
The DAC can also be operated in the so-called "inverted" mode where any voltage between the power rails
can be applied to the output and currents into a very low impedance (operational amplifier summing
junction for example) can be obtained from the PREF and NREF ports. The sum of the currents is constant
and the proportion at PREF and NREF is controlled by the digital input number.
Applications include digital potentiometers, programmable voltage sources and a large variety of other
circuits that can be found in many industry references.
SCD5930 Rev A
ABSOLUTE MAXIMUM RATINGS
Parameter
Case Operating Temperature Range
Storage Temperature Range
Junction Temperature
Lead Temperature (soldering, 10 seconds)
Thermal Resistance, Junction to Case,jc
Supply Voltage
+V
CC
PREF relative to NREF
Digital Input Voltage
ESD Rating (MIL-STD-883, Method 3015, Class 2)
Power @25°C
Range
-55 to +125
-65 to +150
+150
300
7
+6.0
+6.0
V
CC
+0.4
GND -0.4
2,000 - 3,999
200
Units
°C
°C
°C
°C
°C/W
V
V
V
V
mW
NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress rating only;
functional operation beyond the “Operation Conditions” is not recommended and extended exposure beyond the “Operation Conditions” may affect
device reliability.
RECOMMENDED OPERATING CONDITIONS
Symbol
+V
CC
Power Supply Voltage
Parameter
Typical
3.3 to 5.0
Units
V
ELECTRICAL PERFORMANCE CHARACTERISTICS
(Tc = -55°C to +125°C, +Vcc = +5.0V -- Unless otherwise specified)
Parameter
Resolution
2/
Supply Current
Quiescent current
Relative Accuracy
Gain Error
Offset Error
Differential Nonlinearity
Output Settling Time
PREF Input Z
NREF Input Z
Input High Voltage
Input Low Voltage
Input High Leakage
3/
Input Low Leakage
3/
Symbol
N
I
CC
I
CCQ
R
A
A
E
O
FF2
DNL
T
D
Z
P
Z
R
V
IH
V
IL
I
IH
I
IL
Conditions
Min
Max
11
Units
Bits
mA
mA
% of
FSR
% of
FSR
% of
FSR
% of
FSR
us
k
k
V
V
nA
nA
Toggle inputs, V
CC
, GND
All inputs = V
CC
PREF = V
CC
, NREF = GND
PREF = V
CC
, NREF = GND
PREF = 4.9 V, NREF = 0.1 V
PREF = V
CC
, NREF = GND
All inputs = Gnd to V
CC
,
PREF = 4.9 V, NREF = 0.1 V,
Output = 1/2 LSB of Nominal
3
3
PREF = 4.9 V, NREF = 0.1 V
PREF = 4.9 V, NREF = 0.1 V
Input under test = GND
Input under test = V
CC
3.5
1
1
0.25
0.55
0.25
0.25
3
7
7
1.5
1
1
Note: 1/ Specification derated to reflect Total Dose exposure to 1 Mrad(Si) @ +25°C.
2/ Not Tested. Shall be guaranteed by design, characterization, or correlation to other test parameters.
3/ Not Tested.
SCD5930 Rev A 1/29/14
2
Aeroflex Plainview
Package
Pin #s
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Signal
PREF
NREF
GND
D10
D09
D08
D07
D06
D05
D04
D03
D02
D01
D00
VCC
AOUT
Definitions
Positive Analog Voltage Reference.
Negative Analog Voltage Reference
- Voltage Supply
Digital Bit 10 (MSB)
Digital Bit 09
Digital Bit 08
Digital Bit 07
Digital Bit 06
Digital Bit 05
Digital Bit 04
Digital Bit 03
Digital Bit 02
Digital Bit 01
Digital Bit 00 (LSB)
+ Voltage Supply
Analog Output
PINOUT DESCRIPTIONS
PREF
NREF
GND
(MSB)
D10
1
2
3
4
5
6
7
8
16
15
14
AOUT
VCC
D00
(LSB)
D01
D02
D03
D04
D05
D09
D08
D07
D06
5930
13
12
11
10
9
PACKAGE PINOUT
SCD5930 Rev A 1/29/14
3
Aeroflex Plainview
ORDERING INFORMATION
Model
RHD5930-7
RHD5930-S
RHD5930-201-1S
RHD5930-201-2S
RHD5930-901-1S
RHD5930-901-2S
DLA SMD #
-
-
5962-1120801KXC
5962-1120801KXA
5962H1120801KXC
5962H1120801KXA
DLA SMD and Radiation Certification Pending
Screening
Commercial Flow, +25°C testing only
Military Temperature, -55°C to +125°C
Screened in accordance with the individual Test Methods
of MIL-STD-883 for Space Applications
In accordance with DLA SMD
Package
16-pin
SOIC Package

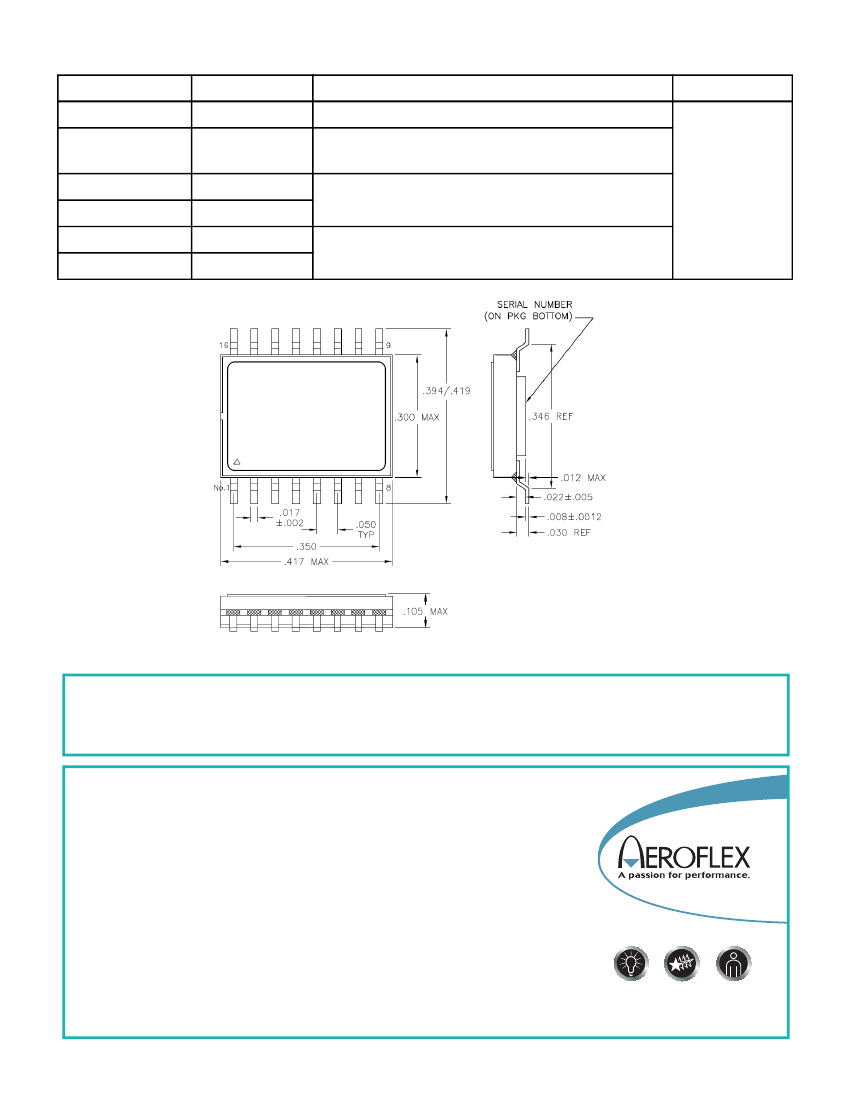

PACKAGE OUTLINE
EXPORT CONTROL:
This product is controlled for export under the International Traffic in
Arms Regulations (ITAR). A license from the U.S. Department of
State is required prior to the export of this product from the United
States.
EXPORT WARNING:
Aeroflex’s military and space products are controlled for export under
the International Traffic in Arms Regulations (ITAR) and may not be
sold or proposed or offered for sale to certain countries. (See ITAR
126.1 for complete information.)
PLAINVIEW, NEW YORK
Toll Free: 800-THE-1553
Fax: 516-694-6715
SE AND MID-ATLANTIC
Tel: 321-951-4164
Fax: 321-951-4254
INTERNATIONAL
Tel: 805-778-9229
Fax: 805-778-1980
WEST COAST
Tel: 949-362-2260
Fax: 949-362-2266
NORTHEAST
Tel: 603-888-3975
Fax: 603-888-4585
CENTRAL
Tel: 719-594-8017
Fax: 719-594-8468
www.aeroflex.com
info-ams@aeroflex.com
Aeroflex Microelectronic Solutions reserves the right to
change at any time without notice the specifications, design,
function, or form of its products described herein. All
parameters must be validated for each customer's application
by engineering. No liability is assumed as a result of use of
this product. No patent licenses are implied.
SCD5930 Rev A
1/29/14
