8052-3501 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8052-3501

Preview

8052-3501: DescriptionD Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8052-3501 Overview

D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle

8052-3501 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.602 inch
body length	3.272 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	CENTRONIC
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8052
Plug contact pitch	0.085 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	50

Preview

Download Datasheet

View All

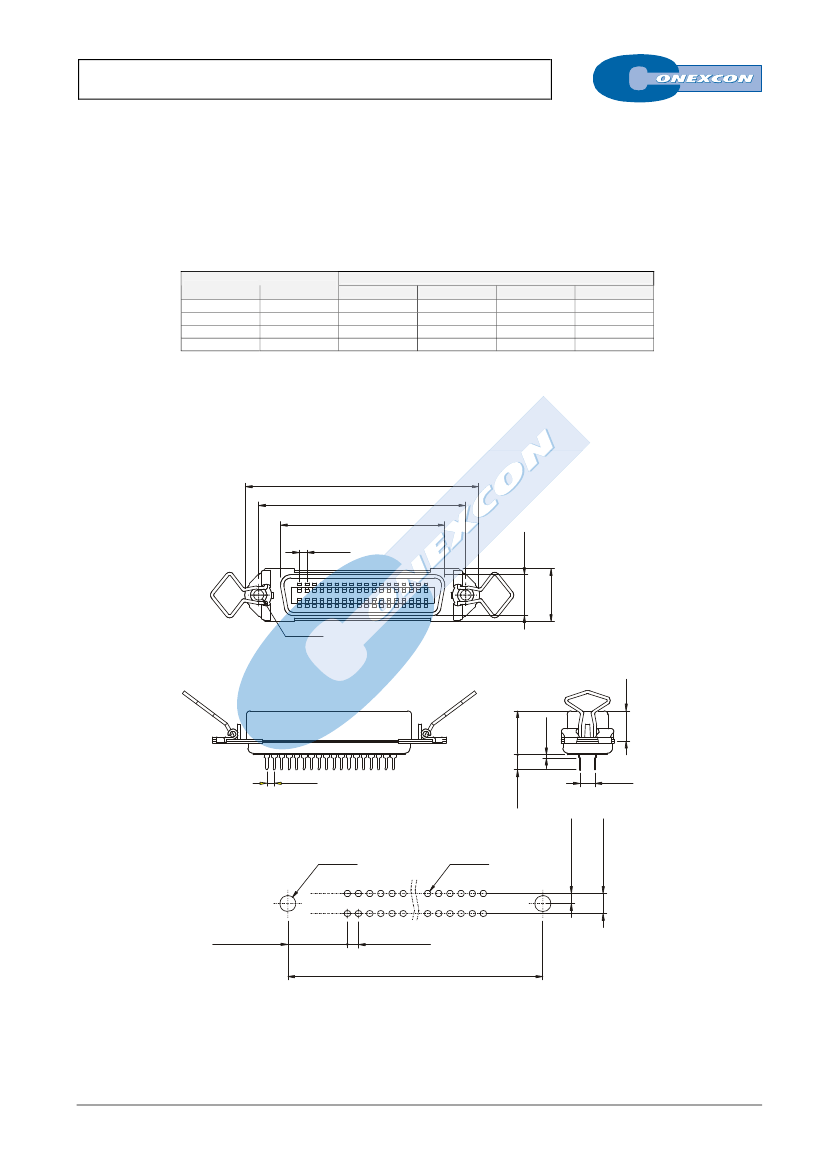

STRAIGHT DIP SOLDER RECEPTACLE

8052 SERIES.

For PCB Solder. Centronic Connector

Features





Shell: Steel, tin plated as standard

Different plating options are available.

For other options consult the Sales Office

Ordering and Dimensional Information



Available in 14, 24, 36 and 50 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Phosphor bronze

Dimensional Information

Circuit Size

14

24

36

50

Part Number

8052 –

T141

8052 –

T241

8052 –

T361

8052 –

T501

Dimensions

A

35.99 (1.417)

46.79 (1.842)

59.74 (2.352)

74.85 (2.947)

B

44.10 (1.736)

54.90 (2.161)

67.80 (2.669)

83.10 (3.272)

C

25.20 (0.992)

35.90 (1.413)

48.70 (1.917)

64.10 (2.524)

D

-

T = Contact Plating



T =

3.

Gold flash over 50µ” nickel.

T =

4.

10µ” gold over 50µ” nickel



T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

B

A

C

2.160

.085

18

1

11.90

.469

19

36

3.0

.118

15.3

.602

12.8

.504

1.20

.047

4.40

.173

2.160

TYP.

.085

4.29

.169

2.15±0.05

.085±.002

ø3.050

.120

ø1.200

.047

11.50±0.05

.453±.002

2.16±0.05

.085±.002

A±0.1

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

4.29±0.05

.169±.002

8.50

.335

K-XX

8052-3501 Related Products

	8052-3501	8052-3141	8052-3361
Description	D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 14 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 36 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle
Maker	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
body width	0.602 inch	0.602 inch	0.602 inch
body length	3.272 inch	1.736 inch	2.669 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	CENTRONIC	CENTRONIC	CENTRONIC
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	8052	8052	8052
Plug contact pitch	0.085 inch	0.085 inch	0.085 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
PCB row number	2	2	2
Number of rows loaded	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.2926 mm	4.2926 mm	4.2926 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL
Terminal length	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.159 mm	2.159 mm	2.159 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	50	14	36
