8407-16-04-1

Description
Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
CategoryThe connector    The connector
File Size78KB，1 Pages
ManufacturerConexcon Group
Environmental Compliance
Download Datasheet Parametric Compare View All

8407-16-04-1 Overview

Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

8407-16-04-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerConexcon Group
Reach Compliance Codeunknow
ECCN codeEAR99
body width0.2 inch
subject depth0.165 inch
body length0.216 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Durability500 Cycles
maximum insertion force1.946 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number8407
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts4
Evacuation force-minimum value.3058 N

Preview

Download Datasheet

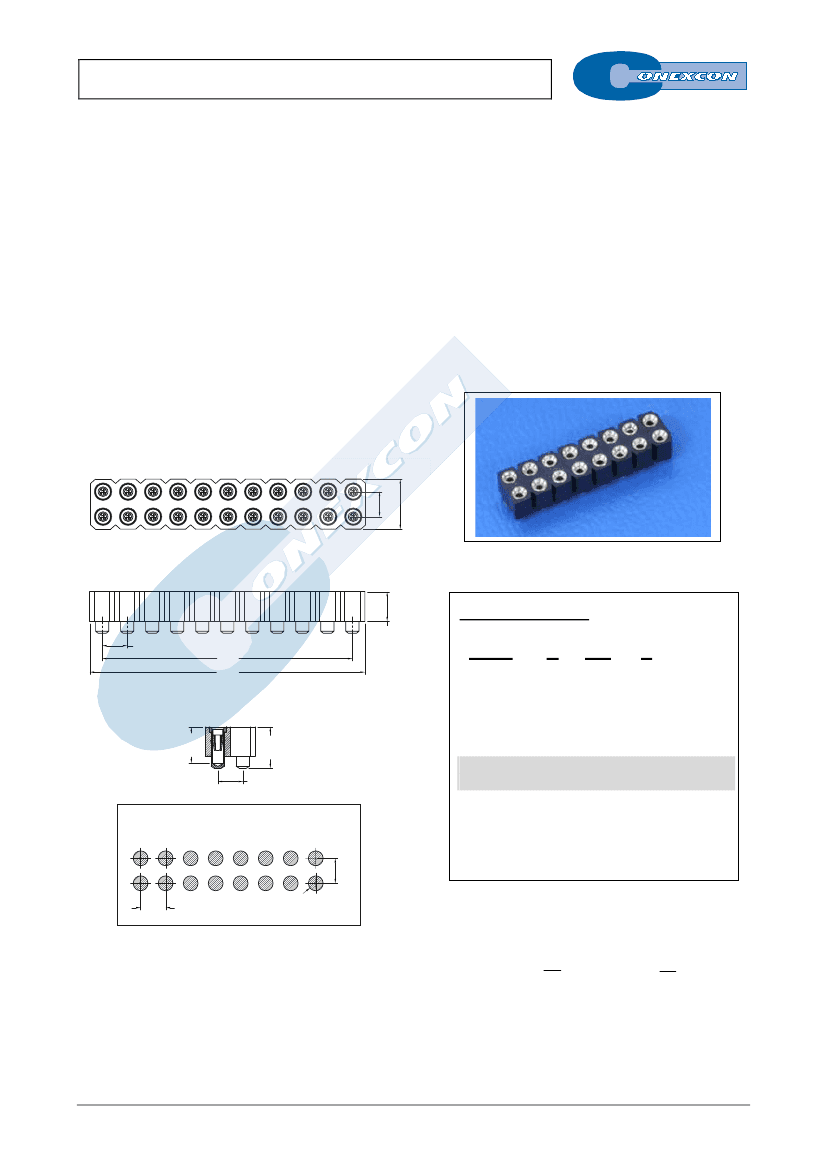

DUAL ROW VERTICAL SMT SOCKET
8407 SERIES.
General Features
2.54 x 2.54 mm. (0.100 x 0.100”) pitch. Machined contact.
Electrical Features
Available in 4 through 80 circuits
Mates with pin headers 2.54 mm. pitch 8413, 8395,
8399 and 8397 series
Accept round pin 0.40 mm to 0.56 mm
Low profile: 4.20 mm.
With different plating and dimensions options
Materials
Voltage rating: < 250V
Current rating: < 3A
Contact resistance: < 10 mΩ
Dielectric withstanding Voltage: 1000 V AC/minute
Insulation resistance: >1000 MΩ
Mechanical Features
Insulator: PPS black + 30% GF UL 94 V-0
Contact: Clip (4 fingers): Beryllium copper
Sleeve: Brass
Operating temperature. -40ºC to +105ºC
RoHS compliant
Insertion force per pin: < 0.20 Kgf (round pin 0.43 mm)
Withdrawal force per pin: > 0.03 Kgf (round pin 0.43 mm)
Durability: 500 Cycles
Dimension Information
2.54±0.15
2
4
1
3
5.08±0.15
Ordering Information:
2.54±0.10
A
B
3.00±0.15
8407 -
1
T-
2
XX-
3
1
1. Connector Series
3.70
4.20
2. (T) Contact Plating
T =
13.
Selec. gold flash over 30-50µ" Ni overall
2.54±0.10
Recommended Finish
RECOMMENDED HOLE PATTERN
(Tolerance ±0.05)
T =
15.
15µ" selec. gold over 30-50µ" Ni overall
T =
16.
30µ" selec. gold over 30-50µ" Ni overall
3. (XX) Number of circuits
2.54
Available in 4 through 80 circuits
2.54
0
.5
ø1
DIMENSIONS:
XX
A
=
2.54
2
−
1
XX
= Number of circuits
B
=
2.54
XX
+
0.40
2
A-XX
FULL LINE CATALOGUE

8407-16-04-1 Related Products

8407-16-04-1 8407-15-28-1 8407-13-78-1 8407-16-56-1
Description Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator Board Connector, 28 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator Board Connector, 78 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator Board Connector, 56 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
Is it Rohs certified? conform to conform to conform to conform to
Maker Conexcon Group Conexcon Group Conexcon Group Conexcon Group
Reach Compliance Code unknow unknown unknown unknow
body width 0.2 inch 0.2 inch 0.2 inch 0.2 inch
subject depth 0.165 inch 0.165 inch 0.165 inch 0.165 inch
body length 0.216 inch 1.416 inch 3.916 inch 2.816 inch
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI AU ON NI AU ON NI
Contact point gender FEMALE FEMALE FEMALE FEMALE
Contact material BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 10 mΩ 10 mΩ 10 mΩ 10 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
Dielectric withstand voltage 1000VAC V 1000VAC V 1000VAC V 1000VAC V
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles
maximum insertion force 1.946 N 1.946 N 1.946 N 1.946 N
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color BLACK BLACK BLACK BLACK
insulator material GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number 8407 8407 8407 8407
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Installation option 1 LOCKING LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE
PCB row number 2 2 2 2
Number of rows loaded 2 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Plating thickness 30u inch 15u inch FLASH inch 30u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A 3 A 3 A 3 A
Guideline UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 4 28 78 56
Evacuation force-minimum value .3058 N .3058 N .3058 N .3058 N
