255XBXP33-110/125VDC datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> 255XBXP33-110/125VDC

255XBXP33-110/125VDC: DescriptionPower/Signal Relay, DPDT, Latched, 0.014A (Coil), 125VDC (Coil), 1800mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount; CategoryMechanical and electronic products relay; File Size141KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

255XBXP33-110/125VDC Overview

Power/Signal Relay, DPDT, Latched, 0.014A (Coil), 125VDC (Coil), 1800mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount

255XBXP33-110/125VDC Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RELAY FUNCTIONS 3PDT AND 4PST ALSO AVAILABLE
Maximum coil current (DC)	0.014 A
Coil operating voltage (DC)	100 V
Coil power	1800 mW
Coil release voltage (DC)	12.5 V
Coil resistance	8928.6 Ω
Maximum coil voltage (DC)	125 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	10A@120VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	255
Installation features	SOCKET MOUNT
operating hours	25 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Relay action	LATCHED
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	20 ms
surface mount	NO
Termination type	SNAP-ON

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

Item # 255XBXP33-110/125VDC, 255 Series - Industrial Latching Relays

255 Series - Industrial Latching Relays

The 255 Series is a two coil latching version of the general purpose type 219 relay. When the operate coil is momentarily energized, contacts transfer and remain so

even after coil power is removed. The second coil when momentarly energized, provides electrical reset of the contacts. All contacts operate from a common armature

to prevent contatct overlapping. Coils are rated for continous duty. Both coils can be energized at the same time with no damage. The operate coil is dominant.

For Additional Configuration please contact the manufacturer.

SPECIFICATIONS

CONTACTS

COIL

TIMING

DIELECTRIC STRENGTH

TEMPERATURE

LIFE

EXPECTANCY

MISCELLANEOUS

SPECIFICATIONS

Series

255

Contact Arrangement

XBX (DPDT) - (2 form C)

Standard Features

Polycarbonate cover

Coil Voltage

110/125 VDC

CONTACTS

Contact Configuration

Up to 3PDT or 4PST

Contact Material

Silver Alloy Gold Diffused

Contact Rating

10 A

Contact Rating 120 / 240VAC Resistive

10/5 A

Contact Rating 28VDC Resistive

28 A

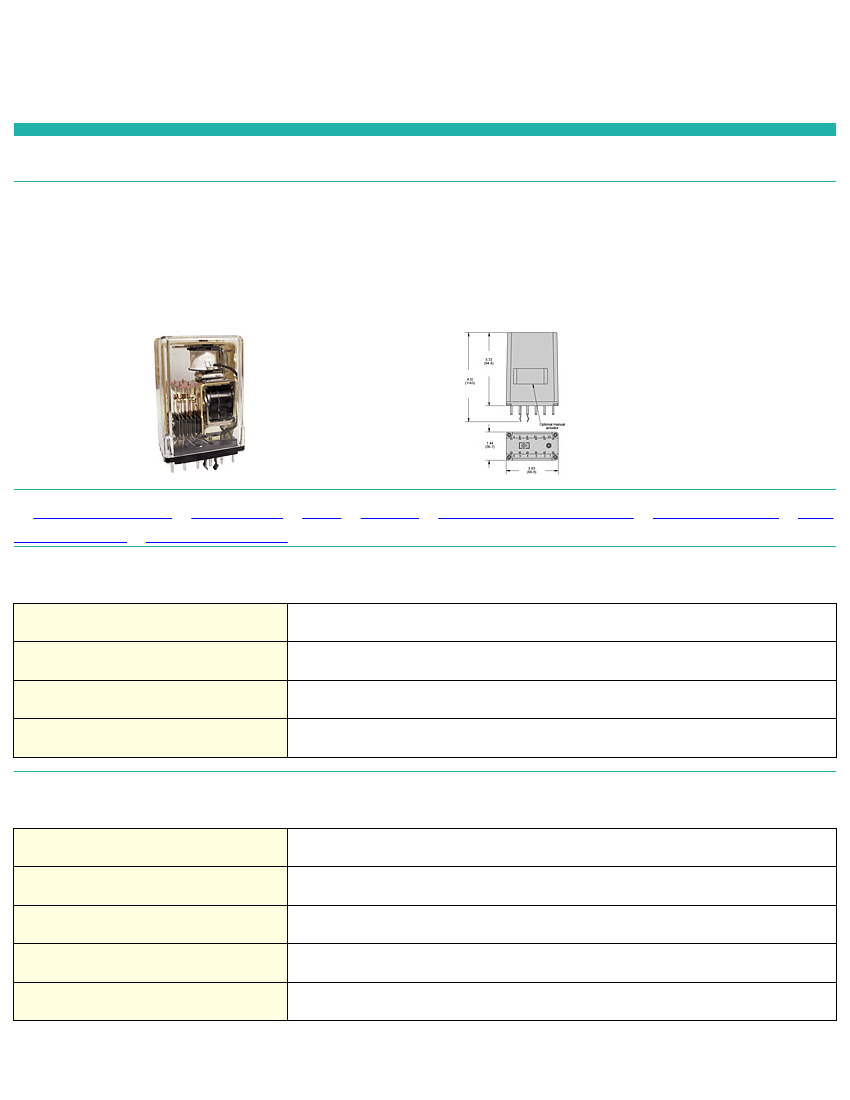

1/12/2012 | Page 1 of 3
