CRG1210-U-7R5JT datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CRG1210-U-7R5JT

CRG1210-U-7R5JT: DescriptionFixed Resistor, 0.33W, 7.5ohm, 200V, 5% +/-Tol, 500ppm/Cel, Surface Mount, 1210, CHIP; CategoryPassive components The resistor; File Size272KB，3 Pages; ManufacturerVENKEL LTD; Environmental Compliance

Download Datasheet Parametric Compare View All

CRG1210-U-7R5JT Overview

Fixed Resistor, 0.33W, 7.5ohm, 200V, 5% +/-Tol, 500ppm/Cel, Surface Mount, 1210, CHIP

CRG1210-U-7R5JT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	VENKEL LTD
package instruction	CHIP
Reach Compliance Code	compli
ECCN code	EAR99
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.33 W
Rated temperature	70 °C
resistance	7.5 Ω
Resistor type	FIXED RESISTOR
size code	1210
surface mount	YES
Temperature Coefficient	500 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	200 V

Preview

Download Datasheet

View All

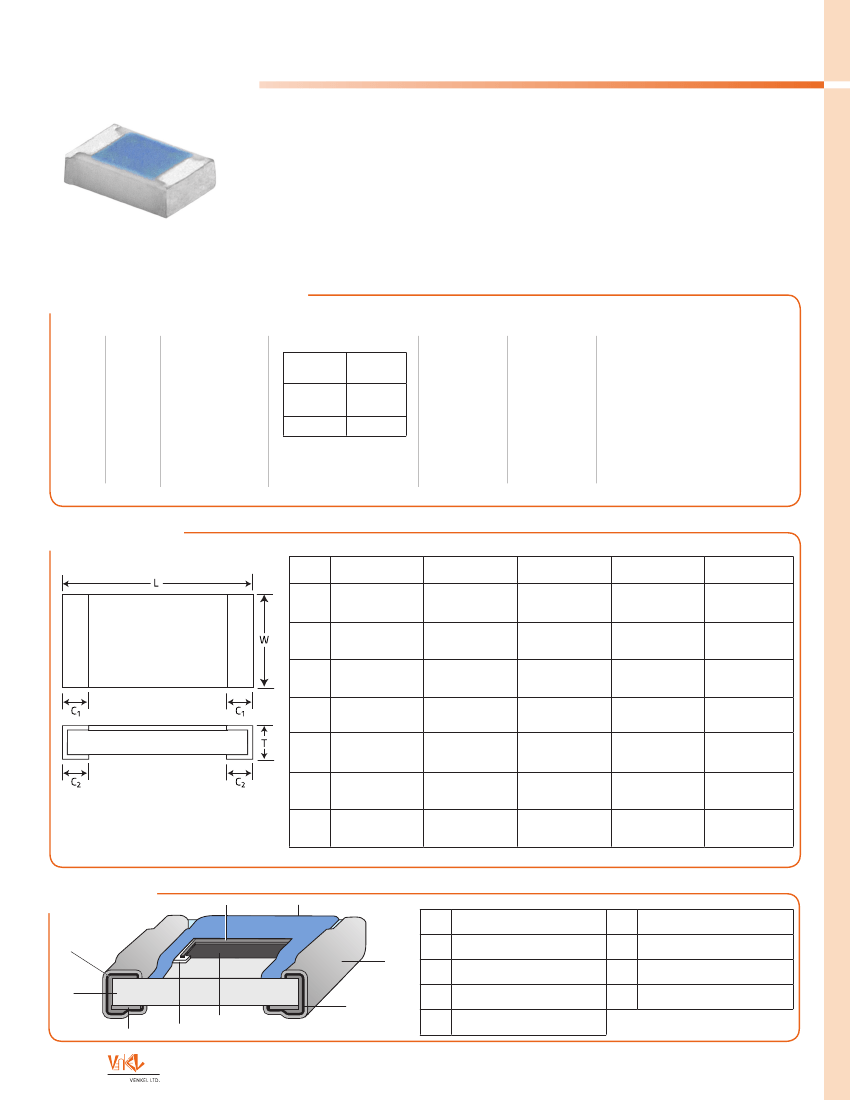

General Purpose RoHS 6/6 Green Resistors

(CRG Series)

Features:

•

RoHS 6/6 and Halogen Free

TCR as low as ±100ppm

Available Sizes 01005 to 1210

100% matte Tin over Nickel with wrap around termination for excellent solderability

Part Number Structure

CRG

Series

1206

Size

01005

0201

0402

0603

0805

1206

1210

- T

Power Rating

M =

W (0.03W)

N =

W (0.05W)

P =

W (0.063W)

Q =

W (0.10W)

R =

W (0.125W)

T =

W (0.25W)

U =

W (0.33W)

103

Resistance

3 DIGIT

(J TOL.)

4 DIGIT

(F TOL.)

Jumper

2R2=2.2Ω

103=10KΩ

10R2=10.2Ω

1002=10KΩ

3 zeros

Tolerance

F =

J =

No tolerance

specified for the

zero ohm

Leave blank for

zero ohm value

Packaging

T = Tape & Reel

Optional Reel

Identifier

Leave blank if

standard Reel

size.

Add "-13" if 13"

Reel is required

Example P/N:

CRG1206-T-103JT

Standard temination finish is 100% matte Tin (Sn) over Nickel.

Dimensions

Size

01005

Unit: inches (mm)

0.016 ± 0.0008

(0.40 ± 0.02)

0.023 ± 0.001

(0.60 ± 0.03)

0.039 ± 0.002

(1.00 ± 0.05)

0.062 ± 0.003

(1.60 ± 0.10)

0.078 ± 0.003

(2.00 ± 0.10)

0.122 ± 0.003

(3.10 ± 0.10)

0.122 ± 0.003

(3.10 ± 0.10)

0.008 ± 0.0008

(0.20 ± 0.02)

0.011 ± 0.001

(0.30 ± 0.03)

0.019 ± 0.002

(0.50 ± 0.05)

0.031 ± 0.003

(0.80 ± 0.10)

0.049 ± 0.003

(1.25 ± 0.10)

0.062 ± 0.003

(1.60 ± 0.10)

0.102 ± 0.003

(2.60 ± 0.10)

0.005 ± 0.0008

(0.13 ± 0.02)

0.009 ± 0.001

(0.23 ± 0.03)

0.013 ± 0.002

(0.35 ± 0.05)

0.017 ± 0.005

(0.45 ± 0.15)

0.019 ± 0.005

(0.50 ± 0.15)

0.023 ± 0.005

(0.60 ± 0.15)

0.021 ± 0.003

(0.55 ± 0.10)

0.003 ± 0.001

(0.08 ± 0.03)

0.003 ± 0.002

(0.08 ± 0.05)

0.007 ± 0.003

(0.20 ± 0.10)

0.011 ± 0.003

(0.30 ± 0.10)

0.015 ± 0.007

(0.40 ± 0.20)

0.019 ± 0.007

(0.50 ± 0.20)

0.019 ± 0.007

(0.50 ± 0.20)

0.003 ± 0.001

(0.10 ± 0.03)

0.005 ± 0.002

(0.15 ± 0.05)

0.010 ± 0.003

(0.25 ± 0.10)

0.011 ± 0.005

(0.30 ± 0.15)

0.015 ± 0.007

(0.40 ± 0.20)

0.017 ± 0.007

(0.45 ± 0.20)

0.019 ± 0.007

(0.50 ± 0.20)

0201

0402

0603

0805

1206

1210

Structure

Alumina Substrate

Backside Electrode

Topside Electrode

Edge Electrode

Resistive Layer

Primary Coating

Protective Coating

Barrier Layer (Ni)

Termination-100% matte Tin

Email:

sales@venkel.com

Phone:

512.794.0081

Toll Free:

800.950.8365

Web:

www.venkel.com

Rev.10/2016-A

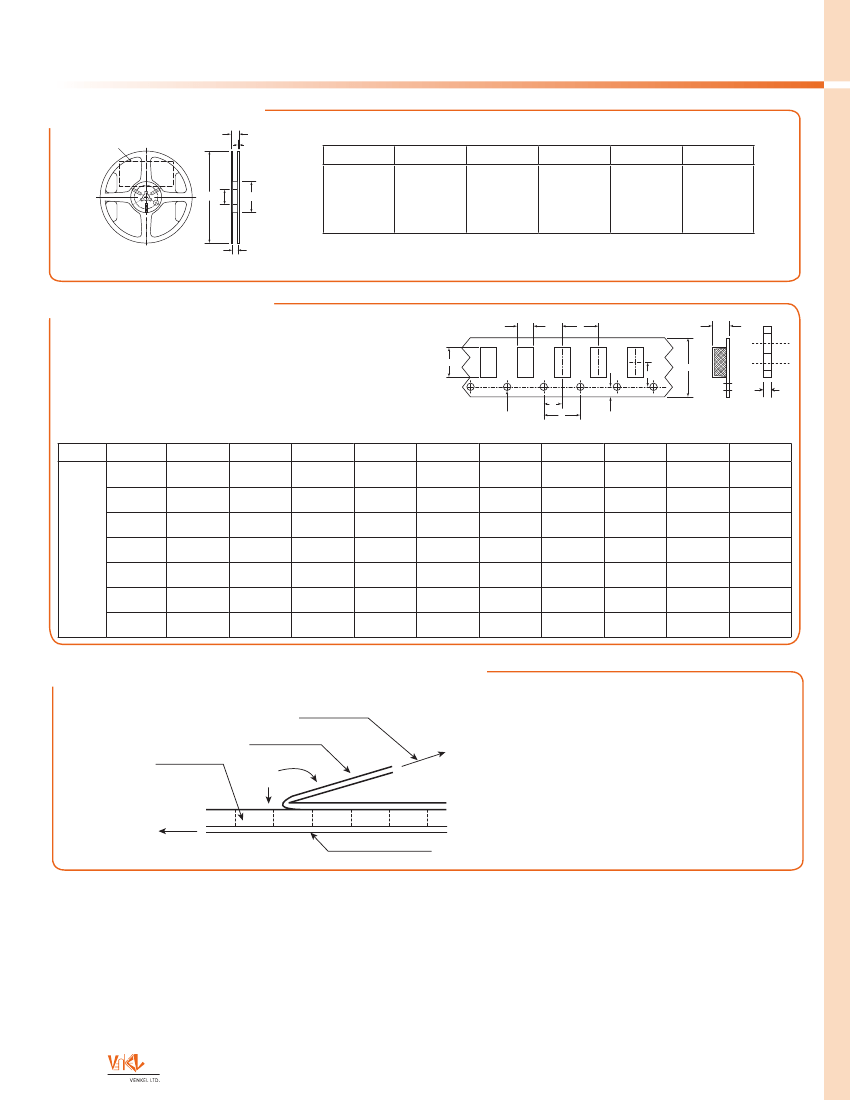

CRG1210-U-7R5JT Related Products

	CRG1210-U-7R5JT	CRG0402-P-2153FT	CRG0402-P-5R36FT	CRG0402-P-8450FT	CRG0603-Q-6R81FT	CRG0201-N-6043FT	CRG1210-U-2700FT	CRG0805-R-2703FT	CRG1206-T-2703FT
Description	Fixed Resistor, 0.33W, 7.5ohm, 200V, 5% +/-Tol, 500ppm/Cel, Surface Mount, 1210, CHIP	Fixed Resistor, 0.063W, 215000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP	Fixed Resistor, 0.063W, 5.36ohm, 50V, 1% +/-Tol, 500ppm/Cel, Surface Mount, 0402, CHIP	Fixed Resistor, 0.063W, 845ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP	Fixed Resistor, 0.1W, 6.81ohm, 50V, 1% +/-Tol, 500ppm/Cel, Surface Mount, 0603, CHIP	Fixed Resistor, 0.05W, 604000ohm, 25V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP	Fixed Resistor, 0.33W, 270ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1210, CHIP	Fixed Resistor, 0.125W, 270000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP	Fixed Resistor, 0.25W, 270000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	CHIP	CHIP	CHIP	CHIP	CHIP	CHIP	CHIP	CHIP	CHIP
Reach Compliance Code	compli	compli	compli	compli	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	155 °C	155 °C	155 °C	155 °C	155 °C	125 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.33 W	0.063 W	0.063 W	0.063 W	0.1 W	0.05 W	0.33 W	0.125 W	0.25 W
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
resistance	7.5 Ω	215000 Ω	5.36 Ω	845 Ω	6.81 Ω	604000 Ω	270 Ω	270000 Ω	270000 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	1210	0402	0402	0402	0603	0201	1210	0805	1206
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Temperature Coefficient	500 ppm/°C	100 ppm/°C	500 ppm/°C	100 ppm/°C	500 ppm/°C	200 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	5%	1%	1%	1%	1%	1%	1%	1%	1%
Operating Voltage	200 V	50 V	50 V	50 V	50 V	25 V	200 V	150 V	200 V
Maker	VENKEL LTD	VENKEL LTD	VENKEL LTD	VENKEL LTD	VENKEL LTD	-	-	-	-
