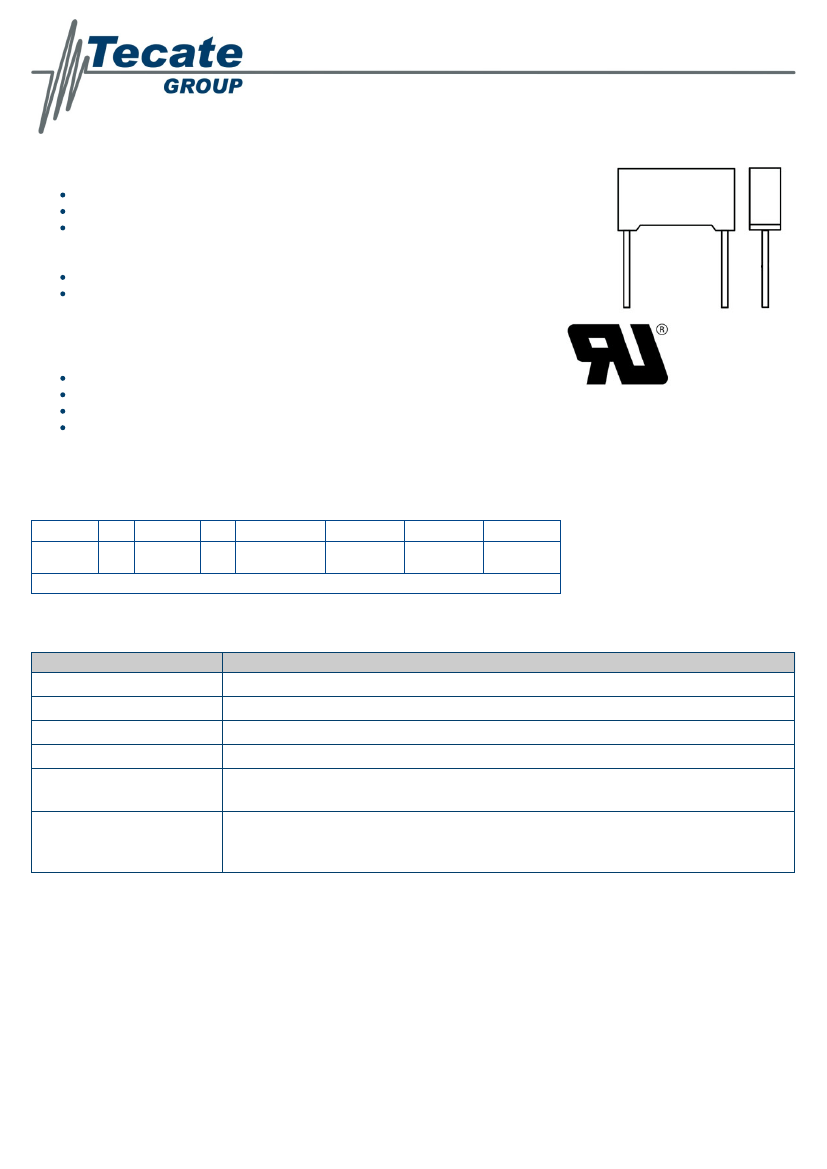

TYPE MPXM
METALLIZED POLYPROPYLENE RADIAL BOX, X2 TYPE,
REDUCED SIZE
FEATURES
Non-inductive construction.
Self-healing.
Flame-retardant plastic case and
epoxy resin
(compliance with UL 94V-0).
High moisture-resistance.
Good solderability
(plated with 100% Matte Sn).
APPLICATIONS
Line-by-pass.
Antenna coupling.
Across-the-line and spark killer circuits.
Also available for EMI filter and
switching power supply applications.
PART NUMBER EXAMPLE
MPXM
Type
-
275
Rated
voltage
/
334
Capacitance
code (pF)
K
Tolerance
code
B
Thickness
code
F
RoHS
compliant
Capacitance Code: First two digits represent significant figures, third digit represents multiplier (number of zeros).
GENERAL SPECIFICATIONS
Item
Operating temperature
Capacitance
Capacitance tolerance
Rated voltage (rms)
Withstanding voltage (between
leads)
2,000VDC for 1 second.
After 2 minutes (minimum) at 23°C:
Minimum insulation resistance
IR
≥
30000 Mohm measured @ 100 VDC ± 15 VDC (C-0.33µF).
IR
≥
10000 Mohm •
µF
measured @ 100 VDC ± 15 VDC (C > 0.33µF).
Performance
-40°C to +110°C
0.33µF
10%
275 VAC
7520 Mission Valley Road • San Diego, CA 92108-4400 USA • Tel: 619.398.9700 • Fax: 619.398.9777 • www.tecategroup.com
Tecate reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any
products. Tecate also reserves the right to change or update, without notice, any technical information contained in this bulletin.
Spec. Date: 2016-07-20 16:03:09
TYPE MPXM
METALLIZED POLYPROPYLENE RADIAL BOX, X2 TYPE,
REDUCED SIZE
SAFETY DETAIL SPECIFICATION
Country
UL (US & Canada)
Reference Standards File Number
UL 60384-14:2014
CSA-E60384-14:09
EN 60384-14:2013
E164458
Safety Logo
VDE (Germany)
40014111
ENEC (EU)
EN 60384-14:2013
40030152
CQC (China)
EN 60384-14:2013
10001048706

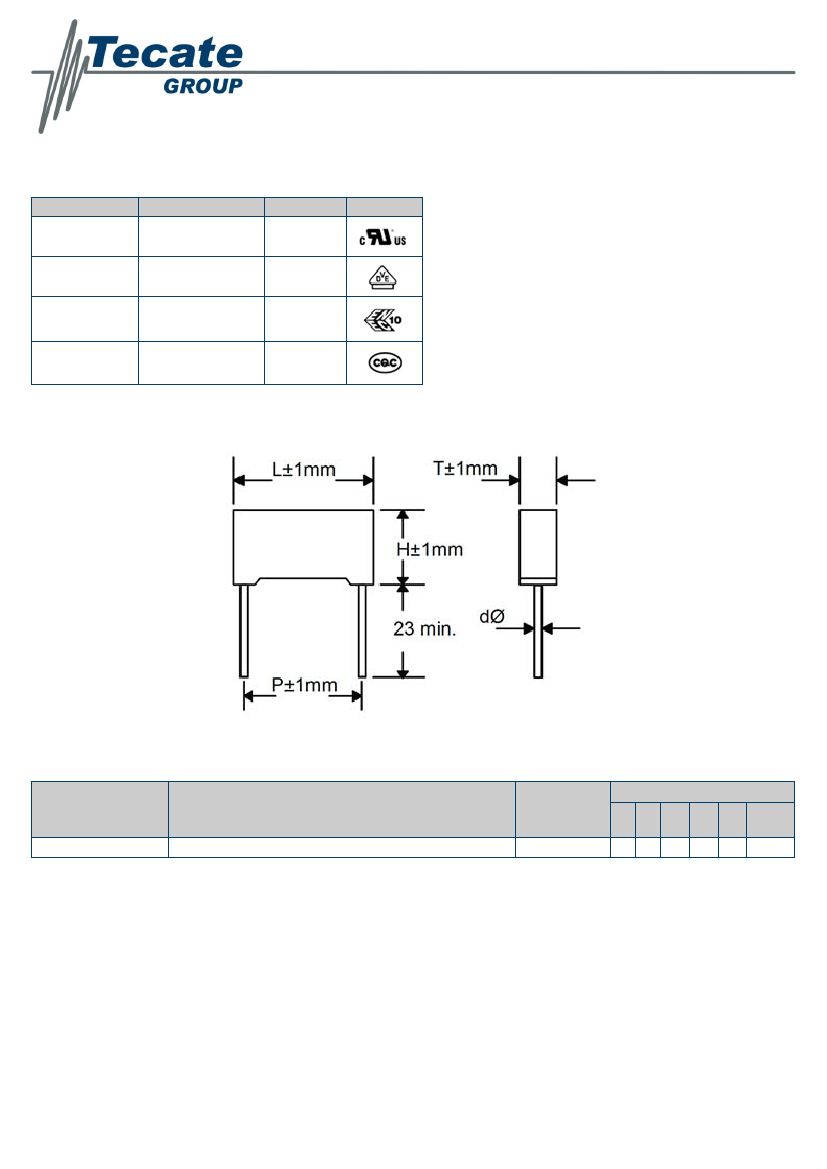

DIMENSIONS
STANDARD PRODUCTS
Dimensions (mm)
Part Number
MPXM-275/334K15BF
Nom. Cap. (µF)
0.33
Voltage (VAC)
275
L
H
T
d
LS
DV/DT
(V/µS)
300
18 15 8.5 0.8 15
7520 Mission Valley Road • San Diego, CA 92108-4400 USA • Tel: 619.398.9700 • Fax: 619.398.9777 • www.tecategroup.com
Tecate reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any
products. Tecate also reserves the right to change or update, without notice, any technical information contained in this bulletin.
Spec. Date: 2016-07-20 16:03:09
