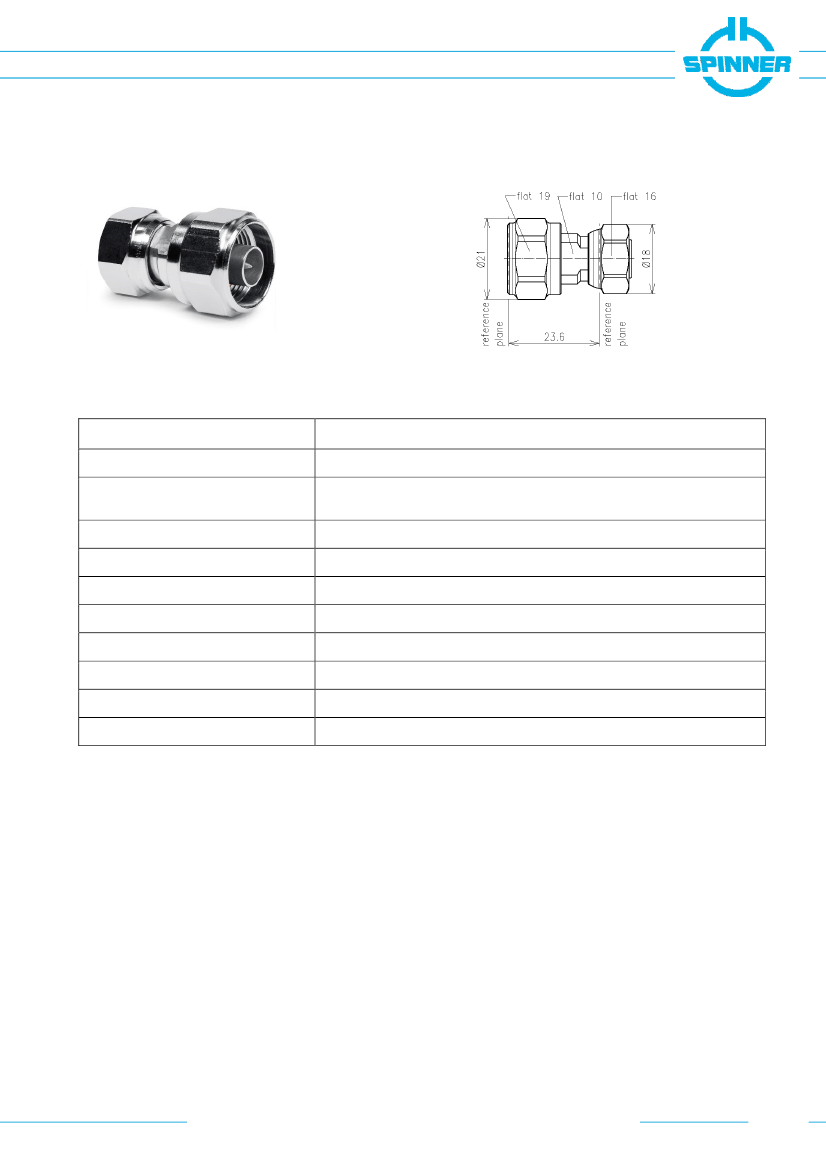

DATA SHEET
Inter-Series Adapter Type N Plug to 2.2-5 Plug || BN 225014
all dimensions in millimeter
SPINNER GmbH
This document is proprietary to us.
All rights reserved. Any use, transfer, or reproduction of this document
or the know-how contained therein requires our express consent.
Interface type
Frequency range
VSWR, max. / typ.
Intermodulation (IM3) @ 2x 20W, max.
Inner conductor material / surface finish
Outer conductor material / surface finish
Other metal parts / surface finish
Insulation
Sealing
IP protection level
Weight, approx.
N plug (50
Ω)
per IEC 61169-16
2.2-5 plug screw (50
Ω)
per IEC 61169-66
DC to 6 GHz
1.04 @ DC to 2 GHz
1.06 @ 2 to 4 GHz
1.10 @ 4 to 6 GHz
-165 dBc
copper alloy / silver plated
copper alloy / CuSnZn plated
copper alloy / nickel plated
PTFE
silicone rubber
IP68 per EN 60529 (barrier and mating face sealed)
30 g
