Part Number

Search

50215-01401-001

Description
Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle
CategoryThe connector    The connector

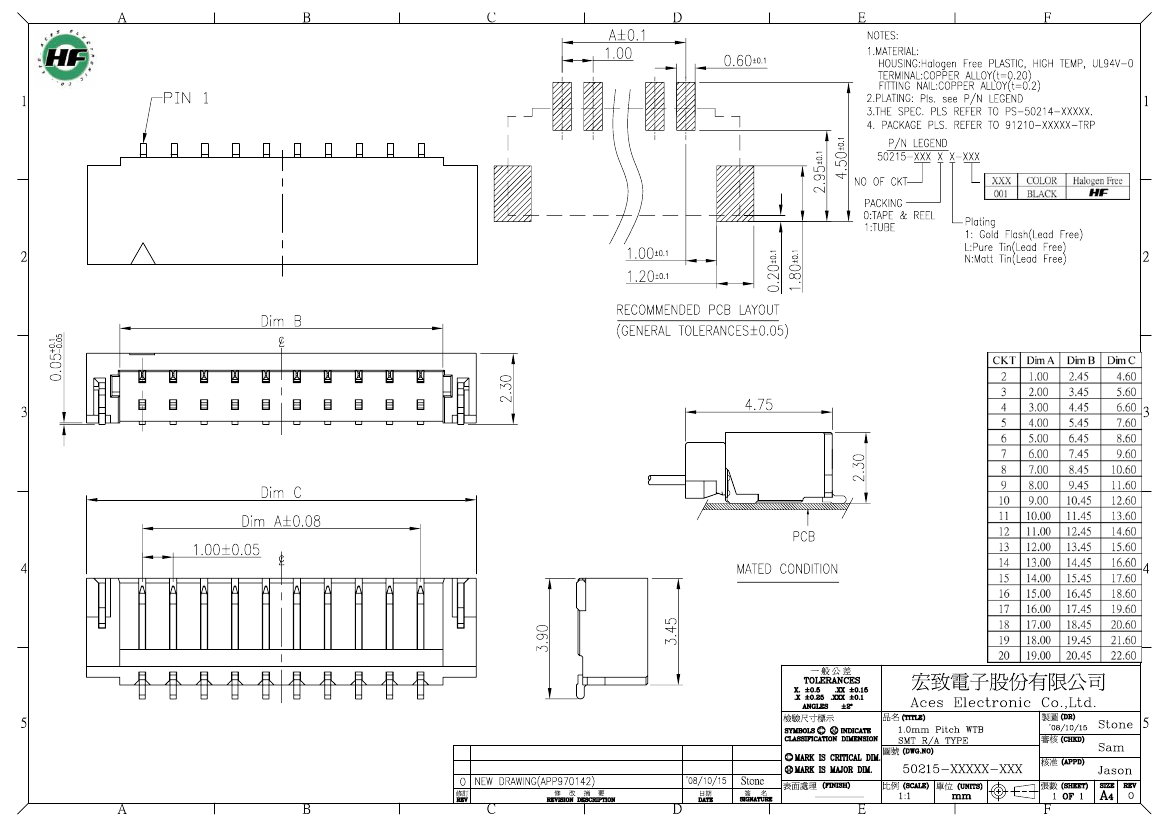

File Size152KB,1 Pages
ManufacturerAces Electronics Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

50215-01401-001 Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle

50215-01401-001 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAces Electronics Co., Ltd.
Reach Compliance Codeunknow
ECCN codeEAR99
body width0.091 inch
subject depth0.154 inch
body length0.654 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance40 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability30 Cycles
Insulation resistance1000000000 Ω
Insulator colorBLACK
JESD-609 codee4
Manufacturer's serial number50215
Plug contact pitch0.039 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Plating thicknessFLASH inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.9906 mm
Termination typeSURFACE MOUNT
Total number of contacts14
