413-1-026-1-NFX-XT0: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size306KB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

413-1-026-1-NFX-XT0 Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking

413-1-026-1-NFX-XT0 Parametric

Parameter Name	Attribute value
Maker	MPE-Garry GmbH
Reach Compliance Code	compli
ECCN code	EAR99
Board mount options	PEG
body width	0.193 inch
subject depth	0.327 inch
body length	1.053 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	413
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.8072 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	26

Preview

Download Datasheet

View All

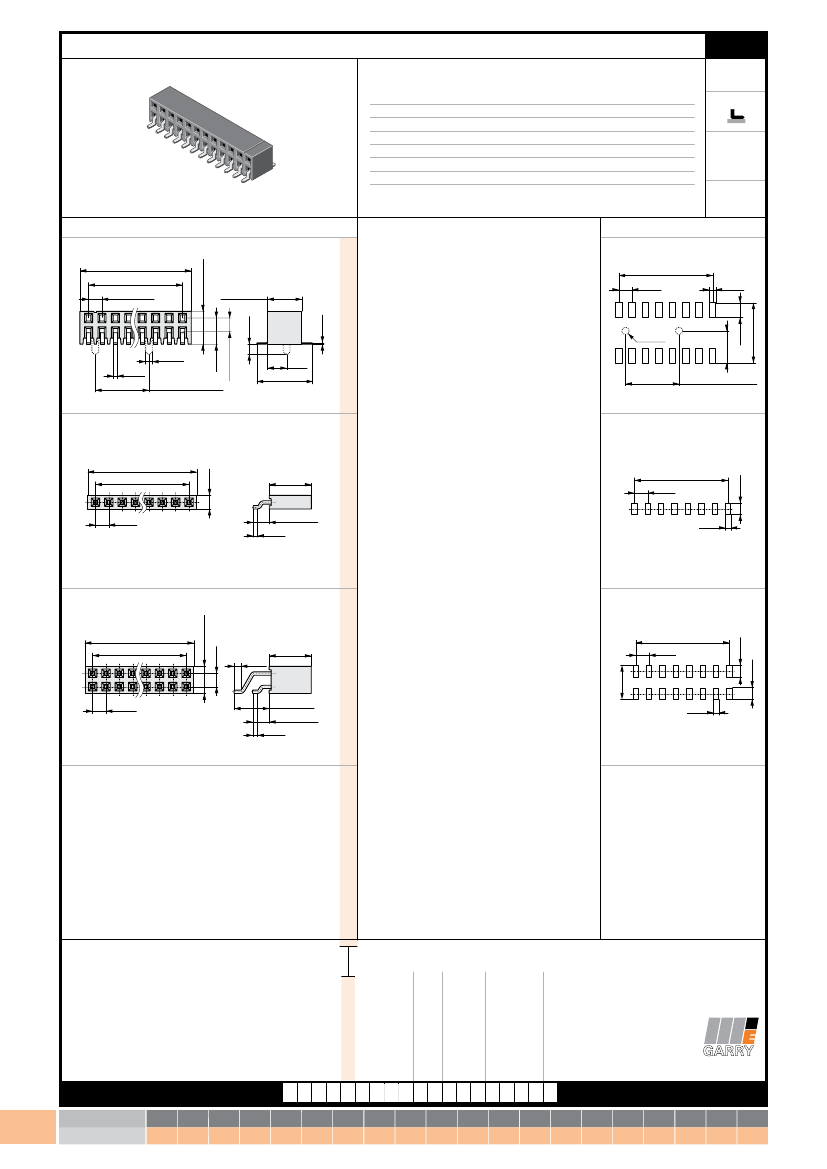

Female Header SMD Right Angled 2,00 mm

Rated current

1,5 A

Rated voltage

150 V

RMS

/ V

DC

Withstand voltage

500 V

RMS

for one minute

Material contact

Phosphor bronze

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

413

pitch

termination

mating pin

size

max.

pincount

2,00

☐

0,50

Variation

4,90±0,15

PCB Layout

(n/2-1)x2,00

050 / 080

4

(n/2)x2,00+0,75±0,25

(n/2-1)x2,00±0,20

2,00±0,10

5,15±0,15

1,15

0,25

2,00

1,00

0,60

ø1,00

3,90

2,00±0,10

ø1,10

(n/2-4)x2,00±0,25

2,87

8,30±0,25

(n/2-8)x2,00±0,25

2,00

2,60±0,25

0,71

2

0,86

4,00±0,15

2,00

(n/2)x2,00+0,30±0,25

(n/2-1)x2,00±0,20

2,00

6,25±0,25

2,60±0,25

0,71

5,16

3

0,86

Plating contact (T,F,S)

Positioning peg *(0,1)

No. of contacts **

(002,... - 060)

CS110913_V5

** No. of contacts:

Variation 1 = 010 - 050

Variation 2 = 002 - 030

Variation 3 = 004 - 060

Variation (1,2,3)

Packaging (R,T)

* Positioning peg: Plating:

0 = Without peg

T = Sn

1 = With peg

F = Au

(only for variation 1)

S = Sel. Au

Packaging:

R = Reel

T = Tube

www.mpe-connector.de

Order code:

413-1-???-?-N?X-X?0

3-25 3-26 3-27 3-28 3-29 3-30

4-18

Mating series

see page

150 152 151 337 332 333

1,51

0,91

6,35±0,15

(n/2-1)x2,00

2,00

1,71

1,51

nx2,00+0,30±0,25

(n-1)x2,00±0,20

6,35±0,15

(n-1)x2,00

2,00

4,80

2,20

9,00

1
