BL20-0588U

Description
Board Connector, 58 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size160KB,1 Pages
ManufacturerMPE-Garry GmbH
Environmental Compliance
Download Datasheet Parametric View All

BL20-0588U Overview

Board Connector, 58 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

BL20-0588U Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMPE-Garry GmbH
Reach Compliance Codecompli
ECCN codeEAR99
body width0.2 inch
subject depth0.276 inch
body length2.9 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
contact modeRECTANGULAR
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
insulator materialTHERMOPLASTIC
JESD-609 codee3
Manufacturer's serial number431
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.13 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts58
PRODUCT GROUP 7 -
MALE AND FEMALE HEADER 2,54/2,50/2,39 mm

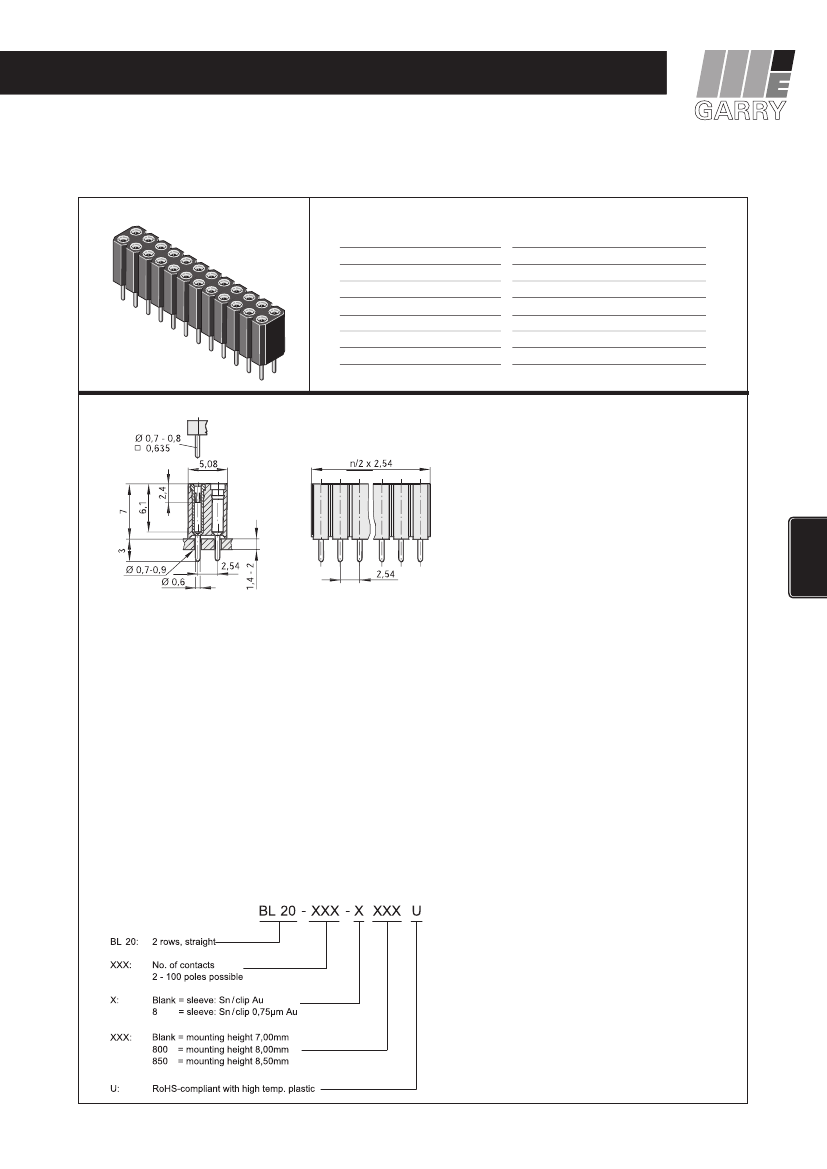

FEMALE HEADER „PRECISION“
ID: 116
BL 20-XXX
Series 431
TECHNICAL DATA
Pitch
Insulating Material
Contact Material
Rated Current
Rated Voltage
Withstanding Voltage
Operating Temperature
Maximum Soldering Temperature
2,54 mm
high temp. thermoplast UL94V-0
Brass/BeCu
3 Amp.
100 V
RMS
/150 V
DC
min. 1000 V
RMS
-55°C to +125°C
260°C for 10 seconds
All dimensions in mm.
Other dimensions upon request.
MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520
e-mail: vk@mpe-connector.de · www.mpe-connector.de
145
7
| 2,54 mm
