46JR02B-E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 46JR02B-E

46JR02B-E: DescriptionRotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.1A, 5VDC, Solder Terminal, Surface Mount-right Angle; CategoryMechanical and electronic products switch; File Size131KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric View All

46JR02B-E Overview

Rotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.1A, 5VDC, Solder Terminal, Surface Mount-right Angle

46JR02B-E Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
ECCN code	EAR99
body width	3.5 mm
body height	8.15 mm
Body length or diameter	7.5 mm
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@5VDC
Maximum contact voltage (DC)	5 V
JESD-609 code	e4
Manufacturer's serial number	46JR
Installation features	SURFACE MOUNT-RIGHT ANGLE
Number of positions	10
Number of switching segments	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
seal	HERMETICALLY SEALED
surface mount	NO
Switch action	LATCHED
switch function	BINARY CODED DECIMAL
Switch type	ROTARY CODED SWITCH
Terminal surface	GOLD
Termination type	SOLDER

Preview

Download Datasheet

View All

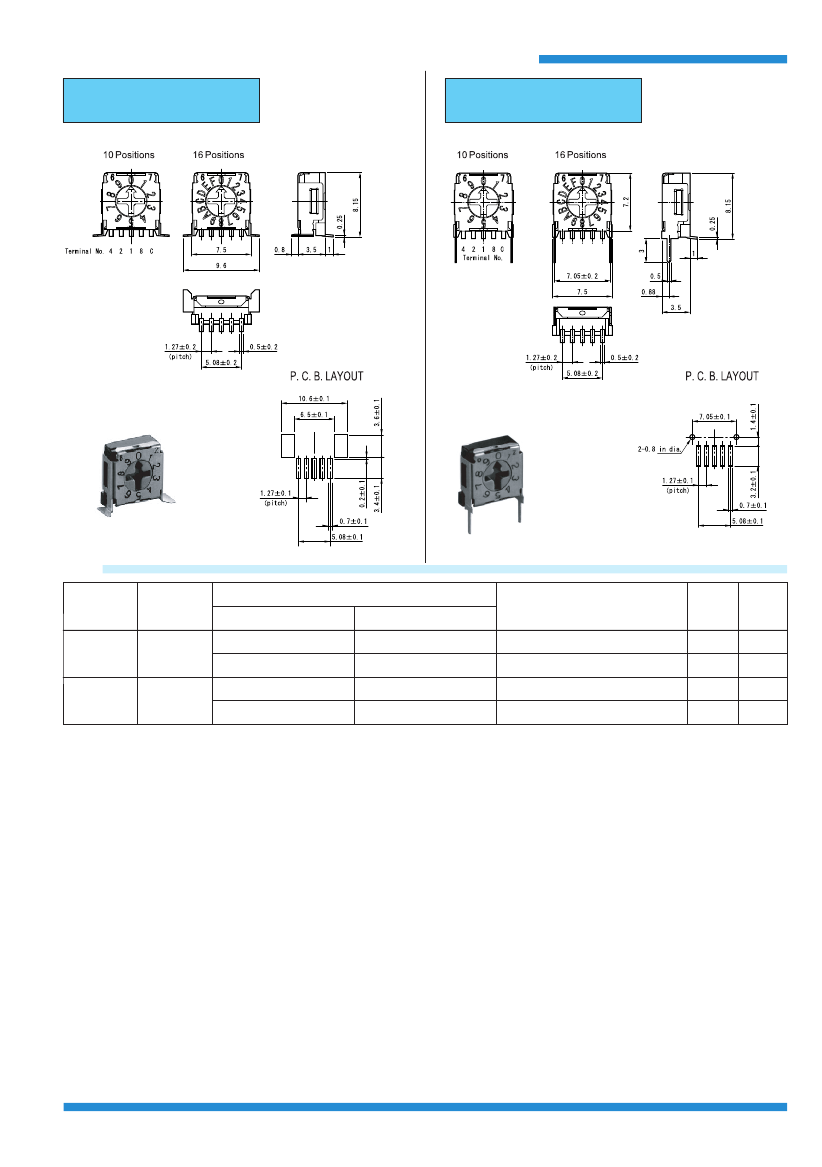

ROTARY DIP SWITCHES

46JR

series - Horizontal / SMT Type

WITH HOLD-DOWN TYPE

(For Fixing to the P. C. Board)

WITH POST TYPE

(For Fixing to the P. C. Board)

Dimensions are shown in millimeters.

TYPES

Part Number

No. of Positions

Dial

With Hold-down (Note 1)

46JR02-E

With Post (Note 2)

46JR02B-E

46JR12B-E

46JR34B-E

46JR41B-E

Code Truth Table

(See code truth tables)

Binary-Coded Decimal

Binary-Coded Decimal Complement

Binary-Coded Hexadecimal

Binary-Coded Hexadecimal Complement

Code No.

Rotor

Color

Orange

Yellowish green

Red

White

0-9

46JR12-E

46JR34-E

46JR41-E

0-9

A-F

(Note 1) Delivery with the embossed-tape reel is available for the With Hold-down Type.

(Note 2) Delivery with the tray is available for the With Post Type.

200 pcs/tray

For ordering, please attach "-TR200" to the part number above.

i.e. 46JR02B-E-TR200
