2P
Ark•Gard
®
ENR Series
Premier and Value Series
Ark•Gard
®
Premier Series:
• The premier line of ENR Receptacles (M4) come equipped with exclusive features that increase the life of the product, reduce maintenance
costs, and eliminate the need to purchase costly replacement parts. There is no other product offering on the market today that comes
equipped with time-saving saddle clamp terminals or the added safety of a lockout/tagout hole. The premier ENR Receptacle Series is the
ideal solution for applications where increased safety and reliability are critical.
Ark•Gard
®
Value Series:
• The value line of ENR Receptacles is the ideal solution for rugged and industrial NEMA configured applications up to 20 amperes. Like the
premier line, this product comes equipped with built-in safety features that reject standard NEMA configuration plugs that could cause an
arc in hazardous areas.

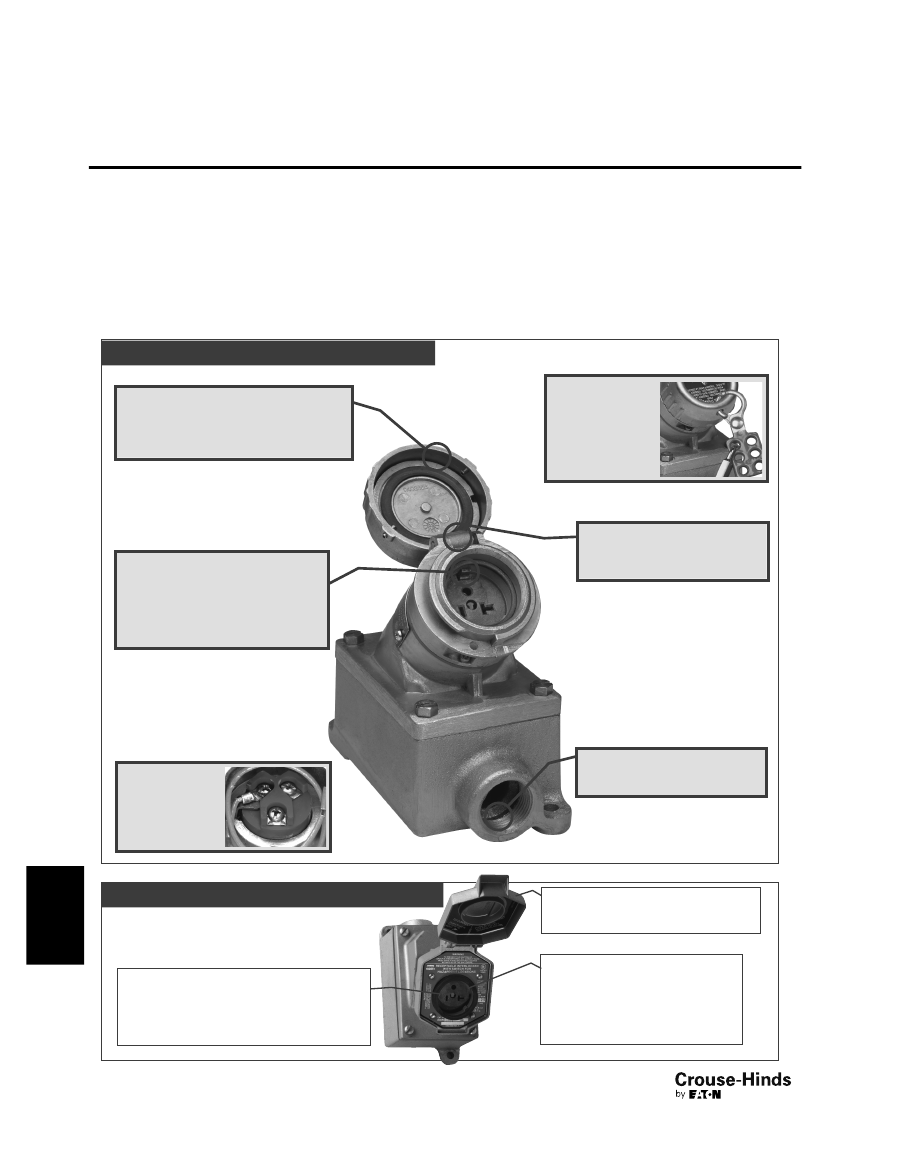

FEATURES AND BENEFITS - Premier Solution (M4)
Gasketed Screw Cap Cover Design:
• Offers superior protection from harsh environments for
increased product life
• Eliminates the need to purchase a separate
environmental cover for added protection
Complies with OSHA
lockout/tagout
requirements:
• Lockout tagout hole in
cover gives users the
ability to lock the cover
closed while not-in-use
Protected Hinge:
Spring-Loaded Sliding Key Offers Increased
Safety:
• Rejects standard NEMA/EEMAC configuration plugs
that could cause an arc in a hazardous area.
• Also prevents the receptacle faceplate from being
rotated until the ENP plug is fully inserted.
• Cap design provides 360° of protection
around cover hinge to reduce damage from
dirt and corrosion
Integral Bushings:
Saddle Clamp
Terminals:
• Reduce installation
and maintenance
costs – easy to wire,
time-saving terminals
• Taper tapped hubs protect wire installation
during wire-pulling
FEATURES AND BENEFITS - Traditional Value Solution
2P
• Top hinged cover design with 45° downward
angle provides protection in damp, wet and
dirty locations
• To make connection, simply insert the ENP plug
and rotate to close the circuit
• Built-in features cause the ENP plug to become
locked in the receptacle and cannot be accidentally
disengaged while in use
• Molded-in contact design provides for
superior interior contact reliability
• Incorporates three spring-loaded slide
keys that prevent the receptacle face
plate from being rotated until the ENP
plug us fully inserted into the receptacle.
1350
www.crouse-hinds.com
US: 1-866-764-5454
CAN: 1-800-265-0502
Copyright
©
2013 Eaton’s Crouse-Hinds Business
ENR Value Series Dead Front
Interlocked Circuit Breaking
Receptacles
ENP Plugs
Applications:
ENR receptacles and ENP plugs are used:
• With portable electrical equipment such
as compressors, tools, lighting systems,
and similar devices
• In areas made hazardous by the
presence of flammable vapors and
gases or combustible dusts
• Wherever portable electrical equipment
is likely to be transferred from hazardous
to non-hazardous areas
• In damp and corrosive areas
• When power requirements do not
exceed 20 amperes
• Where general purpose application is
required
Cl. I, Div. 1 & 2, Groups B†, C, D
Cl. II, Div. 1 & 2, Groups F, G
Cl. III
NEMA 3, 7BCD, 9FG, 12
Explosionproof
Dust-Ignitionproof
Raintight
Wet Locations
2P
Certifications and
Compliances:
• NEC:
Class I, Division 1 and 2, Groups B†, C, D
Class II, Division 1 and 2, Groups F, G
Class III
• ANSI/UL Standard 1010
• NEMA/EEMAC 3, 7BCD, 9FG
• CEC:
Class I, Division 1 and 2, Groups B, C, D
Class II, Division 1 and 2, Group G
Class III
Standard Finishes:
• Copper-free aluminum – aluminum
acrylic paint
• Brass – natural
Electrical Rating Ranges:
• Receptacles:
15 amperes; 125 VAC and 250 VAC,
50–400 hertz
20 amperes; 125 VAC and 250 VAC,
50-400 hertz
Grounding:
Standard Materials:
• Receptacle housing and spring door –
die cast copper-free aluminum
• Interior –
Krydon
®
fiberglass-reinforced
polyester material
• Contacts: receptacle blade – brass;
receptacle switch – silver
• Receptacle cover hinge pin and spring –
stainless steel
• Receptacle gasket – neoprene
• NEC Article 501 and CEC Section 18
requires that metal frames or exposed
non-current-carrying metal parts of
portable devices used in hazardous
locations be grounded through an extra
conductor in the portable cord. ENR
Receptacles and ENP Plugs are
provided with an extra grounding pole.
CAUTION:
To reduce the risk of ignition of
hazardous atmospheres, do not use plugs
or receptacles in Class II, Group F
locations that contain electrically
conductive dusts.
Features:
•
Ark•Gard 2
receptacle incorporates
three spring-loaded slide keys that
prevent the receptacle face plate from
being rotated until the ENP plug is fully
inserted into the receptacle. To make
the connection, the ENP plug is fully
inserted, and the receptacle face moved
inward by pushing the plug forward. The
plug is then rotated, closing the circuit.
As rotation begins, the plug becomes
locked in the receptacle and cannot be
accidentally disengaged. In making or
breaking the circuit, any resulting
electrical arc is confined in the factory-
sealed chamber.
• Factory-sealed chamber encloses the
potential arcing components between
two explosionproof threaded joints.
These threads are specially coated to
guarantee freedom of movement, which
ensures on-off action. No additional
seals are required.
• One piece molded gasket seals cover
plate and ENP plug when plug is
inserted, providing full environmental
protection at the receptacle face.
• Top-hinged cover design with 45°
downward angle provides superior
protection in damp, wet, and dirty
locations.
• Field assembly is accomplished with
standard tools.
• Use standard EDS back boxes.

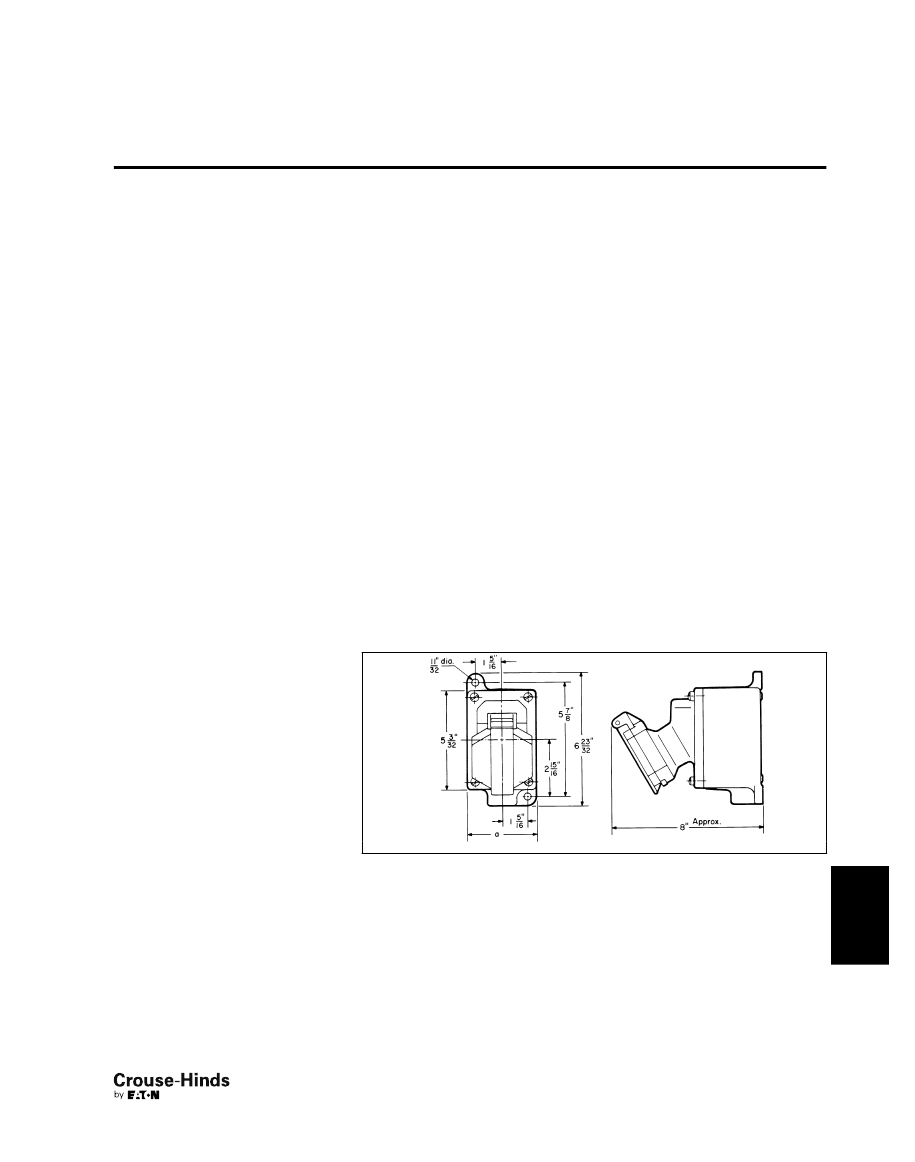

Dimensions
In Inches:
a = 3
1
/
2
for single gang; 7
9
/
16
for two gang.
†Receptacle units alone (i.e. ENR5201) are not suitable for Class I, Group B.
2P
1353
www.crouse-hinds.com
US: 1-866-764-5454
CAN: 1-800-265-0502
Copyright
©
2013 Eaton’s Crouse-Hinds Business
2P
ENR Value Series Dead Front
Interlocked Circuit Breaking
Receptacles
ENP Plugs
Cl. I, Div. 1 & 2, Groups B†, C, D
Cl. II, Div. 1 & 2, Groups F, G
Cl. III
NEMA 3, 7BCD, 9FG, 12
Explosionproof
Dust-Ignitionproof
Raintight
Wet Locations

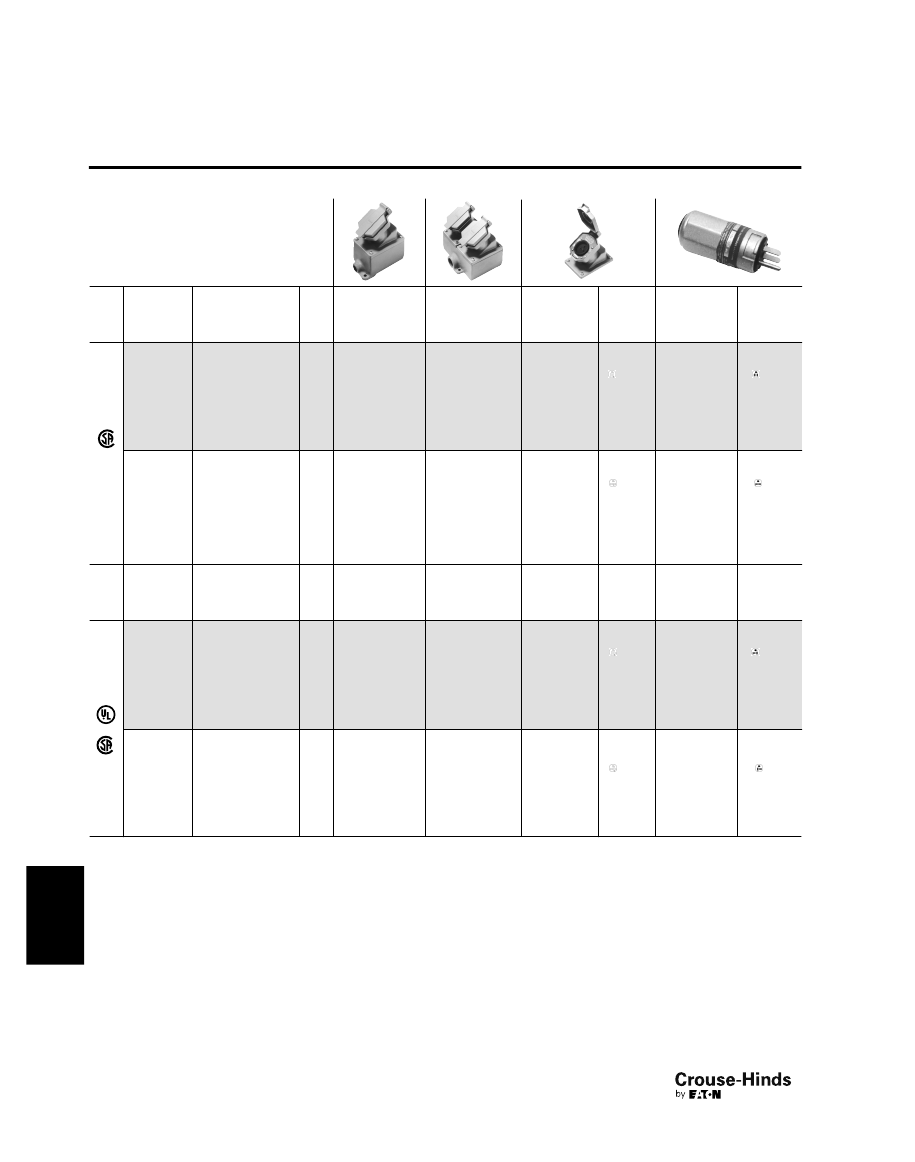

Ordering Information:
15 A
Receptacle
15 A Rating
Description
Dead End
15 Amp
125 Volt
Through Feed
Single Gang*
Receptacle
Hub Assembly
Size Cat. #
1
3
Two Gang**
Receptacle
Assembly
Cat. #
ENR12151
ENR22151
ENR32151
ENRC12151
ENRC22151
ENRC32151
ENR12152
ENR22152
ENR32152
ENRC12152
ENRC22152
ENRC32152
Two Gang
Receptacle
Assembly
Cat. #
ENR12201
ENR22201
ENR32201
ENRC12201
ENRC22201
ENRC32201
ENR12202
ENR22202
ENR32202
ENRC12202
ENRC22202
ENRC32202
Receptacle†
Unit Only
Cat. #
NEMA
Config.
15 A Plug‡
Cat. #
NEMA
Config.
/
2
"
/
4
"
ENR11151
ENR21151
ENR31151
ENRC11151
ENRC21151
ENRC31151
ENR11152
ENR21152
ENR31152
ENRC11152
ENRC21152
ENRC31152
1"
/
2
"
/
4
"
1"
1
3
1
3
ENR5151
ENP5151
5-15R
5-15P
Dead End
15 Amp
250 Volt
Through Feed
/
2
"
/
4
"
1"
1
3
ENR6152
ENP6152
/
2
"
/
4
"
1"
6-15R
6-15P
20 A
Receptacle
20 A Rating
Description
Dead End
20 Amp
125 Volt
Through Feed
Single Gang
Receptacle
Hub Assembly
Size Cat. #
1
3
Receptacle
Unit Only
Cat. #
NEMA
Config.
20 A Plug
Cat. #
NEMA
Config.
/
2
"
/
4
"
ENR11201
ENR21201
ENR31201
ENRC11201
ENRC21201
ENRC31201
ENR11202
ENR21202
ENR31202
ENRC11202
ENRC21202
ENRC31202
1"
/
2
"
/
4
"
1"
1
3
1
3
ENR5201
ENP5201
5-20R
5-20P
Dead End
20 Amp
250 Volt
Through Feed
/
2
"
/
4
"
1"
1
3
ENR6202
ENP6202
/
2
"
/
4
"
1"
6-20R
6-20P
†Receptacle units alone (i.e. ENR5201) are not suitable for Class I, Group B.
*Single gang assemblies purchased with an EDS back box are suitable for Class I, Group B.
**Dual gang assemblies purchased with an EDS back box are suitable for Class I, Group C, D only. For Class I, Group B rating, add the letter B to the Cat. No. Example: ENRB22201. Seals
must be installed within 1
1
/
2
" of each conduit opening.
‡ENP Plugs use #12 or #14 AWG type S, SO, ST or STO cord with range of .540 to .635 inches diameter.
Note:
15A with copper-free aluminum EDS, EDSC back boxes. 20A with
Feraloy
®
iron alloy EDS, EDSC back boxes.
2P
1354
www.crouse-hinds.com
US: 1-866-764-5454
CAN: 1-800-265-0502
Copyright
©
2013 Eaton’s Crouse-Hinds Business
