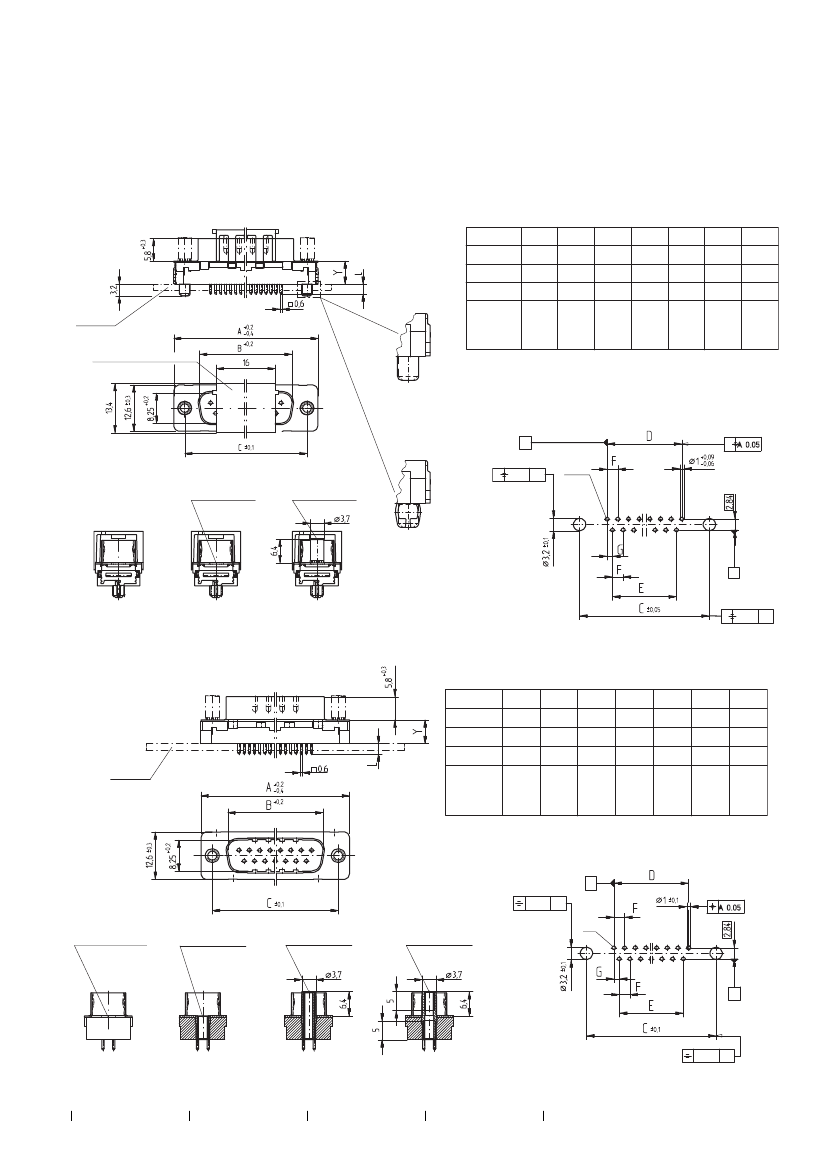

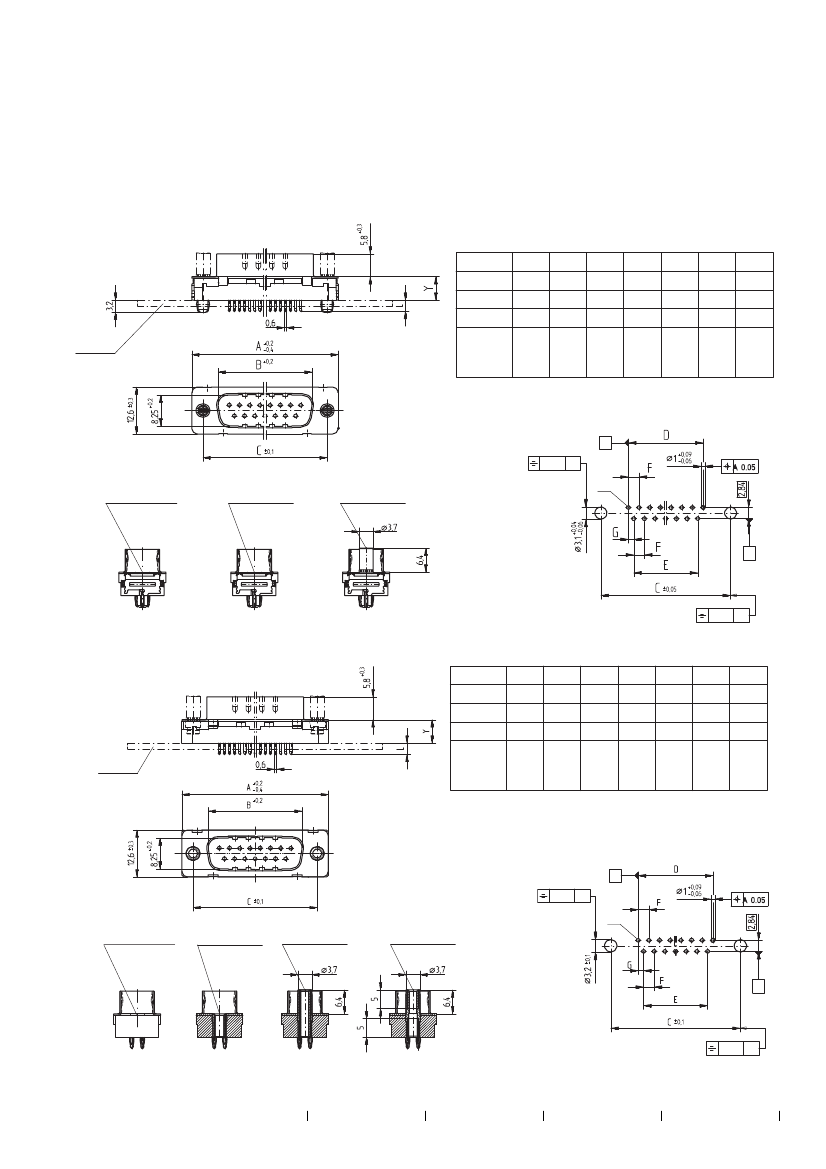

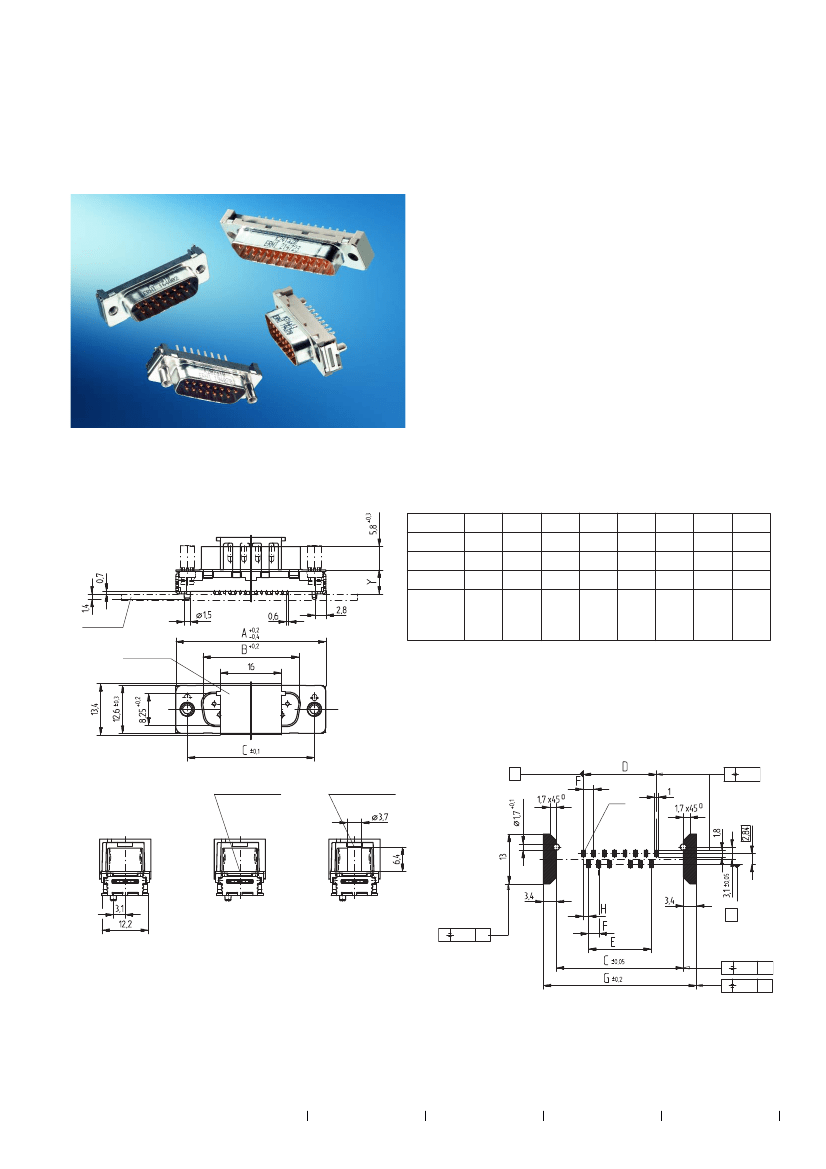

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .138-.163, Receptacle,
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | ERNI |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308 |
| body width | 0.496 inch |
| subject depth | 0.248 inch |
| body length | 2.087 inch |
| Body/casing type | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | STAGGERED |
| Contact resistance | 10 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | YES |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | YES |
| Insulation resistance | 5000000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER |
| MIL compliance | YES |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation option 1 | HOLE .138-.163 |
| Installation option 2 | THREADED |
| Installation method | STRAIGHT |
| Installation type | BOARD AND PANEL |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Rated current (signal) | 7.5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 3/B |
| Terminal length | 0.106 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| UL Flammability Code | 94V-0 |
