PTC17SFCN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PTC17SFCN

PTC17SFCN: DescriptionBoard Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size180KB，2 Pages; ManufacturerSullins Connector Solutions

Download Datasheet Parametric Compare View All

PTC17SFCN Overview

Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle

PTC17SFCN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Sullins Connector Solutions
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MATING LENGTH=0.318 INCHES
body width	0.1 inch
subject depth	0.1 inch
body length	1.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VDC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	P
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.32 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	17

Preview

Download Datasheet

View All

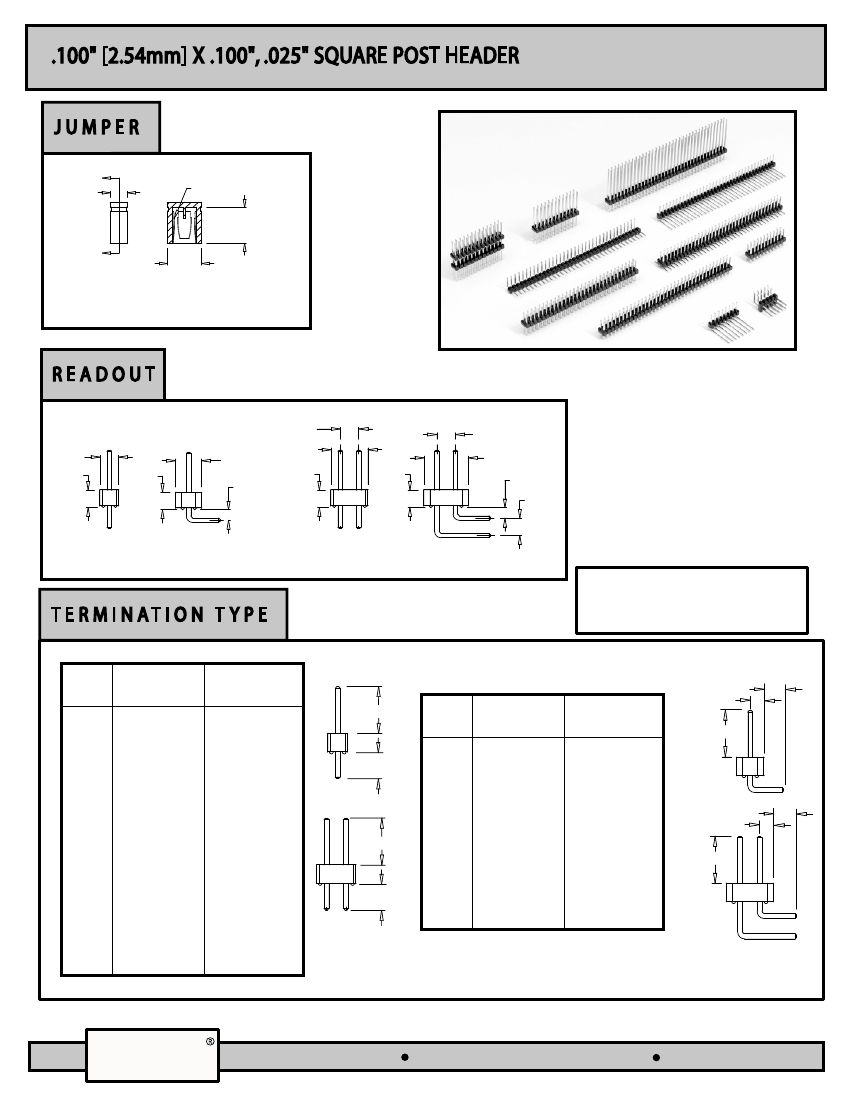

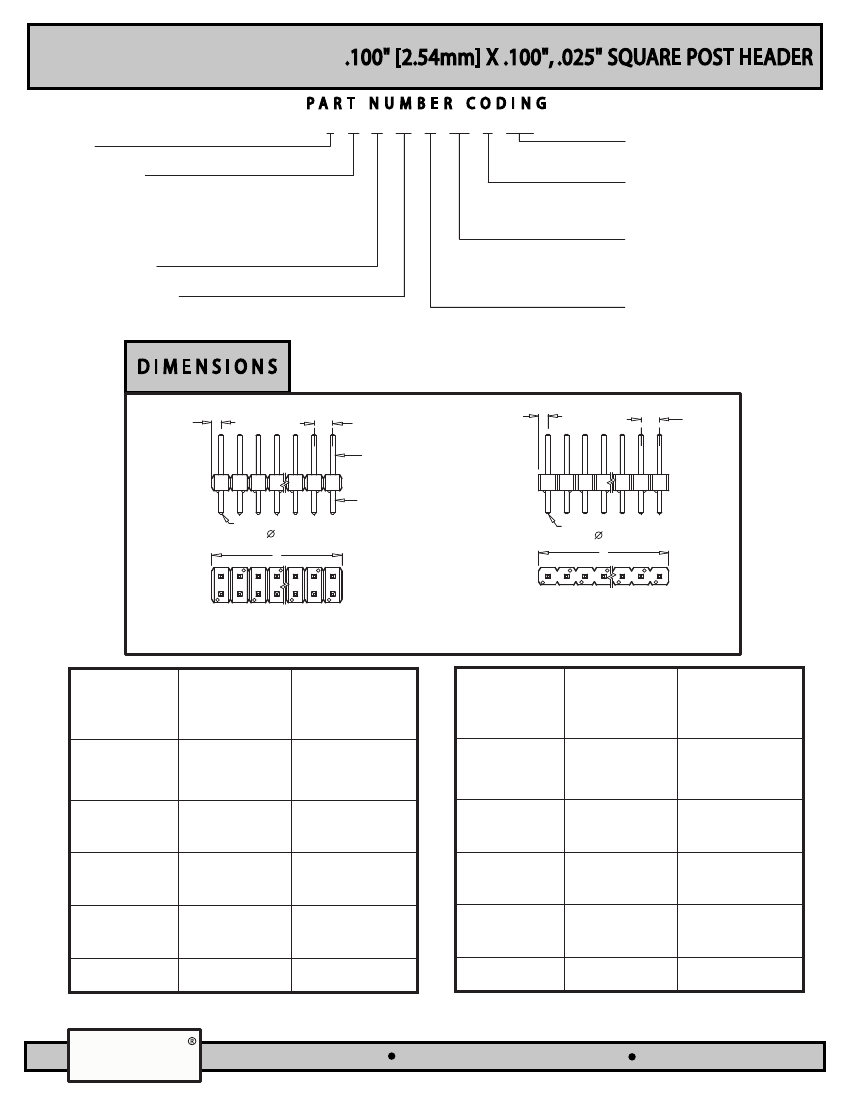

.100 [2.54]

SECTION A-A

DUAL BEAM CONTACTS

.226 INSERTION DEPTH

[5.74]

.200

[5.08]

PART NUMBER:

STC02SYAN (TIN PLATE)

SPC02SYAN (GOLD FLASH)

SSC02SYAN (GOLD PLATE)

.100

[2.54]

.100

[2.54]

.100

[2.54]

.140

[3.56]

.060

[1.52]

.100

[2.54]

.200

[5.08]

.100

[2.54]

.100

[2.54]

.100

[2.54]

.240

[6.10]

.060

[1.52]

.100

[2.54]

FEATURES

* 3 amp current rating

* UL Flammability Rating: 94V-O

* Insulator: Black Thermoplastic Polyester

* Contact Material: Copper Alloy

* Consult Factory for availability of .100" x .100"

Receptacles

SINGLE (S)

DUAL (D)

For more detailed information

please request our seperate

Headers Catalog.

RIGHT ANGLE BEND

P/N

CODE

HEAD

DIMENSIONS

.230

.318

[5.84]

[8.08]

TAIL

DIMENSIONS

.120

.230

.320

.420

[3.05]

[5.84]

[8.13]

[10.67]

HEAD

TAIL

.070 [1.78]

P/N

CODE

BF**

BG**

GC**

GD**

HEAD

DIMENSIONS

.230

[5.84]

TAIL

DIMENSIONS

.100

.200

.300

.400

[3.05]

[5.84]

[8.13]

[10.67]

HEAD

TAIL

.520 [13.21]

.620 [15.75]

.720 [18.29]

.820 [20.83]

.120

.220

.320

.420

.520

.120

.260

.610

[3.05]

[5.59]

[8.13]

[10.67]

[13.21]

[3.05]

[6.60]

[15.49]

HEAD

.230 [5.84]

.318

[8.08]

.500 [13.21]

.600 [15.75]

.700 [18.29]

.100

.200

.300

.400

[3.05]

[5.59]

[8.13]

[10.67]

TAIL

.070 [1.78]

HEAD

TAIL

.120 [3.05]

** Consult factory for availability in dual readout.

s›’’Œ”™

PHONE 760.744.0125

www.SullinsElectronics.com

FAX 760.744.6081

PTC17SFCN Related Products

	PTC17SFCN	PTC18SFCN	PXC30SBAN
Description	Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle	Board Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle	Board Connector, 30 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Sullins Connector Solutions	Sullins Connector Solutions	Sullins Connector Solutions
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	MATING LENGTH=0.318 INCHES	MATING LENGTH=0.318 INCHES	MATING PIN LENGTH=0.230 INCH
subject depth	0.1 inch	0.1 inch	0.173 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL	TIN OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	600VDC V	600VDC V	600VDC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	POLYESTER
JESD-609 code	e0	e0	e0
Manufacturer's serial number	P	P	P
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	1	1	1
Number of rows loaded	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	100u inch	100u inch	30u inch
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	WIRE WRAP	WIRE WRAP	SOLDER
Total number of contacts	17	18	30
body width	0.1 inch	0.1 inch	-
body length	1.7 inch	1.8 inch	-
Rated current (signal)	3 A	3 A	-
Terminal length	0.32 inch	0.32 inch	-
